◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51183 - NMR71-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#51613) — 150 parça

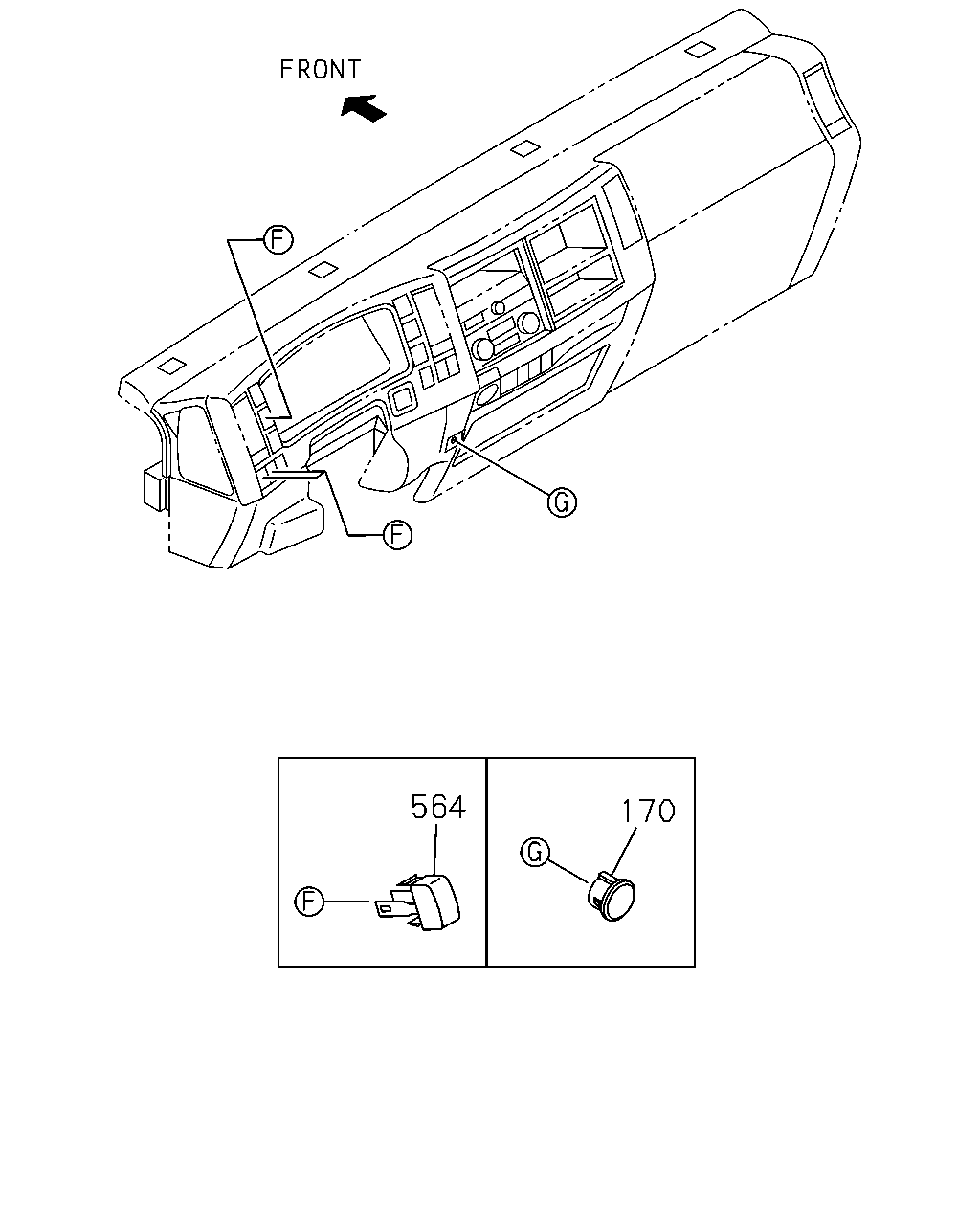

çizim 101289
564 170
BalonParca AdiParca NoAdetTipApplied Date
170 16.165 COVER; HOLE 8-98070-401-2 01 1 0810-
564 16.081 COVER; SW 8-98025-954-1 03 1 0810-
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 0810-

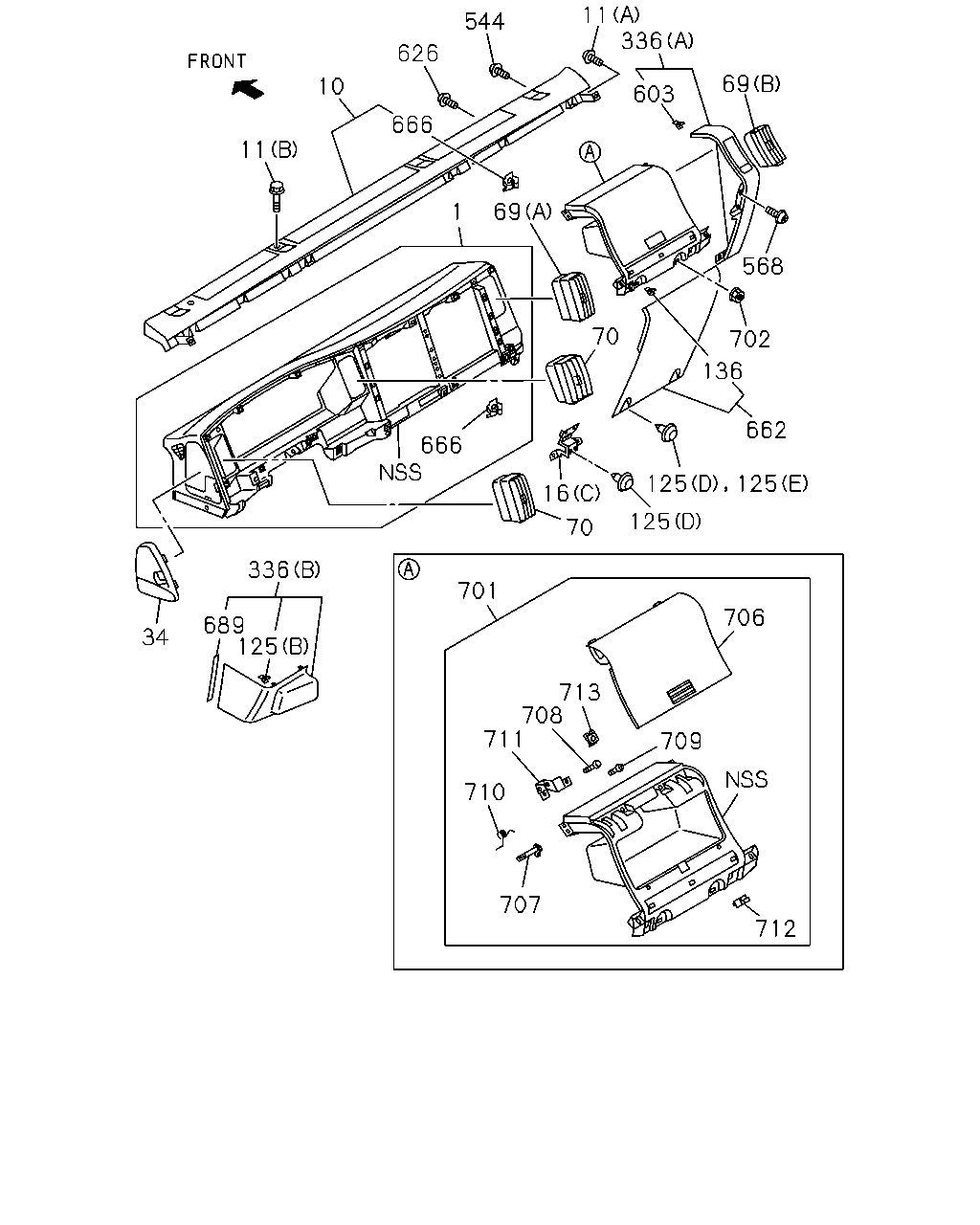

çizim 101329
11 336 544 626 69 10 603 666 11 69 1 568 70 702 136 662 666 125 125 16 125 70 336 701 706 689 125 34 713 708 711 709 710 707 712
BalonParca AdiParca NoAdetTipApplied Date
1 16.080 PANEL; INST
GRAY 		8-97406-004-4 01 1 0810-
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97406-272-4 01 1 0810-1003
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97419-684-5 01 1 1004-
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0810-1101
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 08 1 1102-1212
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1301-
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0810-
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 0810-
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 0810-
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 0810-
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 0810-
34 16.085 LID; OIL TANK
GRAY 		8-97406-003-1 01 1 0810-
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 01 1 0810-
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0810-
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 02 1 0810-
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1002-
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97418-529-0 02 1 0910-0911
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 04 1 0810-0909
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 0910-0911
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 04 1 0912-1001
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 1002-
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 0810-
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 0810-
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 0810-
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 01 1 0810-1003
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 01 1 0810-1003
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1004-
136 16.085 CLIP; INST COVER 8-98021-271-0 05 1 0810-
336 16.081 COVER; INST PANEL SIDE
PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97415-670-1 01 1 0810-
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97406-002-3 01 1 0810-
336 16.081 COVER; INST PANEL SIDE
EXC. PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97406-000-4 01 1 0810-
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0810-1101
544 16.085 SCREW; TRAY
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301-
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0810-1101
568 09.744 BOLT; COVER
16.090 SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 0810-
603 16.090 CLIP; COVER
16.085 		8-98021-271-0 01 1 0810-
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 0810-
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97406-260-1 01 1 0810-
666 16.085 INSERT; INST PANEL 8-98037-629-0 02 1 0810-1003
666 16.085 INSERT; INST PANEL 8-98037-629-0 15 1 0810-
689 09.743 SEAL; INST
EXC. PTO MANUAL CONTROL(6WC) 		8-98068-244-0 01 1 0810-
701 16.100 TRAY; INST
GRAY 		8-97406-268-4 01 1 0810-
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 0810-
706 16.081 LID; TRAY INST
GRAY 		8-97409-510-0 01 1 0810-
707 09.744 SHAFT; TRAY INST LID 8-98035-730-1 02 1 0810-1311
707 09.744 SHAFT; TRAY INST LID 8-97926-393-0 02 1 1312-
708 16.100 STOPPER; TRAY INST LID 8-98010-867-1 02 1 0810-
709 16.085 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 0810-
710 09.744 SPRING; TRAY INST LID
16.110 		8-98034-986-0 01 1 0810-1311
710 09.744 SPRING; TRAY INST LID 8-97926-398-0 01 1 1312-
710 09.744 SPRING; TRAY INST LID
16.110 		8-98034-987-0 01 1 0810-1311
710 09.744 SPRING; TRAY INST LID 8-97926-399-0 01 1 1312-
711 16.100 HOLDER ASM; LID
16.081 		8-98034-928-0 01 1 0810-1311
711 16.100 HOLDER ASM; LID
16.081 		8-97926-396-0 01 1 1312-
711 16.100 HOLDER ASM; LID
16.081 		8-98034-929-0 01 1 0810-1311
711 16.100 HOLDER ASM; LID
16.081 		8-97926-397-0 01 1 1312-
712 16.110 LOCK; TRAY INST LID 8-98031-846-0 01 1 0810-
713 16.069 NUT; TRAY INST LID
08.845 M5 		1-09984-196-0 04 1 0810-1311
713 16.069 NUT; TRAY INST LID
16.085 M5 		8-97926-400-0 04 1 1312-

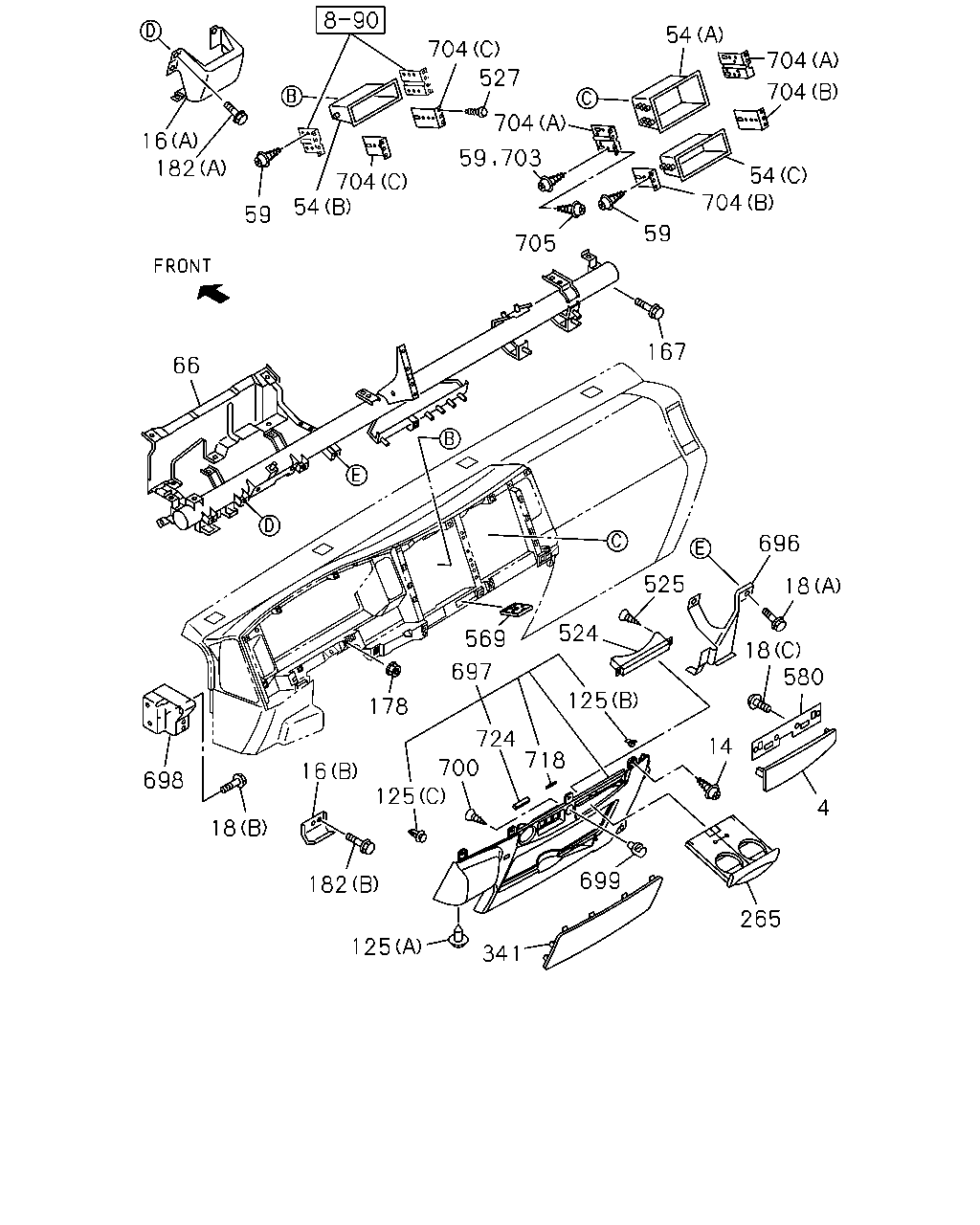

çizim 101331
167 59 705 703 704 59 527 704 704 54 59 182 16 54 704 704 54 704 696 18 18 525 125 524 14 4 265 699 718 724 700 125 182 18 698 16 178 697 569 66 341 125
BalonParca AdiParca NoAdetTipApplied Date
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 0810-
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0810-1101
14 16.085 SCREW; INST PNL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301-
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 0810-
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 0810-
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 0810-
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 0810-
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 0810-
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0810-1101
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301-
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 0810-
54 16.100 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 0810-
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0810-
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 0810-
54 16.100 POCKET; CENTER CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.8 BLACK 		8-97408-865-3 01 1 0810-
59 16.100 SCREW; CLUSTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0812-1008
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0810-1008
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1009-
59 16.100 SCREW; CLUSTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1009-
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1009-
66 16.085 REINFORCEMENT; INST PANEL
EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98192-942-0 01 1 1310-
66 16.085 REINFORCEMENT; INST PANEL 8-98098-026-3 01 1 0810-1309
66 16.085 REINFORCEMENT; INST PANEL
KD PREPARATORY PACK VAR.4<7TV> 		8-98098-026-3 01 1 1310-
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1002-
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97418-529-0 02 1 0910-0911
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 04 1 0810-0909
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 0910-0911
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 04 1 0912-1001
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 1002-
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 0810-
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 0810-
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 0810-
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 01 1 0810-1003
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 01 1 0810-1003
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1004-
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 0810-
178 16.085 NUT; INST PANEL
01.062 M6 FLANGE 		0-91180-106-0 01 1 0810-
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0810-1101
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301-
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0810-1101
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1102-1212
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301-
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97407-897-2 01 1 0810-0909
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 0910-
341 16.110 LID; FUSE BOX
GRAY 		8-97406-043-1 01 1 0810-1205
341 16.110 LID; FUSE BOX
GRAY 		8-97423-659-0 01 1 1206-
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 0810-
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0810-1101
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1102-1212
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301-
527 16.100 CLIP; INST CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 0810-
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 0810-
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 0810-
696 16.085 BRACKET; KNEE 8-98098-126-0 01 1 0810-1109
696 16.085 BRACKET; KNEE 8-98071-234-0 01 1 1110-1211
696 16.085 BRACKET; KNEE 8-98201-847-0 01 1 1212-
697 16.080 PANEL; INST CENTER
GRAY 		8-97405-999-8 01 1 0810-1205
697 16.080 PANEL; INST CENTER
GRAY 		8-97423-657-1 01 1 1206-
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 0810-
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 0810-
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0810-
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0810-1101
700 16.090 BOLT; HOOK
SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
703 16.085 SCREW; CENTER POCKET
16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0810-
704 16.085 BRACKET; CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98107-549-0 02 1 0810-
704 16.085 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0810-
704 16.085 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0810-
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0811-0811
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 0810-1101
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 08 1 1102-1204
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1205-1212
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1205-1212
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301-
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301-
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0810-1101
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1102-1212
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301-
718 16.100 SEAL; COVER
5X30 		8-98176-199-0 01 1 1206-
718 16.100 SEAL; COVER
8X80 		8-98200-040-0 01 1 1110-
718 16.100 SEAL; COVER
4X35 		8-98200-041-0 01 1 1110-
724 16.085 INSULATOR; INST PANEL 8-98200-042-0 01 1 1110-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
