Sayfa 7-30 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51183 - NMR71-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶

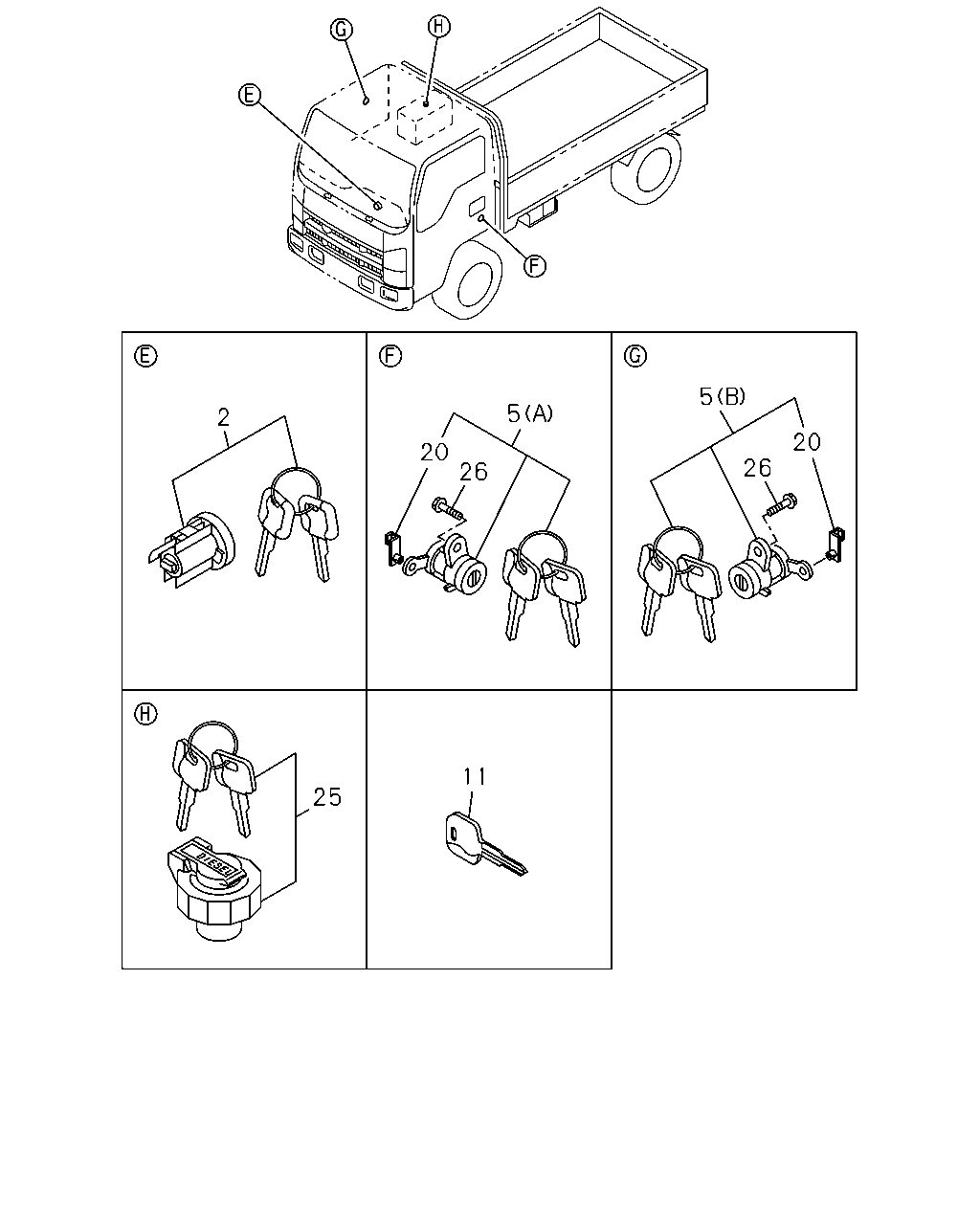

7-30 — LOCK CYLINDER SET (#51612) — 48 parça

5 5 2 20 20 26 26 11 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.188 BARREL ASM; W/KEY,STRG LOCK EXC. ISUZU BRAND<7WL>	8-98055-160-0	01	1	0810-1203
2	02.188 BARREL ASM; W/KEY,STRG LOCK EXC. ISUZU BRAND<7WL>	8-98201-352-0	01	1	1204-
2	02.188 BARREL ASM; W/KEY,STRG LOCK EXC. FUEL TANK CAP W/LOCK<N05>	8-98055-148-0	01	1	0810-0810
2	02.188 BARREL ASM; W/KEY,STRG LOCK FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05>	8-98055-148-0	01	1	0810-0810
2	02.188 BARREL ASM; W/KEY,STRG LOCK ISUZU BRAND<7WL>	8-98055-148-0	01	1	0810-1203
2	02.188 BARREL ASM; W/KEY,STRG LOCK ISUZU BRAND<7WL>	8-98201-342-0	01	1	1204-
5	16.328 CYLINDER ASM; DOOR LOCK EXC. ISUZU BRAND<7WL> (B)	8-98055-161-0	01	1	0810-
5	16.328 CYLINDER ASM; DOOR LOCK EXC. ISUZU BRAND<7WL> (A)	8-98055-162-0	01	1	0810-
5	16.328 CYLINDER ASM; DOOR LOCK EXC. FUEL TANK CAP W/LOCK<N05> (B)	8-98055-149-0	01	1	0810-0810
5	16.328 CYLINDER ASM; DOOR LOCK FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05> (B)	8-98055-149-0	01	1	0810-0810
5	16.328 CYLINDER ASM; DOOR LOCK ISUZU BRAND<7WL> (B)	8-98055-149-0	01	1	0810-
5	16.328 CYLINDER ASM; DOOR LOCK EXC. FUEL TANK CAP W/LOCK<N05> (A)	8-98055-150-0	01	1	0810-0810
5	16.328 CYLINDER ASM; DOOR LOCK FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05> (A)	8-98055-150-0	01	1	0810-0810
5	16.328 CYLINDER ASM; DOOR LOCK ISUZU BRAND<7WL> (A)	8-98055-150-0	01	1	0810-
11	02.187 KEY; BLANK EXC. ISUZU BRAND<7WL>	8-98055-171-0	AR	1	0810-
11	02.187 KEY; BLANK EXC. FUEL TANK CAP W/LOCK<N05>	8-98055-170-0	AR	1	0810-0810
11	02.187 KEY; BLANK FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05>	8-98055-170-0	AR	1	0810-0810
11	02.187 KEY; BLANK ISUZU BRAND<7WL>	8-98055-170-0	AR	1	0810-
20	16.328 SNAP; DOOR LOCK CYL EXC. FUEL TANK CAP W/LOCK<N05>	8-98055-181-0	01	1	0810-0810
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05>	8-98055-181-0	01	1	0810-0810
20	16.328 SNAP; DOOR LOCK CYL	8-98055-181-0	01	1	0810-
20	16.328 SNAP; DOOR LOCK CYL EXC. FUEL TANK CAP W/LOCK<N05>	8-98055-182-0	01	1	0810-0810
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05>	8-98055-182-0	01	1	0810-0810
20	16.328 SNAP; DOOR LOCK CYL	8-98055-182-0	01	1	0810-
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05> EXC. ISUZU BRAND<7WL>	8-98088-980-0	01	1	0810-0912
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05> EXC. ISUZU BRAND<7WL>	8-98146-014-0	01	1	1001-
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05>	8-98088-982-0	01	1	0810-0810
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL>	8-98088-982-0	01	1	0810-0912
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL>	8-98146-010-0	01	1	1001-
26	16.328 BOLT; KEY CYL,DOOR M6X8 FLANGE	8-98031-839-0	02	1	0810-

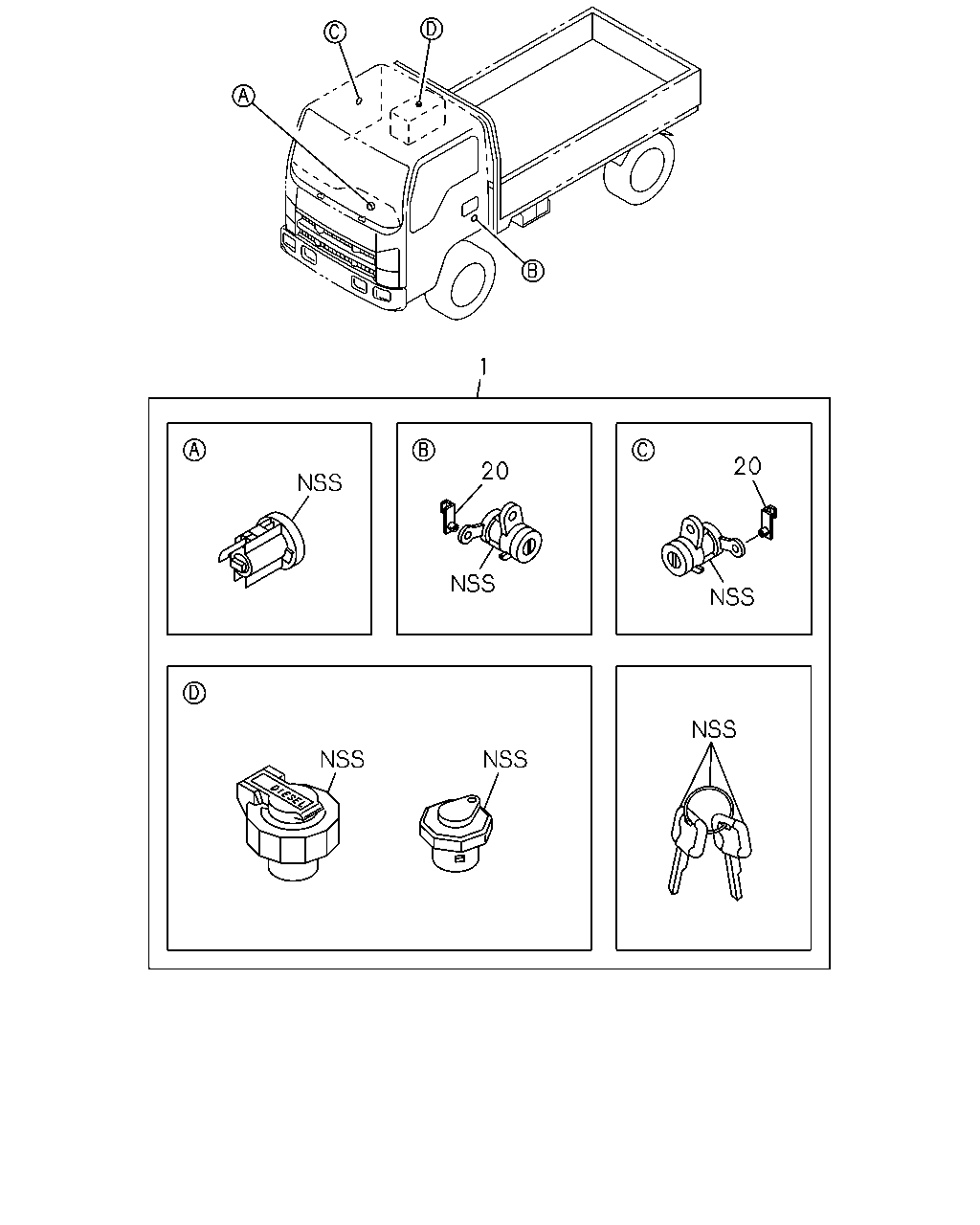

1 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> EXC. ISUZU BRAND<7WL>	8-98115-300-0	01	1	0810-0912
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> EXC. ISUZU BRAND<7WL>	8-98146-009-0	01	1	1001-1203
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> EXC. ISUZU BRAND<7WL>	8-98201-230-0	01	1	1204-
1	02.188 CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP W/LOCK<N05>,ISUZU BRAND<7WL>	8-98031-807-1	01	1	0810-1203
1	02.188 CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP W/LOCK<N05>,ISUZU BRAND<7WL>	8-98201-158-0	01	1	1204-
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05>	8-98088-954-0	01	1	0810-0810
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL>	8-98088-954-0	01	1	0810-0912
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL>	8-98145-979-0	01	1	1001-1203
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL>	8-98201-216-0	01	1	1204-
1	02.188 CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP W/LOCK<N05>	8-98056-003-0	01	1	0810-0810
1	02.188 CYLINDER SET; CAR LOCK ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05>	8-98056-003-0	01	1	0810-1203
1	02.188 CYLINDER SET; CAR LOCK ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05>	8-98201-161-0	01	1	1204-
20	16.328 SNAP; DOOR LOCK CYL EXC. FUEL TANK CAP W/LOCK<N05>	8-98055-181-0	01	1	0810-0810
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05>	8-98055-181-0	01	1	0810-0810
20	16.328 SNAP; DOOR LOCK CYL	8-98055-181-0	01	1	0810-
20	16.328 SNAP; DOOR LOCK CYL EXC. FUEL TANK CAP W/LOCK<N05>	8-98055-182-0	01	1	0810-0810
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05>	8-98055-182-0	01	1	0810-0810
20	16.328 SNAP; DOOR LOCK CYL	8-98055-182-0	01	1	0810-
