Sayfa 6-90 - Isuzu EPC

6-90 — REAR BUMPER (#51608) — 47 parça

133 134 136 133 134 136 243 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
120	07.800 BOLT WHEEL BASE 2400MM(24W) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0810-
133	07.112 HOOK REAR WIDE TREAD(V4T) 07.068 (B)	8-97387-665-0	01	1	0810-
133	07.112 HOOK EXC. REAR WIDE TREAD(V4T) 07.330 (A)	8-94183-262-0	01	1	0810-
134	07.068 BOLT; HOOK REAR WIDE TREAD(V4T) EXC. IDENTIFICATION LABEL FOR KD<6UT> M14X60	0-10861-460-0	02	1	1012-
134	07.068 BOLT; HOOK REAR WIDE TREAD(V4T) 07.039 M14X50	0-10856-450-0	02	1	0810-1011
134	07.068 BOLT; HOOK REAR WIDE TREAD(V4T) IDENTIFICATION LABEL FOR KD<6UT> 07.039 M14X50	0-10856-450-0	02	1	1012-
134	07.068 BOLT; HOOK EXC. REAR WIDE TREAD(V4T) 00.685 M10X45 FLANGE	0-28051-045-0	02	1	0810-
136	07.068 NUT; HOOK REAR WIDE TREAD(V4T) 00.429 M14 FLANGE	0-91180-214-0	02	1	0810-
136	07.068 NUT; HOOK EXC. REAR WIDE TREAD(V4T) 00.833 M10	0-91110-510-0	02	1	0810-
243	07.869 BRACKET WHEEL BASE 2400MM(24W) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW>	8-98030-084-0	01	1	0810-
243	07.869 BRACKET WHEEL BASE 2400MM(24W) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW>	8-98030-085-0	01	1	0810-

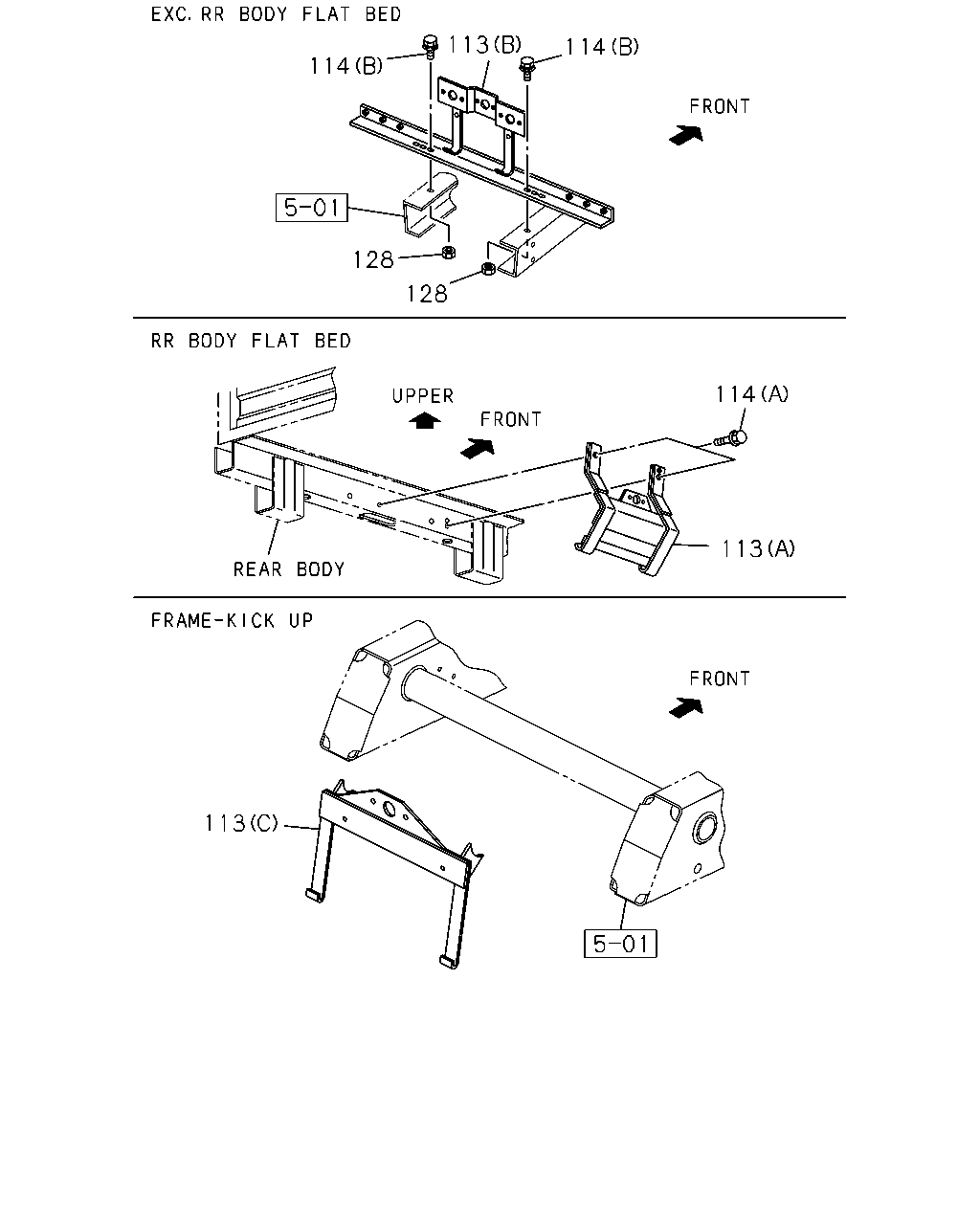

113 113 114 128 128 114 113 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
113	07.800 BRACKET; LICENSE PLATE RR BODY FLAT BED<RS6> (A)	8-97077-573-2	01	1	0810-
113	07.800 BRACKET; LICENSE PLATE WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> 07.039 (C)	8-97033-248-2	01	1	0810-
113	07.800 BRACKET; LICENSE PLATE EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) (B)	8-98029-390-3	01	1	0810-0906
113	07.800 BRACKET; LICENSE PLATE O/SIDE MIRROR RR VIEW LONG ARM<DH2>, O/SIDEMIRROR ASSIST SIDE MANUAL LONG STAY<6TF>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. RR BODY FLAT BED<RS6> (B)	8-98029-390-3	01	1	0907-0907
113	07.800 BRACKET; LICENSE PLATE O/SIDE MIRROR RR VIEW LONG ARM<DH2>, O/SIDEMIRROR ASSIST SIDE MANUAL LONG STAY<6TF>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) (B)	8-98029-390-3	01	1	0908-0912
113	07.800 BRACKET; LICENSE PLATE EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) (B)	8-98029-390-3	01	1	1001-
114	07.800 BOLT; BRKT,LICENSE PLATE RR BODY FLAT BED<RS6> 00.685 (A) M6X25 FLANGE	0-28650-625-0	02	1	0810-
114	07.800 BOLT; BRKT,LICENSE PLATE EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 00.685 (B) M8X40 FLANGE	0-28650-840-0	02	1	0810-
128	02.662 NUT; CROSS PLATE EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 01.062 M8 FLANGE	0-91180-108-0	02	1	0810-

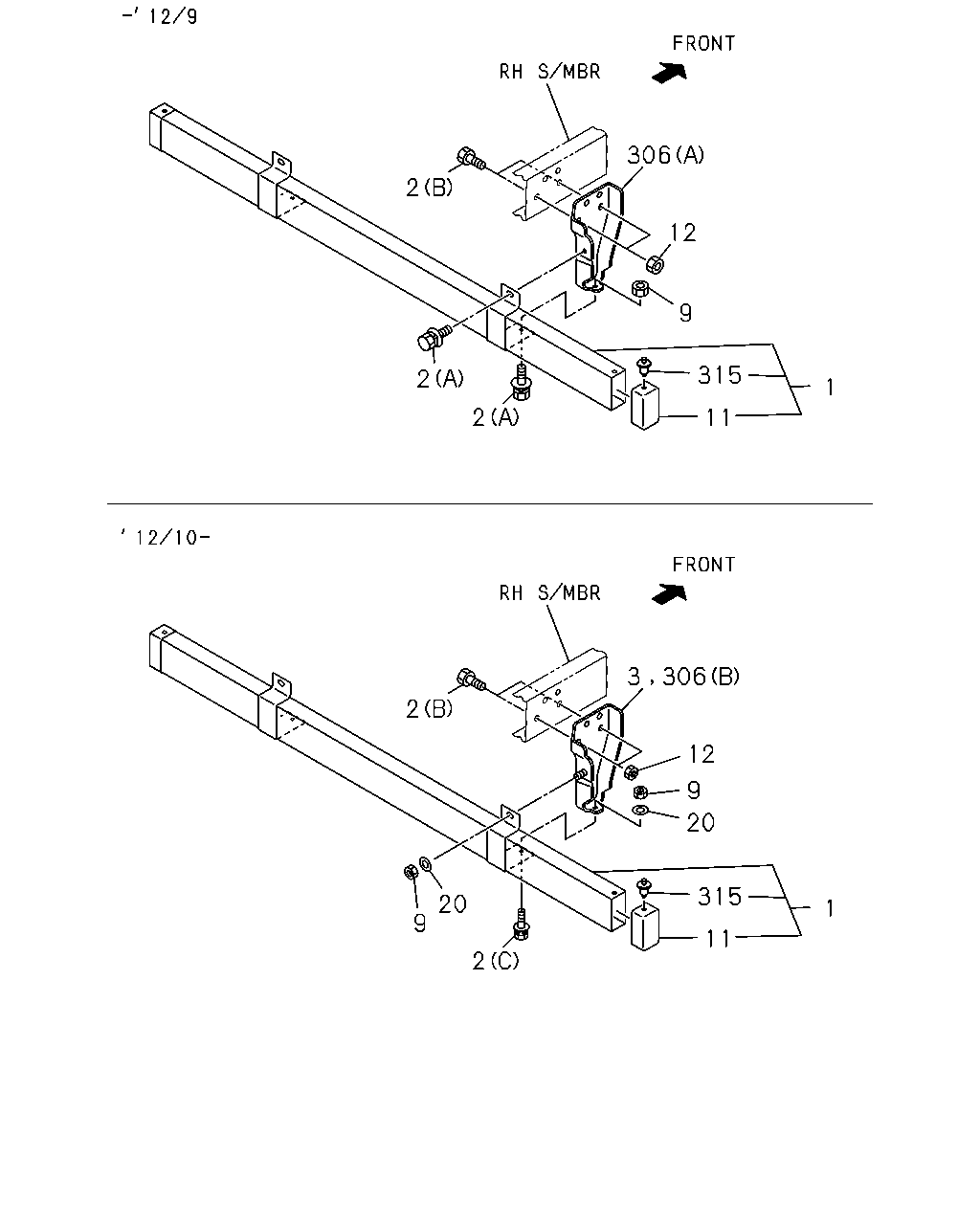

2 2 2 11 1 315 9 12 306 2 9 20 2 11 315 20 9 12 3 306 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.070 BUMPER; RR WIDE STEEL REAR BUMPER<SMS> DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T) STAMP D IJ2G	8-98045-850-0	01	1	0810-
1	07.070 BUMPER; RR WIDE STEEL REAR BUMPER<SMS> REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D) STAMP IJ2H	8-98000-145-1	01	1	0810-
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS> 01.271 (A) M10X30	8-94324-205-0	04	1	0810-1209
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS> 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1210-
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS> DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) M14X30	0-20851-430-0	06	1	0810-0904
2	07.874 BOLT; BACK BAR WHEEL BASE 2400MM(24W) WIDE STEEL REAR BUMPER<SMS> DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) M14X30	0-20851-430-0	06	1	0905-
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS> EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> (B) M14X30	0-20851-430-0	08	1	0810-
3	07.875 BRACKET; BUMPER WHEEL BASE 2400MM(24W) SAUDI ARABIA EQUIPMENT(GH3) WIDE STEEL REAR BUMPER<SMS> EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> 07.836 STAMP IA1	8-98208-979-0	01	1	1308-
3	07.875 BRACKET; BUMPER WHEEL BASE 2400MM(24W) SAUDI ARABIA EQUIPMENT(GH3) WIDE STEEL REAR BUMPER<SMS> EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> 07.836 STAMP IA1	8-98208-980-0	01	1	1308-
9	07.070 NUT; BUMPER WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE	0-91180-210-0	02	1	0810-1209
9	07.070 NUT; BUMPER WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE	0-91180-210-0	04	1	1210-
11	07.829 CAP; RR BUMPER WIDE STEEL REAR BUMPER<SMS>	8-97174-008-0	02	1	0810-
12	07.833 NUT; BRKT WIDE STEEL REAR BUMPER<SMS> EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> 00.429 M14 FLANGE	0-91180-214-0	08	1	0810-
20	07.070 WASHER; PL,BUMPER WIDE STEEL REAR BUMPER<SMS> 00.002 ID=10.5 OD=32	0-91614-810-0	04	1	1210-
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (A) STAMP IE	8-98001-798-0	01	1	0810-1209
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) STAMP IE	8-98211-482-0	01	1	1210-
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (A) STAMP IE	8-98001-799-0	01	1	0810-1209
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) STAMP IE	8-98211-483-0	01	1	1210-
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> (A) STAMP IA1	8-98039-406-0	01	1	0810-1209
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> (B) STAMP IA1	8-98208-979-0	01	1	1210-1307
306	07.836 BAR; BACK,RR WHEEL BASE 2400MM(24W) WIDE STEEL REAR BUMPER<SMS> EXC. SAUDI ARABIA EQUIPMENT(GH3),DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> (B) STAMP IA1	8-98208-979-0	01	1	1308-
306	07.836 BAR; BACK,RR WHEEL BASE 3300MM(33W) WIDE STEEL REAR BUMPER<SMS> EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> (B) STAMP IA1	8-98208-979-0	01	1	1308-
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> (A) STAMP IA1	8-98039-407-0	01	1	0810-1209
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> (B) STAMP IA1	8-98208-980-0	01	1	1210-1307
306	07.836 BAR; BACK,RR WHEEL BASE 2400MM(24W) WIDE STEEL REAR BUMPER<SMS> EXC. SAUDI ARABIA EQUIPMENT(GH3),DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> (B) STAMP IA1	8-98208-980-0	01	1	1308-
306	07.836 BAR; BACK,RR WHEEL BASE 3300MM(33W) WIDE STEEL REAR BUMPER<SMS> EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> (B) STAMP IA1	8-98208-980-0	01	1	1308-
315	07.829 RIVET; CAP WIDE STEEL REAR BUMPER<SMS> 08.155 D8X13.5	1-09987-248-1	04	1	0810-
