◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10722 - CXH RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#5159) — 22 parça

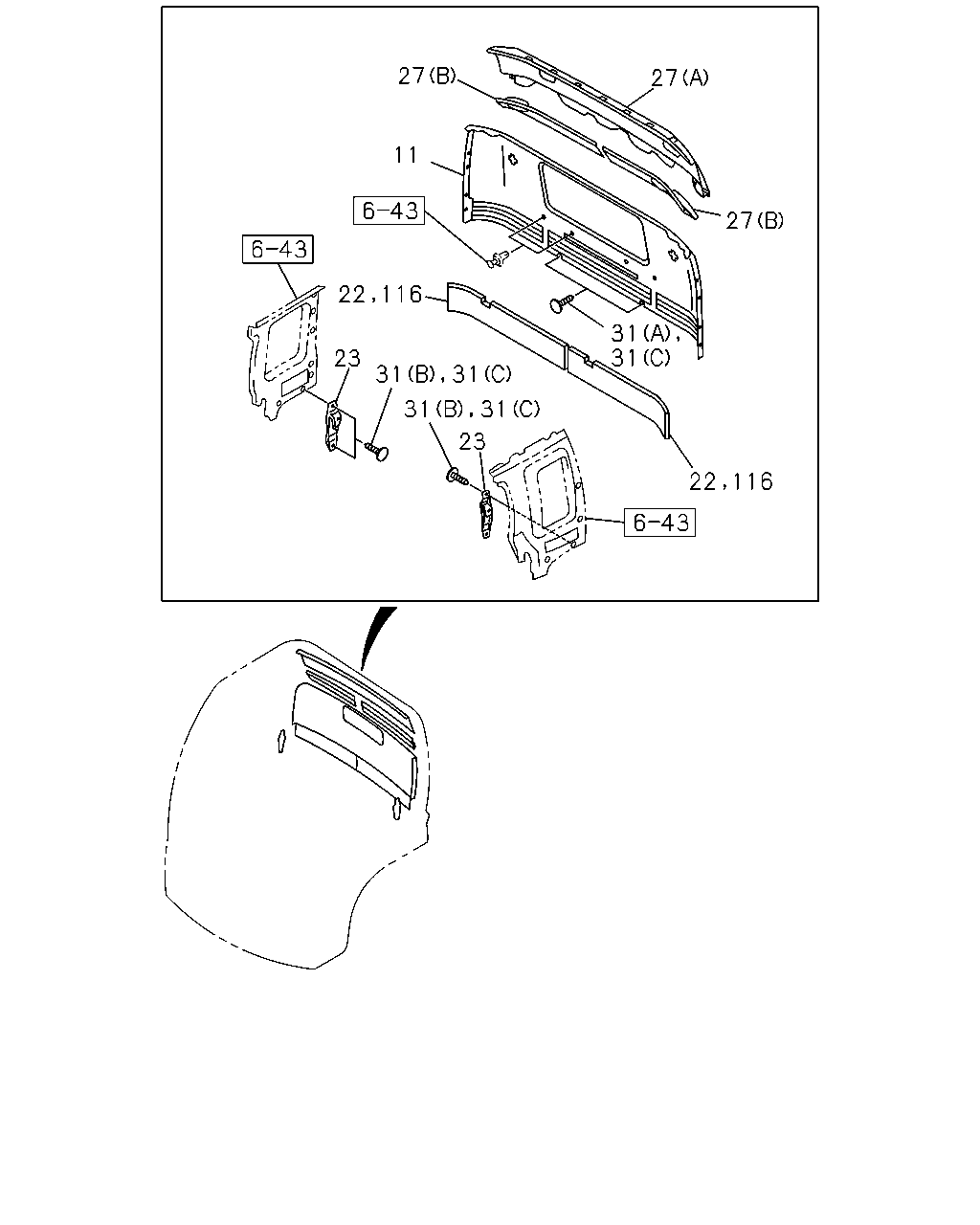

çizim 41052
27 27 11 27 31 31 23 23 22 116 31 31 31 31 22 116
BalonParca AdiParca NoAdetTipApplied Date
11 TRIM; ROOM,BACK INNER 1-73347-796-3 01 1 9606-9905
11 TRIM; ROOM,BACK INNER
CENTER SEAT DELETE(SP9) EXC. DELUXE CAB<W14> 		1-73347-796-3 01 1 9906-
11 TRIM; ROOM,BACK INNER
EXC. CENTER SEAT DELETE(SP9) 		1-73347-796-3 01 1 9906-
11 TRIM; ROOM,BACK INNER
CENTER SEAT DELETE(SP9) DELUXE CAB<W14> 		1-73347-852-1 01 1 9906-
11 TRIM; ROOM,BACK INNER
CENTER SEAT DELETE(SP9) DELUXE CAB<W14> 		1-73347-852-1 01 1 9906-
22 SHEET; SILENCER,CAB FLOOR 1-73367-015-0 02 1 9606-9803
23 FINISHER; BACK INNER PANEL 1-73347-789-1 01 1 9606-
23 FINISHER; BACK INNER PANEL 1-73347-788-1 01 1 9606-
27 COVER; TRIM,BACK
(B) 		1-73347-767-5 01 1 9606-9905
27 COVER; TRIM,BACK
SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F> (B) 		1-73347-769-3 01 1 9906-
27 COVER; TRIM,BACK
(B) 		1-73347-766-5 01 1 9606-9905
27 COVER; TRIM,BACK
SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F> (B) 		1-73347-768-3 01 1 9906-
27 COVER; TRIM,BACK
HIGH ROOF<S2F> EXC. SPEAKER SYSTEM 4 SPEAKER<NBV> (A) 		1-73347-806-2 01 1 9906-
27 COVER; TRIM,BACK
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (A) 		1-73347-746-3 01 1 9906-
27 COVER; TRIM,BACK
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (B) 		1-73347-767-5 01 1 9906-
27 COVER; TRIM,BACK
EXC. SPEAKER SYSTEM 4 SPEAKER<NBV> (B) 		1-73347-767-5 01 1 9906-
27 COVER; TRIM,BACK
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (B) 		1-73347-766-5 01 1 9906-
27 COVER; TRIM,BACK
EXC. SPEAKER SYSTEM 4 SPEAKER<NBV> (B) 		1-73347-766-5 01 1 9906-
31 CLIP; TRIM PAD
(B) D6X23 BEIGE 		1-09987-225-0 04 1 9606-9606
31 CLIP; TRIM PAD
(A) D6X23 DARK GRAY 		1-09987-238-0 20 1 9606-9606
31 CLIP; TRIM PAD
(C) '960617- D6X23 DARK GRAY 		1-09987-238-0 24 1 9606-
116 INSULATOR; BACK PANEL 1-73367-019-0 02 1 9804-
