4-80 — ROAD WHEEL (#51581) — 46 parça

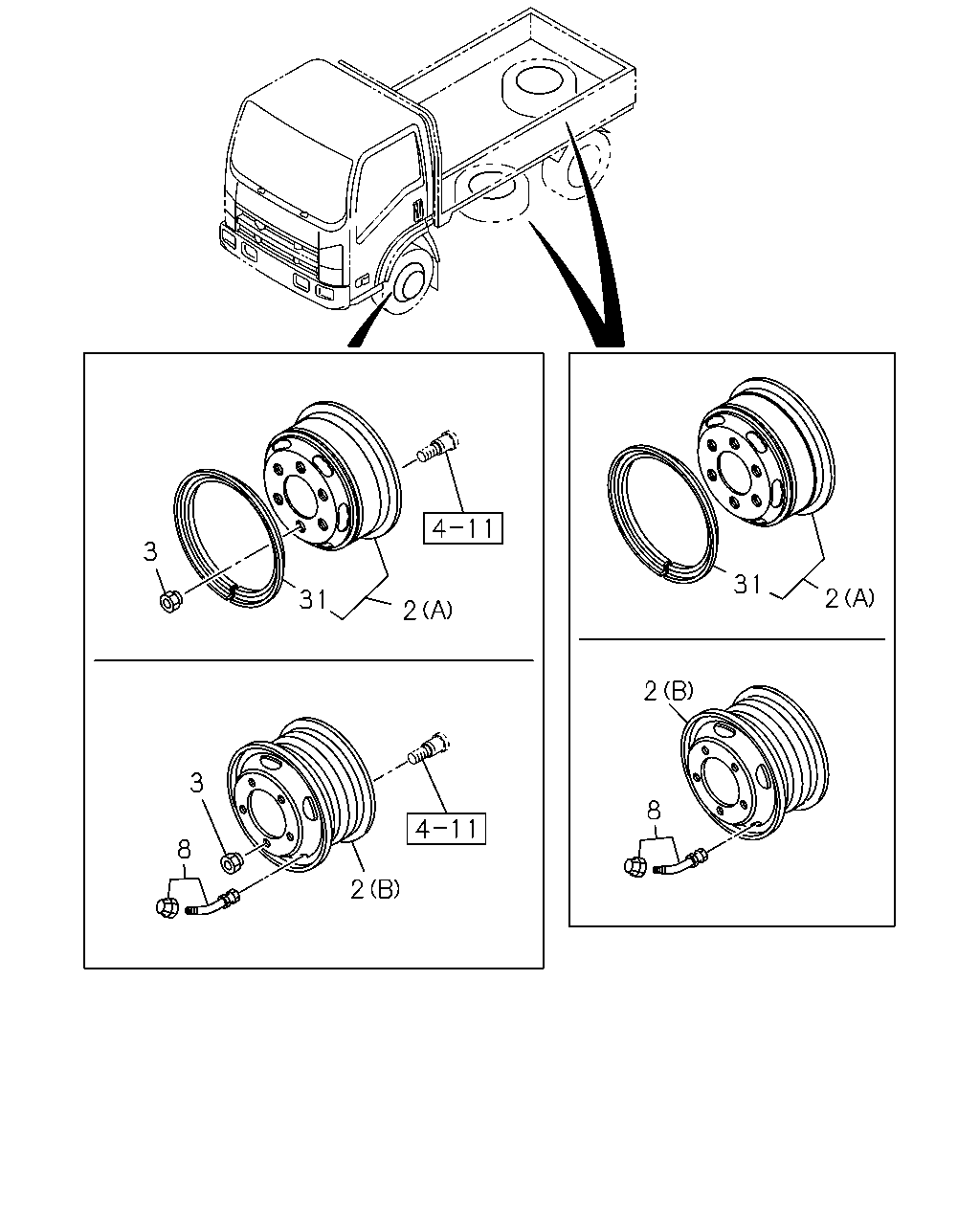

3 31 2 2 8 3 31 2 2 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	05.803 WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) ,FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5 .5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	0810-0810
2	05.803 WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) ,FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	0810-
2	05.803 WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) ,FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5 .5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	0810-0810
2	05.803 WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) ,FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	0810-
2	05.803 WHEEL; DISC FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	0810-
2	05.803 WHEEL; DISC FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	0810-
2	05.803 WHEEL; DISC FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	01	1	0810-0810
2	05.803 WHEEL; DISC FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	01	1	0810-
2	05.803 WHEEL; DISC FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	06	1	0810-0810
2	05.803 WHEEL; DISC FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	06	1	0810-
3	05.813 NUT; WHEEL,FRT AXLE M18 RH THREAD	8-98007-907-0	05	1	0810-
3	05.813 NUT; WHEEL,FRT AXLE M18 LH THREAD	8-98007-908-0	05	1	0810-
8	05.875 VALVE; TIRE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC)	8-98221-106-0	01	1	1207-
8	05.875 VALVE; TIRE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC)	8-98221-106-0	06	1	1207-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) ,FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5 .5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	0810-0810
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) ,FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	0810-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) ,FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5 .5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	06	1	0810-0810
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) ,FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	06	1	0810-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	0810-0810
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	0810-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	06	1	0810-0810
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	06	1	0810-

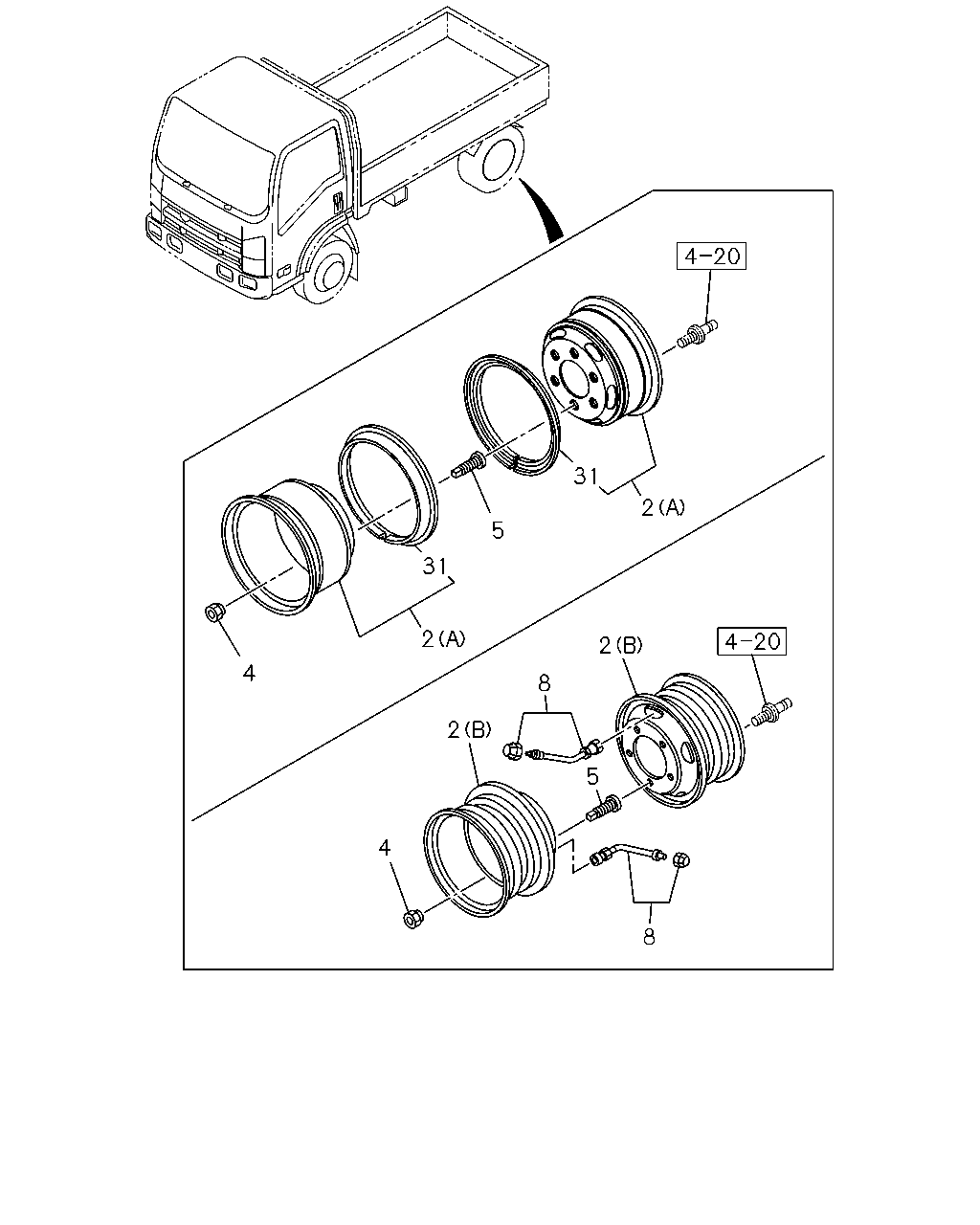

31 5 31 2 4 4 2 8 2 8 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	05.803 WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) ,FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5 .5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	0810-0810
2	05.803 WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) ,FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	0810-
2	05.803 WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) ,FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5 .5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	0810-0810
2	05.803 WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) ,FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	0810-
2	05.803 WHEEL; DISC FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	0810-
2	05.803 WHEEL; DISC FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	0810-
2	05.803 WHEEL; DISC FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	01	1	0810-0810
2	05.803 WHEEL; DISC FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	01	1	0810-
2	05.803 WHEEL; DISC FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	06	1	0810-0810
2	05.803 WHEEL; DISC FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	06	1	0810-
4	05.813 NUT; WHEEL,RR AXLE M27 RH THREAD	8-98007-824-0	05	1	0810-
4	05.813 NUT; WHEEL,RR AXLE M27 LH THREAD	8-98007-825-0	05	1	0810-
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	0810-
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	0810-
8	05.875 VALVE; TIRE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC)	8-98221-106-0	01	1	1207-
8	05.875 VALVE; TIRE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC)	8-98221-106-0	06	1	1207-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) ,FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5 .5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	0810-0810
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) ,FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	0810-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) ,FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5 .5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	06	1	0810-0810
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) ,FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	06	1	0810-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	0810-0810
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	0810-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	06	1	0810-0810
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	06	1	0810-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
