Isuzu WW
▶
TRUCKS
▶
NMR
▶
51183 - NMR71-LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

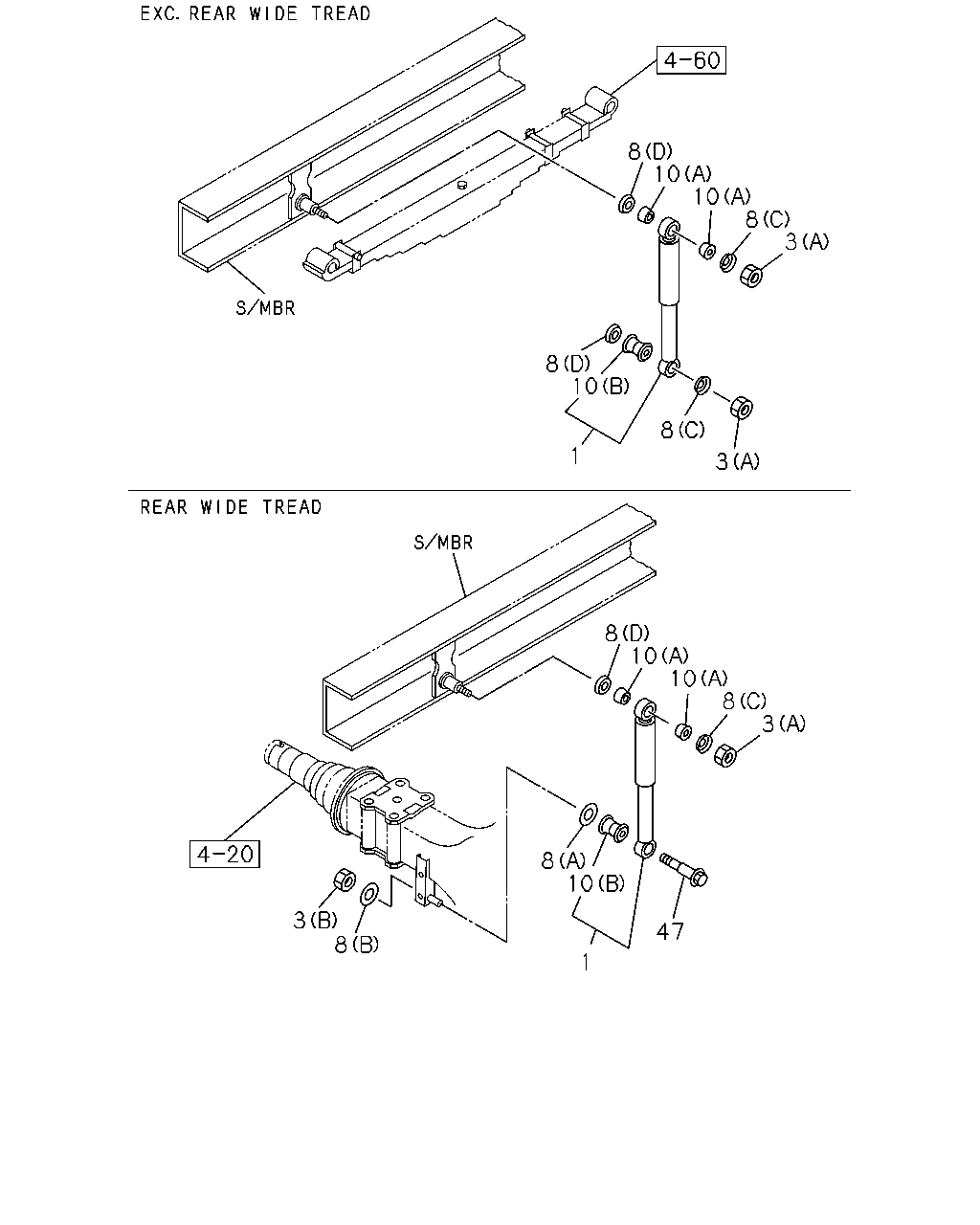

4-61 - SHOCK ABSORBER; REAR SUSPENSION
▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION
(#51577) — 17 parça
8
10
10
8
3
8
10
8
1
3
8
10
10
8
3
8
10
3
8
47
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
07.395 ABSORBER ASM; SHOCK,RR
FRAME-KICK UP<7EW>
8-97253-645-1
02
1
0810-1509
1
07.395 ABSORBER ASM; SHOCK,RR
FRAME-KICK UP<7EW> EXC. REAR WIDE TREAD(V4T)
8-97253-645-1
02
1
1510-
1
07.395 ABSORBER ASM; SHOCK,RR
REAR WIDE TREAD(V4T)
8-97253-651-2
02
1
0810-1506
1
07.395 ABSORBER ASM; SHOCK,RR
REAR WIDE TREAD(V4T) BEST VALUE PARTS
5-87610-132-0
02
1
1105-1506
1
07.395 ABSORBER ASM; SHOCK,RR
REAR WIDE TREAD(V4T) EXC. FRAME-KICK UP<7EW>
8-98316-233-0
02
1
1507-
3
07.347 NUT; S/ABS
REAR WIDE TREAD(V4T) 00.785 (B) M16
0-91111-516-0
02
1
0810-
3
07.347 NUT; S/ABS
07.833 (A) M14
0-91110-514-0
02
1
0810-
3
07.347 NUT; S/ABS
FRAME-KICK UP<7EW> 07.833 (A) M14
0-91110-514-0
02
1
0810-
8
07.347 WASHER; S/ABS
REAR WIDE TREAD(V4T) 07.516 (A) ID=16.4
8-97360-118-0
02
1
0810-
8
07.347 WASHER; S/ABS
REAR WIDE TREAD(V4T) 07.427 (B) ID=16.5
8-98011-489-0
02
1
0810-
8
07.347 WASHER; S/ABS
(C) ID=15
8-97360-056-0
02
1
0810-
8
07.347 WASHER; S/ABS
FRAME-KICK UP<7EW> (C) ID=15
8-97360-056-0
02
1
0810-
8
07.347 WASHER; S/ABS
(D) ID=20.0
8-97360-057-0
02
1
0810-
8
07.347 WASHER; S/ABS
FRAME-KICK UP<7EW> (D) ID=20.0
8-97360-057-0
02
1
0810-
10
07.388 BUSHING; RUBBER,S/ABS
(B) TOKICO
8-94382-149-0
02
1
0810-
10
07.388 BUSHING; RUBBER,S/ABS
(A) TOKICO
9-51631-014-0
04
1
0810-
47
07.347 PIN; S/ABS SETTING
REAR WIDE TREAD(V4T)
8-97316-972-0
02
1
0810-
