Isuzu WW
▶
TRUCKS
▶
NMR
▶
51183 - NMR71-LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶
4-60 — REAR SUSPENSION
(#51576) — 35 parça
◀
[460A] NO.2 (15 parça)

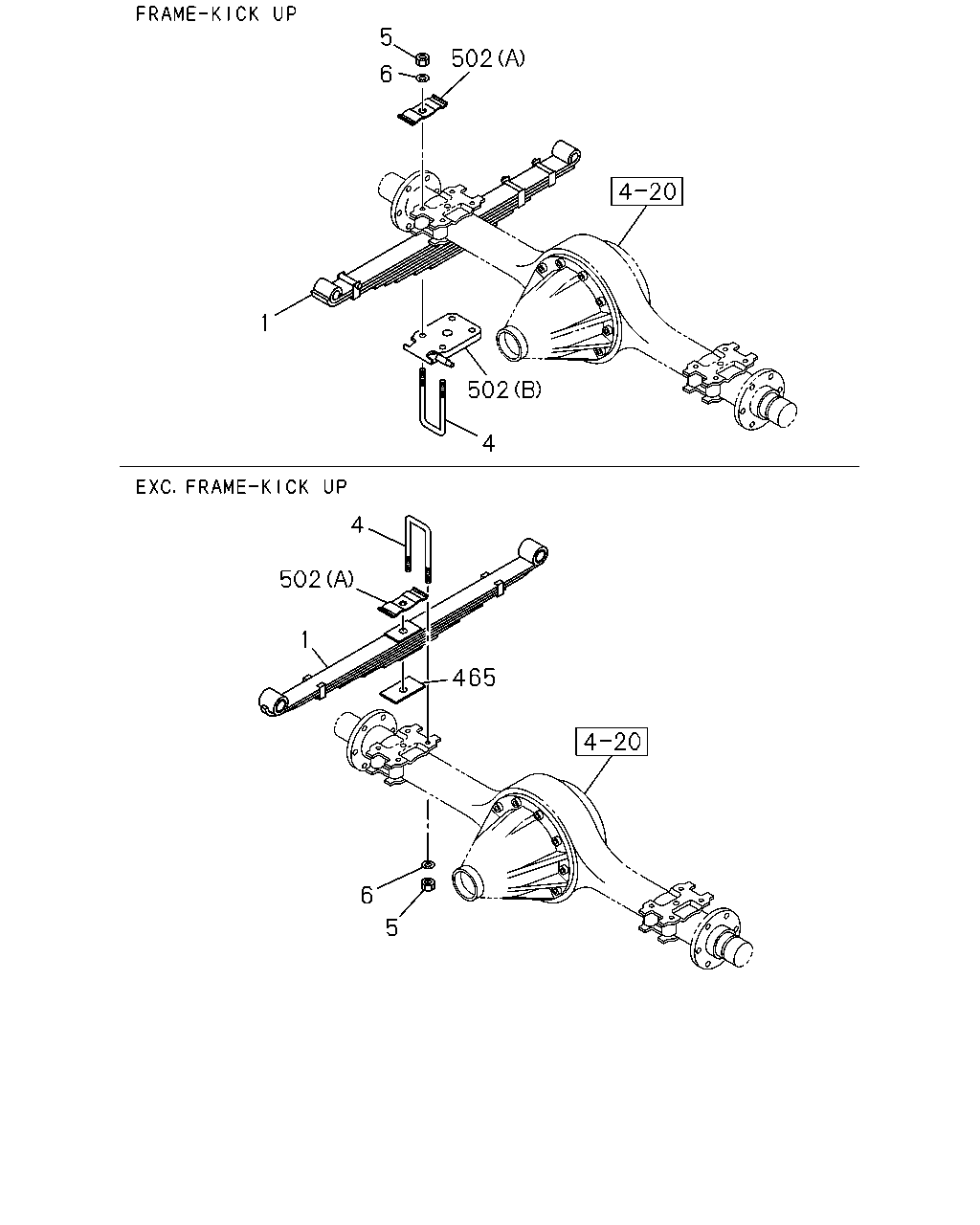

[460A] NO.1 (20 parça)
▶
5
502
6
1
502
4
4
502
1
465
6
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) REAR WIDE TREAD(V4T) EXC. FRAME-KICK UP<7EW> 6-LEAF
8-98001-652-0
02
1
0810-1308
1
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) REAR WIDE TREAD(V4T) EXC. FRAME-KICK UP<7EW> 6-LEAF
8-98100-522-0
02
1
1309-
1
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR WIDE TREAD(V4T) EXC. SAUDI ARABIA EQUIPMENT(GH3), FRAME-KICK UP<7EW> 10-LEAF
8-98022-373-0
02
1
0810-
1
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. FRAME-KICK UP<7EW> EXC. REAR WIDE TREAD(V4T) 4-LEAF
8-98032-760-0
02
1
0810-
4
07.516 U-BOLT; RR SPR
SAUDI ARABIA EQUIPMENT(GH3) REAR WIDE TREAD(V4T) EXC. FRAME-KICK UP<7EW> L=245
8-94127-921-3
04
1
0810-1308
4
07.516 U-BOLT; RR SPR
SAUDI ARABIA EQUIPMENT(GH3) REAR WIDE TREAD(V4T) EXC. FRAME-KICK UP<7EW> L=235
8-94127-920-3
04
1
1309-
4
07.516 U-BOLT; RR SPR
REAR WIDE TREAD(V4T) EXC. SAUDI ARABIA EQUIPMENT(GH3), FRAME-KICK UP<7EW> L=265
8-94127-923-3
04
1
0810-
4
07.516 U-BOLT; RR SPR
FRAME-KICK UP<7EW> EXC. REAR WIDE TREAD(V4T) L=255
8-94127-922-3
04
1
0810-
5
07.529 NUT; U-BOLT,RR SPR
07.417 M16
8-97360-121-0
08
1
0810-
6
07.516 WASHER; PL,U-BOLT
ID=16.4
8-97360-118-0
08
1
0810-
465
07.518 SHIM; ADJ
RR BODY FLAT BED<RS6>
8-97072-589-0
AR
1
0810-
502
07.506 CLAMP; RR LEAF SPR
REAR WIDE TREAD(V4T) 07.518 (A) L=130 T=4.5
8-94119-069-2
02
1
0810-
502
07.506 CLAMP; RR LEAF SPR
FRAME-KICK UP<7EW> 07.518 (A) L=168 T=8
8-94118-111-3
02
1
0810-
502
07.506 CLAMP; RR LEAF SPR
FRAME-KICK UP<7EW> 07.380 (B)
8-94128-362-3
01
1
0810-
502
07.506 CLAMP; RR LEAF SPR
FRAME-KICK UP<7EW> 07.380 (B)
8-94128-363-3
01
1
0810-
180
153
153
15
182
15
153
182
1
182
180
227
264
230
225
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) REAR WIDE TREAD(V4T) EXC. FRAME-KICK UP<7EW> 6-LEAF
8-98001-652-0
02
1
0810-1308
1
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) REAR WIDE TREAD(V4T) EXC. FRAME-KICK UP<7EW> 6-LEAF
8-98100-522-0
02
1
1309-
1
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR WIDE TREAD(V4T) EXC. SAUDI ARABIA EQUIPMENT(GH3), FRAME-KICK UP<7EW> 10-LEAF
8-98022-373-0
02
1
0810-
1
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. FRAME-KICK UP<7EW> EXC. REAR WIDE TREAD(V4T) 4-LEAF
8-98032-760-0
02
1
0810-
15
07.523 SHACKLE; RR SPR
(A)
8-94118-511-3
02
1
0810-
15
07.523 SHACKLE; RR SPR
(B)
8-97360-011-0
02
1
0810-
153
07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> 07.427 (A) ID=16.5
8-98011-489-0
04
1
0810-
153
07.529 WASHER; PL,SPRING PIN
(B) ID=19
8-97360-119-0
02
1
0810-
180
07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122
8-98011-487-0
02
1
0810-
180
07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130
8-98011-488-0
02
1
0810-
180
07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE
8-97360-110-0
02
1
0810-
180
07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE
8-97360-112-0
02
1
0810-
182
07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (A) M16
0-91110-516-0
04
1
0810-
182
07.529 NUT; PIN,RR SPR
(B) M18
0-91110-518-0
02
1
0810-
182
07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE
8-97360-125-0
04
1
0810-
225
07.535 RUBBER; CUSHION,RR SPR
REAR WIDE TREAD(V4T) (A)
8-98021-554-0
02
1
0810-
225
07.535 RUBBER; CUSHION,RR SPR
FRAME-KICK UP<7EW> (B)
8-97035-815-1
02
1
0810-
227
07.535 NUT; CUSHION RUBBER
EXC. FRAME-KICK UP<7EW> 02.042 M12 FLANGE
0-91180-112-0
02
1
0810-
230
07.518 SPACER; CUSHION RUBBER
REAR WIDE TREAD(V4T)
8-97136-852-0
02
1
0810-
264
07.529 BOLT; CUSHION RUBBER TO BRKT
FRAME-KICK UP<7EW> 00.029 M10X25 FLANGE
0-28651-025-0
04
1
0810-
