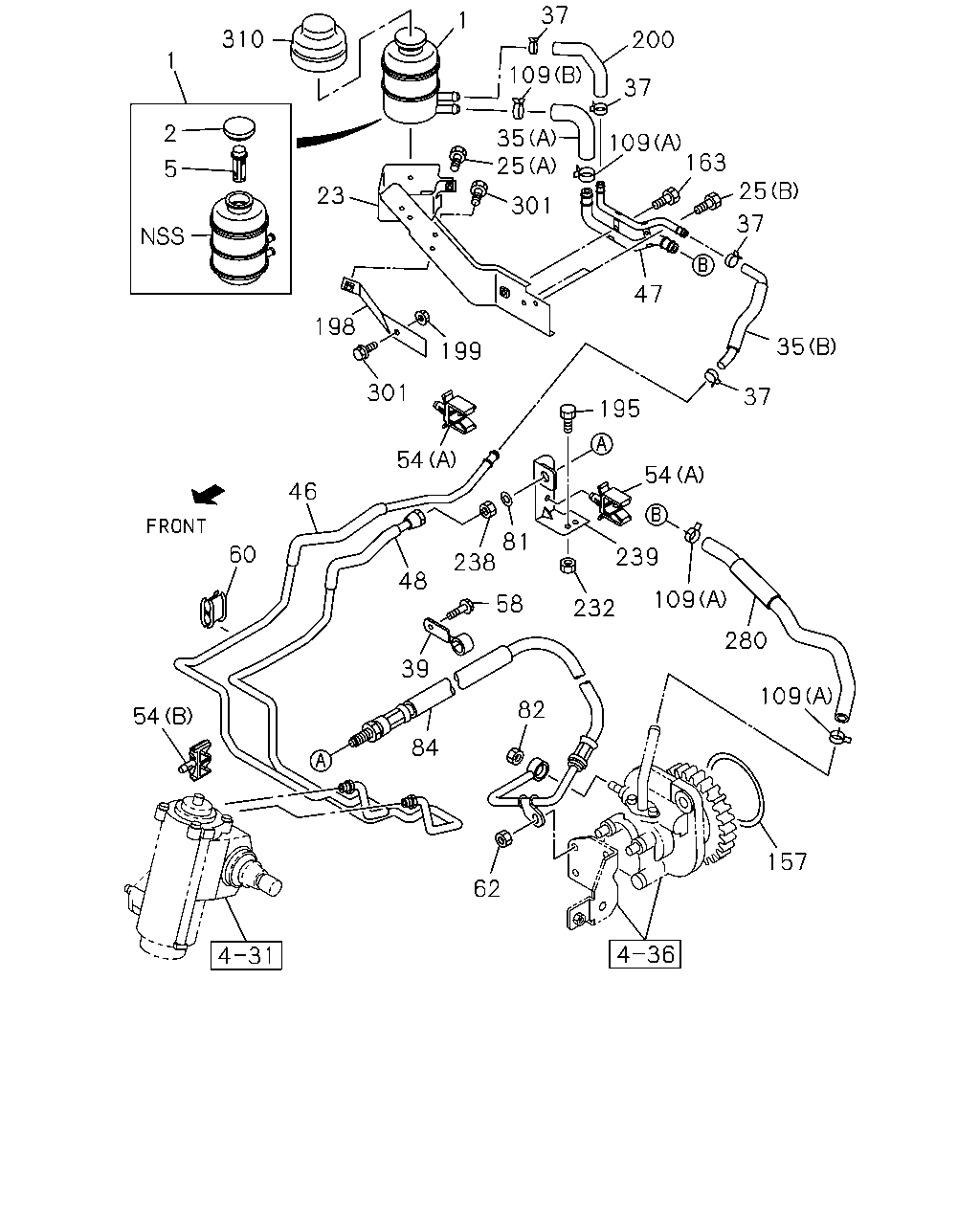

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#51574) — 92 parça

37 1 310 200 1 109 37 2 35 25 109 163 5 25 23 301 37 47 198 35 199 301 37 195 54 54 46 81 238 60 239 48 109 58 232 280 39 109 82 54 84 157 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	0507-0604	●	●	●
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	0605-	●	●	●	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	0507-0604	●	●	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	0605-	●	●	●	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0507-0604	●	●	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0605-	●	●	●	●
23	BRACKET; OIL TANK,P/S	8-97101-040-1	01	1	0507-0604	●	●	●
23	BRACKET; OIL TANK,P/S	8-97101-040-1	01	1	0605-	●	●	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28480-620-0	01	1	0507-0512	●	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	0601-0604	●	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	0605-	●	●	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512	●	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-0604	●	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0605-	●	●	●	●
35	HOSE; RETURN,P/S TANK (A)	8-97080-108-1	01	1	0507-0604	●	●	●
35	HOSE; RETURN,P/S TANK (A)	8-97080-108-1	01	1	0605-	●	●	●	●
35	HOSE; RETURN,P/S TANK (B)	8-97096-949-1	01	1	0507-0604	●	●	●
35	HOSE; RETURN,P/S TANK (B)	8-97096-949-1	01	1	0605-	●	●	●	●
37	CLIP; HOSE,P/S ID=16	8-94238-568-0	04	1	0507-0604	●	●	●
37	CLIP; HOSE,P/S ID=16	8-94238-568-0	04	1	0605-0911	●	●	●	●
37	CLIP; HOSE,P/S ID=16	8-98008-098-0	04	1	0912-	●	●	●	●
39	CLIP; FLEX HOSE ID=28 L=60	1-09700-585-1	01	1	0507-0604	●	●	●
39	CLIP; FLEX HOSE ID=28 L=60	1-09700-585-1	01	1	0605-	●	●	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	8-97379-576-0	01	1	0507-0510	●	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	8-98025-823-0	01	1	0511-0604	●	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	8-98025-823-0	01	1	0605-	●	●	●	●
47	PIPE; RETURN	8-97378-860-0	01	1	0507-0604	●	●	●
47	PIPE; RETURN	8-97378-860-0	01	1	0605-	●	●	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-97356-019-2	01	1	0507-0604	●	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-97356-019-2	01	1	0605-	●	●	●	●
54	CLIP; OIL PIPE (A) ID=10 H=40	8-94462-219-0	02	1	0507-0604	●	●	●
54	CLIP; OIL PIPE (A) ID=10 H=40	8-94462-219-0	02	1	0605-	●	●	●	●
54	CLIP; OIL PIPE (B) ID=10X2 H=37.5	8-97018-546-0	04	1	0507-0604	●	●	●
54	CLIP; OIL PIPE (B) ID=10X2 H=37.5	8-97018-546-0	04	1	0605-	●	●	●	●
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●	●
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-0604	●	●	●
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0605-	●	●	●	●
60	CLAMP; PIPE,RETURN ID=10X2 H=22	8-94252-455-2	02	1	0507-0604	●	●	●
60	CLAMP; PIPE,RETURN ID=10X2 H=22	8-94252-455-2	02	1	0605-	●	●	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0507-0602	●	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0603-0604	●	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0605-	●	●	●	●
81	WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0507-0603	●	●	●
81	WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0604-0604	●	●	●
81	WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0605-	●	●	●	●
82	NUT; FLEX HOSE,P/S M12 SELF LOCK	8-97028-390-1	01	1	0507-0604	●	●	●
82	NUT; FLEX HOSE,P/S M12 SELF LOCK	8-97028-390-1	01	1	0605-	●	●	●	●
84	HOSE; FLEX,P/S	8-97358-337-2	01	1	0507-	●
84	HOSE; FLEX,P/S EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97358-337-2	01	1	0507-		●	●
84	HOSE; FLEX,P/S HYDRO BRAKE BOOSTER(7QQ)	8-97358-387-2	01	1	0507-0604		●	●
84	HOSE; FLEX,P/S HYDRO BRAKE BOOSTER(7QQ)	8-97358-387-2	01	1	0605-		●	●
84	HOSE; FLEX,P/S	8-97358-387-2	01	1	0605-				●
109	CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	03	1	0507-0604	●	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	03	1	0605-0911	●	●	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	03	1	0912-	●	●	●	●
109	CLIP; RUBBER HOSE (B) ID=22	8-94382-401-0	01	1	0507-0604	●	●	●
109	CLIP; RUBBER HOSE (B) ID=22	8-94382-401-0	01	1	0605-1003	●	●	●	●
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1004-	●	●	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	0507-0604	●	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	0605-	●	●	●	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-0604	●	●	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0605-	●	●	●	●
195	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●	●
195	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-0604	●	●	●
195	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0605-	●	●	●	●
198	STAY; OIL TANK,POWER STEERING	8-97081-778-1	01	1	0507-0604	●	●	●
198	STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	0605-	●	●	●	●
199	NUT; STAY,OIL TANK M8 FLANGE	0-91150-108-0	01	1	0507-0602	●	●	●
199	NUT; STAY,OIL TANK M8 FLANGE	0-91180-108-0	01	1	0603-0604	●	●	●
199	NUT; STAY,OIL TANK M8 FLANGE	0-91180-108-0	01	1	0605-	●	●	●	●
200	HOSE; RUBBER,RETURN	8-97080-109-0	01	1	0507-0604	●	●	●
200	HOSE; RUBBER,RETURN	8-97080-109-0	01	1	0605-	●	●	●	●
232	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0507-0602	●	●	●
232	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-0604	●	●	●
232	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0605-	●	●	●	●
238	NUT; FLEX HOSE M16	8-94370-339-0	01	1	0507-0604	●	●	●
238	NUT; FLEX HOSE M16	8-94370-339-0	01	1	0605-	●	●	●	●
239	BRACKET; FLEX HOSE	8-97033-926-2	01	1	0507-0604	●	●	●
239	BRACKET; FLEX HOSE	8-97033-926-2	01	1	0605-	●	●	●	●
280	HOSE; P/S OIL PUMP,INL	8-97218-730-0	01	1	0507-	●
280	HOSE; P/S OIL PUMP,INL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97218-730-0	01	1	0507-		●	●
280	HOSE; P/S OIL PUMP,INL HYDRO BRAKE BOOSTER(7QQ)	8-97218-729-0	01	1	0507-0604		●	●
280	HOSE; P/S OIL PUMP,INL HYDRO BRAKE BOOSTER(7QQ)	8-97218-729-0	01	1	0605-		●	●
280	HOSE; P/S OIL PUMP,INL	8-97218-729-0	01	1	0605-				●
301	BOLT; STAY,OIL TANK M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE	0-28650-825-0	01	1	0601-0604	●	●	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE	0-28650-825-0	01	1	0605-	●	●	●	●
301	BOLT; STAY,OIL TANK M8X28 W/LK&PL WASHER	8-94438-324-1	01	1	0507-0604	●	●	●
301	BOLT; STAY,OIL TANK M8X28 W/LK&PL WASHER	8-94438-324-1	01	1	0605-	●	●	●	●
310	COVER; OIL TANK	8-97188-846-1	01	1	0507-0604	●	●	●
310	COVER; OIL TANK	8-97188-846-1	01	1	0605-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
