◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51047 - ELF400/450(MEXICO) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#51573) — 24 parça

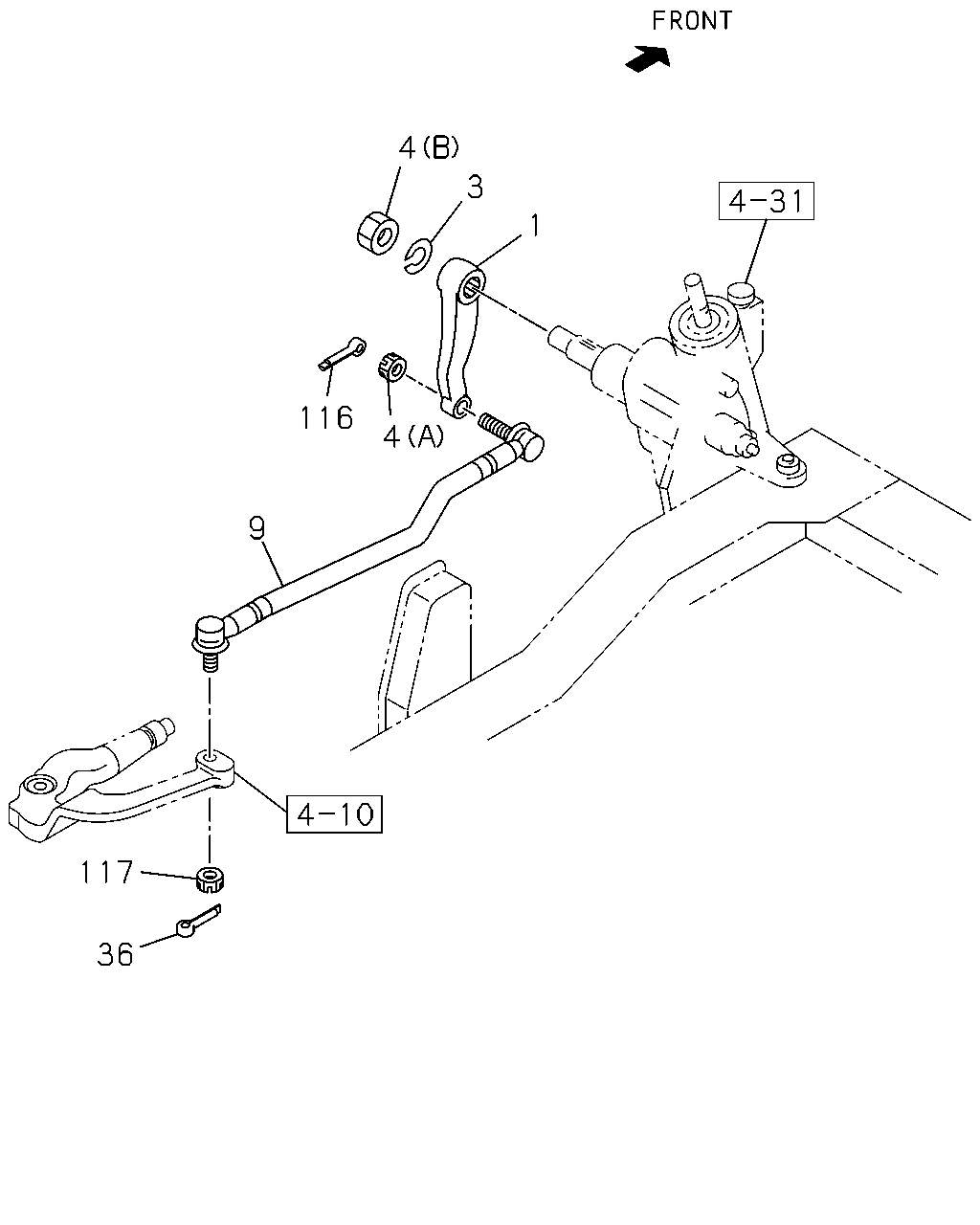

çizim 57291
4 3 1 116 4 9 117 36
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 ARM; PITMAN,STRG 8-97037-746-1 01 1 0507-0604 ● ● ●
1 ARM; PITMAN,STRG 8-97037-746-1 01 1 0605- ● ● ● ●
3 WASHER; LK,PITMAN ARM
ID=27.5 		9-09150-527-0 01 1 0507-0603 ● ● ●
3 WASHER; LK,PITMAN ARM
ID=27.5 		0-91510-527-0 01 1 0604-0604 ● ● ●
3 WASHER; LK,PITMAN ARM
ID=27.5 		0-91510-527-0 01 1 0605- ● ● ● ●
4 NUT; PITMAN ARM
(B) M27 		5-12378-002-0 01 1 0507-0604 ● ● ●
4 NUT; PITMAN ARM
(B) M27 		5-12378-002-0 01 1 0605-0610 ● ● ● ●
4 NUT; PITMAN ARM
(B) M27 		8-97359-616-0 01 1 0611- ● ● ● ●
4 NUT; PITMAN ARM
(A) M18 SLOTTED 		8-97017-761-0 01 1 0507-0604 ● ● ●
4 NUT; PITMAN ARM
(A) M18 SLOTTED 		8-97017-761-0 01 1 0605-0805 ● ● ● ●
4 NUT; PITMAN ARM
(A) M18 SLOTTED 		8-97245-632-0 01 1 0806- ● ● ● ●
9 LINK; DRAG 8-97222-508-0 01 1 0507-0604 ● ● ●
9 LINK; DRAG 8-97222-508-0 01 1 0605-0712 ● ● ● ●
9 LINK; DRAG 8-97170-160-1 01 1 0801- ● ● ● ●
36 PIN; SPLIT,DRAG LINK
L=19 		8-97349-766-0 01 1 0507-0604 ● ● ●
36 PIN; SPLIT,DRAG LINK
L=19 		8-97349-766-0 01 1 0605-0611 ● ● ● ●
36 PIN; SPLIT,DRAG LINK
L=19 		8-97387-864-0 01 1 0612-0612 ● ● ● ●
36 PIN; SPLIT,DRAG LINK
L=19 		8-97349-766-0 01 1 0701-0804 ● ● ● ●
36 PIN; SPLIT,DRAG LINK
L=19 		8-98098-024-0 01 1 0805- ● ● ● ●
116 PIN; SPLIT,TRACK ROD,CENTER
L=19 		8-97349-766-0 01 1 0507-0604 ● ● ●
116 PIN; SPLIT,TRACK ROD,CENTER
L=19 		8-97349-766-0 01 1 0605- ● ● ● ●
117 NUT; DRAG LINK
M18 SLOTTED 		8-97017-761-0 01 1 0507-0604 ● ● ●
117 NUT; DRAG LINK
M18 SLOTTED 		8-97017-761-0 01 1 0605-0610 ● ● ● ●
117 NUT; DRAG LINK
M18 SLOTTED 		8-97245-632-0 01 1 0611- ● ● ● ●
