4-30 — STEERING WHEEL AND COWL (#51571) — 20 parça

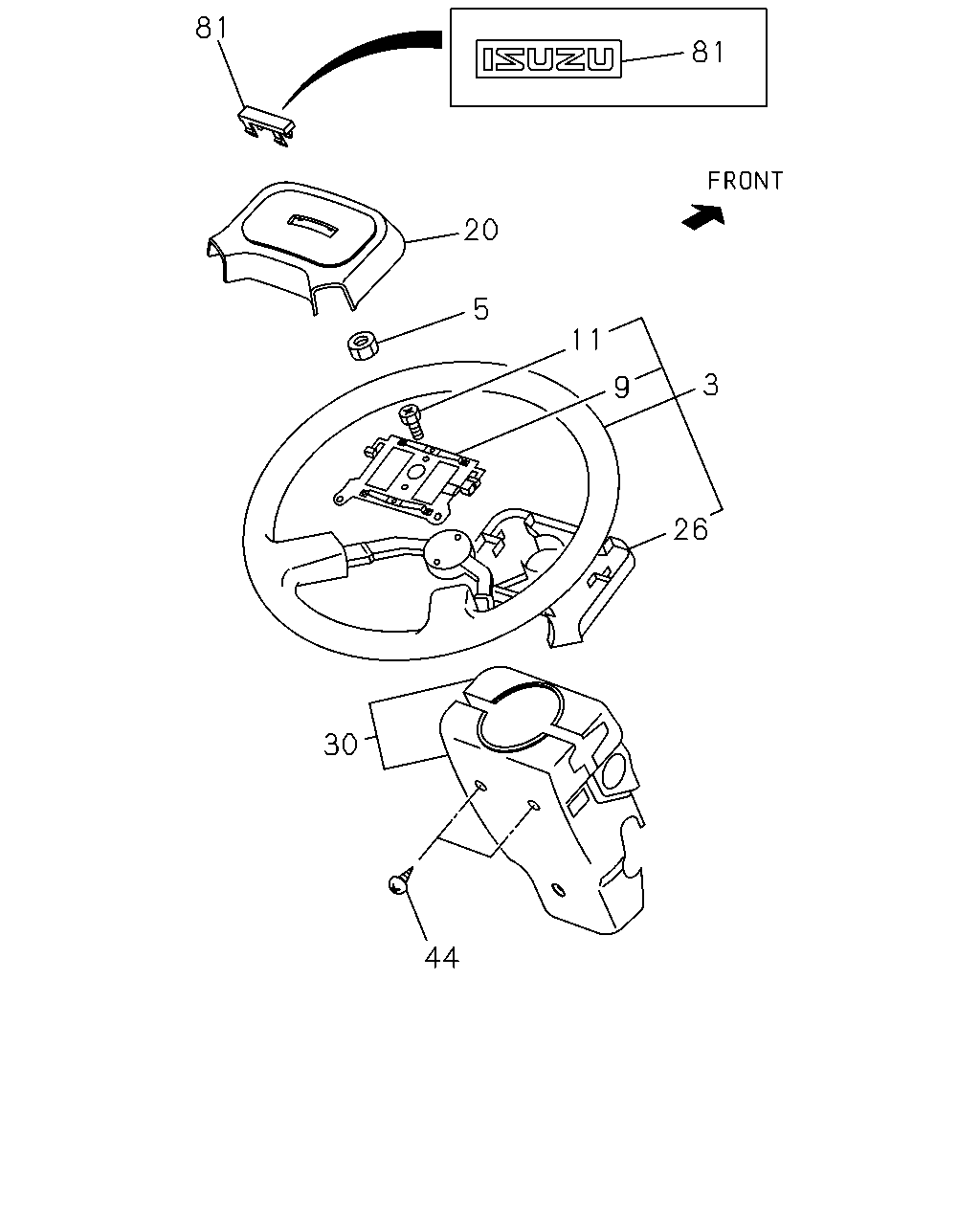

çizim 100781
81 81 20 5 11 3 9 26 30 44
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 WHEEL; STRG
DARK GRAY 		8-97400-081-2 01 1 0507-0604 ● ● ●
3 WHEEL; STRG
DARK GRAY 		8-97400-081-2 01 1 0605- ● ● ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		9-99111-414-0 01 1 0507-0512 ● ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 0601-0604 ● ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 0605- ● ● ● ●
9 PLATE; HORN CONTACT 8-97076-688-1 01 1 0507-0604 ● ● ●
9 PLATE; HORN CONTACT 8-97076-688-1 01 1 0605- ● ● ● ●
11 SCREW; PLATE TO BUTTON 8-97076-690-1 01 1 0507-0604 ● ● ●
11 SCREW; PLATE TO BUTTON 8-97076-690-1 01 1 0605- ● ● ● ●
20 SHROUD; PAD,STRG WHEEL
DARK GRAY 		8-97400-049-0 01 1 0507-0604 ● ● ●
20 SHROUD; PAD,STRG WHEEL
DARK GRAY 		8-97400-049-0 01 1 0605- ● ● ● ●
26 COVER; STRG WHEEL,LWR
DARK GRAY 		8-97400-089-1 01 1 0507-0604 ● ● ●
26 COVER; STRG WHEEL,LWR
DARK GRAY 		8-97400-089-1 01 1 0605- ● ● ● ●
30 COWL; STEERING
DARK GRAY 		8-97582-824-8 01 1 0507-0604 ● ● ●
30 COWL; STEERING
DARK GRAY 		8-97582-824-8 01 1 0605- ● ● ● ●
44 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 0507-0604 ● ● ●
44 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 0605-0612 ● ● ● ●
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 02 1 0701- ● ● ● ●
81 EMBLEM; STRG WHEEL
DARK GRAY 		8-97400-060-0 01 1 0507-0604 ● ● ●
81 EMBLEM; STRG WHEEL
DARK GRAY 		8-97400-060-0 01 1 0605- ● ● ● ●
