◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51047 - ELF400/450(MEXICO) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#51570) — 116 parça

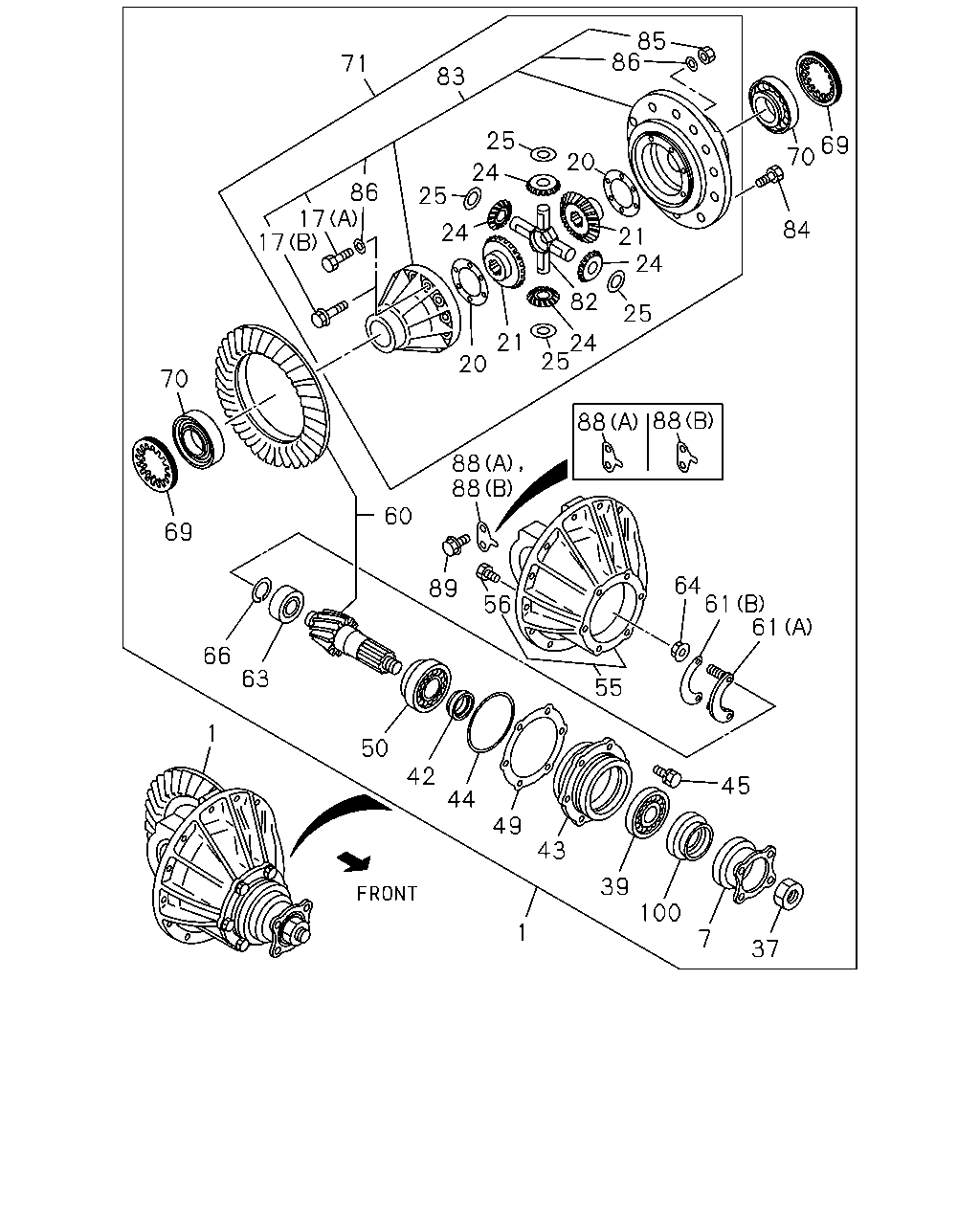

çizim 100783
85 86 71 83 25 69 70 20 24 86 25 17 17 84 24 21 24 82 25 21 20 24 25 70 88 88 88 88 60 69 64 61 61 89 56 66 63 55 1 50 42 45 44 49 43 39 100 1 7 37
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRIVE ASM; FINAL,RR
43/10 		8-97094-679-0 01 1 0507- ●
1 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/10(S7C) GVWR CLASS-4 14001-16000LBS(RQG) 43/10 		8-97094-679-0 01 1 0507- ● ●
1 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/9(HC6) GVWR CLASS-5 16001-19500LBS(RQH) 41/9 		8-97367-507-0 01 1 0507-0604 ● ●
1 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/9(HC6) GVWR CLASS-5 16001-19500LBS(RQH) 41/9 		8-97367-507-0 01 1 0605- ● ●
1 DRIVE ASM; FINAL,RR
41/9 		8-97367-507-0 01 1 0605- ●
7 FLANGE; FINAL 8-97047-095-2 01 1 0507-0604 ● ● ●
7 FLANGE; FINAL 8-97047-095-2 01 1 0605- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) 		8-97047-295-0 12 1 0507-0604 ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) 		8-97047-295-0 12 1 0605-1208 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) 		8-98219-448-0 12 1 1209- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-073-0 AR 1 0507-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-073-0 AR 1 0605- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-074-0 AR 1 0507-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-074-0 AR 1 0605- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-075-0 AR 1 0507-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-075-0 AR 1 0605- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-076-0 AR 1 0507-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-076-0 AR 1 0605- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-077-0 AR 1 0507-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-077-0 AR 1 0605- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-078-0 AR 1 0507-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-078-0 AR 1 0605- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-079-0 AR 1 0507-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-079-0 AR 1 0605- ● ● ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-093-0 02 1 0507-0604 ● ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-093-0 02 1 0605-1004 ● ● ● ●
21 GEAR; SIDE,DIFF
Z=16 		8-98165-935-0 02 1 1005- ● ● ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-024-0 04 1 0507-0604 ● ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-024-0 04 1 0605-1004 ● ● ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-050-0 04 1 1005- ● ● ● ●
25 WASHER; THRUST,PINION 1-41552-020-0 04 1 0507-0604 ● ● ●
25 WASHER; THRUST,PINION 1-41552-020-0 04 1 0605- ● ● ● ●
37 NUT; DRIVING PINION
M30 FLANGE 		8-97047-146-0 01 1 0507-0604 ● ● ●
37 NUT; DRIVING PINION
M30 FLANGE 		8-97047-146-0 01 1 0605- ● ● ● ●
39 BEARING; FINAL PINION
JTEKT 		5-09812-062-1 01 1 0507-0604 ● ● ●
39 BEARING; FINAL PINION
JTEKT 		5-09812-062-1 01 1 0605- ● ● ● ●
39 BEARING; FINAL PINION
NSK 		5-09812-063-0 01 1 0507-0604 ● ● ●
39 BEARING; FINAL PINION
NSK 		5-09812-063-0 01 1 0605- ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE 8-97047-097-0 01 1 0507-0604 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE 8-97047-097-0 01 1 0605- ● ● ● ●
43 CAGE; FINAL PINION 8-97047-098-0 01 1 0507-0604 ● ● ●
43 CAGE; FINAL PINION 8-97047-098-0 01 1 0605- ● ● ● ●
44 GASKET; PINION CAGE 8-97048-053-0 01 1 0507-0604 ● ● ●
44 GASKET; PINION CAGE 8-97048-053-0 01 1 0605- ● ● ● ●
45 BOLT; FINAL PINION CAGE
M12X40 W/LK WASHER 		0-50071-240-0 06 1 0507-0604 ● ● ●
45 BOLT; FINAL PINION CAGE
M12X40 W/LK WASHER 		0-50071-240-0 06 1 0605-0909 ● ● ● ●
45 BOLT; FINAL PINION CAGE
M12X40 W/LK WASHER 		0-50571-240-0 06 1 0910-1209 ● ● ● ●
45 BOLT; FINAL PINION CAGE
M12X40 W/LK WASHER 		8-98220-227-0 06 1 1210- ● ● ● ●
49 SHIM; FINAL PINION CAGE
ID=142 T=0.12 		8-97047-298-0 AR 1 0507-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
ID=142 T=0.12 		8-97047-298-0 AR 1 0605- ● ● ● ●
49 SHIM; FINAL PINION CAGE
ID=142 T=0.15 		8-97047-299-0 AR 1 0507-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
ID=142 T=0.15 		8-97047-299-0 AR 1 0605- ● ● ● ●
49 SHIM; FINAL PINION CAGE
ID=142 T=0.20 		8-97047-300-0 AR 1 0507-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
ID=142 T=0.20 		8-97047-300-0 AR 1 0605- ● ● ● ●
49 SHIM; FINAL PINION CAGE
ID=142 T=0.25 		8-97048-418-0 AR 1 0507-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
ID=142 T=0.25 		8-97048-418-0 AR 1 0605- ● ● ● ●
49 SHIM; FINAL PINION CAGE
ID=142 T=0.50 		8-97048-419-0 AR 1 0507-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
ID=142 T=0.50 		8-97048-419-0 AR 1 0605- ● ● ● ●
50 BEARING; FINAL PINION
JTEKT 		1-09812-042-1 01 1 0701- ● ● ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 0507-0604 ● ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 0605- ● ● ● ●
55 CARRIER; DIFF 8-97094-637-0 01 1 0507-0604 ● ● ●
55 CARRIER; DIFF 8-97094-637-0 01 1 0605- ● ● ● ●
56 BOLT; BRG CAP
M14X95 FLANGE 		1-09070-027-0 04 1 0507-0604 ● ● ●
56 BOLT; BRG CAP
M14X95 FLANGE 		1-09070-027-0 04 1 0605- ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
43/10 		8-97047-115-0 01 1 0507- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 43/10(S7C) GVWR CLASS-4 14001-16000LBS(RQG) 43/10 		8-97047-115-0 01 1 0507- ● ●
60 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/9(HC6) GVWR CLASS-5 16001-19500LBS(RQH) 41/9 		8-97078-635-1 01 1 0507-0604 ● ●
60 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/9(HC6) GVWR CLASS-5 16001-19500LBS(RQH) 41/9 		8-97078-635-1 01 1 0605- ● ●
60 GEAR SET; FINAL DRIVE,RR
41/9 		8-97078-635-1 01 1 0605- ●
61 RETAINER; PILOT BRG,PINION
(A) W/STUD 		8-97047-149-0 01 1 0507-0604 ● ● ●
61 RETAINER; PILOT BRG,PINION
(A) W/STUD 		8-97047-149-0 01 1 0605- ● ● ● ●
61 RETAINER; PILOT BRG,PINION
(B) 		8-97047-150-0 01 1 0507-0604 ● ● ●
61 RETAINER; PILOT BRG,PINION
(B) 		8-97047-150-0 01 1 0605- ● ● ● ●
63 BEARING; PINION PILOT
NSK 		8-97047-296-0 01 1 0507-0604 ● ● ●
63 BEARING; PINION PILOT
NSK 		8-97047-296-0 01 1 0605- ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		8-97047-928-0 01 1 0507-0604 ● ● ●
63 BEARING; PINION PILOT
JTEKT 		8-97047-928-0 01 1 0605- ● ● ● ●
64 NUT; RET
M6 FLANGE 		0-91180-106-0 02 1 0507-0602 ●
64 NUT; RET
FINAL GEAR RATIO 43/10(S7C) GVWR CLASS-4 14001-16000LBS(RQG) M6 FLANGE 		0-91180-106-0 02 1 0507-0602 ● ●
64 NUT; RET
M6 FLANGE 		0-91180-106-0 02 1 0603-0604 ● ● ●
64 NUT; RET
M6 FLANGE 		0-91180-106-0 02 1 0605- ● ● ● ●
64 NUT; RET
FINAL GEAR RATIO 41/9(HC6) GVWR CLASS-5 16001-19500LBS(RQH) M6 FLANGE 		0-91150-106-0 02 1 0507-0602 ● ●
66 RING; SNAP,PILOT BRG 8-97047-297-0 01 1 0507-0604 ● ● ●
66 RING; SNAP,PILOT BRG 8-97047-297-0 01 1 0605- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M115 H=20 		1-41121-039-0 02 1 0507-0604 ● ● ●
69 NUT; ADJ,DIFF CAGE
M115 H=20 		1-41121-039-0 02 1 0605- ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=66.7 OD=113 T=30 		9-00093-130-0 02 1 0507-0604 ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=66.7 OD=113 T=30 		9-00093-130-0 02 1 0605- ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 8-97047-099-1 01 1 0507-0604 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 8-97047-099-4 01 1 0605- ● ● ● ●
82 SPIDER; DIFF PINION 1-41521-035-2 01 1 0507-0604 ● ● ●
82 SPIDER; DIFF PINION 1-41521-035-2 01 1 0605-1004 ● ● ● ●
82 SPIDER; DIFF PINION 1-41521-062-0 01 1 1005-1309 ● ● ● ●
82 SPIDER; DIFF PINION 1-41521-035-2 01 1 1310- ● ● ● ●
83 CAGE ASM; DIFF 8-97047-101-1 01 1 0507-0604 ● ● ●
83 CAGE ASM; DIFF 8-97047-101-2 01 1 0605-1208 ● ● ● ●
83 CAGE ASM; DIFF 8-98219-705-0 01 1 1209- ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M16X30 		8-97047-147-0 12 1 0507-0604 ● ● ●
84 BOLT; FINAL DRIVE GEAR
M16X30 		8-97047-147-0 12 1 0605- ● ● ● ●
85 NUT; DIFF CAGE SETTING
M12 		8-97065-214-0 12 1 0507-0604 ● ● ●
85 NUT; DIFF CAGE SETTING
M12 		8-97065-214-0 12 1 0605- ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
ID=12.5 OD=22 T=2 		8-97047-294-0 24 1 0507-0604 ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
ID=12.5 OD=22 T=2 		8-97047-294-0 24 1 0605-1208 ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
ID=12.5 OD=22 T=2 		8-97047-294-0 12 1 1209- ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) 		8-97087-821-0 AR 1 0507-0604 ● ● ●
88 PLATE; LK,ADJ NUT
(B) 		8-97087-821-0 AR 1 0605- ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=2.3 		9-41124-015-0 AR 1 0507-0604 ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=2.3 		9-41124-015-0 AR 1 0605- ● ● ● ●
89 BOLT; LK PLATE
M8X16 FLANGE 		0-28050-816-0 04 1 0507-0512 ●
89 BOLT; LK PLATE
FINAL GEAR RATIO 43/10(S7C) GVWR CLASS-4 14001-16000LBS(RQG) M8X16 FLANGE 		0-28050-816-0 04 1 0507-0512 ● ●
89 BOLT; LK PLATE
M8X16 FLANGE 		0-28050-816-0 04 1 0601-0604 ● ● ●
89 BOLT; LK PLATE
M8X16 FLANGE 		0-28050-816-0 04 1 0605- ● ● ● ●
89 BOLT; LK PLATE
FINAL GEAR RATIO 41/9(HC6) GVWR CLASS-5 16001-19500LBS(RQH) M8X16 FLANGE 		0-28080-816-0 04 1 0507-0512 ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-484-1 01 1 0507-0604 ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-484-1 01 1 0605- ● ● ● ●
