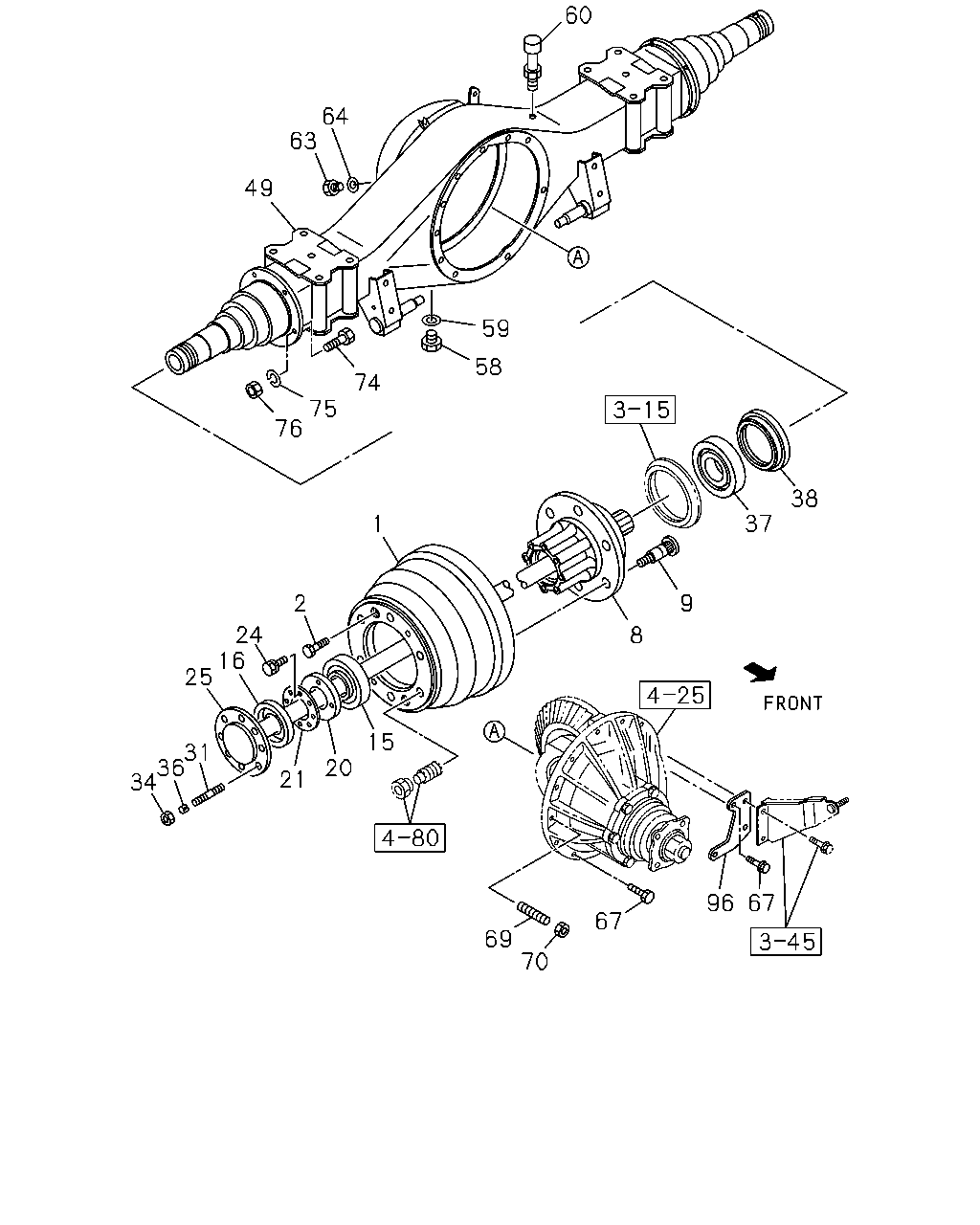

4-20 — REAR AXLE CASE AND SHAFT (#51569) — 113 parça
çizim 57571
60 64 63 49 59 58 74 75 76 38 37 1 2 9 24 16 25 8 15 31 36 34 20 21 96 67 67 69 70
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRUM; BRK,RR 8-97319-056-0 02 1 0507- ●
1 DRUM; BRK,RR
FINAL GEAR RATIO 43/10(S7C) GVWR CLASS-4 14001-16000LBS(RQG) 		8-97319-056-0 02 1 0507- ● ●
1 DRUM; BRK,RR
FINAL GEAR RATIO 41/9(HC6) GVWR CLASS-5 16001-19500LBS(RQH) 		8-97147-604-2 02 1 0507-0604 ● ●
1 DRUM; BRK,RR
FINAL GEAR RATIO 41/9(HC6) GVWR CLASS-5 16001-19500LBS(RQH) 		8-97147-604-2 02 1 0605- ● ●
1 DRUM; BRK,RR 8-97147-604-2 02 1 0605- ●
2 BOLT; BRK DRUM
M8X20 		0-20800-820-0 04 1 0507-0512 ● ● ●
2 BOLT; BRK DRUM
M8X20 		0-20850-820-0 04 1 0601-0604 ● ● ●
2 BOLT; BRK DRUM
M8X20 		0-20850-820-0 04 1 0605- ● ● ● ●
8 HUB; RR AXLE 8-97320-776-0 02 1 0507- ●
8 HUB; RR AXLE
FINAL GEAR RATIO 43/10(S7C) GVWR CLASS-4 14001-16000LBS(RQG) 		8-97320-776-0 02 1 0507- ● ●
8 HUB; RR AXLE
FINAL GEAR RATIO 41/9(HC6) GVWR CLASS-5 16001-19500LBS(RQH) 		8-97207-044-1 02 1 0507-0604 ● ●
8 HUB; RR AXLE
FINAL GEAR RATIO 41/9(HC6) GVWR CLASS-5 16001-19500LBS(RQH) 		8-97207-044-1 02 1 0605- ● ●
8 HUB; RR AXLE 8-97207-044-1 02 1 0605- ●
9 PIN; WHEEL,RR AXLE
LH THREAD M20X67 		8-97147-614-1 06 1 0507-0604 ● ● ●
9 PIN; WHEEL,RR AXLE
LH THREAD M20X67 		8-97147-614-2 06 1 0605- ● ● ● ●
9 PIN; WHEEL,RR AXLE
RH THREAD M20X67 		8-97147-612-1 06 1 0507-0604 ● ● ●
9 PIN; WHEEL,RR AXLE
RH THREAD M20X67 		8-97147-612-2 06 1 0605- ● ● ● ●
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		8-97023-965-1 02 1 0507-0604 ● ● ●
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		8-97023-965-1 02 1 0605- ● ● ● ●
15 BEARING; HUB OUTER,RR AXLE
NSK 		8-97188-223-0 02 1 0507-0604 ● ● ●
15 BEARING; HUB OUTER,RR AXLE
NSK 		8-97188-223-0 02 1 0605- ● ● ● ●
16 SEAL; OIL,RR HUB,OUTER 8-97023-976-1 02 1 0507-0604 ● ● ●
16 SEAL; OIL,RR HUB,OUTER 8-97023-976-1 02 1 0605- ● ● ● ●
20 NUT; BRG,RR HUB
M55 		8-97137-094-0 02 1 0507-0604 ● ● ●
20 NUT; BRG,RR HUB
M55 		8-97137-094-0 02 1 0605- ● ● ● ●
21 WASHER; LK,BRG NUT
ID=55 		9-09653-002-0 02 1 0507-0604 ● ● ●
21 WASHER; LK,BRG NUT
ID=55 		9-09653-002-0 02 1 0605- ● ● ● ●
24 BOLT; LK WASHER
M6X12 W/LK WASHER 		0-50040-612-0 04 1 0507-0512 ● ● ●
24 BOLT; LK WASHER
M6X12 W/LK WASHER 		0-50540-612-0 04 1 0601-0604 ● ● ●
24 BOLT; LK WASHER
M6X12 W/LK WASHER 		0-50540-612-0 04 1 0605-0611 ● ● ● ●
24 BOLT; LK WASHER
M6X10 FLANGE 		0-28050-610-0 04 1 0612- ● ● ● ●
25 SHAFT; AXLE,RR
L=885 		8-97134-439-0 02 1 0507-0604 ● ● ●
25 SHAFT; AXLE,RR
L=885 		8-97134-439-0 02 1 0605- ● ● ● ●
31 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		5-09300-066-1 16 1 0507-0604 ● ● ●
31 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		5-09300-066-1 16 1 0605-0709 ● ● ● ●
31 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		8-97359-803-0 16 1 0710- ● ● ● ●
34 NUT; AXLE SHAFT
M10 FLANGE 		0-91150-210-0 16 1 0507-0602 ● ● ●
34 NUT; AXLE SHAFT
M10 FLANGE 		0-91180-210-0 16 1 0603-0604 ● ● ●
34 NUT; AXLE SHAFT
M10 FLANGE 		0-91180-210-0 16 1 0605- ● ● ● ●
36 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		9-09855-207-0 16 1 0507-0604 ● ● ●
36 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		9-09855-207-0 16 1 0605-0709 ● ● ● ●
36 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		8-97360-004-0 16 1 0710- ● ● ● ●
37 BEARING; HUB INNER,RR AXLE 8-97188-224-0 02 1 0507- ●
37 BEARING; HUB INNER,RR AXLE
FINAL GEAR RATIO 43/10(S7C) GVWR CLASS-4 14001-16000LBS(RQG) 		8-97188-224-0 02 1 0507- ● ●
37 BEARING; HUB INNER,RR AXLE
FINAL GEAR RATIO 41/9(HC6) GVWR CLASS-5 16001-19500LBS(RQH) 		8-97188-222-0 02 1 0507-0604 ● ●
37 BEARING; HUB INNER,RR AXLE
FINAL GEAR RATIO 41/9(HC6) GVWR CLASS-5 16001-19500LBS(RQH) 		8-97188-222-0 02 1 0605- ● ●
37 BEARING; HUB INNER,RR AXLE 8-97188-222-0 02 1 0605- ●
38 SEAL; OIL,RR HUB,INNER 8-97023-977-1 02 1 0507- ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR RATIO 43/10(S7C) GVWR CLASS-4 14001-16000LBS(RQG) 		8-97023-977-1 02 1 0507- ● ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR RATIO 41/9(HC6) GVWR CLASS-5 16001-19500LBS(RQH) NOK 		8-97147-681-0 02 1 0507-0604 ● ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR RATIO 41/9(HC6) GVWR CLASS-5 16001-19500LBS(RQH) NOK 		8-97147-681-0 02 1 0605- ● ●
38 SEAL; OIL,RR HUB,INNER
NOK 		8-97147-681-0 02 1 0605- ●
49 CASE; RR AXLE 8-97331-453-2 01 1 0507- ●
49 CASE; RR AXLE
FINAL GEAR RATIO 43/10(S7C) GVWR CLASS-4 14001-16000LBS(RQG) 		8-97331-453-2 01 1 0507- ● ●
49 CASE; RR AXLE
FINAL GEAR RATIO 41/9(HC6) GVWR CLASS-5 16001-19500LBS(RQH) 		8-97206-957-2 01 1 0507-0604 ● ●
49 CASE; RR AXLE
FINAL GEAR RATIO 41/9(HC6) GVWR CLASS-5 16001-19500LBS(RQH) 		8-97206-957-2 01 1 0605-0803 ● ●
49 CASE; RR AXLE 8-97206-957-2 01 1 0605-0803 ●
49 CASE; RR AXLE
FINAL GEAR RATIO 41/9(HC6) GVWR CLASS-5 16001-19500LBS(RQH) 		8-98049-679-2 01 1 0804- ● ●
49 CASE; RR AXLE 8-98049-679-2 01 1 0804- ●
58 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97109-869-0 01 1 0507-0604 ● ● ●
58 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97109-869-0 01 1 0605-0611 ● ● ● ●
58 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97307-060-0 01 1 0612- ● ● ● ●
59 GASKET; DRAIN PLUG
ID=16.2 OD=24 		9-09571-416-0 01 1 0507-0604 ● ● ●
59 GASKET; DRAIN PLUG
ID=16.2 OD=24 		9-09571-416-0 01 1 0605- ● ● ● ●
60 BREATHER; RR AXLE CASE
L=29 		8-97383-656-0 01 1 0507-0604 ● ● ●
60 BREATHER; RR AXLE CASE
L=29 		8-97383-656-0 01 1 0605-0606 ● ● ● ●
60 BREATHER; RR AXLE CASE
L=29 		8-98006-960-0 01 1 0607- ● ● ● ●
63 PLUG; OIL FILLER,AXLE CASE 8-97019-202-0 01 1 0507-0604 ● ● ●
63 PLUG; OIL FILLER,AXLE CASE 8-97019-202-0 01 1 0605-0611 ● ● ● ●
63 PLUG; OIL FILLER,AXLE CASE 8-97359-821-0 01 1 0612- ● ● ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 0507-0604 ● ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 0605- ● ● ● ●
67 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 07 1 0507-0604 ● ● ●
67 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 07 1 0605-0909 ● ● ● ●
67 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50561-040-0 07 1 0910- ● ● ● ●
67 BOLT; FINAL DRIVE SETTING
M10X50 W/LK WASHER 		0-50061-050-0 04 1 0507-0604 ● ● ●
67 BOLT; FINAL DRIVE SETTING
M10X50 W/LK WASHER 		0-50061-050-0 04 1 0605-0909 ● ● ● ●
67 BOLT; FINAL DRIVE SETTING
M10X50 W/LK WASHER 		0-50561-050-0 04 1 0910- ● ● ● ●
69 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97026-282-0 02 1 0507-0604 ● ● ●
69 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97026-282-0 02 1 0605-0610 ● ● ● ●
69 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97359-802-0 02 1 0611- ● ● ● ●
70 NUT; CARRIER
M10 FLANGE 		0-91150-210-0 02 1 0507-0602 ● ● ●
70 NUT; CARRIER
M10 FLANGE 		0-91180-210-0 02 1 0603-0604 ● ● ●
70 NUT; CARRIER
M10 FLANGE 		0-91180-210-0 02 1 0605- ● ● ● ●
74 BOLT; RR BRK ASM SETTING
M12X32 		5-09000-078-0 12 1 0507-0611 ●
74 BOLT; RR BRK ASM SETTING
FINAL GEAR RATIO 43/10(S7C) GVWR CLASS-4 14001-16000LBS(RQG) M12X32 		5-09000-078-0 12 1 0507-0611 ● ●
74 BOLT; RR BRK ASM SETTING
M12X32 		8-97359-819-0 12 1 0612- ●
74 BOLT; RR BRK ASM SETTING
FINAL GEAR RATIO 43/10(S7C) GVWR CLASS-4 14001-16000LBS(RQG) M12X32 		8-97359-819-0 12 1 0612- ● ●
74 BOLT; RR BRK ASM SETTING
FINAL GEAR RATIO 41/9(HC6) GVWR CLASS-5 16001-19500LBS(RQH) M14X40 		8-97357-301-1 12 1 0507-0604 ● ●
74 BOLT; RR BRK ASM SETTING
FINAL GEAR RATIO 41/9(HC6) GVWR CLASS-5 16001-19500LBS(RQH) M14X40 		8-97357-301-1 12 1 0605-0611 ● ●
74 BOLT; RR BRK ASM SETTING
M14X40 		8-97357-301-1 12 1 0605-0611 ●
74 BOLT; RR BRK ASM SETTING
FINAL GEAR RATIO 41/9(HC6) GVWR CLASS-5 16001-19500LBS(RQH) M14X40 		8-98007-879-0 12 1 0612- ● ●
74 BOLT; RR BRK ASM SETTING
M14X40 		8-98007-879-0 12 1 0612- ●
75 WASHER; LK,RR BRK ASM SETTING
ID=12.2 		9-09150-612-0 12 1 0507-0603 ●
75 WASHER; LK,RR BRK ASM SETTING
FINAL GEAR RATIO 43/10(S7C) GVWR CLASS-4 14001-16000LBS(RQG) ID=12.2 		9-09150-612-0 12 1 0507-0603 ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=12.2 		0-91510-612-0 12 1 0604-0611 ●
75 WASHER; LK,RR BRK ASM SETTING
FINAL GEAR RATIO 43/10(S7C) GVWR CLASS-4 14001-16000LBS(RQG) ID=12.2 		0-91510-612-0 12 1 0604-0611 ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=12.2 		0-91510-812-0 12 1 0612- ●
75 WASHER; LK,RR BRK ASM SETTING
FINAL GEAR RATIO 43/10(S7C) GVWR CLASS-4 14001-16000LBS(RQG) ID=12.2 		0-91510-812-0 12 1 0612- ● ●
75 WASHER; LK,RR BRK ASM SETTING
FINAL GEAR RATIO 41/9(HC6) GVWR CLASS-5 16001-19500LBS(RQH) ID=14.2 		9-09150-814-0 12 1 0507-0603 ● ●
75 WASHER; LK,RR BRK ASM SETTING
FINAL GEAR RATIO 41/9(HC6) GVWR CLASS-5 16001-19500LBS(RQH) ID=14.2 		0-91510-814-0 12 1 0604-0604 ● ●
75 WASHER; LK,RR BRK ASM SETTING
FINAL GEAR RATIO 41/9(HC6) GVWR CLASS-5 16001-19500LBS(RQH) ID=14.2 		0-91510-814-0 12 1 0605- ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 12 1 0605- ●
76 NUT; RR BRK ASM SETTING
M12 		9-99110-512-0 12 1 0507-0512 ●
76 NUT; RR BRK ASM SETTING
FINAL GEAR RATIO 43/10(S7C) GVWR CLASS-4 14001-16000LBS(RQG) M12 		9-99110-512-0 12 1 0507-0512 ● ●
76 NUT; RR BRK ASM SETTING
M12 		0-91110-512-0 12 1 0601- ●
76 NUT; RR BRK ASM SETTING
FINAL GEAR RATIO 43/10(S7C) GVWR CLASS-4 14001-16000LBS(RQG) M12 		0-91110-512-0 12 1 0601- ● ●
76 NUT; RR BRK ASM SETTING
FINAL GEAR RATIO 41/9(HC6) GVWR CLASS-5 16001-19500LBS(RQH) M14 		9-99110-514-0 12 1 0507-0512 ● ●
76 NUT; RR BRK ASM SETTING
FINAL GEAR RATIO 41/9(HC6) GVWR CLASS-5 16001-19500LBS(RQH) M14 		0-91110-514-0 12 1 0601-0604 ● ●
76 NUT; RR BRK ASM SETTING
FINAL GEAR RATIO 41/9(HC6) GVWR CLASS-5 16001-19500LBS(RQH) M14 		0-91110-514-0 12 1 0605- ● ●
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 12 1 0605- ●
96 BRACKET; LSPV,AXLE CASE 8-97145-451-2 01 1 0507-0604 ● ● ●
96 BRACKET; LSPV,AXLE CASE 8-97145-451-2 01 1 0605- ● ● ● ●
