4-11 — FRONT HUB AND DRUM OR ROTOR (#51568) — 68 parça

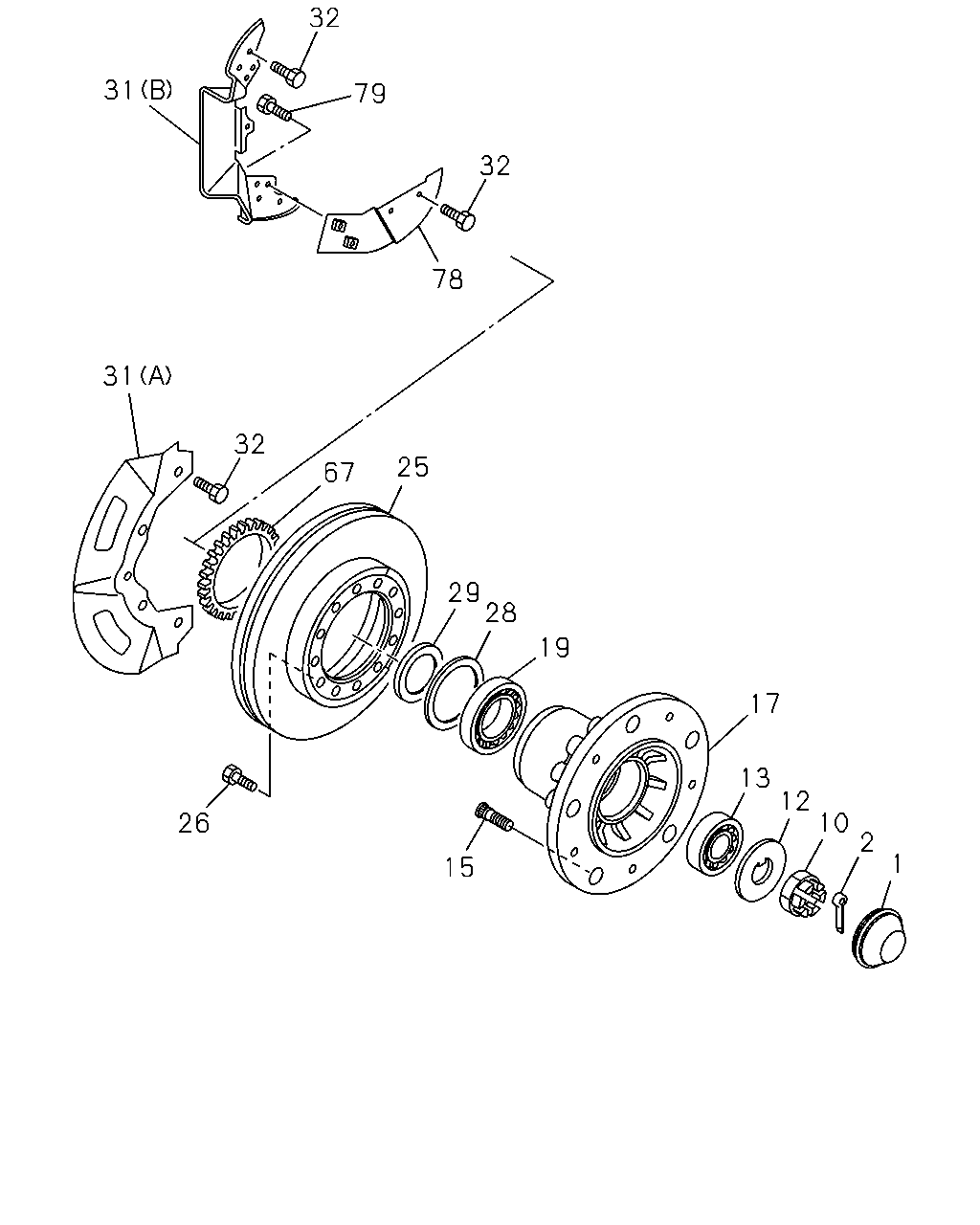

çizim 57243
32 31 79 32 78 31 32 25 67 29 28 19 17 13 12 10 2 26 1 15
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 0507-0604 ● ● ●
1 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 0605-0611 ● ● ● ●
1 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0612-1407 ● ● ● ●
1 CAP; HUB,FRT AXLE 8-98276-604-0 02 1 1408- ● ● ● ●
2 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 0507-0604 ● ● ●
2 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 0605-0606 ● ● ● ●
2 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 0607- ● ● ● ●
10 NUT; FRT HUB BRG 8-94247-357-1 02 1 0507-0604 ● ● ●
10 NUT; FRT HUB BRG 8-94247-357-1 02 1 0605- ● ● ● ●
12 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0507-0604 ● ● ●
12 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0605-1502 ● ● ● ●
12 WASHER; LK,FRT HUB BRG 8-98282-435-0 02 1 1503- ● ● ● ●
13 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0507-0604 ● ● ●
13 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0605- ● ● ● ●
13 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0507-0604 ● ● ●
13 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0605- ● ● ● ●
15 PIN; WHEEL,FRT AXLE
M20X53 LH THREAD 		8-97168-457-0 06 1 0507-0604 ● ● ●
15 PIN; WHEEL,FRT AXLE
M20X53 LH THREAD 		8-97168-457-2 06 1 0605- ● ● ● ●
15 PIN; WHEEL,FRT AXLE
M20X53 RH THREAD 		8-97168-456-0 06 1 0507-0604 ● ● ●
15 PIN; WHEEL,FRT AXLE
M20X53 RH THREAD 		8-97168-456-2 06 1 0605- ● ● ● ●
17 HUB; FRT AXLE 8-97168-460-0 02 1 0507-0604 ● ● ●
17 HUB; FRT AXLE 8-97168-460-0 02 1 0605- ● ● ● ●
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0507-0604 ● ● ●
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0605-1009 ● ● ● ●
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-98171-254-0 02 1 1010- ● ● ● ●
19 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0507-0604 ● ● ●
19 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0605-1009 ● ● ● ●
19 BEARING; HUB INNER,FRT AXLE
BEST VALUE PARTS 		1-87610-134-0 02 1 1010- ● ● ● ●
25 ROTOR; DISC BRK,FRT 8-97371-876-0 02 1 0507-0612 ●
25 ROTOR; DISC BRK,FRT
FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) GVWR CLASS-4 14001-16000LBS(RQG) 		8-97371-876-0 02 1 0507-0612 ● ●
25 ROTOR; DISC BRK,FRT 8-97387-229-0 02 1 0701- ●
25 ROTOR; DISC BRK,FRT
FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) GVWR CLASS-4 14001-16000LBS(RQG) 		8-97387-229-0 02 1 0701- ● ●
25 ROTOR; DISC BRK,FRT
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) GVWR CLASS-5 16001-19500LBS(RQH) 		8-97182-771-0 02 1 0507-0604 ● ●
25 ROTOR; DISC BRK,FRT
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) GVWR CLASS-5 16001-19500LBS(RQH) 		8-97182-771-0 02 1 0605-0612 ● ●
25 ROTOR; DISC BRK,FRT 8-97182-771-0 02 1 0605-0612 ●
25 ROTOR; DISC BRK,FRT
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) GVWR CLASS-5 16001-19500LBS(RQH) 		8-98006-395-0 02 1 0701- ● ●
25 ROTOR; DISC BRK,FRT 8-98006-395-0 02 1 0701- ●
26 BOLT; BRK,DISC TO HUB 8-94474-923-0 24 1 0507-0604 ● ● ●
26 BOLT; BRK,DISC TO HUB 8-94474-923-0 24 1 0605- ● ● ● ●
28 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0507-0604 ● ● ●
28 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0605- ● ● ● ●
29 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0507-0604 ● ● ●
29 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0605- ● ● ● ●
31 COVER; DUST,FRT BRAKE
(A) 		8-97332-209-1 02 1 0507-0703 ●
31 COVER; DUST,FRT BRAKE
FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) GVWR CLASS-4 14001-16000LBS(RQG) (A) 		8-97332-209-1 02 1 0507-0703 ● ●
31 COVER; DUST,FRT BRAKE
(A) 		8-98037-377-0 02 1 0704- ●
31 COVER; DUST,FRT BRAKE
FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) GVWR CLASS-4 14001-16000LBS(RQG) (A) 		8-98037-377-0 02 1 0704- ● ●
31 COVER; DUST,FRT BRAKE
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) GVWR CLASS-5 16001-19500LBS(RQH) (B) 		8-97333-376-0 01 1 0507-0604 ● ●
31 COVER; DUST,FRT BRAKE
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) GVWR CLASS-5 16001-19500LBS(RQH) (B) 		8-97333-376-0 01 1 0605- ● ●
31 COVER; DUST,FRT BRAKE
(B) 		8-97333-376-0 01 1 0605- ●
31 COVER; DUST,FRT BRAKE
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) GVWR CLASS-5 16001-19500LBS(RQH) (B) 		8-97333-375-0 01 1 0507-0604 ● ●
31 COVER; DUST,FRT BRAKE
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) GVWR CLASS-5 16001-19500LBS(RQH) (B) 		8-97333-375-0 01 1 0605- ● ●
31 COVER; DUST,FRT BRAKE
(B) 		8-97333-375-0 01 1 0605- ●
32 BOLT; DUST COVER TO KNUCKLE
M8X12 FLANGE 		0-28080-812-0 08 1 0507-0512 ● ● ●
32 BOLT; DUST COVER TO KNUCKLE
M8X12 FLANGE 		0-28050-812-0 08 1 0601-0604 ● ● ●
32 BOLT; DUST COVER TO KNUCKLE
M8X12 FLANGE 		0-28050-812-0 08 1 0605- ● ● ● ●
67 ROTOR; SENSOR 8-97206-773-0 02 1 0507-0604 ● ● ●
67 ROTOR; SENSOR 8-97206-773-0 02 1 0605- ● ● ● ●
78 BRACKET; DUST COVER
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) GVWR CLASS-5 16001-19500LBS(RQH) 		8-97207-173-1 01 1 0507-0604 ● ●
78 BRACKET; DUST COVER
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) GVWR CLASS-5 16001-19500LBS(RQH) 		8-97207-173-1 01 1 0605- ● ●
78 BRACKET; DUST COVER 8-97207-173-1 01 1 0605- ●
78 BRACKET; DUST COVER
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) GVWR CLASS-5 16001-19500LBS(RQH) 		8-97207-172-1 01 1 0507-0604 ● ●
78 BRACKET; DUST COVER
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) GVWR CLASS-5 16001-19500LBS(RQH) 		8-97207-172-1 01 1 0605- ● ●
78 BRACKET; DUST COVER 8-97207-172-1 01 1 0605- ●
79 BOLT; BRKT
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) GVWR CLASS-5 16001-19500LBS(RQH) M8X12 FLANGE 		0-28080-812-0 04 1 0507-0512 ● ●
79 BOLT; BRKT
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) GVWR CLASS-5 16001-19500LBS(RQH) M8X12 FLANGE 		0-28050-812-0 04 1 0601-0604 ● ●
79 BOLT; BRKT
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) GVWR CLASS-5 16001-19500LBS(RQH) M8X12 FLANGE 		0-28050-812-0 04 1 0605- ● ●
79 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 04 1 0605- ●
