◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51047 - ELF400/450(MEXICO) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#51567) — 136 parça

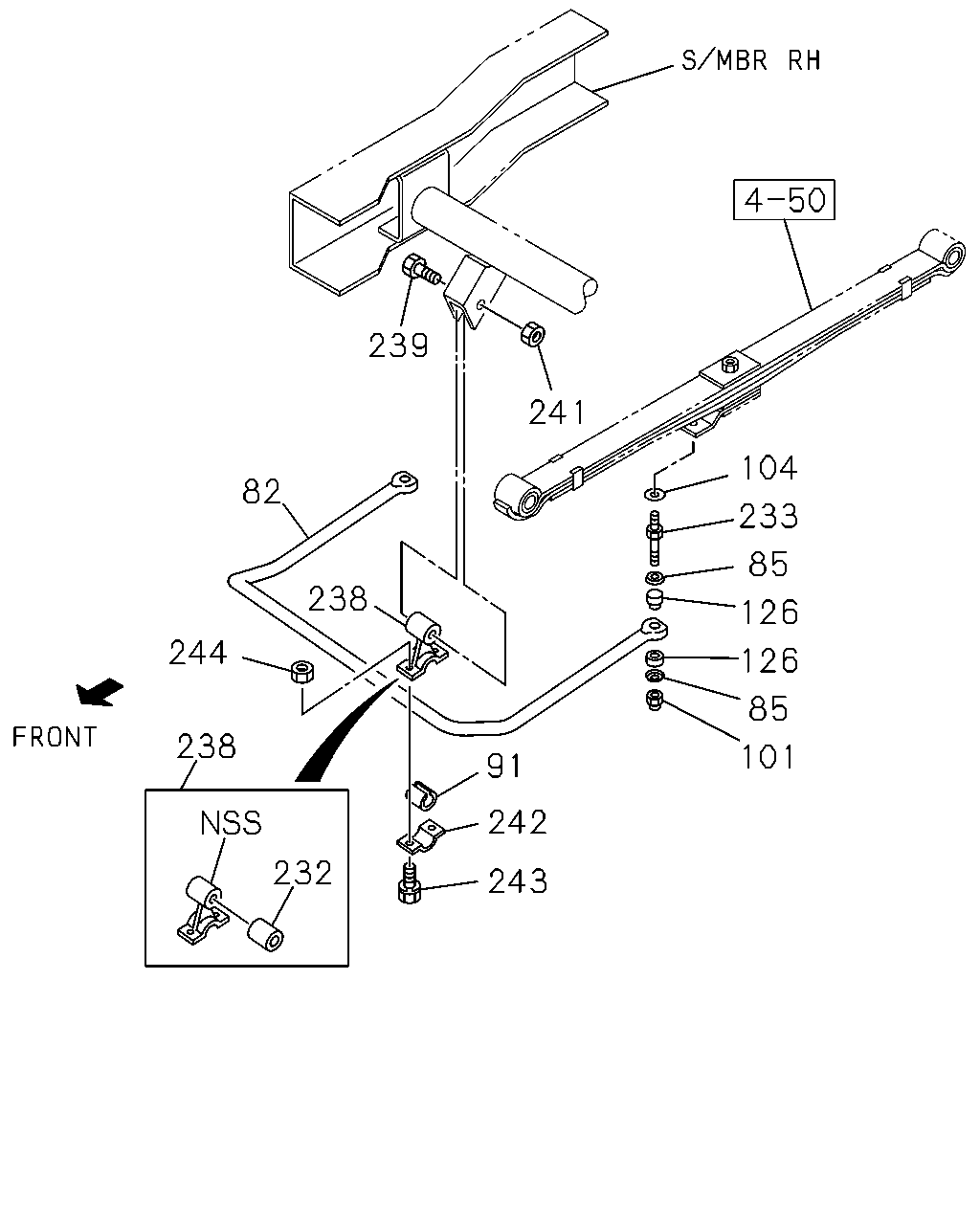

çizim 57268
239 241 104 82 233 85 238 126 244 126 85 238 101 91 242 232 243
BalonParca AdiParca NoAdetTipApplied Date A B C D
82 BAR; STAB,FRT SUSP 8-97138-348-0 01 1 0507-0604 ● ● ●
82 BAR; STAB,FRT SUSP 8-97138-348-0 01 1 0605- ● ● ● ●
85 WASHER; STAB TO FRAME 8-94342-084-0 04 1 0507-0604 ● ● ●
85 WASHER; STAB TO FRAME 8-94342-084-0 04 1 0605-0610 ● ● ● ●
85 WASHER; STAB TO FRAME 8-97360-055-0 04 1 0611- ● ● ● ●
91 BUSHING; RUBBER,STAB BAR 8-94342-187-0 02 1 0507-0604 ● ● ●
91 BUSHING; RUBBER,STAB BAR 8-94342-187-0 02 1 0605- ● ● ● ●
101 NUT; STAB BAR
M12 LOCK NUT 		9-09131-512-0 02 1 0507-0603 ● ● ●
101 NUT; STAB BAR
M12 LOCK NUT 		0-91370-012-0 02 1 0604-0604 ● ● ●
101 NUT; STAB BAR
M12 LOCK NUT 		0-91370-012-0 02 1 0605- ● ● ● ●
104 WASHER; LK,BRKT
ID=14.2 		9-09150-514-0 02 1 0507-0603 ● ● ●
104 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 02 1 0604-0604 ● ● ●
104 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 02 1 0605- ● ● ● ●
126 RUBBER; MTG,STAB BAR 8-94342-083-0 04 1 0507-0604 ● ● ●
126 RUBBER; MTG,STAB BAR 8-94342-083-0 04 1 0605- ● ● ● ●
232 BUSHING; LINK ROD 8-97239-911-0 02 1 0507-0604 ● ● ●
232 BUSHING; LINK ROD 8-97239-911-0 02 1 0605- ● ● ● ●
233 STUD; STABILIZER 8-94342-082-0 02 1 0507-0604 ● ● ●
233 STUD; STABILIZER 8-94342-082-0 02 1 0605-0610 ● ● ● ●
233 STUD; STABILIZER 8-97360-120-0 02 1 0611- ● ● ● ●
238 ROD LINK ASM; STABILIZER,FRT 8-97239-907-0 02 1 0507-0604 ● ● ●
238 ROD LINK ASM; STABILIZER,FRT 8-97239-907-0 02 1 0605- ● ● ● ●
239 BOLT; LINK ROD
M14X70 FLANGE 		0-28881-470-0 02 1 0507-0512 ● ● ●
239 BOLT; LINK ROD
M14X70 FLANGE 		0-28851-470-0 02 1 0601-0604 ● ● ●
239 BOLT; LINK ROD
M14X70 FLANGE 		0-28851-470-0 02 1 0605- ● ● ● ●
241 NUT; LINK ROD
M14 FLANGE 		8-94137-483-0 02 1 0507-0604 ● ● ●
241 NUT; LINK ROD
M14 FLANGE 		8-94137-483-0 02 1 0605-0610 ● ● ● ●
241 NUT; LINK ROD
M14 FLANGE 		8-97360-124-0 02 1 0611- ● ● ● ●
242 CAP; LINK ROD 8-94178-430-2 02 1 0507-0604 ● ● ●
242 CAP; LINK ROD 8-94178-430-2 02 1 0605- ● ● ● ●
243 BOLT; LINK ROD
M10X25 FLANGE 		0-28681-025-0 04 1 0507-0512 ● ● ●
243 BOLT; LINK ROD
M10X25 FLANGE 		0-28651-025-0 04 1 0601-0604 ● ● ●
243 BOLT; LINK ROD
M10X25 FLANGE 		0-28651-025-0 04 1 0605- ● ● ● ●
244 NUT; LINK ROD
M10 FLANGE 		0-91150-210-0 04 1 0507-0602 ● ● ●
244 NUT; LINK ROD
M10 FLANGE 		0-91180-210-0 04 1 0603-0604 ● ● ●
244 NUT; LINK ROD
M10 FLANGE 		0-91180-210-0 04 1 0605- ● ● ● ●

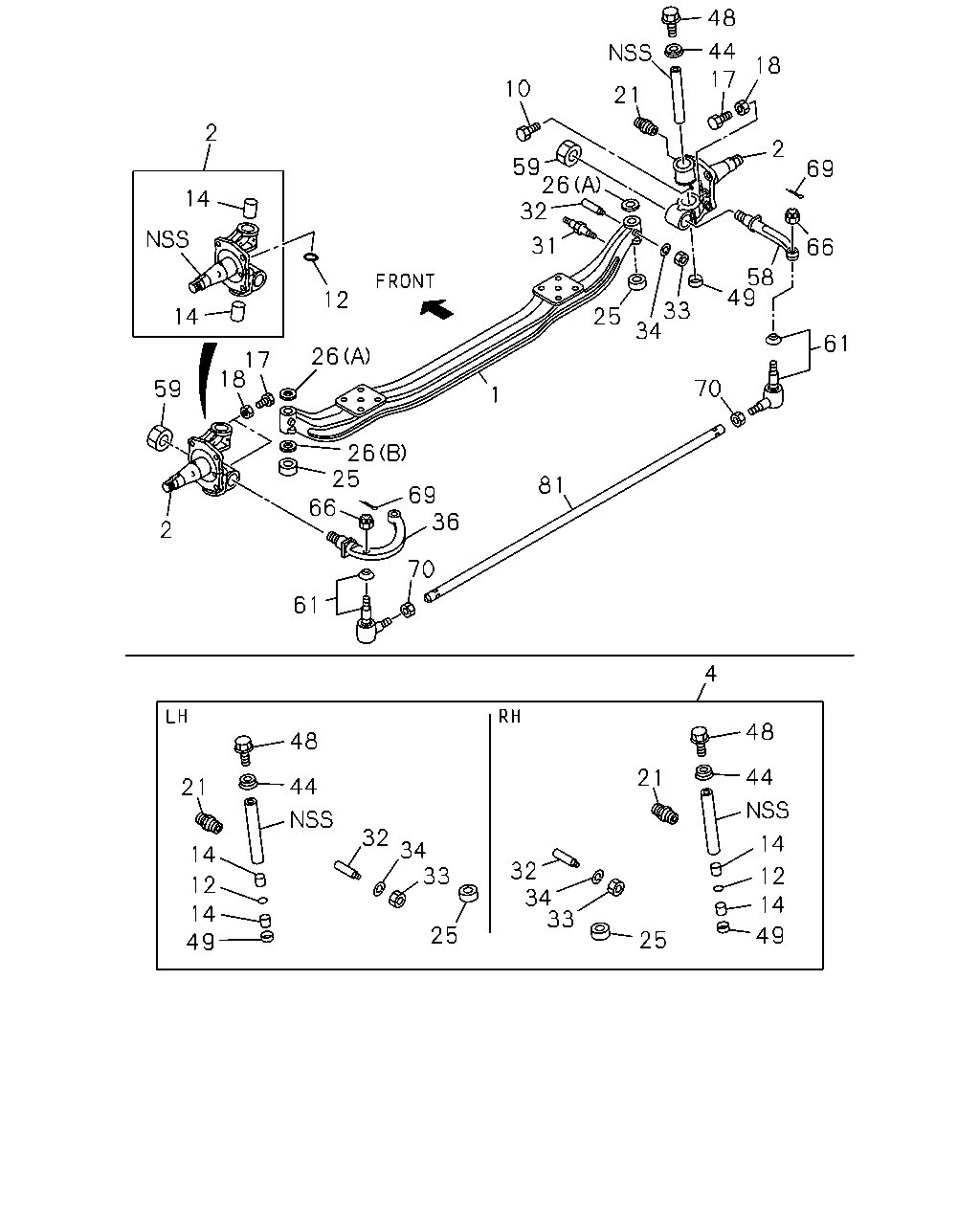

çizim 100762
48 44 17 18 10 21 2 2 59 26 32 69 14 31 66 58 49 12 33 34 25 14 61 26 17 18 70 59 1 26 25 81 69 36 66 2 70 61 4 48 48 44 21 44 21 32 14 34 33 14 32 34 33 12 12 14 14 49 25 49 25
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 AXLE; FRT 8-97137-588-5 01 1 0507- ●
1 AXLE; FRT
FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) GVWR CLASS-4 14001-16000LBS(RQG) 		8-97137-588-5 01 1 0507- ● ●
1 AXLE; FRT
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) GVWR CLASS-5 16001-19500LBS(RQH) 		8-97145-406-3 01 1 0507-0604 ● ●
1 AXLE; FRT
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) GVWR CLASS-5 16001-19500LBS(RQH) 		8-97145-406-5 01 1 0605- ● ●
1 AXLE; FRT 8-97145-406-5 01 1 0605- ●
2 KNUCKLE; FRT AXLE 8-97261-550-1 01 1 0507-0604 ● ● ●
2 KNUCKLE; FRT AXLE 8-97261-550-2 01 1 0605- ● ● ● ●
2 KNUCKLE; FRT AXLE 8-97261-549-1 01 1 0507-0604 ● ● ●
2 KNUCKLE; FRT AXLE 8-97261-549-2 01 1 0605- ● ● ● ●
4 KING PIN KIT 5-87832-183-2 01 1 0507-0604 ● ● ●
4 KING PIN KIT 5-87832-183-2 01 1 0605-0610 ● ● ● ●
4 KING PIN KIT 5-87832-209-0 01 1 0611-0707 ● ● ● ●
4 KING PIN KIT 5-87832-220-2 01 1 0708- ● ● ● ●
10 PLUG; PLATE,KNUCKLE 8-94107-661-0 01 1 0507-0604 ● ● ●
10 PLUG; PLATE,KNUCKLE 8-94107-661-0 01 1 0605-0610 ● ● ● ●
10 PLUG; PLATE,KNUCKLE 8-97360-117-0 01 1 0611- ● ● ● ●
12 GASKET; KNUCKLE 9-09561-230-0 02 1 0507-0604 ● ● ●
12 GASKET; KNUCKLE 9-09561-230-0 02 1 0605-0707 ● ● ● ●
12 GASKET; KNUCKLE 8-98084-500-0 02 1 0708- ● ● ● ●
14 BUSHING; KING PIN
DAIDO WO/NOTCH 		8-94107-672-2 04 1 0507-0604 ● ● ●
14 BUSHING; KING PIN
DAIDO WO/NOTCH 		8-94107-672-3 04 1 0605- ● ● ● ●
14 BUSHING; KING PIN
JBK 		8-94127-925-2 04 1 0507-0604 ● ● ●
14 BUSHING; KING PIN
JBK 		8-94127-925-2 04 1 0605-0809 ● ● ● ●
17 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		5-09000-208-1 03 1 0507-0604 ● ● ●
17 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		5-09000-208-1 03 1 0605-0611 ● ● ● ●
17 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		8-97360-059-0 03 1 0612- ● ● ● ●
18 NUT; STOPPER BOLT,KNUCKLE
M12 		9-99111-512-0 03 1 0507-0512 ● ● ●
18 NUT; STOPPER BOLT,KNUCKLE
M12 		0-91111-512-0 03 1 0601-0604 ● ● ●
18 NUT; STOPPER BOLT,KNUCKLE
M12 		0-91111-512-0 03 1 0605- ● ● ● ●
21 NIPPLE; GREASE,KING PIN
M6 STRAIGHT 		9-09031-006-0 04 1 0507-0604 ● ● ●
21 NIPPLE; GREASE,KING PIN
M6 STRAIGHT 		9-09031-006-0 04 1 0605-0607 ● ● ● ●
21 NIPPLE; GREASE,KING PIN
M6 STRAIGHT 		0-90301-406-0 04 1 0608- ● ● ● ●
25 BEARING; THRUST,KING PIN 8-94248-883-2 01 1 0507-0604 ● ● ●
25 BEARING; THRUST,KING PIN 8-94248-883-3 01 1 0605- ● ● ● ●
25 BEARING; THRUST,KING PIN 8-97141-943-0 01 1 0507-0604 ● ● ●
25 BEARING; THRUST,KING PIN 8-97141-943-1 01 1 0605- ● ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.50 		8-94162-574-0 AR 1 0507-0604 ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.50 		8-94162-574-0 AR 1 0605- ● ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.55 		8-94162-575-0 AR 1 0507-0604 ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.55 		8-94162-575-0 AR 1 0605- ● ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.60 		8-94162-576-0 AR 1 0507-0604 ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.60 		8-94162-576-0 AR 1 0605- ● ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.65 		8-94162-577-0 AR 1 0507-0604 ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.65 		8-94162-577-0 AR 1 0605- ● ● ● ●
26 SHIM; KING PIN,BRG
(B) T=1.95 		8-94168-490-0 01 1 0507-0604 ● ● ●
26 SHIM; KING PIN,BRG
(B) T=1.95 		8-94168-490-0 01 1 0605- ● ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.70 		8-94174-352-0 AR 1 0507-0604 ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.70 		8-94174-352-0 AR 1 0605- ● ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.80 		8-94174-354-0 AR 1 0507-0604 ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.80 		8-94174-354-0 AR 1 0605- ● ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.90 		8-94174-356-0 AR 1 0507-0604 ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.90 		8-94174-356-0 AR 1 0605- ● ● ● ●
31 PIN; S/ABS,LWR 8-97145-460-0 02 1 0507-0604 ● ● ●
31 PIN; S/ABS,LWR 8-97145-460-0 02 1 0605- ● ● ● ●
32 BOLT; KEY,KING PIN 8-97141-945-1 02 1 0507-0604 ● ● ●
32 BOLT; KEY,KING PIN 8-97141-945-2 02 1 0605- ● ● ● ●
33 NUT; KEY BOLT
M10 		9-09110-410-0 02 1 0507-0512 ● ● ●
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 0601-0604 ● ● ●
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 0605- ● ● ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 		9-09150-510-0 02 1 0507-0603 ● ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 0604-0604 ● ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 0605- ● ● ● ●
36 ARM; KNUCKLE 8-97210-771-1 01 1 0507-0604 ● ● ●
36 ARM; KNUCKLE 8-97210-771-4 01 1 0605- ● ● ● ●
44 COVER; KING PIN
OD=36 		8-94248-675-1 02 1 0507-0604 ● ● ●
44 COVER; KING PIN
OD=36 		8-94248-675-1 02 1 0605-0611 ● ● ● ●
44 COVER; KING PIN
OD=36 		8-97360-023-0 02 1 0612- ● ● ● ●
48 BOLT; COVER
M10X12 FLANGE 		0-28081-012-0 02 1 0507-0512 ● ● ●
48 BOLT; COVER
M10X12 FLANGE 		0-28051-012-0 02 1 0601-0604 ● ● ●
48 BOLT; COVER
M10X12 FLANGE 		0-28051-012-0 02 1 0605- ● ● ● ●
49 CAP; KNUCKLE 8-97261-587-0 02 1 0507-0604 ● ● ●
49 CAP; KNUCKLE 8-97261-587-0 02 1 0605-0611 ● ● ● ●
49 CAP; KNUCKLE 8-97360-024-0 02 1 0612- ● ● ● ●
58 ARM; TIE ROD 8-97147-636-0 01 1 0507-0604 ● ● ●
58 ARM; TIE ROD 8-97147-636-1 01 1 0605- ● ● ● ●
59 NUT; TIE ROD ARM 8-94247-724-0 02 1 0507-0604 ● ● ●
59 NUT; TIE ROD ARM 8-94247-724-0 02 1 0605-0611 ● ● ● ●
59 NUT; TIE ROD ARM 8-97360-123-0 02 1 0612- ● ● ● ●
61 ROD END; TIE ROD 8-97107-349-2 01 1 1311- ● ● ● ●
61 ROD END; TIE ROD 8-97142-101-1 01 1 0507-0604 ● ● ●
61 ROD END; TIE ROD 8-97142-101-1 01 1 0605-1310 ● ● ● ●
61 ROD END; TIE ROD 8-97142-100-1 01 1 0507-0604 ● ● ●
61 ROD END; TIE ROD 8-97142-100-1 01 1 0605-1310 ● ● ● ●
61 ROD END; TIE ROD 8-97107-348-2 01 1 1311- ● ● ● ●
66 NUT; TIE ROD END
M16 SLOTTED 		9-99116-516-0 02 1 0507-0604 ● ● ●
66 NUT; TIE ROD END
M16 SLOTTED 		9-99116-516-0 02 1 0605-0605 ● ● ● ●
66 NUT; TIE ROD END
M16 SLOTTED 		0-91116-516-0 02 1 0606-1204 ● ● ● ●
66 NUT; TIE ROD END
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ● ● ●
69 PIN; SPLIT,TIE ROD END
OD=3.7 L=20 		9-08114-020-0 02 1 0507-0604 ● ● ●
69 PIN; SPLIT,TIE ROD END
OD=3.7 L=20 		9-08114-020-0 02 1 0605-0606 ● ● ● ●
69 PIN; SPLIT,TIE ROD END
OD=3.7 L=20 		0-81124-020-0 02 1 0607- ● ● ● ●
70 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 1311- ● ● ● ●
70 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 0507-0604 ● ● ●
70 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 0605-1310 ● ● ● ●
70 NUT; TIE ROD END
M20 		9-99111-420-0 01 1 0507-0512 ● ● ●
70 NUT; TIE ROD END
M20 		0-91111-520-0 01 1 0601-0604 ● ● ●
70 NUT; TIE ROD END
M20 		0-91111-520-0 01 1 0605-0610 ● ● ● ●
70 NUT; TIE ROD END
M20 		8-98043-530-0 01 1 0611- ● ● ● ●
81 ROD; TIE 8-97061-869-0 01 1 0507-0604 ● ● ●
81 ROD; TIE 8-97061-869-0 01 1 0605- ● ● ● ●
