4-01 — PROPELLER SHAFT (#51566) — 112 parça

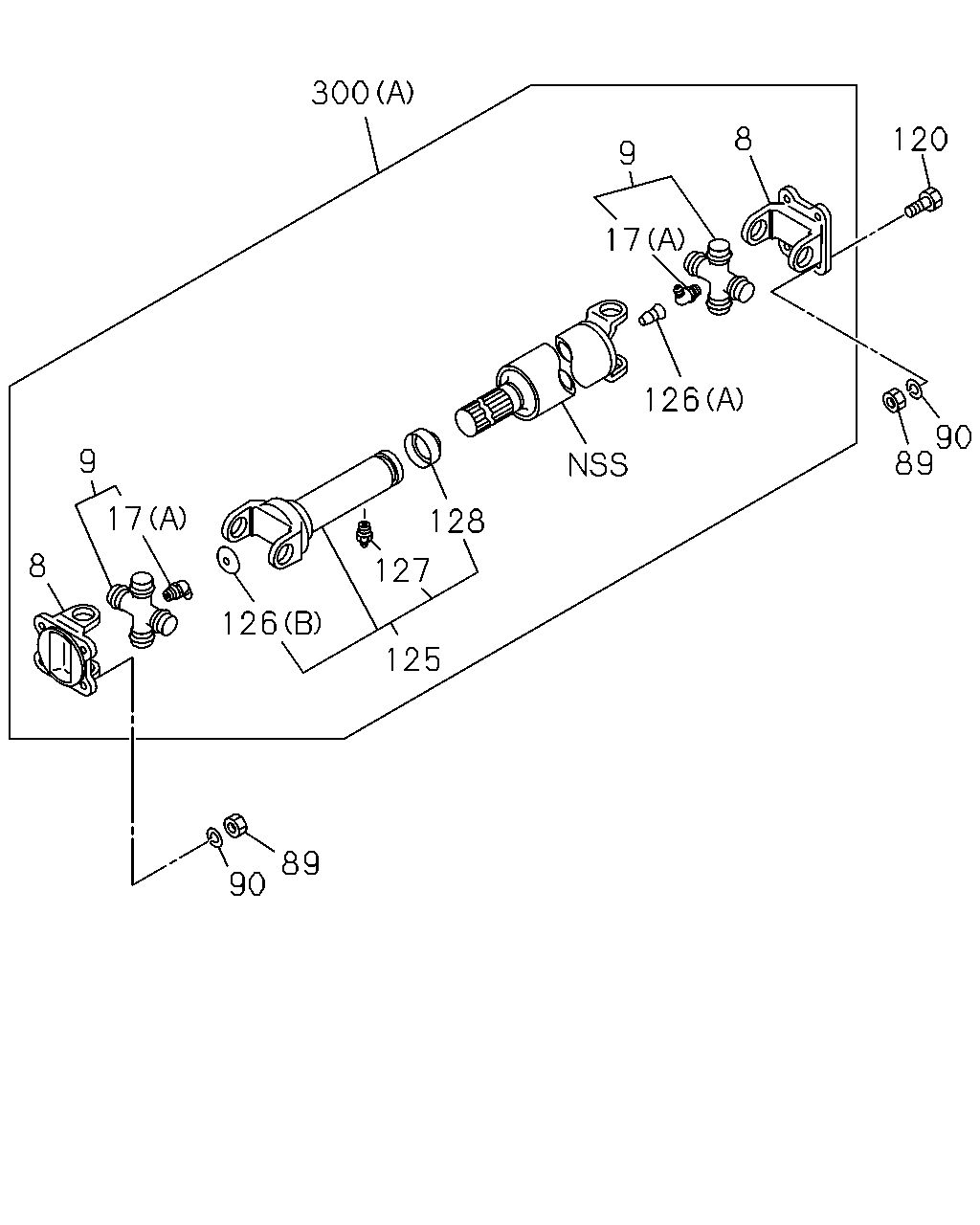

300 8 120 9 17 126 90 89 9 17 128 8 127 126 125 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	02	1	0507-	●	●	●
8	YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	01	1	0507-		●	●
8	YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	03	1	0605-				●
9	JOURNAL ASM; PROP SHAFT	1-37300-103-0	02	1	0507-1106	●	●	●
9	JOURNAL ASM; PROP SHAFT	8-98020-789-1	02	1	1107-	●	●	●
9	JOURNAL ASM; PROP SHAFT	1-37300-103-0	01	1	0507-1106		●	●
9	JOURNAL ASM; PROP SHAFT	8-98020-789-1	01	1	1107-		●	●
9	JOURNAL ASM; PROP SHAFT	1-37300-103-0	03	1	0605-1106				●
9	JOURNAL ASM; PROP SHAFT	8-98020-789-1	03	1	1107-				●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	9-09031-210-0	02	1	0507-0512	●	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	02	1	0601-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/16 ELBOW 40 DEGREES	8-97240-194-0	01	1	0507-0604		●	●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/16 ELBOW 40 DEGREES	8-97240-194-0	01	1	0605-		●	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	9-09031-210-0	01	1	0507-0512		●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	01	1	0601-		●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	03	1	0605-				●
89	NUT; YOKE TO RR AXLE M12	8-94477-841-0	08	1	0507-0604	●	●	●
89	NUT; YOKE TO RR AXLE M12	8-94477-841-0	08	1	0605-0610	●	●	●	●
89	NUT; YOKE TO RR AXLE M12	8-97365-450-1	08	1	0611-	●	●	●	●
90	WASHER; LK,YOKE TO RR AXLE ID=12.2	9-09150-812-0	08	1	0507-0603	●	●	●
90	WASHER; LK,YOKE TO RR AXLE ID=12.2	0-91510-812-0	08	1	0604-0604	●	●	●
90	WASHER; LK,YOKE TO RR AXLE ID=12.2	0-91510-812-0	08	1	0605-	●	●	●	●
120	BOLT; YOKE TO RR AXLE M12X35	8-94477-842-0	04	1	0507-0604	●	●	●
120	BOLT; YOKE TO RR AXLE M12X35	8-94477-842-0	04	1	0605-0610	●	●	●	●
120	BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	04	1	0611-	●	●	●	●
125	YOKE ASM; SPLINED,PROP SHAFT L=183	8-98040-513-0	01	1	0507-	●	●	●	●
126	PLUG; SPLINED YOKE (B)	1-09600-014-0	01	1	0507-0604	●	●	●
126	PLUG; SPLINED YOKE (B)	1-09600-014-0	01	1	0605-	●	●	●	●
126	PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0507-	●	●	●
126	PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0507-		●	●
126	PLUG; SPLINED YOKE (A)	1-09600-023-0	02	1	0605-				●
127	NIPPLE; GREASE,SPLINED YOKE PT1/8 STRAIGHT	9-09031-010-0	01	1	0507-0512	●	●	●
127	NIPPLE; GREASE,SPLINED YOKE PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-0604	●	●	●
127	NIPPLE; GREASE,SPLINED YOKE PT1/8 STRAIGHT	0-90301-410-0	01	1	0605-	●	●	●	●
128	SEAL; SLEEVE	1-37247-001-1	01	1	0507-0604	●	●	●
128	SEAL; SLEEVE	1-37247-001-1	01	1	0605-	●	●	●	●
300	SHAFT ASM; PROP,RR (A) L=1043	8-97096-775-1	01	1	0507-	●	●	●
300	SHAFT ASM; PROP,RR (B) L=608	8-97307-898-2	01	1	0507-		●
300	SHAFT ASM; PROP,RR (B) L=1058	8-97307-899-2	01	1	0507-			●
300	SHAFT ASM; PROP,RR (A) L=1384	8-97129-514-1	01	1	0605-				●
300	SHAFT ASM; PROP,RR (B) L=1358	8-97307-900-2	01	1	0605-				●

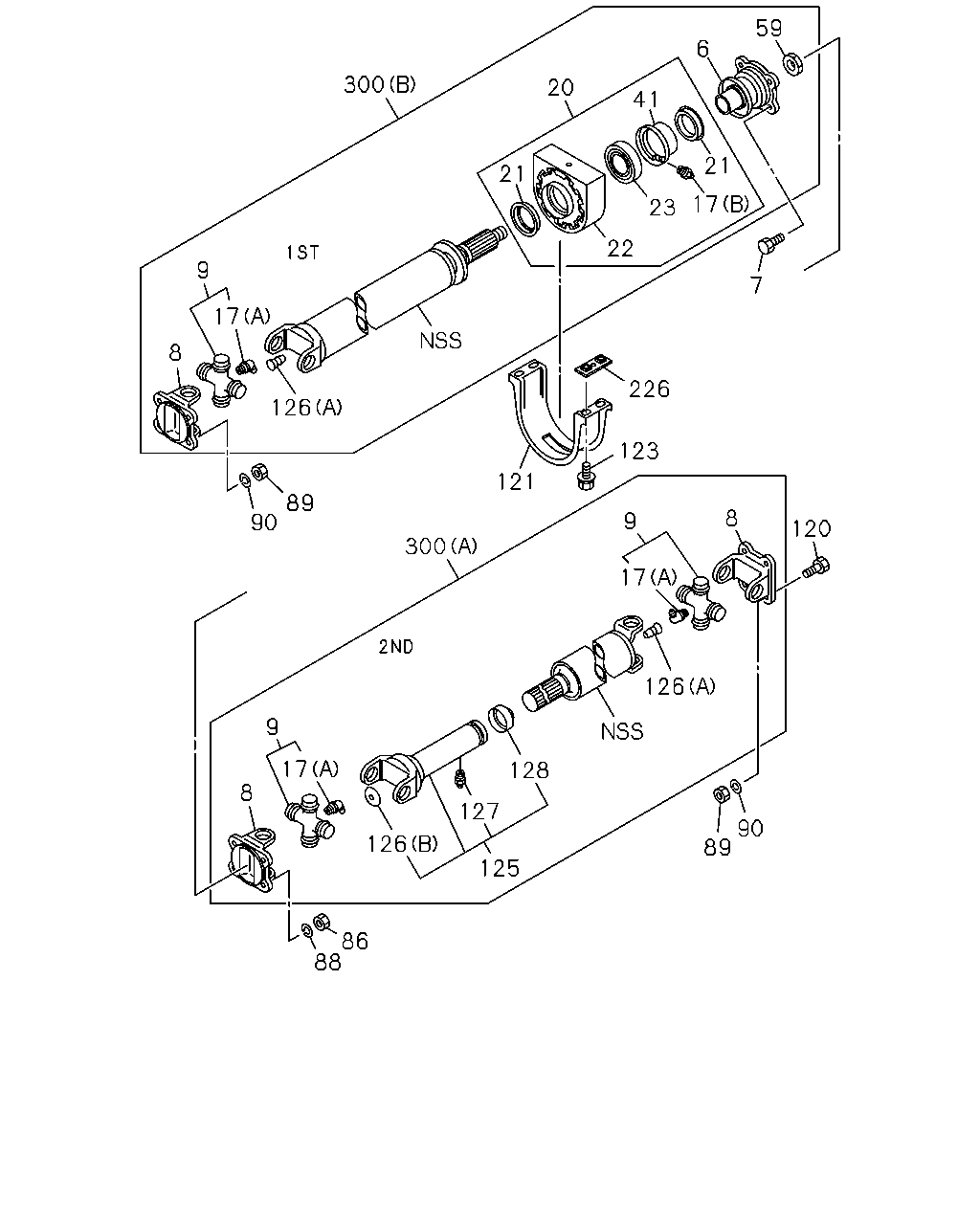

59 6 300 20 41 21 21 17 23 22 9 7 17 8 226 126 123 121 89 90 8 9 120 300 17 126 9 17 128 8 127 90 89 126 125 86 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	COUPLING ASM; DRIVER,PROP SHAFT	1-37245-115-0	01	1	0507-0604		●	●
6	COUPLING ASM; DRIVER,PROP SHAFT	1-37245-115-1	01	1	0605-		●	●	●
7	BOLT; COUPLING DRIVER TO YOKE M12X35	8-94477-842-0	04	1	0507-0604		●	●
7	BOLT; COUPLING DRIVER TO YOKE M12X35	8-94477-842-0	04	1	0605-0610		●	●	●
7	BOLT; COUPLING DRIVER TO YOKE M12X35	8-97365-451-1	04	1	0611-		●	●	●
8	YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	02	1	0507-	●	●	●
8	YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	01	1	0507-		●	●
8	YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	03	1	0605-				●
9	JOURNAL ASM; PROP SHAFT	1-37300-103-0	02	1	0507-1106	●	●	●
9	JOURNAL ASM; PROP SHAFT	8-98020-789-1	02	1	1107-	●	●	●
9	JOURNAL ASM; PROP SHAFT	1-37300-103-0	01	1	0507-1106		●	●
9	JOURNAL ASM; PROP SHAFT	8-98020-789-1	01	1	1107-		●	●
9	JOURNAL ASM; PROP SHAFT	1-37300-103-0	03	1	0605-1106				●
9	JOURNAL ASM; PROP SHAFT	8-98020-789-1	03	1	1107-				●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	9-09031-210-0	02	1	0507-0512	●	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	02	1	0601-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/16 ELBOW 40 DEGREES	8-97240-194-0	01	1	0507-0604		●	●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/16 ELBOW 40 DEGREES	8-97240-194-0	01	1	0605-		●	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	9-09031-210-0	01	1	0507-0512		●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	01	1	0601-		●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	03	1	0605-				●
20	BEARING ASM; CTR,PROP SHAFT	8-97131-143-1	01	1	0507-0604		●	●
20	BEARING ASM; CTR,PROP SHAFT	8-97131-143-1	01	1	0605-		●	●	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	0507-0604		●	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	0605-		●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	8-97131-125-0	01	1	0507-0604		●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	8-97131-125-0	01	1	0605-		●	●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	0507-0604		●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	0605-		●	●	●
41	COVER; CENTER BRG,PROP SHAFT	1-37529-068-0	01	1	0507-0604		●	●
41	COVER; CENTER BRG,PROP SHAFT	1-37529-068-0	01	1	0605-1106		●	●	●
41	COVER; CENTER BRG,PROP SHAFT	8-98020-882-0	01	1	1107-		●	●	●
59	NUT; RET TO SUPPORT M30	8-97160-857-0	01	1	0507-0604		●	●
59	NUT; RET TO SUPPORT M30	8-97160-857-0	01	1	0605-		●	●	●
86	NUT; COUPLING DRIVER TO YOKE M12	8-94477-841-0	04	1	0507-0604		●	●
86	NUT; COUPLING DRIVER TO YOKE M12	8-94477-841-0	04	1	0605-0610		●	●	●
86	NUT; COUPLING DRIVER TO YOKE M12	8-97365-450-1	04	1	0611-		●	●	●
88	WASHER; LK,COUPLING DRIVER TO YOKE ID=12.2	9-09150-812-0	04	1	0507-0603		●	●
88	WASHER; LK,COUPLING DRIVER TO YOKE ID=12.2	0-91510-812-0	04	1	0604-0604		●	●
88	WASHER; LK,COUPLING DRIVER TO YOKE ID=12.2	0-91510-812-0	04	1	0605-		●	●	●
89	NUT; YOKE TO RR AXLE M12	8-94477-841-0	08	1	0507-0604	●	●	●
89	NUT; YOKE TO RR AXLE M12	8-94477-841-0	08	1	0605-0610	●	●	●	●
89	NUT; YOKE TO RR AXLE M12	8-97365-450-1	08	1	0611-	●	●	●	●
90	WASHER; LK,YOKE TO RR AXLE ID=12.2	9-09150-812-0	08	1	0507-0603	●	●	●
90	WASHER; LK,YOKE TO RR AXLE ID=12.2	0-91510-812-0	08	1	0604-0604	●	●	●
90	WASHER; LK,YOKE TO RR AXLE ID=12.2	0-91510-812-0	08	1	0605-	●	●	●	●
120	BOLT; YOKE TO RR AXLE M12X35	8-94477-842-0	04	1	0507-0604	●	●	●
120	BOLT; YOKE TO RR AXLE M12X35	8-94477-842-0	04	1	0605-0610	●	●	●	●
120	BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	04	1	0611-	●	●	●	●
121	RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	0507-0604		●	●
121	RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	0605-		●	●	●
123	BOLT; RET M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	0507-0512		●	●
123	BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0601-0604		●	●
123	BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0605-		●	●	●
125	YOKE ASM; SPLINED,PROP SHAFT L=183	8-98040-513-0	01	1	0507-	●	●	●	●
126	PLUG; SPLINED YOKE (B)	1-09600-014-0	01	1	0507-0604	●	●	●
126	PLUG; SPLINED YOKE (B)	1-09600-014-0	01	1	0605-	●	●	●	●
126	PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0507-	●	●	●
126	PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0507-		●	●
126	PLUG; SPLINED YOKE (A)	1-09600-023-0	02	1	0605-				●
127	NIPPLE; GREASE,SPLINED YOKE PT1/8 STRAIGHT	9-09031-010-0	01	1	0507-0512	●	●	●
127	NIPPLE; GREASE,SPLINED YOKE PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-0604	●	●	●
127	NIPPLE; GREASE,SPLINED YOKE PT1/8 STRAIGHT	0-90301-410-0	01	1	0605-	●	●	●	●
128	SEAL; SLEEVE	1-37247-001-1	01	1	0507-0604	●	●	●
128	SEAL; SLEEVE	1-37247-001-1	01	1	0605-	●	●	●	●
226	PLATE; LK,CENTER BRG	8-97371-572-0	02	1	0507-		●	●
300	SHAFT ASM; PROP,RR (A) L=1043	8-97096-775-1	01	1	0507-	●	●	●
300	SHAFT ASM; PROP,RR (B) L=608	8-97307-898-2	01	1	0507-		●
300	SHAFT ASM; PROP,RR (B) L=1058	8-97307-899-2	01	1	0507-			●
300	SHAFT ASM; PROP,RR (A) L=1384	8-97129-514-1	01	1	0605-				●
300	SHAFT ASM; PROP,RR (B) L=1358	8-97307-900-2	01	1	0605-				●
