3-60 — BRAKE PIPING; VACUUM (#51565) — 167 parça

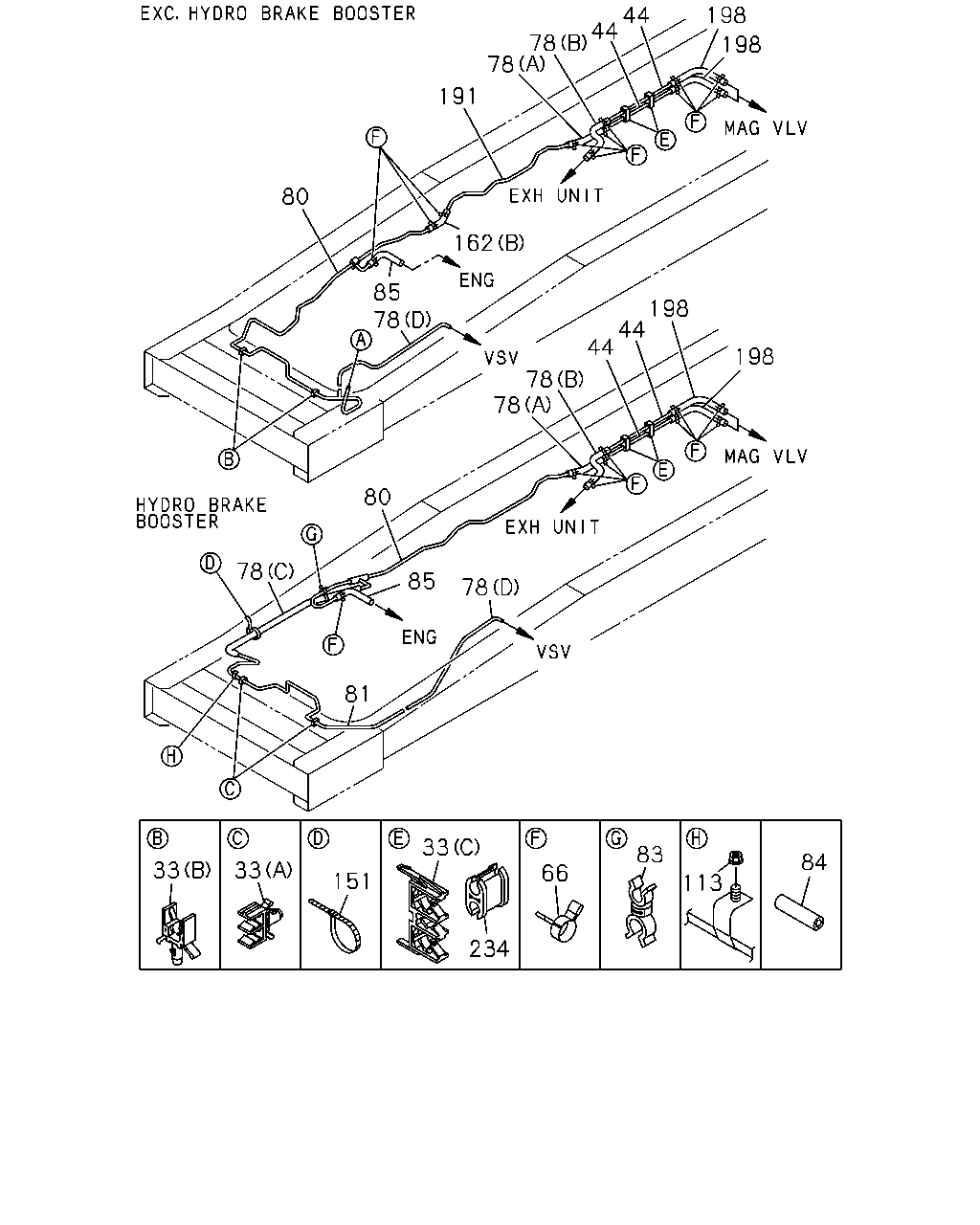

çizim 57290
198 44 44 78 78 198 191 80 162 85 78 198 44 44 198 78 78 80 78 85 78 81 33 83 84 33 33 66 151 113 234
BalonParca AdiParca NoAdetTipApplied Date A B C D
33 CLIP; VAC PIPE
(B) ID=10 H=40 		8-94462-219-0 04 1 0507- ●
33 CLIP; VAC PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=10 H=40 		8-94462-219-0 04 1 0507- ● ●
33 CLIP; VAC PIPE
(C) ID=10X2 OR 12X2 & 6.35 		8-97326-157-1 02 1 0507- ● ●
33 CLIP; VAC PIPE
HYDRO BRAKE BOOSTER(7QQ) (A) ID=4.8X2 		8-94316-410-0 01 1 0507-0604 ● ●
33 CLIP; VAC PIPE
HYDRO BRAKE BOOSTER(7QQ) (A) ID=4.8X2 		8-94316-410-0 01 1 0605- ● ●
33 CLIP; VAC PIPE
(A) ID=4.8X2 		8-94316-410-0 01 1 0605- ●
33 CLIP; VAC PIPE
(C) ID=10X2 OR 12X2 & 6.35 		8-97326-157-1 03 1 0507- ●
33 CLIP; VAC PIPE
(C) ID=10X2 OR 12X2 & 6.35 		8-97326-157-1 04 1 0605- ●
44 PIPE; VAC,MAG VLV 8-97149-845-2 02 1 0507- ●
44 PIPE; VAC,MAG VLV 8-97096-971-0 02 1 0507- ●
44 PIPE; VAC,MAG VLV 8-97096-972-0 02 1 0507- ●
44 PIPE; VAC,MAG VLV 8-97127-120-1 02 1 0605- ●
66 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 13 1 0507-0911 ●
66 CLIP; VAC HOSE,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) ID=16 		8-94238-568-0 13 1 0507-0911 ● ●
66 CLIP; VAC HOSE,M/VAC
ID=16 		8-98008-098-0 13 1 0912- ●
66 CLIP; VAC HOSE,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) ID=16 		8-98008-098-0 13 1 0912- ● ●
66 CLIP; VAC HOSE,M/VAC
HYDRO BRAKE BOOSTER(7QQ) ID=16 		8-94238-568-0 10 1 0507-0604 ● ●
66 CLIP; VAC HOSE,M/VAC
HYDRO BRAKE BOOSTER(7QQ) ID=16 		8-94238-568-0 10 1 0605-0911 ● ●
66 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 10 1 0605-0911 ●
66 CLIP; VAC HOSE,M/VAC
HYDRO BRAKE BOOSTER(7QQ) ID=16 		8-98008-098-0 10 1 0912- ● ●
66 CLIP; VAC HOSE,M/VAC
ID=16 		8-98008-098-0 10 1 0912- ●
78 HOSE; VAC,PIPE TO PIPE
(A) L=300 SERVICED BY L=3000 		0-08358-300-0 01 1 0507-0604 ● ● ●
78 HOSE; VAC,PIPE TO PIPE
(A) L=300 SERVICED BY L=3000 		0-08358-300-0 01 1 0605- ● ● ● ●
78 HOSE; VAC,PIPE TO PIPE
(B) L=420 SERVICED BY L=3000 		0-08358-300-0 01 1 0507-0604 ● ● ●
78 HOSE; VAC,PIPE TO PIPE
(B) L=420 SERVICED BY L=3000 		0-08358-300-0 01 1 0605- ● ● ● ●
78 HOSE; VAC,PIPE TO PIPE
(D) L=800 SERVICED BY L=3000 		0-04740-300-0 01 1 0507-0604 ● ● ●
78 HOSE; VAC,PIPE TO PIPE
(D) L=800 SERVICED BY L=3000 		0-04740-300-0 01 1 0605- ● ● ● ●
78 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (C) L=1150 SERVICED BY L=3000 		0-04740-300-0 01 1 0507-0604 ● ●
78 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (C) L=1150 SERVICED BY L=3000 		0-04740-300-0 01 1 0605- ● ●
78 HOSE; VAC,PIPE TO PIPE
(C) L=1150 SERVICED BY L=3000 		0-04740-300-0 01 1 0605- ●
80 PIPE; VAC,ENG SIDE 8-97360-792-1 01 1 0507- ●
80 PIPE; VAC,ENG SIDE
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97360-792-1 01 1 0507- ● ●
80 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) 		8-97148-808-3 01 1 0507-0604 ● ●
80 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) 		8-97148-808-3 01 1 0605- ● ●
80 PIPE; VAC,ENG SIDE 8-97148-808-3 01 1 0605- ●
81 PIPE; VAC,VSV
HYDRO BRAKE BOOSTER(7QQ) 		8-97181-226-2 01 1 0507-0604 ● ●
81 PIPE; VAC,VSV
HYDRO BRAKE BOOSTER(7QQ) 		8-97181-226-2 01 1 0605- ● ●
81 PIPE; VAC,VSV 8-97181-226-2 01 1 0605- ●
83 CLIP; VSV HOSE
HYDRO BRAKE BOOSTER(7QQ) ID=8.3 & 16.5 		8-94169-027-0 01 1 0507-0604 ● ●
83 CLIP; VSV HOSE
HYDRO BRAKE BOOSTER(7QQ) ID=8.3 & 16.5 		8-94169-027-0 01 1 0605- ● ●
83 CLIP; VSV HOSE
ID=8.3 & 16.5 		8-94169-027-0 01 1 0605- ●
84 PROTECTOR; EDGE,VAC HOSE
L=80 		5-22439-006-0 01 1 0507- ●
85 HOSE; VAC,ENG SIDE 8-97239-327-0 01 1 0507-0604 ● ● ●
85 HOSE; VAC,ENG SIDE 8-97239-327-0 01 1 0605- ● ● ● ●
113 NUT
HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ●
113 NUT
HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE 		0-91180-108-0 01 1 0603-0604 ● ●
113 NUT
HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE 		0-91180-108-0 01 1 0605- ● ●
113 NUT
M8 FLANGE 		0-91180-108-0 01 1 0605- ●
151 CLIP; BAND
L=140 		5-09707-031-1 01 1 0507- ●
151 CLIP; BAND
GVWR CLASS-4 14001-16000LBS(RQG) L=140 		5-09707-031-1 01 1 0507- ● ●
151 CLIP; BAND
L=140 		5-09707-031-1 03 1 0507-0604 ● ● ●
151 CLIP; BAND
L=140 		5-09707-031-1 03 1 0605- ● ● ● ●
151 CLIP; BAND
HYDRO BRAKE BOOSTER(7QQ) L=140 		5-09707-031-1 04 1 0507-0604 ● ●
151 CLIP; BAND
HYDRO BRAKE BOOSTER(7QQ) L=140 		5-09707-031-1 04 1 0605- ● ●
151 CLIP; BAND
L=140 		5-09707-031-1 04 1 0605- ●
162 HOSE; VAC
(B) L=130 SERVICED BY L=3000 		0-08358-300-0 01 1 0507- ●
162 HOSE; VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) L=130 SERVICED BY L=3000 		0-08358-300-0 01 1 0507- ● ●
162 HOSE; VAC
(C) 		8-97105-806-0 01 1 0507- ●
162 HOSE; VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97105-806-0 01 1 0507- ● ●
162 HOSE; VAC
(A) 		8-97189-681-0 01 1 0507- ●
162 HOSE; VAC
GVWR CLASS-4 14001-16000LBS(RQG) (A) 		8-97189-681-0 01 1 0507- ● ●
191 PIPE; VAC 8-97104-170-4 01 1 0507- ●
191 PIPE; VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97104-170-4 01 1 0507- ● ●
198 HOSE; VAC,PIPE TO MAG VLV
L=220 SERVICED BY L=3000 		0-08358-300-0 02 1 0507- ●
198 HOSE; VAC,PIPE TO MAG VLV
L=350 SERVICED BY L=3000 		0-08358-300-0 02 1 0507-0604 ● ●
198 HOSE; VAC,PIPE TO MAG VLV
L=350 SERVICED BY L=3000 		0-08358-300-0 02 1 0605- ● ● ●
234 CLAMP; PIPE
ID=10X2 H=22 		8-94252-455-2 01 1 0507- ●

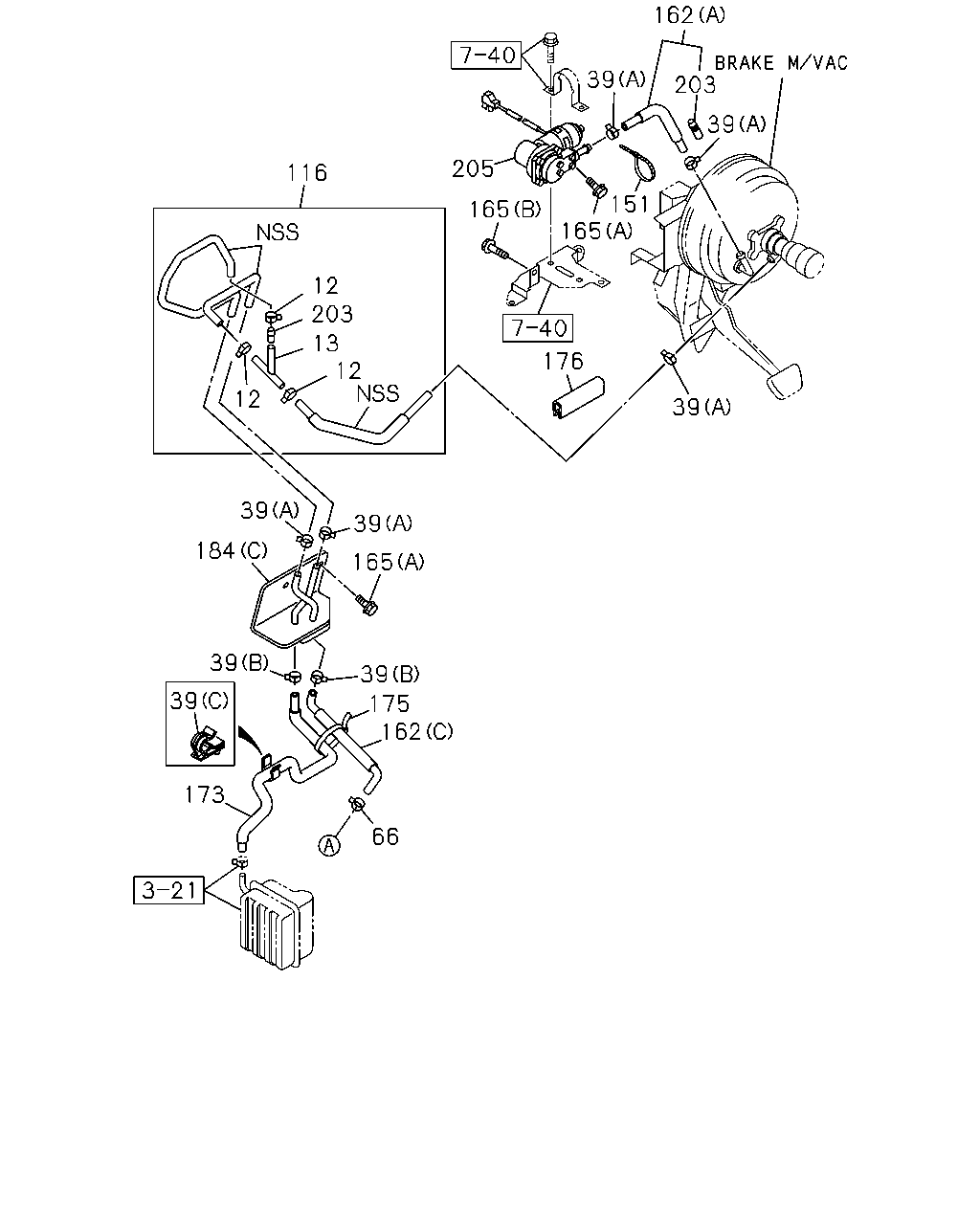

çizim 57913
162 203 39 39 205 116 151 165 165 12 203 13 12 176 12 39 39 39 184 165 39 39 39 175 162 173 66
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 CLIP; HOSE
ID=14.5 		8-94167-480-0 03 1 0507- ●
12 CLIP; HOSE
EXC. HYDRO BRAKE BOOSTER(7QQ) ID=14.5 		8-94167-480-0 03 1 0507- ● ●
13 JOINT; HOSE,VAC
3WAY 		8-94441-184-0 01 1 0507- ●
13 JOINT; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 3WAY 		8-94441-184-0 01 1 0507- ● ●
39 CLIP; HOSE,VAC
(B) ID=16 		5-09707-023-2 02 1 0507- ●
39 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 		5-09707-023-2 02 1 0507- ● ●
39 CLIP; HOSE,VAC
(A) ID=16 		8-94238-568-0 02 1 0507- ●
39 CLIP; HOSE,VAC
GVWR CLASS-4 14001-16000LBS(RQG) (A) ID=16 		8-94238-568-0 02 1 0507- ● ●
39 CLIP; HOSE,VAC
(A) ID=16 		8-94238-568-0 03 1 0507- ●
39 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) ID=16 		8-94238-568-0 03 1 0507- ● ●
39 CLIP; HOSE,VAC
(C) ID=25.5 		8-97077-492-0 01 1 0507- ●
39 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (C) ID=25.5 		8-97077-492-0 01 1 0507- ● ●
66 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 13 1 0507-0911 ●
66 CLIP; VAC HOSE,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) ID=16 		8-94238-568-0 13 1 0507-0911 ● ●
66 CLIP; VAC HOSE,M/VAC
ID=16 		8-98008-098-0 13 1 0912- ●
66 CLIP; VAC HOSE,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) ID=16 		8-98008-098-0 13 1 0912- ● ●
66 CLIP; VAC HOSE,M/VAC
HYDRO BRAKE BOOSTER(7QQ) ID=16 		8-94238-568-0 10 1 0507-0604 ● ●
66 CLIP; VAC HOSE,M/VAC
HYDRO BRAKE BOOSTER(7QQ) ID=16 		8-94238-568-0 10 1 0605-0911 ● ●
66 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 10 1 0605-0911 ●
66 CLIP; VAC HOSE,M/VAC
HYDRO BRAKE BOOSTER(7QQ) ID=16 		8-98008-098-0 10 1 0912- ● ●
66 CLIP; VAC HOSE,M/VAC
ID=16 		8-98008-098-0 10 1 0912- ●
116 HOSE; VAC,M/VAC 8-97314-597-1 01 1 0507- ●
116 HOSE; VAC,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97314-597-1 01 1 0507- ● ●
151 CLIP; BAND
L=140 		5-09707-031-1 01 1 0507- ●
151 CLIP; BAND
GVWR CLASS-4 14001-16000LBS(RQG) L=140 		5-09707-031-1 01 1 0507- ● ●
151 CLIP; BAND
L=140 		5-09707-031-1 03 1 0507-0604 ● ● ●
151 CLIP; BAND
L=140 		5-09707-031-1 03 1 0605- ● ● ● ●
151 CLIP; BAND
HYDRO BRAKE BOOSTER(7QQ) L=140 		5-09707-031-1 04 1 0507-0604 ● ●
151 CLIP; BAND
HYDRO BRAKE BOOSTER(7QQ) L=140 		5-09707-031-1 04 1 0605- ● ●
151 CLIP; BAND
L=140 		5-09707-031-1 04 1 0605- ●
162 HOSE; VAC
(B) L=130 SERVICED BY L=3000 		0-08358-300-0 01 1 0507- ●
162 HOSE; VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) L=130 SERVICED BY L=3000 		0-08358-300-0 01 1 0507- ● ●
162 HOSE; VAC
(C) 		8-97105-806-0 01 1 0507- ●
162 HOSE; VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97105-806-0 01 1 0507- ● ●
162 HOSE; VAC
(A) 		8-97189-681-0 01 1 0507- ●
162 HOSE; VAC
GVWR CLASS-4 14001-16000LBS(RQG) (A) 		8-97189-681-0 01 1 0507- ● ●
165 BOLT; BRKT
(A) M6X16 FLANGE 		0-28680-616-0 01 1 0507-0512 ●
165 BOLT; BRKT
GVWR CLASS-4 14001-16000LBS(RQG) (A) M6X16 FLANGE 		0-28680-616-0 01 1 0507-0512 ● ●
165 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0601- ●
165 BOLT; BRKT
GVWR CLASS-4 14001-16000LBS(RQG) (A) M6X16 FLANGE 		0-28650-616-0 01 1 0601- ● ●
165 BOLT; BRKT
(B) M6X8 		8-94155-893-0 01 1 0507- ●
165 BOLT; BRKT
GVWR CLASS-4 14001-16000LBS(RQG) (B) M6X8 		8-94155-893-0 01 1 0507- ● ●
165 BOLT; BRKT
(A) M6X16 FLANGE 		0-28680-616-0 02 1 0507-0512 ● ● ●
165 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 02 1 0601-0604 ● ● ●
165 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 02 1 0605- ● ● ● ●
173 HOSE; VAC,VAC TANK SIDE 8-97129-872-0 01 1 0507- ●
173 HOSE; VAC,VAC TANK SIDE
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97129-872-0 01 1 0507- ● ●
175 CLIP; BAND,VAC HOSE
L=219.5 		1-09987-136-0 01 1 0507- ●
175 CLIP; BAND,VAC HOSE
EXC. HYDRO BRAKE BOOSTER(7QQ) L=219.5 		1-09987-136-0 01 1 0507- ● ●
176 FINISHER; VAC HOSE,FRT MTG RAIL
L=250 SERVICED BY L=2040 		1-71997-513-1 01 1 0507-0606 ●
176 FINISHER; VAC HOSE,FRT MTG RAIL
GVWR CLASS-4 14001-16000LBS(RQG) L=250 SERVICED BY L=2040 		1-71997-513-1 01 1 0507-0606 ● ●
176 FINISHER; VAC HOSE,FRT MTG RAIL
L=250 SERVICED BY L=500 		1-79937-746-0 01 1 0607- ●
176 FINISHER; VAC HOSE,FRT MTG RAIL
GVWR CLASS-4 14001-16000LBS(RQG) L=250 SERVICED BY L=500 		1-79937-746-0 01 1 0607- ● ●
184 BRACKET; UNION FIX
(C) 		8-97078-460-5 01 1 0507- ●
184 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97078-460-5 01 1 0507- ● ●
184 BRACKET; UNION FIX
(A) 		8-97094-014-3 01 1 0507-0604 ● ● ●
184 BRACKET; UNION FIX
(A) 		8-97094-014-4 01 1 0605- ● ● ● ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97175-473-1 01 1 0507-0604 ● ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97175-473-1 01 1 0605- ● ●
184 BRACKET; UNION FIX
(B) 		8-97175-473-1 01 1 0605- ●
203 VALVE; CHECK 8-94386-540-0 01 1 0507- ●
203 VALVE; CHECK 8-94386-540-0 01 1 0507- ●
203 VALVE; CHECK
GVWR CLASS-4 14001-16000LBS(RQG) 		8-94386-540-0 01 1 0507- ● ●
203 VALVE; CHECK
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-94386-540-0 01 1 0507- ● ●
205 PUMP; VAC 8-97370-055-0 01 1 0507- ●
205 PUMP; VAC
GVWR CLASS-4 14001-16000LBS(RQG) 		8-97370-055-0 01 1 0507- ● ●
çizim 100757
201 184 200 202
BalonParca AdiParca NoAdetTipApplied Date A B C D
184 BRACKET; UNION FIX
(C) 		8-97078-460-5 01 1 0507- ●
184 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97078-460-5 01 1 0507- ● ●
184 BRACKET; UNION FIX
(A) 		8-97094-014-3 01 1 0507-0604 ● ● ●
184 BRACKET; UNION FIX
(A) 		8-97094-014-4 01 1 0605- ● ● ● ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97175-473-1 01 1 0507-0604 ● ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97175-473-1 01 1 0605- ● ●
184 BRACKET; UNION FIX
(B) 		8-97175-473-1 01 1 0605- ●
200 GROMMET; SCREW
H=15 		8-94463-268-1 02 1 0507-0604 ● ● ●
200 GROMMET; SCREW
H=15 		8-94463-268-1 02 1 0605- ● ● ● ●
201 SCREW; BRKT
M5X16 TAPPING W/PL WASHER 		0-74305-516-0 02 1 0507-0604 ● ● ●
201 SCREW; BRKT
M5X16 TAPPING W/PL WASHER 		0-74305-516-0 02 1 0605-0605 ● ● ● ●
201 SCREW; BRKT
M5X16 TAPPING W/PL WASHER 		0-74365-516-0 02 1 0605- ● ● ● ●
202 SEAL
HYDRO BRAKE BOOSTER(7QQ) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0507-0604 ● ●
202 SEAL
HYDRO BRAKE BOOSTER(7QQ) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0605- ● ●
202 SEAL
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0605- ●
çizim 100759
108 165 184
BalonParca AdiParca NoAdetTipApplied Date A B C D
108 GROMMET; PIPE
HYDRO BRAKE BOOSTER(7QQ) 		9-09956-353-0 01 1 0507-0604 ● ●
108 GROMMET; PIPE
HYDRO BRAKE BOOSTER(7QQ) 		9-09956-353-0 01 1 0605- ● ●
108 GROMMET; PIPE 9-09956-353-0 01 1 0605- ●
165 BOLT; BRKT
(A) M6X16 FLANGE 		0-28680-616-0 01 1 0507-0512 ●
165 BOLT; BRKT
GVWR CLASS-4 14001-16000LBS(RQG) (A) M6X16 FLANGE 		0-28680-616-0 01 1 0507-0512 ● ●
165 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0601- ●
165 BOLT; BRKT
GVWR CLASS-4 14001-16000LBS(RQG) (A) M6X16 FLANGE 		0-28650-616-0 01 1 0601- ● ●
165 BOLT; BRKT
(B) M6X8 		8-94155-893-0 01 1 0507- ●
165 BOLT; BRKT
GVWR CLASS-4 14001-16000LBS(RQG) (B) M6X8 		8-94155-893-0 01 1 0507- ● ●
165 BOLT; BRKT
(A) M6X16 FLANGE 		0-28680-616-0 02 1 0507-0512 ● ● ●
165 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 02 1 0601-0604 ● ● ●
165 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 02 1 0605- ● ● ● ●
184 BRACKET; UNION FIX
(C) 		8-97078-460-5 01 1 0507- ●
184 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97078-460-5 01 1 0507- ● ●
184 BRACKET; UNION FIX
(A) 		8-97094-014-3 01 1 0507-0604 ● ● ●
184 BRACKET; UNION FIX
(A) 		8-97094-014-4 01 1 0605- ● ● ● ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97175-473-1 01 1 0507-0604 ● ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97175-473-1 01 1 0605- ● ●
184 BRACKET; UNION FIX
(B) 		8-97175-473-1 01 1 0605- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
