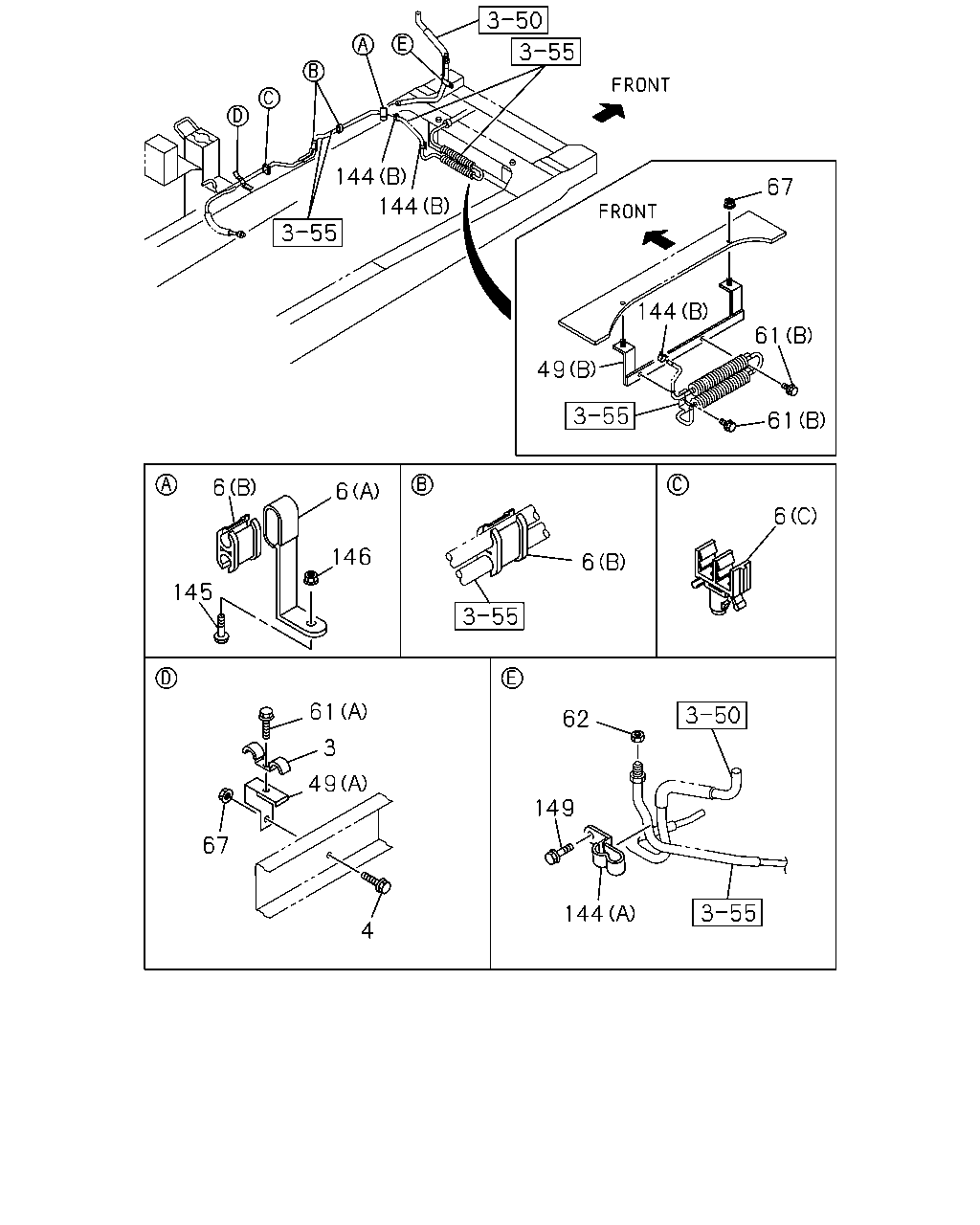

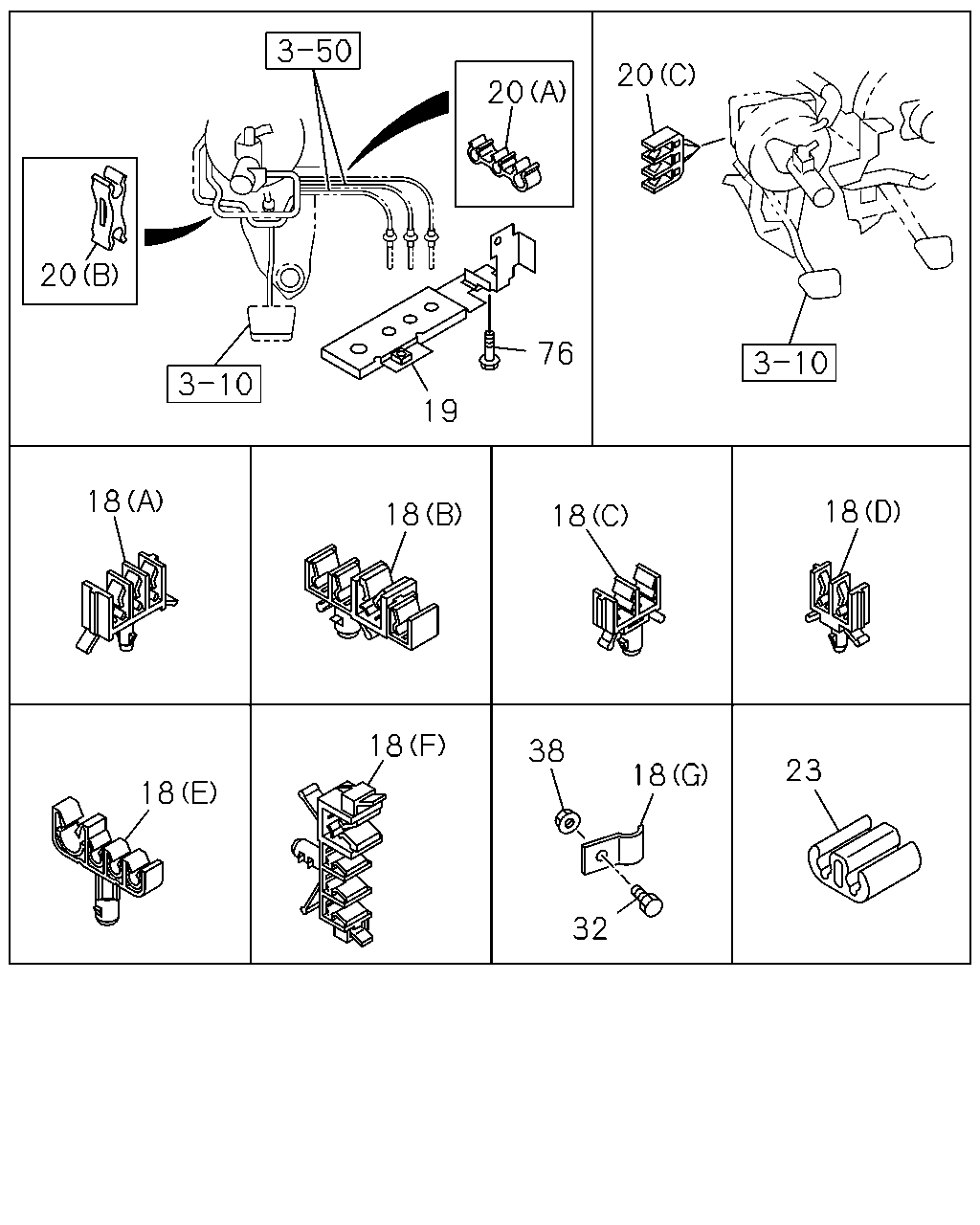

3-58 — FIXING PARTS; OIL PIPING (#51564) — 110 parça

144 67 144 144 61 49 61 6 6 6 146 6 145 61 62 3 49 149 67 144 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	CLIP; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0507-0604	●	●
3	CLIP; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0605-	●	●
3	CLIP; BRK PIPE ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0605-			●
4	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) M10X25 FLANGE	0-28681-025-0	01	1	0507-0512	●	●
4	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) M10X25 FLANGE	0-28651-025-0	01	1	0601-0604	●	●
4	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) M10X25 FLANGE	0-28651-025-0	01	1	0605-	●	●
4	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	01	1	0605-			●
6	CLIP; PIPE HYDRO BRAKE BOOSTER(7QQ) (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0507-0604	●	●
6	CLIP; PIPE HYDRO BRAKE BOOSTER(7QQ) (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0605-	●	●
6	CLIP; PIPE (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0605-			●
6	CLIP; PIPE HYDRO BRAKE BOOSTER(7QQ) (B) ID=10X2 H=22	8-94252-455-2	03	1	0507-0604	●	●
6	CLIP; PIPE HYDRO BRAKE BOOSTER(7QQ) (B) ID=10X2 H=22	8-94252-455-2	03	1	0605-	●	●
6	CLIP; PIPE (B) ID=10X2 H=22	8-94252-455-2	03	1	0605-			●
6	CLIP; PIPE HYDRO BRAKE BOOSTER(7QQ) (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0507-0604	●	●
6	CLIP; PIPE HYDRO BRAKE BOOSTER(7QQ) (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0605-	●	●
6	CLIP; PIPE (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0605-			●
49	BRACKET; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (A)	8-97174-638-0	01	1	0507-0604	●	●
49	BRACKET; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (A)	8-97174-638-0	01	1	0605-	●	●
49	BRACKET; BRK PIPE (A)	8-97174-638-0	01	1	0605-			●
49	BRACKET; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (B)	8-97180-993-1	01	1	0507-0604	●	●
49	BRACKET; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (B)	8-97180-993-1	01	1	0605-	●	●
49	BRACKET; BRK PIPE (B)	8-97180-993-1	01	1	0605-			●
61	BOLT; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (A) M6X12 FLANGE	0-28080-612-0	01	1	0507-0512	●	●
61	BOLT; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (A) M6X12 FLANGE	0-28050-612-0	01	1	0601-0604	●	●
61	BOLT; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (A) M6X12 FLANGE	0-28050-612-0	01	1	0605-	●	●
61	BOLT; BRK PIPE (A) M6X12 FLANGE	0-28050-612-0	01	1	0605-			●
61	BOLT; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (B) M10X25 FLANGE	0-28681-025-0	02	1	0507-0512	●	●
61	BOLT; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-0604	●	●
61	BOLT; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (B) M10X25 FLANGE	0-28651-025-0	02	1	0605-	●	●
61	BOLT; BRK PIPE (B) M10X25 FLANGE	0-28651-025-0	02	1	0605-			●
62	NUT HYDRO BRAKE BOOSTER(7QQ) M14	9-99111-414-0	01	1	0507-0512	●	●
62	NUT HYDRO BRAKE BOOSTER(7QQ) M14	0-91111-514-0	01	1	0601-0604	●	●
62	NUT HYDRO BRAKE BOOSTER(7QQ) M14	0-91111-514-0	01	1	0605-	●	●
62	NUT M14	0-91111-514-0	01	1	0605-			●
67	NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) M10 FLANGE	0-91150-110-0	03	1	0507-0602	●	●
67	NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) M10 FLANGE	0-91180-110-0	03	1	0603-0604	●	●
67	NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) M10 FLANGE	0-91180-110-0	03	1	0605-	●	●
67	NUT; BRKT M10 FLANGE	0-91180-110-0	03	1	0605-			●
144	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (A) ID=19 & 19 L=53	1-09700-681-0	01	1	0507-0604	●	●
144	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (A) ID=19 & 19 L=53	1-09700-681-0	01	1	0605-	●	●
144	CLIP; HOSE (A) ID=19 & 19 L=53	1-09700-681-0	01	1	0605-			●
144	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (B) ID=11-19.5	8-94426-597-0	03	1	0507-0604	●	●
144	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (B) ID=11-19.5	8-94426-597-0	03	1	0605-1005	●	●
144	CLIP; HOSE (B) ID=11-19.5	8-94426-597-0	03	1	0605-1005			●
144	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (B) ID=11-17	8-98173-762-1	03	1	1006-	●	●
144	CLIP; HOSE (B) ID=11-17	8-98173-762-1	03	1	1006-			●
145	BOLT; PIPE HYDRO BRAKE BOOSTER(7QQ) M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●
145	BOLT; PIPE HYDRO BRAKE BOOSTER(7QQ) M8X25 FLANGE	0-28650-825-0	01	1	0601-0604	●	●
145	BOLT; PIPE HYDRO BRAKE BOOSTER(7QQ) M8X25 FLANGE	0-28650-825-0	01	1	0605-	●	●
145	BOLT; PIPE M8X25 FLANGE	0-28650-825-0	01	1	0605-			●
146	NUT; PIPE HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE	0-91150-108-0	01	1	0507-0602	●	●
146	NUT; PIPE HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE	0-91180-108-0	01	1	0603-0604	●	●
146	NUT; PIPE HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE	0-91180-108-0	01	1	0605-	●	●
146	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0605-			●
149	BOLT; HOSE HYDRO BRAKE BOOSTER(7QQ) M6X12 FLANGE	0-28080-612-0	01	1	0507-0512	●	●
149	BOLT; HOSE HYDRO BRAKE BOOSTER(7QQ) M6X12 FLANGE	0-28050-612-0	01	1	0601-0604	●	●
149	BOLT; HOSE HYDRO BRAKE BOOSTER(7QQ) M6X12 FLANGE	0-28050-612-0	01	1	0605-	●	●
149	BOLT; HOSE M6X12 FLANGE	0-28050-612-0	01	1	0605-			●

20 20 20 76 19 18 18 18 18 18 38 23 18 18 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
18	CLIP; BRK PIPE (B) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0507-				●
18	CLIP; BRK PIPE (F) ID=10 & 4.76X3	8-97326-158-1	02	1	0507-				●
18	CLIP; BRK PIPE (G) B=18 L=20	1-09700-372-0	02	1	0507-0604	●	●		●
18	CLIP; BRK PIPE (G) B=18 L=20	1-09700-372-0	02	1	0605-	●	●	●	●
18	CLIP; BRK PIPE (A) ID=6.5 & 4.8X2	8-94131-710-2	03	1	0507-0604	●	●		●
18	CLIP; BRK PIPE (A) ID=6.5 & 4.8X2	8-94131-710-2	03	1	0605-	●	●	●	●
18	CLIP; BRK PIPE (C) ID=4.8X2	8-94316-410-0	01	1	0507-0604	●	●		●
18	CLIP; BRK PIPE (C) ID=4.8X2	8-94316-410-0	01	1	0605-	●	●	●	●
18	CLIP; BRK PIPE (E) ID=10 & 4.76X3	8-97168-819-0	01	1	0507-0604	●	●		●
18	CLIP; BRK PIPE (E) ID=10 & 4.76X3	8-97168-819-0	01	1	0605-	●	●	●	●
18	CLIP; BRK PIPE (F) ID=10 & 4.76X3	8-97326-158-1	08	1	0507-0604	●	●		●
18	CLIP; BRK PIPE (F) ID=10 & 4.76X3	8-97326-158-1	08	1	0605-	●	●	●	●
18	CLIP; BRK PIPE (A) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0507-0604	●	●		●
18	CLIP; BRK PIPE (A) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0605-	●	●	●	●
18	CLIP; BRK PIPE (B) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	03	1	0507-0604	●	●		●
18	CLIP; BRK PIPE (B) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	03	1	0507-0604	●	●		●
18	CLIP; BRK PIPE (B) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	03	1	0507-0604	●
18	CLIP; BRK PIPE (B) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	03	1	0605-	●	●	●	●
18	CLIP; BRK PIPE (B) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	03	1	0605-	●	●	●	●
18	CLIP; BRK PIPE (B) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	03	1	0605-	●
18	CLIP; BRK PIPE (D) ID=4.8X2	8-94455-816-0	01	1	0507-0604	●	●		●
18	CLIP; BRK PIPE (D) ID=4.8X2	8-94455-816-0	01	1	0605-	●	●	●	●
18	CLIP; BRK PIPE (F) ID=10 & 4.76X3	8-97326-158-1	04	1	0507-	●
18	CLIP; BRK PIPE (B) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	04	1	0507-		●
18	CLIP; BRK PIPE (F) ID=10 & 4.76X3	8-97326-158-1	05	1	0507-		●
18	CLIP; BRK PIPE (B) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	06	1	0605-			●
18	CLIP; BRK PIPE (F) ID=10 & 4.76X3	8-97326-158-1	07	1	0605-			●
19	BRACKET; OIL PIPE	8-97178-320-1	01	1	0507-				●
19	BRACKET; OIL PIPE EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97178-320-1	01	1	0507-	●	●
19	BRACKET; OIL PIPE HYDRO BRAKE BOOSTER(7QQ)	8-97171-018-3	01	1	0507-0604	●	●
19	BRACKET; OIL PIPE HYDRO BRAKE BOOSTER(7QQ)	8-97171-018-3	01	1	0605-	●	●
19	BRACKET; OIL PIPE	8-97171-018-3	01	1	0605-			●
20	CLIP; BRK PIPE (A) ID=6.4 & 4.8X2	8-94146-043-0	03	1	0507-0604	●	●		●
20	CLIP; BRK PIPE (A) ID=6.4 & 4.8X2	8-94146-043-0	03	1	0605-	●	●	●	●
20	CLIP; BRK PIPE (B) ID=4.6X2	8-94241-454-0	01	1	0507-0604	●	●		●
20	CLIP; BRK PIPE (B) ID=4.6X2	8-94241-454-0	01	1	0605-	●	●	●	●
20	CLIP; BRK PIPE (C) ID=6.35 & 4.76X2	8-94250-923-2	01	1	0507-0604	●	●		●
20	CLIP; BRK PIPE (C) ID=6.35 & 4.76X2	8-94250-923-2	01	1	0605-	●	●	●	●
23	CLAMP; PIPE ID=4.8X2	8-94389-060-0	04	1	0507-0604	●	●		●
23	CLAMP; PIPE ID=4.8X2	8-94389-060-0	04	1	0605-	●	●	●	●
23	CLAMP; PIPE ID=4.8X2	8-94389-060-0	01	1	0507-0604	●	●		●
23	CLAMP; PIPE ID=4.8X2	8-94389-060-0	01	1	0605-	●	●	●	●
32	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	02	1	0507-0512	●	●		●
32	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0601-0604	●	●		●
32	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0605-0612	●	●	●	●
32	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0701-	●	●	●	●
38	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●		●
38	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	0603-0604	●	●		●
38	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	0605-	●	●	●	●
76	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0507-0512	●	●		●
76	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-0604	●	●		●
76	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0605-	●	●	●	●
