3-55 — BRAKE PIPING; OIL,REAR (#51563) — 47 parça

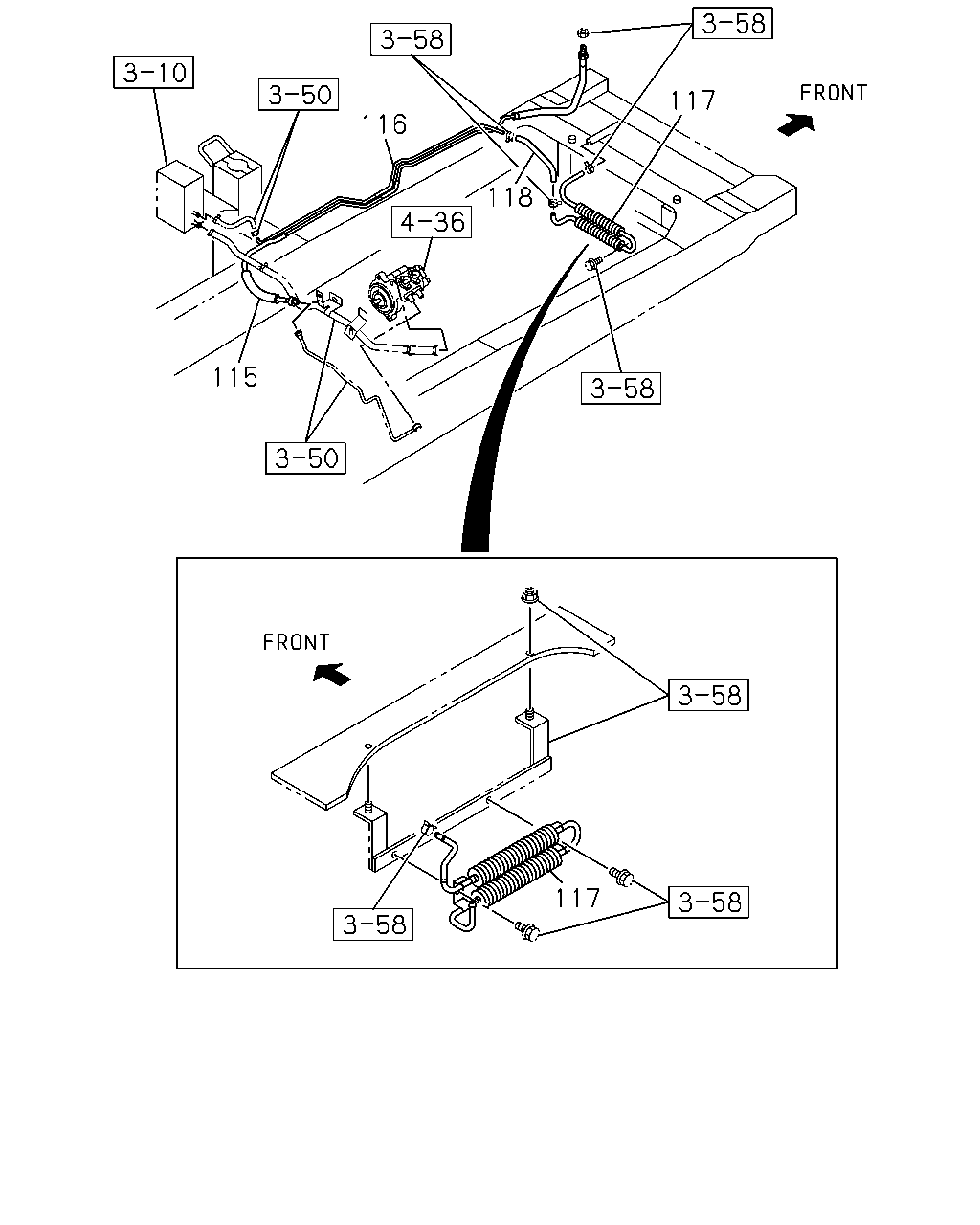

çizim 57344
117 116 118 115 117
BalonParca AdiParca NoAdetTipApplied Date A B C D
115 PIPE; PRESS,HYDRAULIC BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ) 		8-97330-406-5 01 1 0507-0604 ● ●
115 PIPE; PRESS,HYDRAULIC BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ) 		8-97330-406-5 01 1 0605- ● ●
115 PIPE; PRESS,HYDRAULIC BRK BOOSTER 8-97330-406-5 01 1 0605- ●
116 PIPE; BRK,PIPE TO TANK
HYDRO BRAKE BOOSTER(7QQ) 		8-97330-452-3 01 1 0507-0604 ● ●
116 PIPE; BRK,PIPE TO TANK
HYDRO BRAKE BOOSTER(7QQ) 		8-97330-452-3 01 1 0605- ● ●
116 PIPE; BRK,PIPE TO TANK 8-97330-452-3 01 1 0605- ●
117 PIPE; BRK,RETURN
HYDRO BRAKE BOOSTER(7QQ) 		8-97180-991-2 01 1 0507-0604 ● ●
117 PIPE; BRK,RETURN
HYDRO BRAKE BOOSTER(7QQ) 		8-97180-991-2 01 1 0605- ● ●
117 PIPE; BRK,RETURN 8-97180-991-2 01 1 0605- ●
118 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 		8-97181-217-2 01 1 0507-0604 ● ●
118 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 		8-97181-217-2 01 1 0605- ● ●
118 HOSE; PIPE TO PIPE 8-97181-217-2 01 1 0605- ●

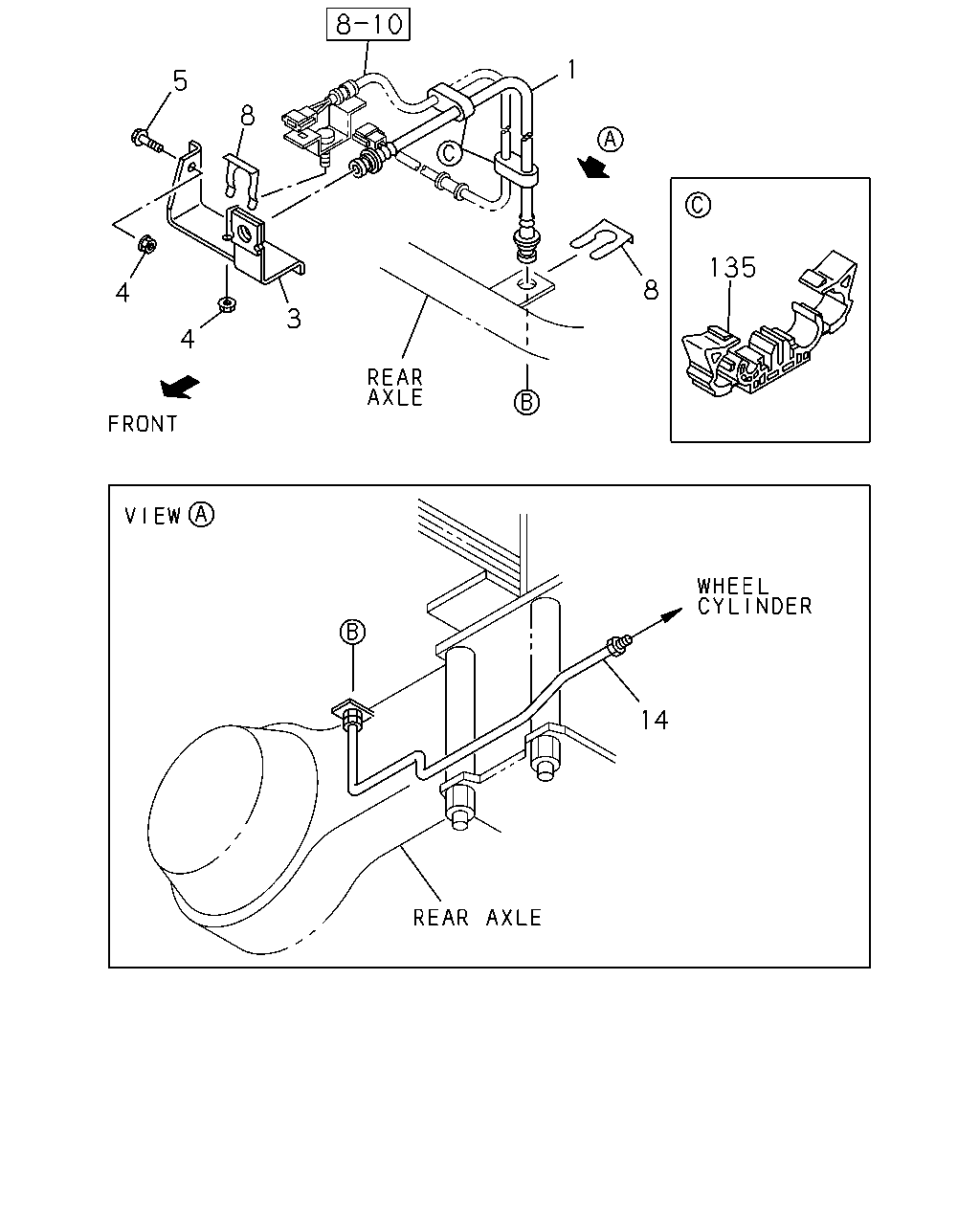

çizim 100758
1 5 8 135 8 4 4 14 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HOSE; FLEX,RR BRK 8-97253-569-0 02 1 0507-0604 ● ● ●
1 HOSE; FLEX,RR BRK 8-97253-569-0 02 1 0605- ● ● ● ●
3 BRACKET; FLEX HOSE,RR BRK 8-97205-714-1 01 1 0507-0604 ● ● ●
3 BRACKET; FLEX HOSE,RR BRK 8-97205-714-1 01 1 0605- ● ● ● ●
3 BRACKET; FLEX HOSE,RR BRK 8-97205-715-1 01 1 0507-0604 ● ● ●
3 BRACKET; FLEX HOSE,RR BRK 8-97205-715-1 01 1 0605- ● ● ● ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91150-108-0 04 1 0507-0602 ● ● ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91180-108-0 04 1 0603-0604 ● ● ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91180-108-0 04 1 0605- ● ● ● ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE 		0-28680-825-0 02 1 0507-0512 ● ● ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE 		0-28650-825-0 02 1 0601-0604 ● ● ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE 		0-28650-825-0 02 1 0605- ● ● ● ●
8 CLIP; RR BRK 8-94137-662-0 04 1 0507-0604 ● ● ●
8 CLIP; RR BRK 8-94137-662-0 04 1 0605-0610 ● ● ● ●
8 CLIP; RR BRK 8-97360-054-0 04 1 0611- ● ● ● ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97206-086-1 01 1 0507-0701 ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
GVWR CLASS-4 14001-16000LBS(RQG) 		8-97206-086-1 01 1 0507-0701 ● ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-746-0 01 1 0702- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
GVWR CLASS-4 14001-16000LBS(RQG) 		8-97359-746-0 01 1 0702- ● ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97206-531-1 01 1 0507-0701 ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
GVWR CLASS-4 14001-16000LBS(RQG) 		8-97206-531-1 01 1 0507-0701 ● ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-747-0 01 1 0702- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
GVWR CLASS-4 14001-16000LBS(RQG) 		8-97359-747-0 01 1 0702- ● ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97212-795-2 01 1 0507-0604 ● ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97212-795-2 01 1 0605-0701 ● ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-795-2 01 1 0605-0701 ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97359-748-0 01 1 0702- ● ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 0702- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97212-796-2 01 1 0507-0604 ● ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97212-796-2 01 1 0605-0701 ● ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-796-2 01 1 0605-0701 ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97359-749-0 01 1 0702- ● ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-749-0 01 1 0702- ●
135 CLIP; FLEX HOSE 8-97207-699-0 04 1 0507-0604 ● ● ●
135 CLIP; FLEX HOSE 8-97207-699-0 04 1 0605- ● ● ● ●
