3-52 — BRAKE PIPING; OIL,FRONT (#51562) — 105 parça

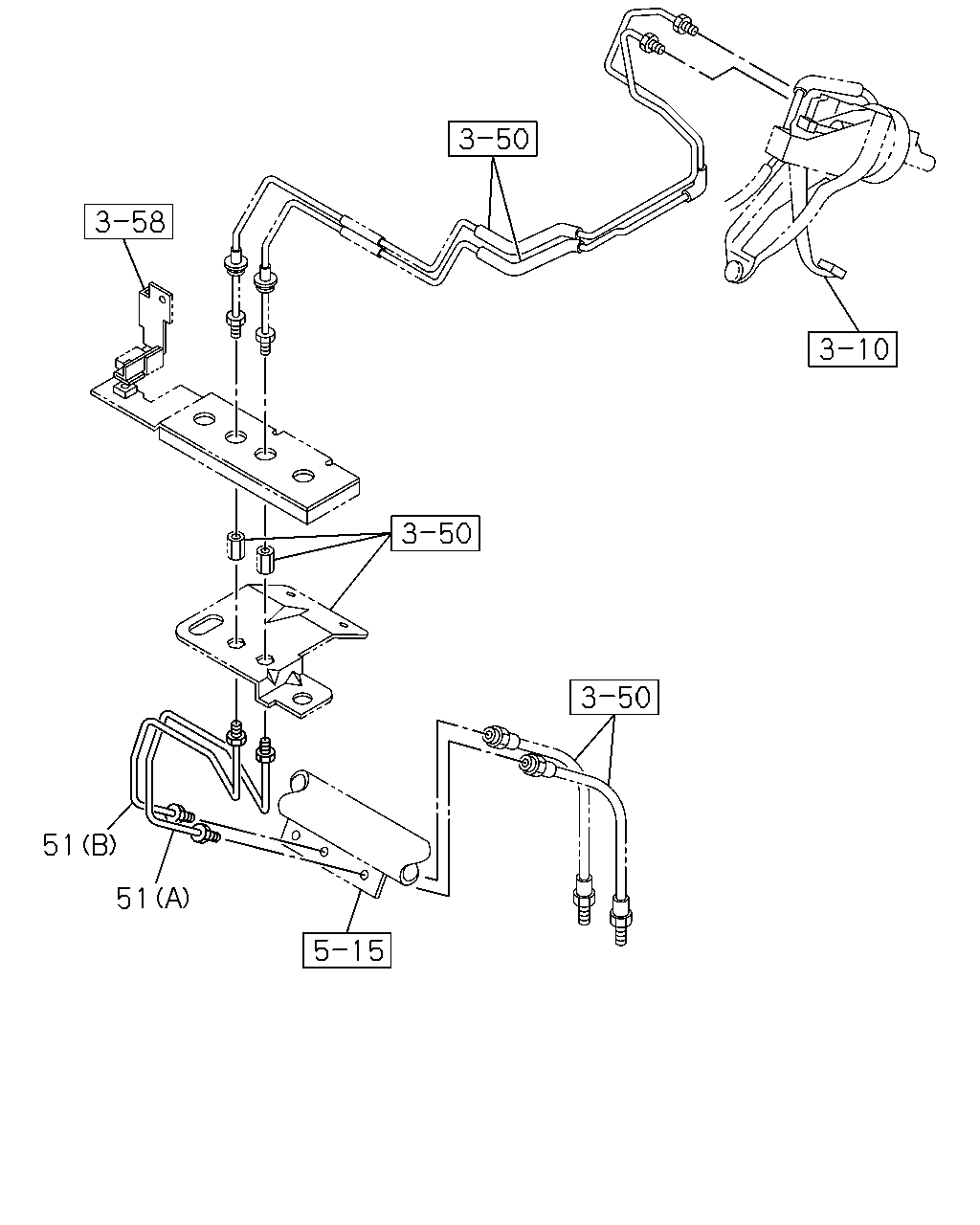

çizim 57265
51 51
BalonParca AdiParca NoAdetTipApplied Date A B C D
51 PIPE; BRK
(C) 		8-97185-059-1 01 1 0507- ●
51 PIPE; BRK
(A) FRONT 		8-97073-076-1 01 1 0507-0604 ● ● ●
51 PIPE; BRK
(A) FRONT 		8-97073-076-1 01 1 0605- ● ● ● ●
51 PIPE; BRK
(B) REAR 		8-97073-078-1 01 1 0507-0604 ● ● ●
51 PIPE; BRK
(B) REAR 		8-97073-078-1 01 1 0605- ● ● ● ●
51 PIPE; BRK
(C) 		8-97206-803-1 01 1 0507- ●
51 PIPE; BRK
(C) 		8-97206-804-1 01 1 0507- ●
51 PIPE; BRK
(C) 		8-97206-805-1 01 1 0605- ●

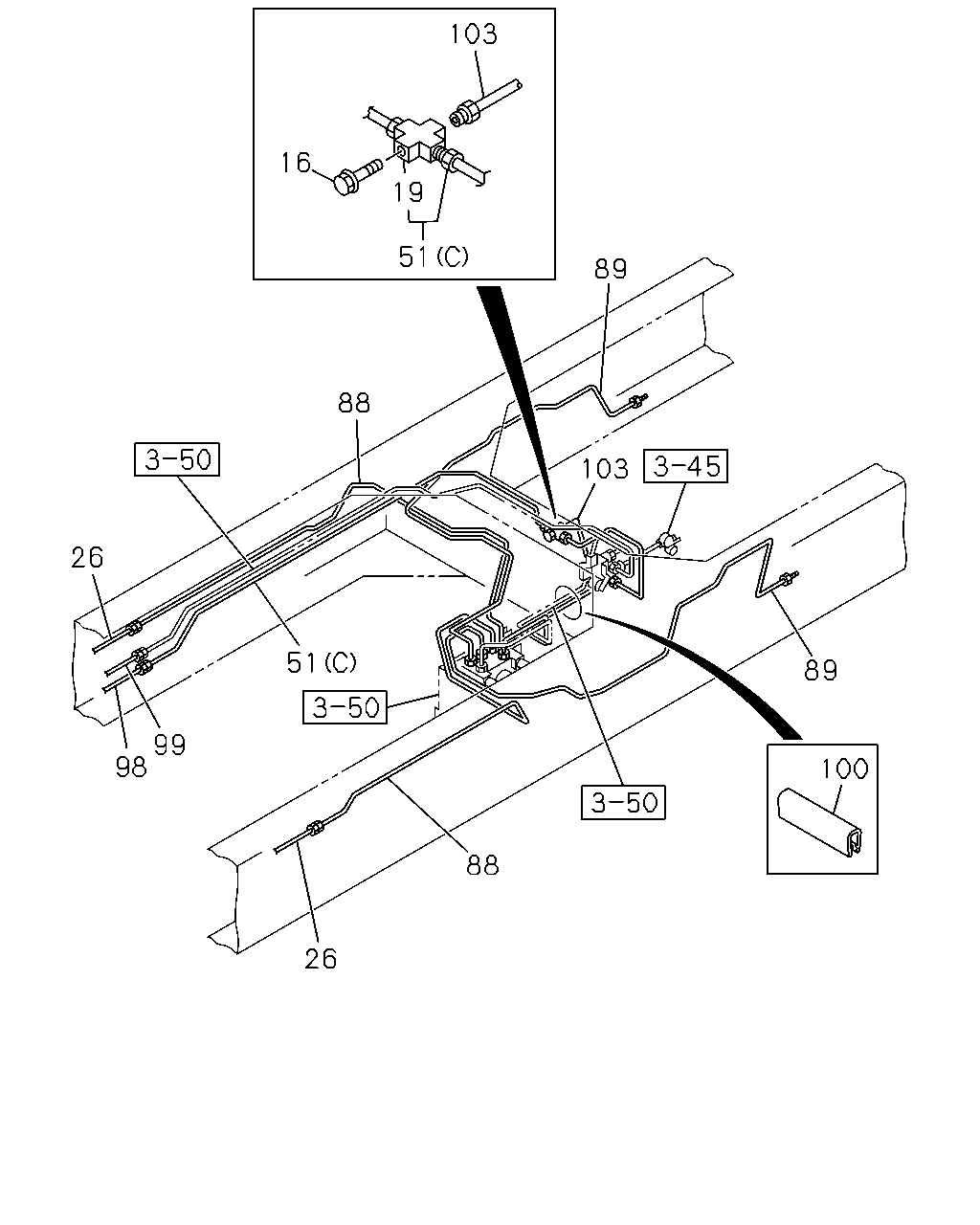

çizim 57266
103 16 19 1 89 88 103 26 51 89 99 98 100 88 26
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HOSE; FLEX,FRT BRK 8-97365-481-1 02 1 0507- ●
1 HOSE; FLEX,FRT BRK
FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) GVWR CLASS-4 14001-16000LBS(RQG) 		8-97365-481-1 02 1 0507- ● ●
1 HOSE; FLEX,FRT BRK
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) GVWR CLASS-5 16001-19500LBS(RQH) 		8-97365-482-0 02 1 0507-0604 ● ●
1 HOSE; FLEX,FRT BRK
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) GVWR CLASS-5 16001-19500LBS(RQH) 		8-97365-482-1 02 1 0605- ● ●
1 HOSE; FLEX,FRT BRK 8-97365-482-1 02 1 0605- ●
16 BOLT; 3 WAY CONNECTOR
M8X12 FLANGE 		0-28080-812-0 01 1 0507-0512 ● ● ●
16 BOLT; 3 WAY CONNECTOR
M8X12 FLANGE 		0-28050-812-0 01 1 0601-0604 ● ● ●
16 BOLT; 3 WAY CONNECTOR
M8X12 FLANGE 		0-28050-812-0 01 1 0605- ● ● ● ●
19 UNION; OIL PIPE
M10 3WAY 		9-09227-325-0 01 1 0507-0604 ● ● ●
19 UNION; OIL PIPE
M10 3WAY 		9-09227-325-0 01 1 0605- ● ● ● ●
26 PIPE; BRK,JOINT TO 2 WAY 8-97332-162-5 01 1 0507-0604 ● ● ●
26 PIPE; BRK,JOINT TO 2 WAY 8-97332-162-5 01 1 0605-0706 ● ● ● ●
26 PIPE; BRK,JOINT TO 2 WAY 8-98081-871-0 01 1 0707- ● ● ● ●
26 PIPE; BRK,JOINT TO 2 WAY 8-97358-685-2 01 1 0507-0604 ● ● ●
26 PIPE; BRK,JOINT TO 2 WAY 8-97358-685-2 01 1 0605- ● ● ● ●
51 PIPE; BRK
(C) 		8-97185-059-1 01 1 0507- ●
51 PIPE; BRK
(A) FRONT 		8-97073-076-1 01 1 0507-0604 ● ● ●
51 PIPE; BRK
(A) FRONT 		8-97073-076-1 01 1 0605- ● ● ● ●
51 PIPE; BRK
(B) REAR 		8-97073-078-1 01 1 0507-0604 ● ● ●
51 PIPE; BRK
(B) REAR 		8-97073-078-1 01 1 0605- ● ● ● ●
51 PIPE; BRK
(C) 		8-97206-803-1 01 1 0507- ●
51 PIPE; BRK
(C) 		8-97206-804-1 01 1 0507- ●
51 PIPE; BRK
(C) 		8-97206-805-1 01 1 0605- ●
88 PIPE; BRK,HYDRULIC UNIT TO JOINT 5-47411-766-0 01 1 0507- ●
88 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-97247-876-0 01 1 0507- ●
88 PIPE; BRK,HYDRULIC UNIT TO JOINT 5-47411-774-0 01 1 0507- ●
88 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-97247-885-0 01 1 0507- ●
88 PIPE; BRK,HYDRULIC UNIT TO JOINT 5-47411-781-0 01 1 0507- ●
88 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-97247-886-0 01 1 0507- ●
88 PIPE; BRK,HYDRULIC UNIT TO JOINT 5-47411-785-0 01 1 0605- ●
88 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-97247-888-0 01 1 0605- ●
89 PIPE; BRK,HYDRULIC UNIT TO RR BRK 8-97375-586-0 01 1 0507-0604 ● ● ●
89 PIPE; BRK,HYDRULIC UNIT TO RR BRK 8-97375-586-0 01 1 0605- ● ● ● ●
89 PIPE; BRK,HYDRULIC UNIT TO RR BRK 8-97307-969-0 01 1 0507-0604 ● ● ●
89 PIPE; BRK,HYDRULIC UNIT TO RR BRK 8-97307-969-0 01 1 0605- ● ● ● ●
98 PIPE ASM; 4/6 WAY
FRONT 		8-97185-055-1 01 1 0507-0604 ● ● ●
98 PIPE ASM; 4/6 WAY
FRONT 		8-97185-055-1 01 1 0605- ● ● ● ●
99 PIPE ASM; 4/5/6 WAY
REAR 		8-97185-056-2 01 1 0507-0604 ● ● ●
99 PIPE ASM; 4/5/6 WAY
REAR 		8-97185-056-2 01 1 0605- ● ● ● ●
100 PROTECTOR; EDGE
L=80 		5-22439-006-0 01 1 0507-0604 ● ● ●
100 PROTECTOR; EDGE
L=80 		5-22439-006-0 01 1 0605- ● ● ● ●
103 PIPE; BRK,3 WAY TO HYDRAULIC UNIT 8-97247-874-0 01 1 0507-0604 ● ● ●
103 PIPE; BRK,3 WAY TO HYDRAULIC UNIT 8-97247-874-0 01 1 0605- ● ● ● ●

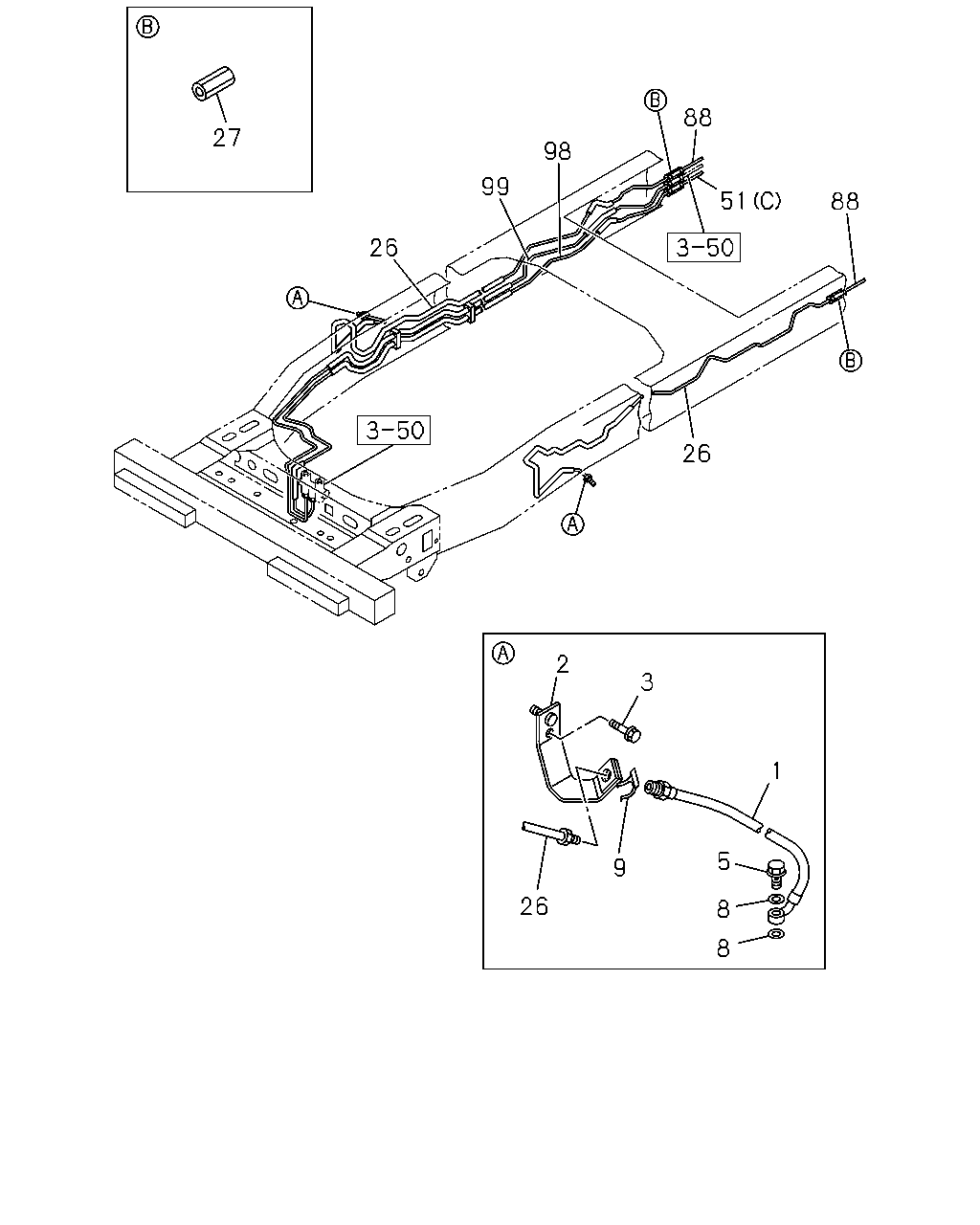

çizim 57570
88 27 98 99 51 88 26 26 2 3 1 5 9 26 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HOSE; FLEX,FRT BRK 8-97365-481-1 02 1 0507- ●
1 HOSE; FLEX,FRT BRK
FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) GVWR CLASS-4 14001-16000LBS(RQG) 		8-97365-481-1 02 1 0507- ● ●
1 HOSE; FLEX,FRT BRK
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) GVWR CLASS-5 16001-19500LBS(RQH) 		8-97365-482-0 02 1 0507-0604 ● ●
1 HOSE; FLEX,FRT BRK
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) GVWR CLASS-5 16001-19500LBS(RQH) 		8-97365-482-1 02 1 0605- ● ●
1 HOSE; FLEX,FRT BRK 8-97365-482-1 02 1 0605- ●
2 BRACKET; FLEX HOSE,FRT BRK 8-97365-778-3 01 1 0507- ●
2 BRACKET; FLEX HOSE,FRT BRK
EXC. VEHICLE CATEGORY ELF450(7NQ) 		8-97365-778-3 01 1 0507- ● ●
2 BRACKET; FLEX HOSE,FRT BRK 8-97365-776-3 01 1 0507- ●
2 BRACKET; FLEX HOSE,FRT BRK
EXC. VEHICLE CATEGORY ELF450(7NQ) 		8-97365-776-3 01 1 0507- ● ●
2 BRACKET; FLEX HOSE,FRT BRK
VEHICLE CATEGORY ELF450(7NQ) 		8-97365-779-2 01 1 0507-0604 ● ●
2 BRACKET; FLEX HOSE,FRT BRK
VEHICLE CATEGORY ELF450(7NQ) 		8-97365-779-3 01 1 0605- ● ●
2 BRACKET; FLEX HOSE,FRT BRK 8-97365-779-3 01 1 0605- ●
2 BRACKET; FLEX HOSE,FRT BRK
VEHICLE CATEGORY ELF450(7NQ) 		8-97365-777-2 01 1 0507-0604 ● ●
2 BRACKET; FLEX HOSE,FRT BRK
VEHICLE CATEGORY ELF450(7NQ) 		8-97365-777-3 01 1 0605- ● ●
2 BRACKET; FLEX HOSE,FRT BRK 8-97365-777-3 01 1 0605- ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ● ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X20 FLANGE 		0-28650-820-0 02 1 0601-0604 ● ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X20 FLANGE 		0-28650-820-0 02 1 0605- ● ● ● ●
5 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-97381-454-0 02 1 0507-0604 ● ● ●
5 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-97381-454-0 02 1 0605-0610 ● ● ● ●
5 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-98014-005-0 02 1 0611- ● ● ● ●
8 GASKET; FLEX HOSE,FRT BRK
ID=10.2 OD=16.0 		9-09571-410-0 04 1 0507-0604 ● ● ●
8 GASKET; FLEX HOSE,FRT BRK
ID=10.2 OD=16.0 		9-09571-410-0 04 1 0605- ● ● ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 02 1 0507-0604 ● ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 02 1 0605-0610 ● ● ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611- ● ● ● ●
26 PIPE; BRK,JOINT TO 2 WAY 8-97332-162-5 01 1 0507-0604 ● ● ●
26 PIPE; BRK,JOINT TO 2 WAY 8-97332-162-5 01 1 0605-0706 ● ● ● ●
26 PIPE; BRK,JOINT TO 2 WAY 8-98081-871-0 01 1 0707- ● ● ● ●
26 PIPE; BRK,JOINT TO 2 WAY 8-97358-685-2 01 1 0507-0604 ● ● ●
26 PIPE; BRK,JOINT TO 2 WAY 8-97358-685-2 01 1 0605- ● ● ● ●
27 UNION; BRK PIPE
M10 STRAIGHT 		9-09227-005-0 04 1 0507-0604 ● ● ●
27 UNION; BRK PIPE
M10 STRAIGHT 		9-09227-005-0 04 1 0605-0607 ● ● ● ●
27 UNION; BRK PIPE
M10 STRAIGHT 		0-92107-005-0 04 1 0608- ● ● ● ●
51 PIPE; BRK
(C) 		8-97185-059-1 01 1 0507- ●
51 PIPE; BRK
(A) FRONT 		8-97073-076-1 01 1 0507-0604 ● ● ●
51 PIPE; BRK
(A) FRONT 		8-97073-076-1 01 1 0605- ● ● ● ●
51 PIPE; BRK
(B) REAR 		8-97073-078-1 01 1 0507-0604 ● ● ●
51 PIPE; BRK
(B) REAR 		8-97073-078-1 01 1 0605- ● ● ● ●
51 PIPE; BRK
(C) 		8-97206-803-1 01 1 0507- ●
51 PIPE; BRK
(C) 		8-97206-804-1 01 1 0507- ●
51 PIPE; BRK
(C) 		8-97206-805-1 01 1 0605- ●
88 PIPE; BRK,HYDRULIC UNIT TO JOINT 5-47411-766-0 01 1 0507- ●
88 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-97247-876-0 01 1 0507- ●
88 PIPE; BRK,HYDRULIC UNIT TO JOINT 5-47411-774-0 01 1 0507- ●
88 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-97247-885-0 01 1 0507- ●
88 PIPE; BRK,HYDRULIC UNIT TO JOINT 5-47411-781-0 01 1 0507- ●
88 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-97247-886-0 01 1 0507- ●
88 PIPE; BRK,HYDRULIC UNIT TO JOINT 5-47411-785-0 01 1 0605- ●
88 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-97247-888-0 01 1 0605- ●
98 PIPE ASM; 4/6 WAY
FRONT 		8-97185-055-1 01 1 0507-0604 ● ● ●
98 PIPE ASM; 4/6 WAY
FRONT 		8-97185-055-1 01 1 0605- ● ● ● ●
99 PIPE ASM; 4/5/6 WAY
REAR 		8-97185-056-2 01 1 0507-0604 ● ● ●
99 PIPE ASM; 4/5/6 WAY
REAR 		8-97185-056-2 01 1 0605- ● ● ● ●
