Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#51561) — 192 parça

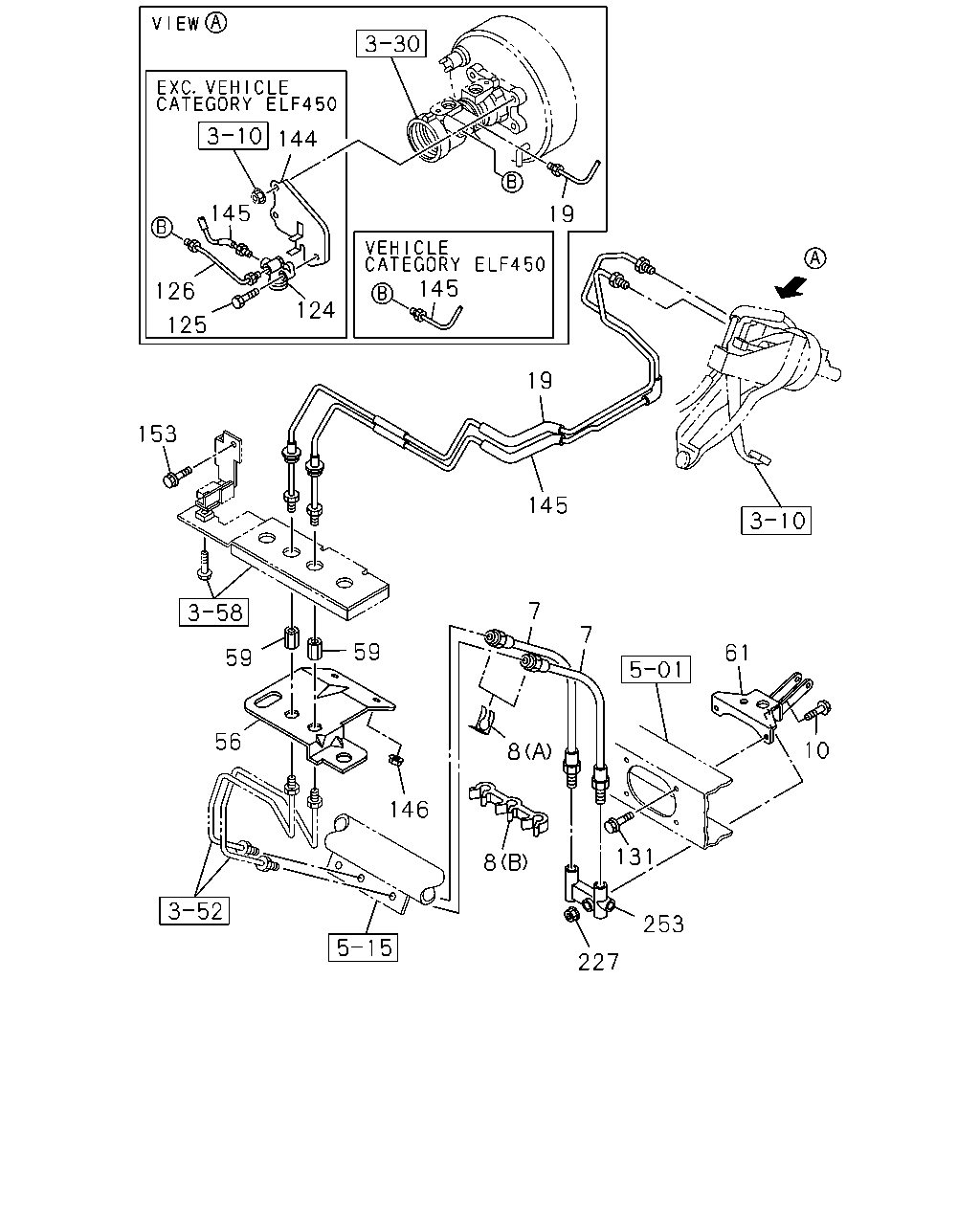

144 145 19 145 126 124 125 19 153 145 7 7 59 61 59 56 10 8 146 131 8 253 227

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
7	HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97171-031-0	02	1	0507-0604	●	●	●
7	HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97171-031-0	02	1	0605-	●	●	●	●
8	CLIP; FLEX HOSE,CABLE SIDE (A)	8-94167-006-0	02	1	0507-0604	●	●	●
8	CLIP; FLEX HOSE,CABLE SIDE (A)	8-94167-006-0	02	1	0605-0610	●	●	●	●
8	CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	0611-	●	●	●	●
8	CLIP; FLEX HOSE,CABLE SIDE (B)	8-97076-471-0	01	1	0507-0604	●	●	●
8	CLIP; FLEX HOSE,CABLE SIDE (B)	8-97076-471-0	01	1	0605-	●	●	●	●
10	BOLT; JOINT M6X40 FLANGE	0-28680-640-0	01	1	0507-0512	●	●	●
10	BOLT; JOINT M6X40 FLANGE	0-28650-640-0	01	1	0601-0604	●	●	●
10	BOLT; JOINT M6X40 FLANGE	0-28650-640-0	01	1	0605-	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION	8-97314-595-0	01	1	0507-	●
19	PIPE; BRK,M/CYL TO UNION EXC. VEHICLE CATEGORY ELF450(7NQ)	8-97314-595-0	01	1	0507-		●	●
19	PIPE; BRK,M/CYL TO UNION VEHICLE CATEGORY ELF450(7NQ)	8-97070-423-2	01	1	0507-0604		●	●
19	PIPE; BRK,M/CYL TO UNION VEHICLE CATEGORY ELF450(7NQ)	8-97070-423-2	01	1	0605-		●	●
19	PIPE; BRK,M/CYL TO UNION	8-97070-423-2	01	1	0605-				●
56	BRACKET; UNION,BRK	8-97171-017-1	01	1	0507-0604	●	●	●
56	BRACKET; UNION,BRK	8-97171-017-1	01	1	0605-	●	●	●	●
59	UNION; BRK PIPE M10 STRAIGHT	9-09227-005-0	02	1	0507-0604	●	●	●
59	UNION; BRK PIPE M10 STRAIGHT	9-09227-005-0	02	1	0605-0607	●	●	●	●
59	UNION; BRK PIPE M10 STRAIGHT	0-92107-005-0	02	1	0608-	●	●	●	●
61	BRACKET; 5 WAY JOINT	8-97170-632-0	01	1	0507-0604	●	●	●
61	BRACKET; 5 WAY JOINT	8-97170-632-0	01	1	0605-	●	●	●	●
124	VALVE; METERING	8-97042-955-2	01	1	0507-	●
124	VALVE; METERING GVWR CLASS-4 14001-16000LBS(RQG)	8-97042-955-2	01	1	0507-		●	●
125	BOLT; VALVE M6X35 W/LK&PL WASHER	0-50140-635-0	01	1	0507-0512	●
125	BOLT; VALVE GVWR CLASS-4 14001-16000LBS(RQG) M6X35 W/LK&PL WASHER	0-50140-635-0	01	1	0507-0512		●	●
125	BOLT; VALVE M6X35 W/LK&PL WASHER	0-50640-635-0	01	1	0601-	●
125	BOLT; VALVE GVWR CLASS-4 14001-16000LBS(RQG) M6X35 W/LK&PL WASHER	0-50640-635-0	01	1	0601-		●	●
126	PIPE; BRK,M/CYL TO METERING VLV	8-97046-301-1	01	1	0507-	●
126	PIPE; BRK,M/CYL TO METERING VLV EXC. VEHICLE CATEGORY ELF450(7NQ)	8-97046-301-1	01	1	0507-		●	●
131	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0507-0512	●	●	●
131	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-0604	●	●	●
131	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0605-	●	●	●	●
144	BRACKET; METERING VALVE	8-97042-956-0	01	1	0507-	●
144	BRACKET; METERING VALVE GVWR CLASS-4 14001-16000LBS(RQG)	8-97042-956-0	01	1	0507-		●	●
145	PIPE; BRK,METERING VLV TO UNION	8-97314-588-0	01	1	0507-	●
145	PIPE; BRK,METERING VLV TO UNION EXC. VEHICLE CATEGORY ELF450(7NQ)	8-97314-588-0	01	1	0507-		●	●
145	PIPE; BRK,METERING VLV TO UNION VEHICLE CATEGORY ELF450(7NQ)	8-97070-422-2	01	1	0507-0604		●	●
145	PIPE; BRK,METERING VLV TO UNION VEHICLE CATEGORY ELF450(7NQ)	8-97070-422-2	01	1	0605-		●	●
145	PIPE; BRK,METERING VLV TO UNION	8-97070-422-2	01	1	0605-				●
146	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●
146	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-0604	●	●	●
146	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0605-	●	●	●	●
153	SCREW; BRKT FIX M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0507-0604	●	●	●
153	SCREW; BRKT FIX M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0605-0605	●	●	●	●
153	SCREW; BRKT FIX M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0605-	●	●	●	●
227	NUT; JOINT M6 FLANGE	0-91150-106-0	01	1	0507-0602	●	●	●
227	NUT; JOINT M6 FLANGE	0-91180-106-0	01	1	0603-0604	●	●	●
227	NUT; JOINT M6 FLANGE	0-91180-106-0	01	1	0605-	●	●	●	●
253	JOINT	8-97139-922-1	01	1	0507-0604	●	●	●
253	JOINT	8-97139-922-1	01	1	0605-	●	●	●	●

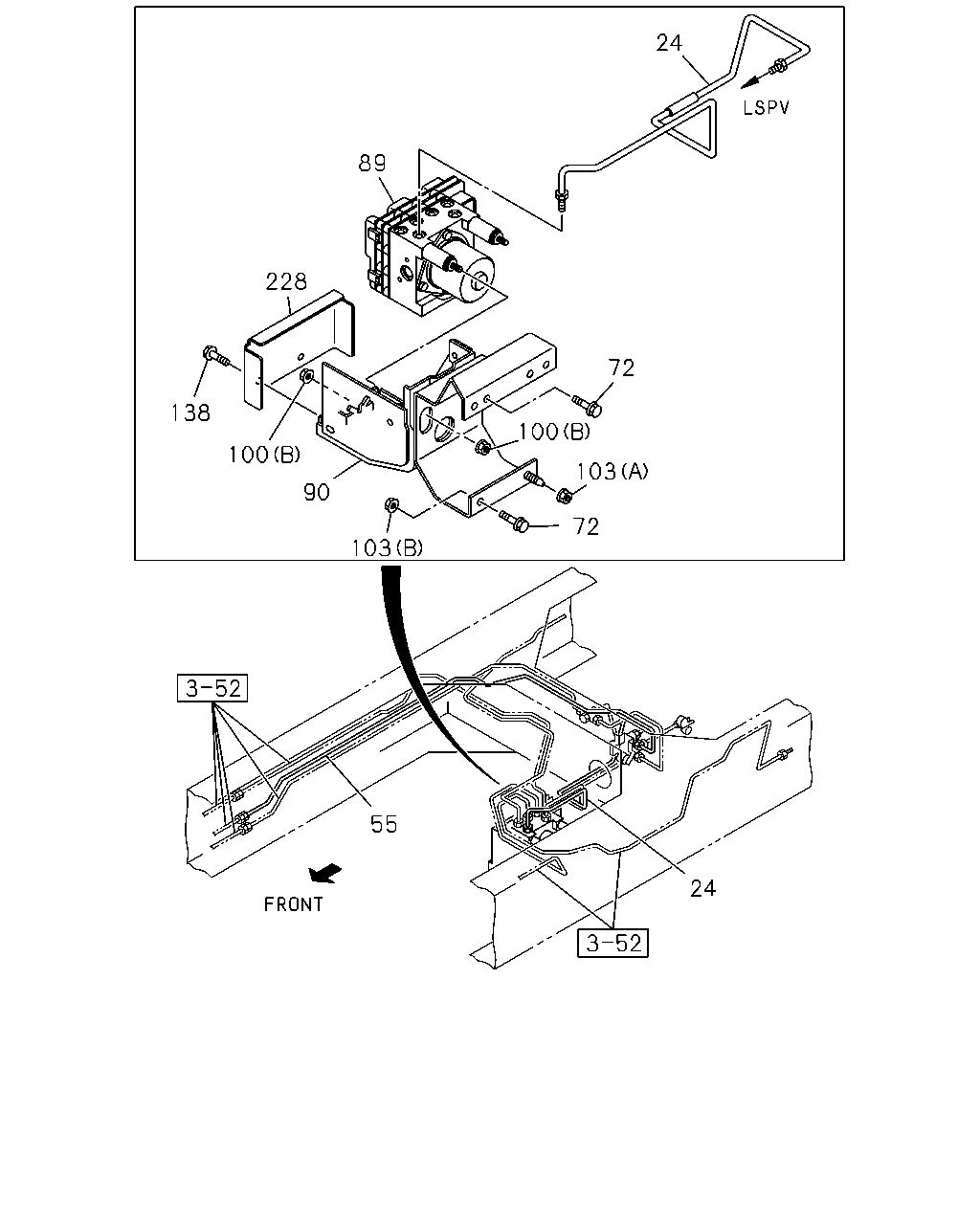

24 89 228 72 138 100 100 103 90 72 103 55 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	PIPE; BRK,PROPORTIONING VLV	8-97247-875-1	01	1	0507-0604	●	●	●
24	PIPE; BRK,PROPORTIONING VLV	8-97247-875-1	01	1	0605-	●	●	●	●
55	PIPE; BRK,VLV TO UNION	5-47411-777-0	01	1	0507-	●
55	PIPE; BRK,VLV TO UNION	5-47411-784-0	01	1	0507-		●
55	PIPE; BRK,VLV TO UNION	5-47411-786-0	01	1	0507-			●
55	PIPE; BRK,VLV TO UNION	5-47411-790-0	01	1	0605-				●
72	BOLT; BRKT TO BODY M10X25 FLANGE	0-28681-025-0	03	1	0507-0512	●	●	●
72	BOLT; BRKT TO BODY M10X25 FLANGE	0-28651-025-0	03	1	0601-0604	●	●	●
72	BOLT; BRKT TO BODY M10X25 FLANGE	0-28651-025-0	03	1	0605-	●	●	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK	8-97330-533-3	01	1	0507-0604	●	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK	8-97330-533-4	01	1	0605-1006	●	●	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK	8-98155-364-1	01	1	1007-	●	●	●	●
90	BRACKET; HYDRAULIC UNIT,ABS	8-97245-500-4	01	1	0507-	●
90	BRACKET; HYDRAULIC UNIT,ABS	8-97245-497-4	01	1	0507-0604		●	●
90	BRACKET; HYDRAULIC UNIT,ABS	8-97245-497-4	01	1	0605-		●	●	●
100	NUT; HYDRAULIC UNIT (B) M8 FLANGE	0-91150-108-0	03	1	0507-0602	●	●	●
100	NUT; HYDRAULIC UNIT (B) M8 FLANGE	0-91180-108-0	03	1	0603-0604	●	●	●
100	NUT; HYDRAULIC UNIT (B) M8 FLANGE	0-91180-108-0	03	1	0605-	●	●	●	●
100	NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER(7QQ) (A) M12 SELF LOCK	8-97028-390-1	01	1	0507-0604		●	●
100	NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER(7QQ) (A) M12 SELF LOCK	8-97028-390-1	01	1	0605-		●	●
100	NUT; HYDRAULIC UNIT (A) M12 SELF LOCK	8-97028-390-1	01	1	0605-				●
103	NUT; HYDRAULIC UNIT BRKT (A) M8 FLANGE	0-91150-108-0	01	1	0507-0602	●	●	●
103	NUT; HYDRAULIC UNIT BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0603-0604	●	●	●
103	NUT; HYDRAULIC UNIT BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0605-	●	●	●	●
103	NUT; HYDRAULIC UNIT BRKT (B) M10 FLANGE	0-91150-110-0	02	1	0507-0602	●	●	●
103	NUT; HYDRAULIC UNIT BRKT (B) M10 FLANGE	0-91180-110-0	02	1	0603-0604	●	●	●
103	NUT; HYDRAULIC UNIT BRKT (B) M10 FLANGE	0-91180-110-0	02	1	0605-	●	●	●	●
138	BOLT; COVER M8X12 FLANGE	0-28080-812-0	02	1	0507-0512	●	●	●
138	BOLT; COVER M8X12 FLANGE	0-28050-812-0	02	1	0601-0604	●	●	●
138	BOLT; COVER M8X12 FLANGE	0-28050-812-0	02	1	0605-	●	●	●	●
228	COVER; ABS	8-97233-083-0	01	1	0507-0604	●	●	●
228	COVER; ABS	8-97233-083-0	01	1	0605-0611	●	●	●	●
228	COVER; ABS	8-97359-760-0	01	1	0612-	●	●	●	●

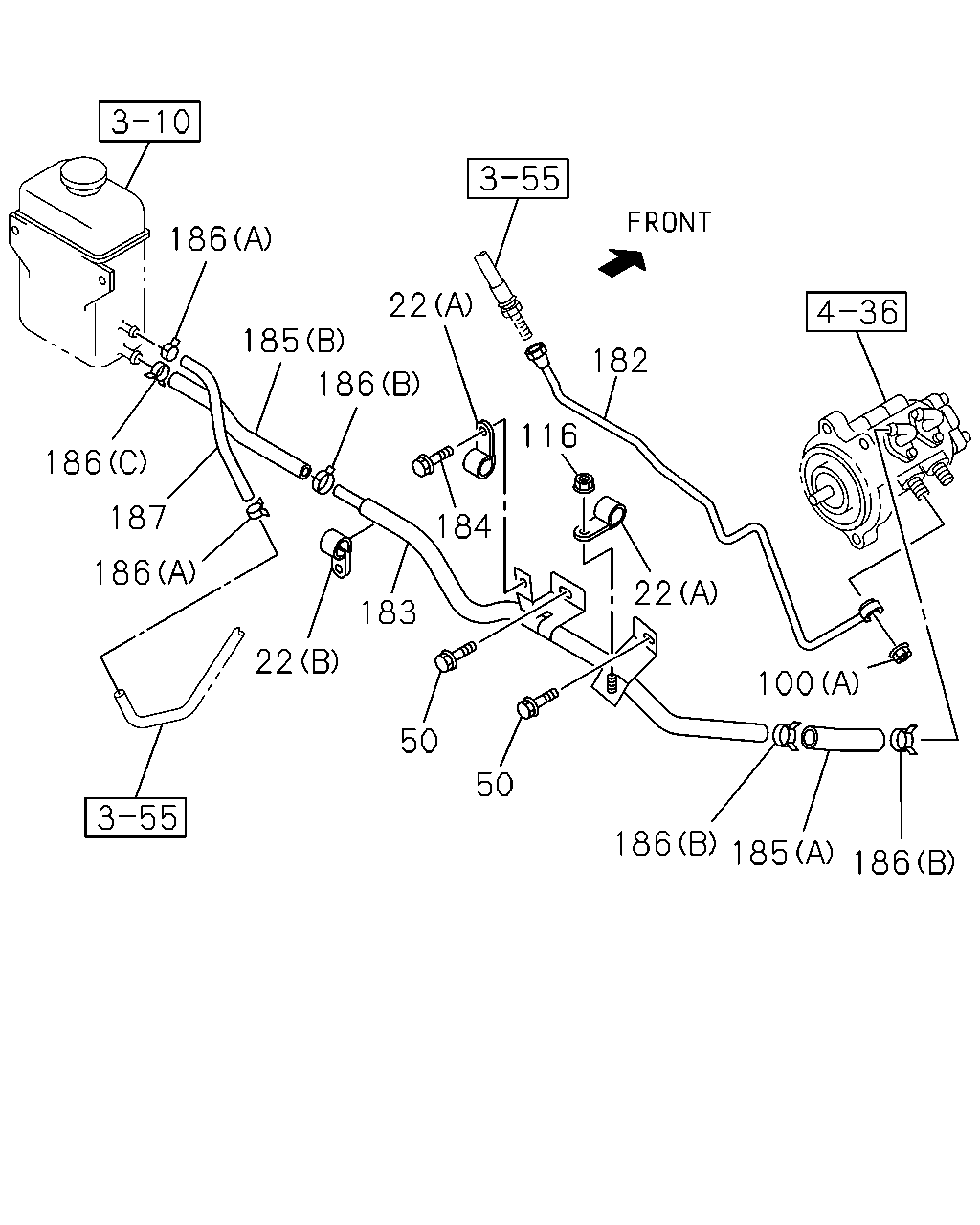

186 22 185 182 186 116 186 187 184 186 22 183 22 100 50 50 186 185 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
22	CLIP HYDRO BRAKE BOOSTER(7QQ) (C) ID=10 & 16	8-94413-325-0	01	1	0507-0604		●	●
22	CLIP HYDRO BRAKE BOOSTER(7QQ) (C) ID=10 & 16	8-94413-325-0	01	1	0605-		●	●
22	CLIP (C) ID=10 & 16	8-94413-325-0	01	1	0605-				●
22	CLIP HYDRO BRAKE BOOSTER(7QQ) (A) ID=11 L=16	9-09525-025-0	02	1	0507-0604		●	●
22	CLIP HYDRO BRAKE BOOSTER(7QQ) (A) ID=11 L=16	9-09525-025-0	02	1	0605-0606		●	●
22	CLIP (A) ID=11 L=16	9-09525-025-0	02	1	0605-0606				●
22	CLIP HYDRO BRAKE BOOSTER(7QQ) (A) ID=11 L=16	0-95235-025-0	02	1	0607-		●	●
22	CLIP (A) ID=11 L=16	0-95235-025-0	02	1	0607-				●
22	CLIP HYDRO BRAKE BOOSTER(7QQ) (B) ID=19 L=20	9-09525-836-0	01	1	0507-0604		●	●
22	CLIP HYDRO BRAKE BOOSTER(7QQ) (B) ID=19 L=20	9-09525-836-0	01	1	0605-0606		●	●
22	CLIP (B) ID=19 L=20	9-09525-836-0	01	1	0605-0606				●
22	CLIP HYDRO BRAKE BOOSTER(7QQ) (B) ID=19 L=20	0-95235-836-0	01	1	0607-		●	●
22	CLIP (B) ID=19 L=20	0-95235-836-0	01	1	0607-				●
50	BOLT; PIPE HYDRO BRAKE BOOSTER(7QQ) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512		●	●
50	BOLT; PIPE HYDRO BRAKE BOOSTER(7QQ) M8X16 FLANGE	0-28050-816-0	02	1	0601-0604		●	●
50	BOLT; PIPE HYDRO BRAKE BOOSTER(7QQ) M8X16 FLANGE	0-28050-816-0	02	1	0605-		●	●
50	BOLT; PIPE M8X16 FLANGE	0-28050-816-0	02	1	0605-				●
100	NUT; HYDRAULIC UNIT (B) M8 FLANGE	0-91150-108-0	03	1	0507-0602	●	●	●
100	NUT; HYDRAULIC UNIT (B) M8 FLANGE	0-91180-108-0	03	1	0603-0604	●	●	●
100	NUT; HYDRAULIC UNIT (B) M8 FLANGE	0-91180-108-0	03	1	0605-	●	●	●	●
100	NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER(7QQ) (A) M12 SELF LOCK	8-97028-390-1	01	1	0507-0604		●	●
100	NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER(7QQ) (A) M12 SELF LOCK	8-97028-390-1	01	1	0605-		●	●
100	NUT; HYDRAULIC UNIT (A) M12 SELF LOCK	8-97028-390-1	01	1	0605-				●
116	NUT HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE	0-91150-108-0	01	1	0507-0602		●	●
116	NUT HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE	0-91180-108-0	01	1	0603-0604		●	●
116	NUT HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE	0-91180-108-0	01	1	0605-		●	●
116	NUT M8 FLANGE	0-91180-108-0	01	1	0605-				●
182	PIPE; HYDRAULIC BRK BOOSTER HYDRO BRAKE BOOSTER(7QQ)	8-97311-386-2	01	1	0507-0604		●	●
182	PIPE; HYDRAULIC BRK BOOSTER HYDRO BRAKE BOOSTER(7QQ)	8-97311-386-2	01	1	0605-		●	●
182	PIPE; HYDRAULIC BRK BOOSTER	8-97311-386-2	01	1	0605-				●
183	PIPE; SUCTION HYDRO BRAKE BOOSTER(7QQ)	8-97358-662-2	01	1	0507-0604		●	●
183	PIPE; SUCTION HYDRO BRAKE BOOSTER(7QQ)	8-97358-662-2	01	1	0605-		●	●
183	PIPE; SUCTION	8-97358-662-2	01	1	0605-				●
184	BOLT; CLIP HYDRO BRAKE BOOSTER(7QQ) M8X16 FLANGE	0-28080-816-0	01	1	0507-0512		●	●
184	BOLT; CLIP HYDRO BRAKE BOOSTER(7QQ) M8X16 FLANGE	0-28050-816-0	01	1	0601-0604		●	●
184	BOLT; CLIP HYDRO BRAKE BOOSTER(7QQ) M8X16 FLANGE	0-28050-816-0	01	1	0605-		●	●
184	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0605-				●
185	HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (B) SERVICED BY L=300	0-09814-300-0	01	1	0507-0604		●	●
185	HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (B) SERVICED BY L=300	0-09814-300-0	01	1	0605-		●	●
185	HOSE; RUBBER,SUCTION (B) SERVICED BY L=300	0-09814-300-0	01	1	0605-				●
185	HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	0507-0604		●	●
185	HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	0605-		●	●
185	HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	0605-				●
186	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (A) ID=16	8-94238-568-0	02	1	0507-0604		●	●
186	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (A) ID=16	8-94238-568-0	02	1	0605-0911		●	●
186	CLIP; HOSE (A) ID=16	8-94238-568-0	02	1	0605-0911				●
186	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (A) ID=16	8-98008-098-0	02	1	0912-		●	●
186	CLIP; HOSE (A) ID=16	8-98008-098-0	02	1	0912-				●
186	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (B) ID=21	8-94242-034-0	03	1	0507-0604		●	●
186	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (B) ID=21	8-94242-034-0	03	1	0605-0911		●	●
186	CLIP; HOSE (B) ID=21	8-94242-034-0	03	1	0605-0911				●
186	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (B) ID=21	8-98150-355-0	03	1	0912-		●	●
186	CLIP; HOSE (B) ID=21	8-98150-355-0	03	1	0912-				●
186	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (C) ID=22	8-94382-401-0	01	1	0507-0604		●	●
186	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (C) ID=22	8-94382-401-0	01	1	0605-1003		●	●
186	CLIP; HOSE (C) ID=22	8-94382-401-0	01	1	0605-1003				●
186	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (C) ID=22	8-97359-141-0	01	1	1004-		●	●
186	CLIP; HOSE (C) ID=22	8-97359-141-0	01	1	1004-				●
187	HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER(7QQ) L=270	0-09809-270-0	01	1	0507-0604		●	●
187	HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER(7QQ) L=270	0-09809-270-0	01	1	0605-0606		●	●
187	HOSE; RUBBER,OIL TANK L=270	0-09809-270-0	01	1	0605-0606				●
187	HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER(7QQ) L=270 SERVICED BY L=3000	0-19809-300-0	01	1	0607-		●	●
187	HOSE; RUBBER,OIL TANK L=270 SERVICED BY L=3000	0-19809-300-0	01	1	0607-				●

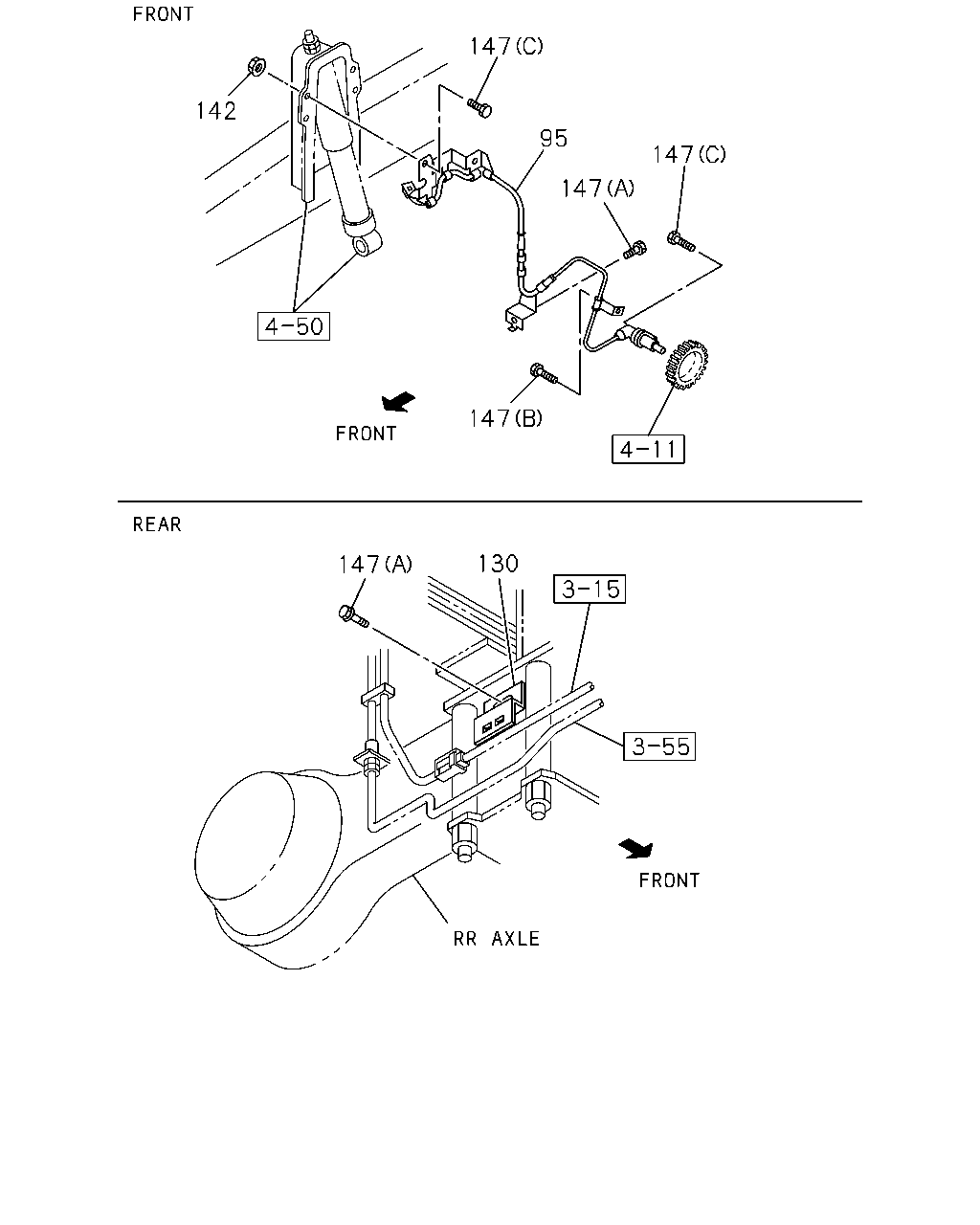

147 142 95 147 147 147 130 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
95	SENSOR; SPD,FRT WHEEL	8-97370-016-0	01	1	0507-0604	●	●	●
95	SENSOR; SPD,FRT WHEEL	8-97370-016-0	01	1	0605-	●	●	●	●
95	SENSOR; SPD,FRT WHEEL	8-97370-015-0	01	1	0507-0604	●	●	●
95	SENSOR; SPD,FRT WHEEL	8-97370-015-0	01	1	0605-	●	●	●	●
130	BRACKET; SPEED SENSOR	8-97080-060-2	02	1	0507-0604	●	●	●
130	BRACKET; SPEED SENSOR	8-97080-060-2	02	1	0605-	●	●	●	●
142	NUT; SPEED SENSOR M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●
142	NUT; SPEED SENSOR M8 FLANGE	0-91180-108-0	02	1	0603-0604	●	●	●
142	NUT; SPEED SENSOR M8 FLANGE	0-91180-108-0	02	1	0605-	●	●	●	●
147	BOLT; SPEED SENSOR (A) M8X12 FLANGE	0-28080-812-0	04	1	0507-0512	●	●	●
147	BOLT; SPEED SENSOR (A) M8X12 FLANGE	0-28050-812-0	04	1	0601-0604	●	●	●
147	BOLT; SPEED SENSOR (A) M8X12 FLANGE	0-28050-812-0	04	1	0605-	●	●	●	●
147	BOLT; SPEED SENSOR (B) M10X12 FLANGE	0-28081-012-0	02	1	0507-0512	●	●	●
147	BOLT; SPEED SENSOR (B) M10X12 FLANGE	0-28051-012-0	02	1	0601-0604	●	●	●
147	BOLT; SPEED SENSOR (B) M10X12 FLANGE	0-28051-012-0	02	1	0605-	●	●	●	●
147	BOLT; SPEED SENSOR (C) M8X20 FLANGE	0-28680-820-0	04	1	0507-0512	●	●	●
147	BOLT; SPEED SENSOR (C) M8X20 FLANGE	0-28650-820-0	04	1	0601-0604	●	●	●
147	BOLT; SPEED SENSOR (C) M8X20 FLANGE	0-28650-820-0	04	1	0605-	●	●	●	●

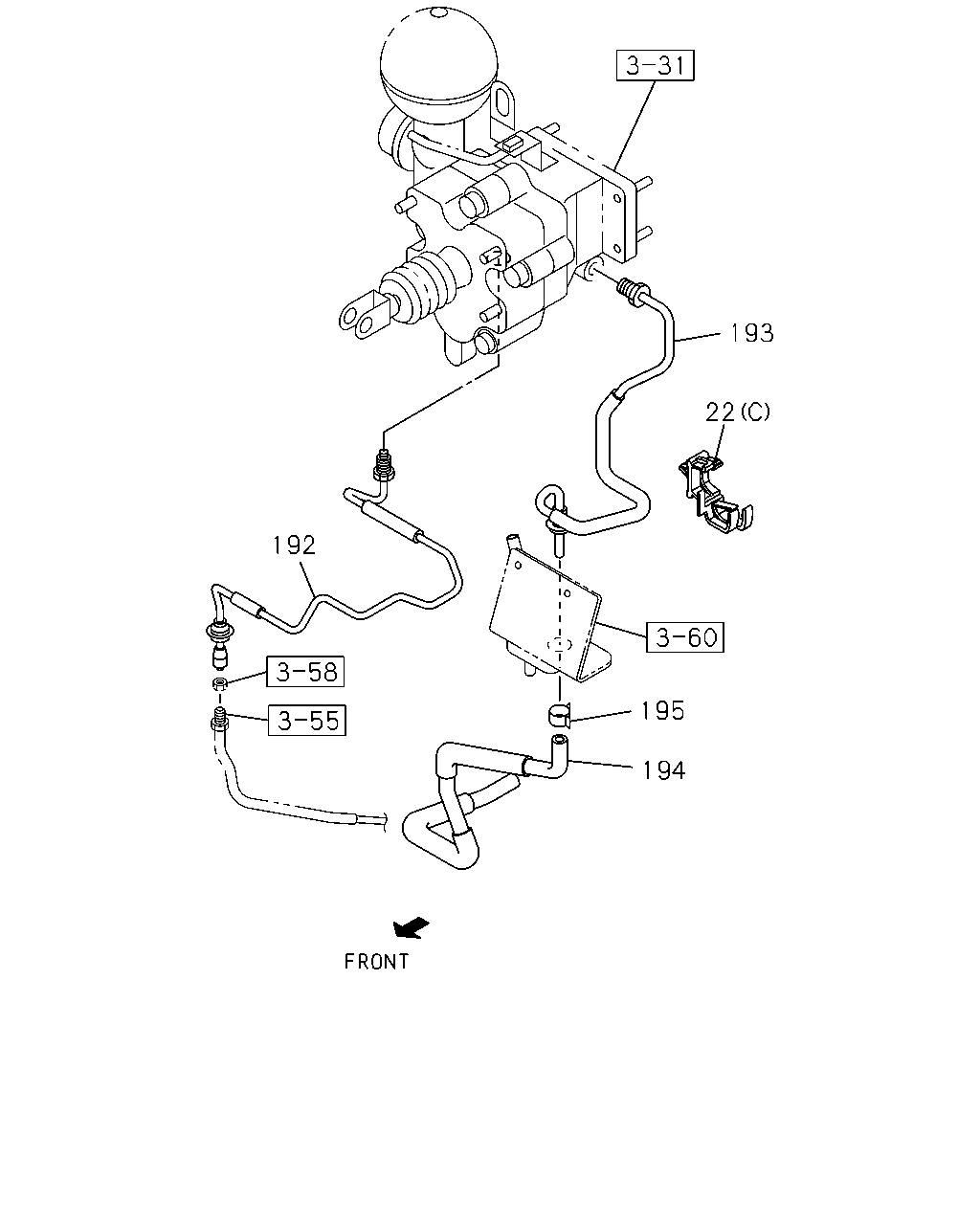

193 22 192 195 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D
22	CLIP HYDRO BRAKE BOOSTER(7QQ) (C) ID=10 & 16	8-94413-325-0	01	1	0507-0604	●	●
22	CLIP HYDRO BRAKE BOOSTER(7QQ) (C) ID=10 & 16	8-94413-325-0	01	1	0605-	●	●
22	CLIP (C) ID=10 & 16	8-94413-325-0	01	1	0605-			●
22	CLIP HYDRO BRAKE BOOSTER(7QQ) (A) ID=11 L=16	9-09525-025-0	02	1	0507-0604	●	●
22	CLIP HYDRO BRAKE BOOSTER(7QQ) (A) ID=11 L=16	9-09525-025-0	02	1	0605-0606	●	●
22	CLIP (A) ID=11 L=16	9-09525-025-0	02	1	0605-0606			●
22	CLIP HYDRO BRAKE BOOSTER(7QQ) (A) ID=11 L=16	0-95235-025-0	02	1	0607-	●	●
22	CLIP (A) ID=11 L=16	0-95235-025-0	02	1	0607-			●
22	CLIP HYDRO BRAKE BOOSTER(7QQ) (B) ID=19 L=20	9-09525-836-0	01	1	0507-0604	●	●
22	CLIP HYDRO BRAKE BOOSTER(7QQ) (B) ID=19 L=20	9-09525-836-0	01	1	0605-0606	●	●
22	CLIP (B) ID=19 L=20	9-09525-836-0	01	1	0605-0606			●
22	CLIP HYDRO BRAKE BOOSTER(7QQ) (B) ID=19 L=20	0-95235-836-0	01	1	0607-	●	●
22	CLIP (B) ID=19 L=20	0-95235-836-0	01	1	0607-			●
192	PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ)	8-97148-805-2	01	1	0507-0604	●	●
192	PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ)	8-97148-805-2	01	1	0605-	●	●
192	PIPE; PRESSURE	8-97148-805-2	01	1	0605-			●
193	PIPE; RETURN HYDRO BRAKE BOOSTER(7QQ)	8-97171-016-2	01	1	0507-0604	●	●
193	PIPE; RETURN HYDRO BRAKE BOOSTER(7QQ)	8-97171-016-2	01	1	0605-	●	●
193	PIPE; RETURN	8-97171-016-2	01	1	0605-			●
194	HOSE; CAB TO PIPE HYDRO BRAKE BOOSTER(7QQ)	8-97201-847-3	01	1	0507-0604	●	●
194	HOSE; CAB TO PIPE HYDRO BRAKE BOOSTER(7QQ)	8-97201-847-3	01	1	0605-	●	●
194	HOSE; CAB TO PIPE	8-97201-847-3	01	1	0605-			●
195	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) ID=11-19.5	8-94426-597-0	01	1	0507-0604	●	●
195	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) ID=11-19.5	8-94426-597-0	01	1	0605-1005	●	●
195	CLIP; HOSE ID=11-19.5	8-94426-597-0	01	1	0605-1005			●
195	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) ID=11-17	8-98173-762-1	01	1	1006-	●	●
195	CLIP; HOSE ID=11-17	8-98173-762-1	01	1	1006-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
