◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51047 - ELF400/450(MEXICO) ▶ 3 - Brakes, Brake System ▶ 3-45 - LOAD SENSING PROPORTIONING VALVE ▶
3-45 — LOAD SENSING PROPORTIONING VALVE (#51560) — 29 parça

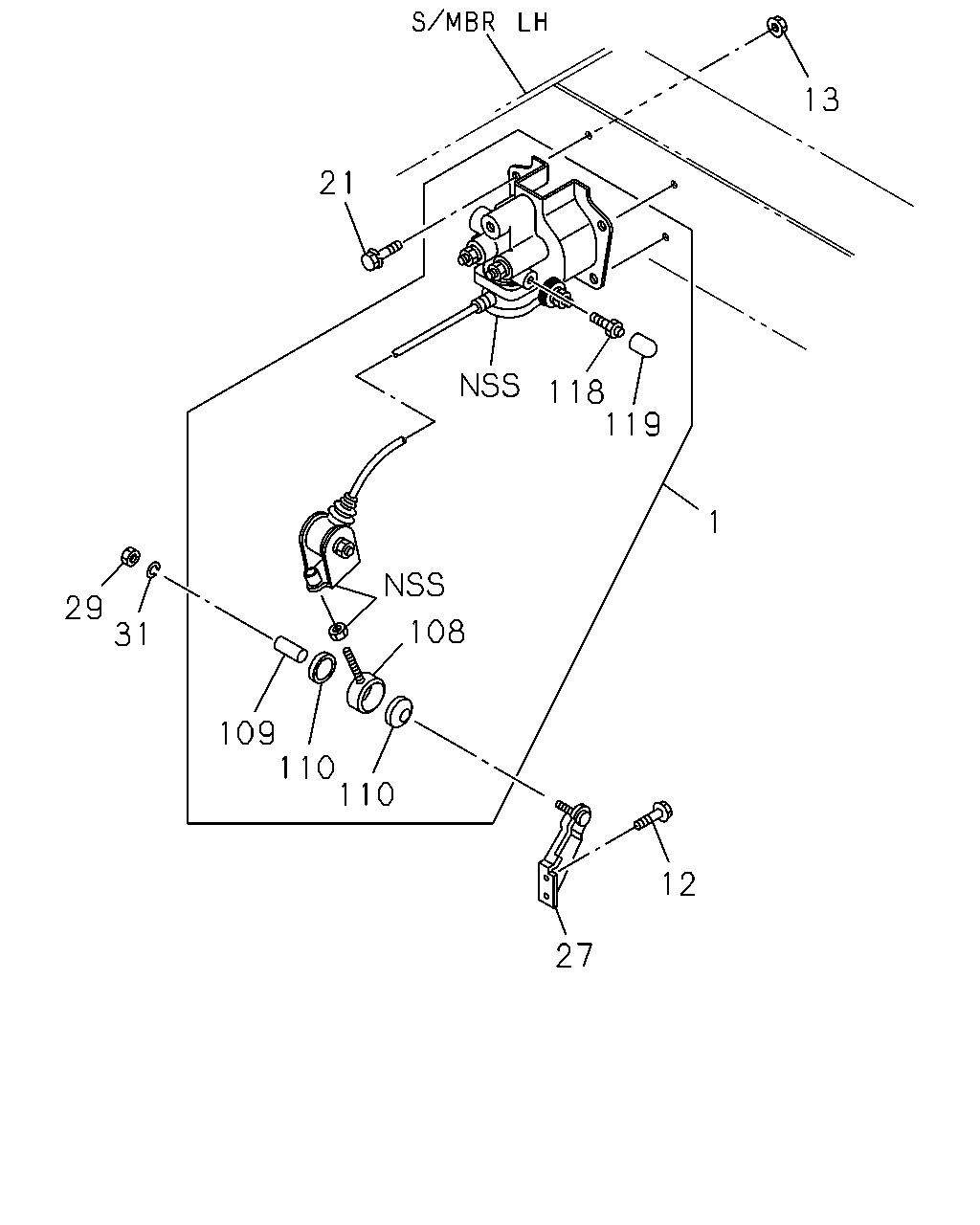

çizim 57288
13 21 118 119 1 29 31 108 109 110 110 12 27
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 VALVE ASM; LOAD SENSING PROPORTIONING 8-94427-224-2 01 1 0507-0604 ● ● ●
1 VALVE ASM; LOAD SENSING PROPORTIONING 8-94427-224-2 01 1 0605- ● ● ● ●
12 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 02 1 0507-0512 ● ● ●
12 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 0601-0604 ● ● ●
12 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 0605- ● ● ● ●
13 NUT; LSPV TO BRKT
M8 FLANGE 		0-91150-108-0 04 1 0507-0602 ● ● ●
13 NUT; LSPV TO BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603-0604 ● ● ●
13 NUT; LSPV TO BRKT
M8 FLANGE 		0-91180-108-0 04 1 0605- ● ● ● ●
21 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 04 1 0507-0512 ● ● ●
21 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 04 1 0601-0604 ● ● ●
21 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 04 1 0605- ● ● ● ●
27 BRACKET; SHACKLE TO AXLE 8-97181-907-0 01 1 0507-0604 ● ● ●
27 BRACKET; SHACKLE TO AXLE 8-97181-907-0 01 1 0605- ● ● ● ●
29 NUT; SHACKLE
M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ●
29 NUT; SHACKLE
M8 FLANGE 		0-91180-108-0 01 1 0603-0604 ● ● ●
29 NUT; SHACKLE
M8 FLANGE 		0-91180-108-0 01 1 0605- ● ● ● ●
31 WASHER; LK,SHACKLE
ID=8.4 OD=22 		9-09160-708-0 01 1 0507-0604 ● ● ●
31 WASHER; LK,SHACKLE
ID=8.4 OD=22 		9-09160-708-0 01 1 0605-0605 ● ● ● ●
31 WASHER; LK,SHACKLE
ID=8.4 OD=22 		0-91610-708-0 01 1 0606- ● ● ● ●
108 SHACKLE; LSPV 8-97173-366-0 01 1 0507-0604 ● ● ●
108 SHACKLE; LSPV 8-97173-366-0 01 1 0605- ● ● ● ●
109 COLLAR; LSPV 8-97139-186-0 01 1 0507-0604 ● ● ●
109 COLLAR; LSPV 8-97139-186-0 01 1 0605- ● ● ● ●
110 BUSHING; LSPV 8-97145-631-0 02 1 0507-0604 ● ● ●
110 BUSHING; LSPV 8-97145-631-0 02 1 0605- ● ● ● ●
118 SCREW; BLEEDER,LSPV 8-97093-663-0 01 1 0507-0604 ● ● ●
118 SCREW; BLEEDER,LSPV 8-97093-663-0 01 1 0605- ● ● ● ●
119 CAP; BLEEDER SCREW,LSPV 8-97093-662-0 01 1 0507-0604 ● ● ●
119 CAP; BLEEDER SCREW,LSPV 8-97093-662-0 01 1 0605- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
