Isuzu WW
▶
TRUCKS
▶
CXH
▶
10722 - CXH RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

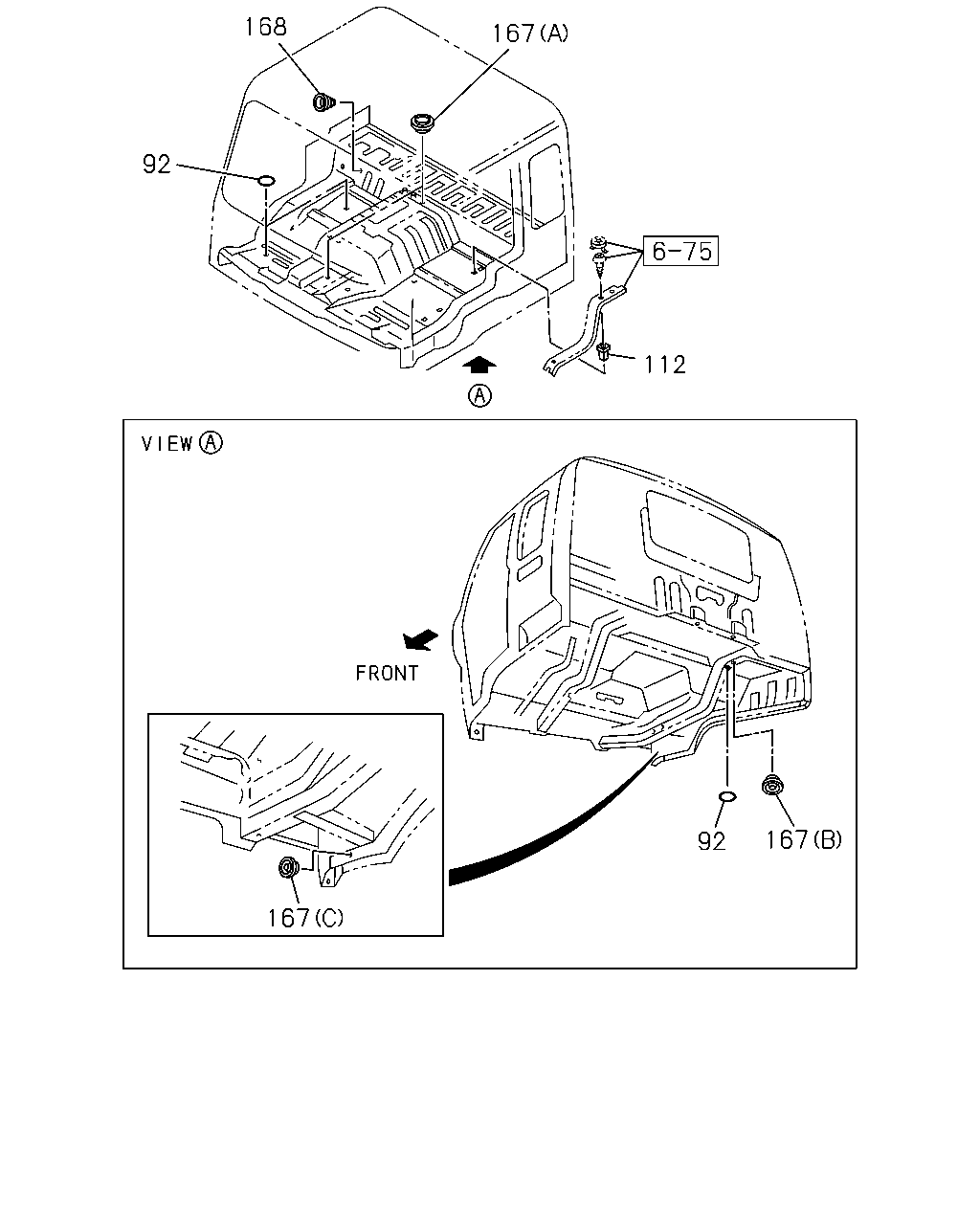

6-78 - FLOOR HOLE PLUG
▶
6-78 — FLOOR HOLE PLUG
(#5156) — 16 parça
168
167
92
112
167
92
167
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
18
1
9606-9612
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
05
1
9701-9712
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
03
1
9801-
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
08
1
9701-9905
92
SEAL; LOCATION HOLE
L TYPE ENG<90L> OD=25 BLACK
1-76798-019-0
07
1
9906-
92
SEAL; LOCATION HOLE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK
1-76798-019-0
02
1
9801-
92
SEAL; LOCATION HOLE
L TYPE ENG<90L> EXC. BAGGAGE BOX CAB RR SIDE<TBM> OD=25 BLACK
1-76798-019-0
01
1
9906-
112
GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
08
1
9606-
167
GROMMET; LOCATION HOLE
(A) OD=23.5
1-09983-155-0
08
1
9606-9612
167
GROMMET; LOCATION HOLE
(A) OD=23.5
1-09983-155-0
06
1
9701-9709
167
GROMMET; LOCATION HOLE
(A) OD=23.5
1-09983-101-0
06
1
9710-
167
GROMMET; LOCATION HOLE
(B) OD=35
8-94122-971-0
04
1
9606-9808
167
GROMMET; LOCATION HOLE
(B) OD=35
8-94122-971-0
06
1
9809-
167
GROMMET; LOCATION HOLE
(C) OD=15.0
8-94279-040-0
04
1
9606-9808
167
GROMMET; LOCATION HOLE
(C) OD=15.0
8-94279-040-0
02
1
9809-
168
COVER; HOLE,ANNTENA CABLE
1-79998-891-1
01
1
9606-
