51047 - ELF400/450(MEXICO)
▶
3 - Brakes, Brake System
▶
3-31 - BRAKE MASTER VAC AND BRAKE BOOSTER
▶
3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER
(#51559) — 55 parça
Tümü
A - NPC7SC
B - NPC7SF
C - NPC7SK
D - NPC7SS
◀
[331A] EXC.HYDRO BRAKE BOOSTER (22 parça)
[331A] HYDRO BRAKE BOOSTER (33 parça)
▶
1
23
3
28
29
17
16
24
15
12
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
MASTER VAC ASM; BRK
8-97245-095-1
01
1
0507-
●
1
MASTER VAC ASM; BRK
GVWR CLASS-4 14001-16000LBS(RQG)
8-97245-095-1
01
1
0507-
●
●
3
RETAINER; FRT SHELL,M/VAC
9-83315-319-0
01
1
0507-
●
3
RETAINER; FRT SHELL,M/VAC
GVWR CLASS-4 14001-16000LBS(RQG)
9-83315-319-0
01
1
0507-
●
●
11
FILTER; M/VAC
8-97205-576-0
01
1
0507-
●
11
FILTER; M/VAC
GVWR CLASS-4 14001-16000LBS(RQG)
8-97205-576-0
01
1
0507-
●
●
12
SILENCER; M/VAC
8-97205-577-0
01
1
0507-
●
12
SILENCER; M/VAC
GVWR CLASS-4 14001-16000LBS(RQG)
8-97205-577-0
01
1
0507-
●
●
15
RETAINER; GUARD,M/VAC
8-94375-083-0
01
1
0507-
●
15
RETAINER; GUARD,M/VAC
GVWR CLASS-4 14001-16000LBS(RQG)
8-94375-083-0
01
1
0507-
●
●
16
NUT; VLV ROD,M/VAC
M10
1-52139-008-0
01
1
0507-
●
16
NUT; VLV ROD,M/VAC
GVWR CLASS-4 14001-16000LBS(RQG) M10
1-52139-008-0
01
1
0507-
●
●
17
CLEVIS; YOKE,M/VAC
8-97224-610-0
01
1
0507-
●
17
CLEVIS; YOKE,M/VAC
GVWR CLASS-4 14001-16000LBS(RQG)
8-97224-610-0
01
1
0507-
●
●
23
SEAL; M/VAC
8-97079-350-0
01
1
0507-
●
23
SEAL; M/VAC
GVWR CLASS-4 14001-16000LBS(RQG)
8-97079-350-0
01
1
0507-
●
●
24
GUARD; VLV BODY,M/VAC
8-97205-578-0
01
1
0507-
●
24
GUARD; VLV BODY,M/VAC
GVWR CLASS-4 14001-16000LBS(RQG)
8-97205-578-0
01
1
0507-
●
●
28
GROMMET; CHECK VLV,M/VAC
8-97109-273-0
01
1
0507-
●
28
GROMMET; CHECK VLV,M/VAC
GVWR CLASS-4 14001-16000LBS(RQG)
8-97109-273-0
01
1
0507-
●
●
29
VALVE; CHECK,M/VAC
8-97105-918-0
01
1
0507-
●
29
VALVE; CHECK,M/VAC
GVWR CLASS-4 14001-16000LBS(RQG)
8-97105-918-0
01
1
0507-
●
●

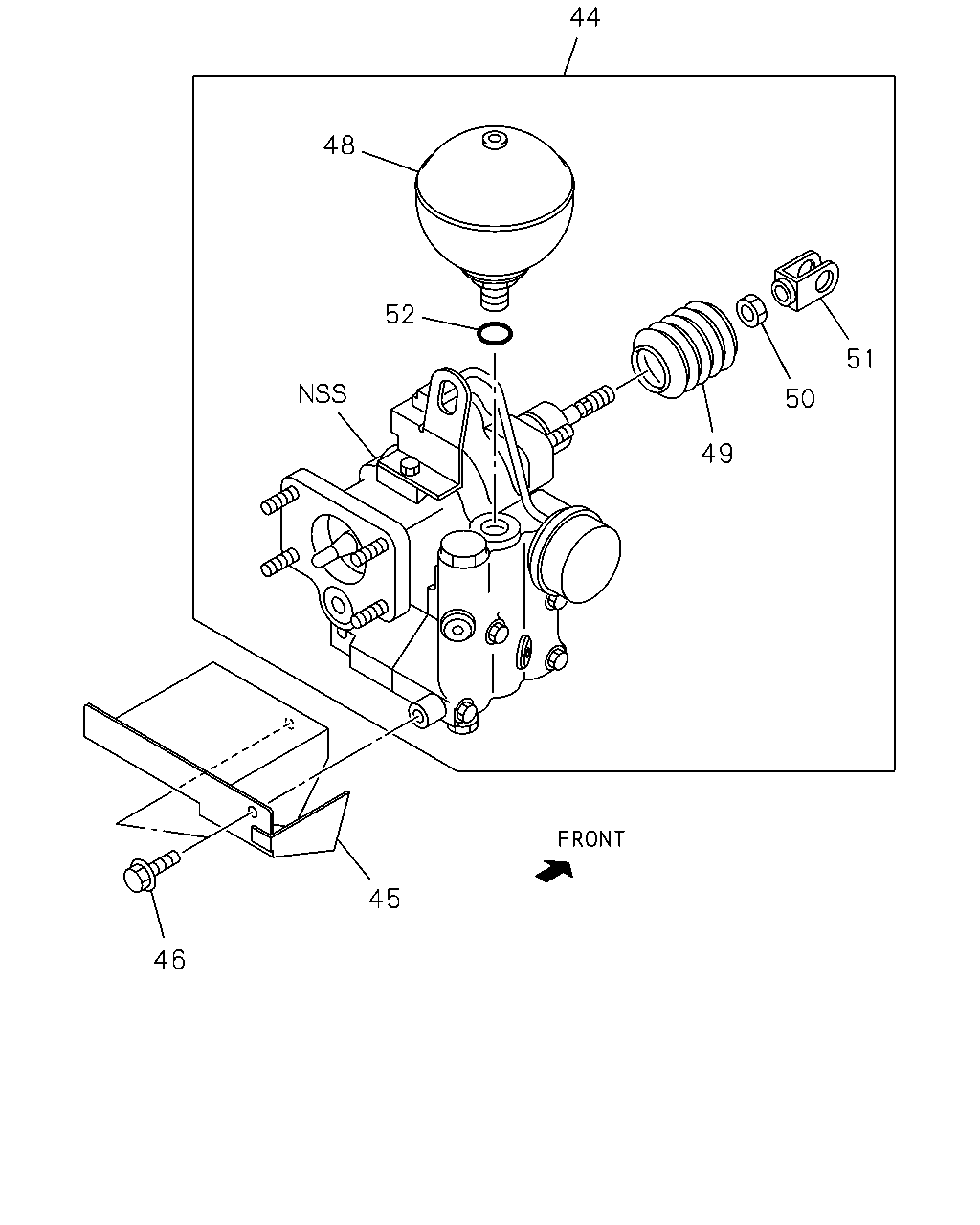

44
48
52
51
50
49
45
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
44
BOOSTER; HYDRAULIC BRK
HYDRO BRAKE BOOSTER(7QQ)
8-97209-212-0
01
1
0507-0604
●
●
44
BOOSTER; HYDRAULIC BRK
HYDRO BRAKE BOOSTER(7QQ)
8-97209-212-0
01
1
0605-0610
●
●
44
BOOSTER; HYDRAULIC BRK
8-97209-212-0
01
1
0605-0610
●
44
BOOSTER; HYDRAULIC BRK
HYDRO BRAKE BOOSTER(7QQ)
8-98031-414-0
01
1
0611-
●
●
44
BOOSTER; HYDRAULIC BRK
8-98031-414-0
01
1
0611-
●
45
PROTECTOR; HEAT
HYDRO BRAKE BOOSTER(7QQ)
8-97182-354-1
01
1
0507-0604
●
●
45
PROTECTOR; HEAT
HYDRO BRAKE BOOSTER(7QQ)
8-97182-354-1
01
1
0605-
●
●
45
PROTECTOR; HEAT
8-97182-354-1
01
1
0605-
●
46
BOLT; HEAT PROTECTOR
HYDRO BRAKE BOOSTER(7QQ) M6X10 FLANGE
0-28080-610-0
02
1
0507-0512
●
●
46
BOLT; HEAT PROTECTOR
HYDRO BRAKE BOOSTER(7QQ) M6X10 FLANGE
0-28050-610-0
02
1
0601-0604
●
●
46
BOLT; HEAT PROTECTOR
HYDRO BRAKE BOOSTER(7QQ) M6X10 FLANGE
0-28050-610-0
02
1
0605-
●
●
46
BOLT; HEAT PROTECTOR
M6X10 FLANGE
0-28050-610-0
02
1
0605-
●
48
ACCUMULATOR; HYDRO BOOSTER
HYDRO BRAKE BOOSTER(7QQ)
8-97191-040-0
01
1
0507-0604
●
●
48
ACCUMULATOR; HYDRO BOOSTER
HYDRO BRAKE BOOSTER(7QQ)
8-97191-040-0
01
1
0605-0610
●
●
48
ACCUMULATOR; HYDRO BOOSTER
8-97191-040-0
01
1
0605-0610
●
48
ACCUMULATOR; HYDRO BOOSTER
HYDRO BRAKE BOOSTER(7QQ)
8-98038-346-0
01
1
0611-
●
●
48
ACCUMULATOR; HYDRO BOOSTER
8-98038-346-0
01
1
0611-
●
49
GUARD; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ)
8-97191-043-0
01
1
0507-0604
●
●
49
GUARD; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ)
8-97191-043-0
01
1
0605-
●
●
49
GUARD; HYDRO BRK BOOSTER
8-97191-043-0
01
1
0605-
●
50
NUT; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ)
8-97191-042-0
01
1
0507-0604
●
●
50
NUT; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ)
8-97191-042-0
01
1
0605-0610
●
●
50
NUT; HYDRO BRK BOOSTER
8-97191-042-0
01
1
0605-0610
●
50
NUT; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ)
8-98038-349-0
01
1
0611-
●
●
50
NUT; HYDRO BRK BOOSTER
8-98038-349-0
01
1
0611-
●
51
CLEVIS; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ)
8-97191-041-0
01
1
0507-0604
●
●
51
CLEVIS; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ)
8-97191-041-0
01
1
0605-0610
●
●
51
CLEVIS; HYDRO BRK BOOSTER
8-97191-041-0
01
1
0605-0610
●
51
CLEVIS; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ)
8-98038-347-0
01
1
0611-
●
●
51
CLEVIS; HYDRO BRK BOOSTER
8-98038-347-0
01
1
0611-
●
52
GASKET; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ)
8-97191-038-0
01
1
0507-0604
●
●
52
GASKET; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ)
8-97191-038-0
01
1
0605-
●
●
52
GASKET; HYDRO BRK BOOSTER
8-97191-038-0
01
1
0605-
●
