3-30 — BRAKE MASTER CYLINDER (#51558) — 64 parça

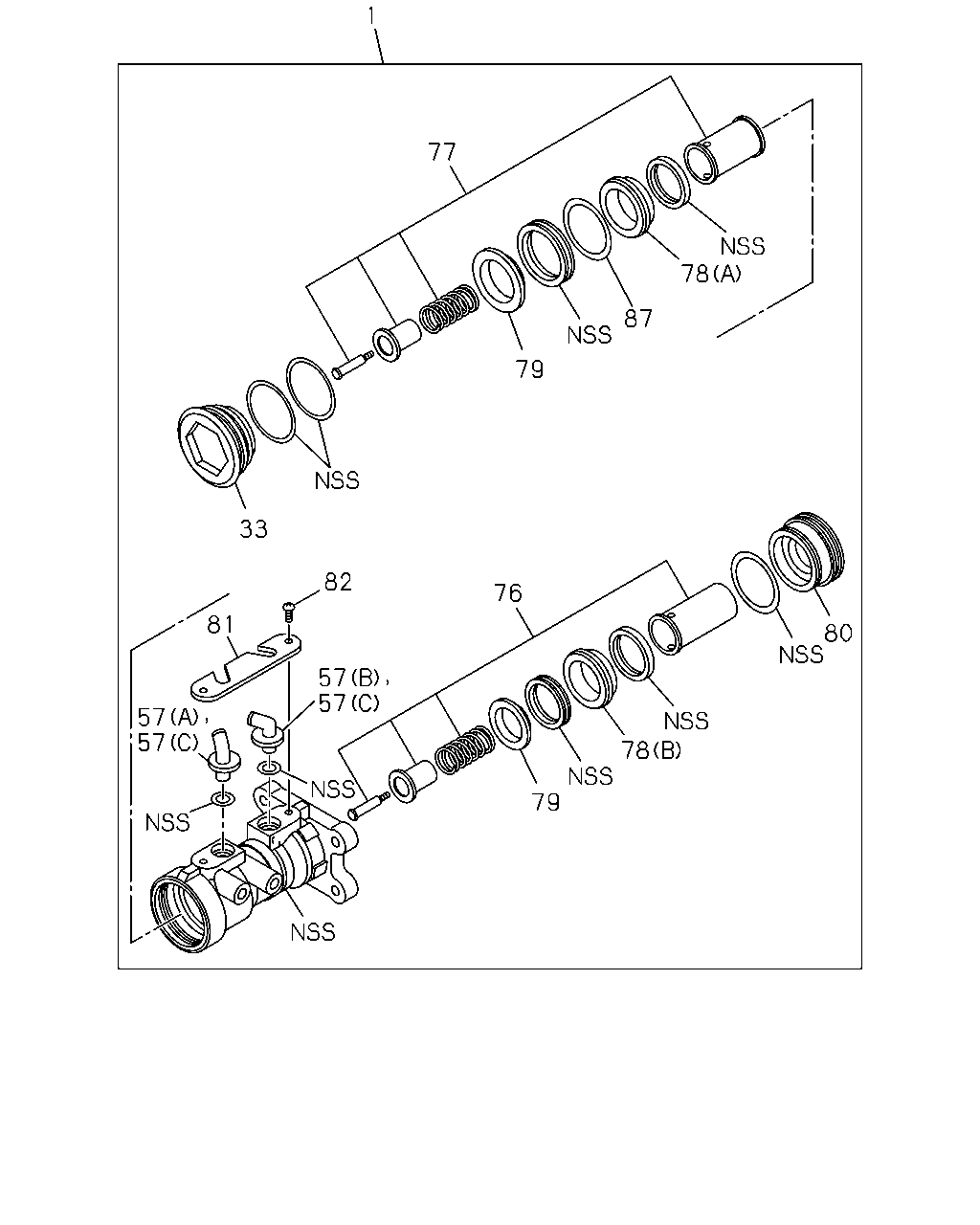

çizim 57240
1 77 78 87 79 33 82 76 81 80 57 57 57 57 78 79
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CYLINDER ASM; BRK MASTER 8-97315-166-0 01 1 0507- ●
1 CYLINDER ASM; BRK MASTER
GVWR CLASS-4 14001-16000LBS(RQG) 		8-97315-166-0 01 1 0507- ● ●
1 CYLINDER ASM; BRK MASTER
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97254-771-0 01 1 0507-0604 ● ●
1 CYLINDER ASM; BRK MASTER
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97254-771-0 01 1 0605- ● ●
1 CYLINDER ASM; BRK MASTER 8-97254-771-0 01 1 0605- ●
33 PLUG; END,M/CYL 8-97186-697-0 01 1 0507- ●
33 PLUG; END,M/CYL
GVWR CLASS-4 14001-16000LBS(RQG) 		8-97186-697-0 01 1 0507- ● ●
33 PLUG; END,M/CYL
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97186-699-0 01 1 0507-0604 ● ●
33 PLUG; END,M/CYL
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97186-699-0 01 1 0605- ● ●
33 PLUG; END,M/CYL 8-97186-699-0 01 1 0605- ●
57 NIPPLE; BRK M/CYL
(A) 		8-97130-441-0 01 1 0507- ●
57 NIPPLE; BRK M/CYL
GVWR CLASS-4 14001-16000LBS(RQG) (A) 		8-97130-441-0 01 1 0507- ● ●
57 NIPPLE; BRK M/CYL
(B) 		8-97130-442-0 01 1 0507- ●
57 NIPPLE; BRK M/CYL
GVWR CLASS-4 14001-16000LBS(RQG) (B) 		8-97130-442-0 01 1 0507- ● ●
57 NIPPLE; BRK M/CYL
GVWR CLASS-5 16001-19500LBS(RQH) (C) 		8-97130-442-0 02 1 0507-0604 ● ●
57 NIPPLE; BRK M/CYL
GVWR CLASS-5 16001-19500LBS(RQH) (C) 		8-97130-442-0 02 1 0605- ● ●
57 NIPPLE; BRK M/CYL
(C) 		8-97130-442-0 02 1 0605- ●
76 PISTON ASM; PRIMARY 8-97224-643-0 01 1 0507- ●
76 PISTON ASM; PRIMARY
GVWR CLASS-4 14001-16000LBS(RQG) 		8-97224-643-0 01 1 0507- ● ●
76 PISTON ASM; PRIMARY
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97224-641-0 01 1 0507-0604 ● ●
76 PISTON ASM; PRIMARY
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97224-641-0 01 1 0605- ● ●
76 PISTON ASM; PRIMARY 8-97224-641-0 01 1 0605- ●
77 PISTON ASM; SECONDARY 8-97224-642-0 01 1 0507- ●
77 PISTON ASM; SECONDARY
GVWR CLASS-4 14001-16000LBS(RQG) 		8-97224-642-0 01 1 0507- ● ●
77 PISTON ASM; SECONDARY
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97224-640-0 01 1 0507-0604 ● ●
77 PISTON ASM; SECONDARY
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97224-640-0 01 1 0605- ● ●
77 PISTON ASM; SECONDARY 8-97224-640-0 01 1 0605- ●
78 BUSHING; MASTER CYL
(A) 		8-97130-455-0 01 1 0507- ●
78 BUSHING; MASTER CYL
GVWR CLASS-4 14001-16000LBS(RQG) (A) 		8-97130-455-0 01 1 0507- ● ●
78 BUSHING; MASTER CYL
(B) 		8-97217-312-0 01 1 0507- ●
78 BUSHING; MASTER CYL
GVWR CLASS-4 14001-16000LBS(RQG) (B) 		8-97217-312-0 01 1 0507- ● ●
78 BUSHING; MASTER CYL
GVWR CLASS-5 16001-19500LBS(RQH) (A) 		8-97170-695-0 01 1 0507-0604 ● ●
78 BUSHING; MASTER CYL
GVWR CLASS-5 16001-19500LBS(RQH) (A) 		8-97170-695-0 01 1 0605- ● ●
78 BUSHING; MASTER CYL
(A) 		8-97170-695-0 01 1 0605- ●
78 BUSHING; MASTER CYL
GVWR CLASS-5 16001-19500LBS(RQH) (B) 		8-97207-685-0 01 1 0507-0604 ● ●
78 BUSHING; MASTER CYL
GVWR CLASS-5 16001-19500LBS(RQH) (B) 		8-97207-685-0 01 1 0605- ● ●
78 BUSHING; MASTER CYL
(B) 		8-97207-685-0 01 1 0605- ●
79 SUPPORTER; CUP 8-97130-463-0 02 1 0507- ●
79 SUPPORTER; CUP
GVWR CLASS-4 14001-16000LBS(RQG) 		8-97130-463-0 02 1 0507- ● ●
79 SUPPORTER; CUP
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97170-698-0 02 1 0507-0604 ● ●
79 SUPPORTER; CUP
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97170-698-0 02 1 0605- ● ●
79 SUPPORTER; CUP 8-97170-698-0 02 1 0605- ●
80 COVER; MASTER CYL 8-97130-449-0 01 1 0507- ●
80 COVER; MASTER CYL
GVWR CLASS-4 14001-16000LBS(RQG) 		8-97130-449-0 01 1 0507- ● ●
80 COVER; MASTER CYL
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97170-692-0 01 1 0507-0604 ● ●
80 COVER; MASTER CYL
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97170-692-0 01 1 0605- ● ●
80 COVER; MASTER CYL 8-97170-692-0 01 1 0605- ●
81 HOLDER; NIPPLE 8-97315-168-0 01 1 0507- ●
81 HOLDER; NIPPLE
GVWR CLASS-4 14001-16000LBS(RQG) 		8-97315-168-0 01 1 0507- ● ●
81 HOLDER; NIPPLE
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97130-445-0 01 1 0507-0604 ● ●
81 HOLDER; NIPPLE
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97130-445-0 01 1 0605- ● ●
81 HOLDER; NIPPLE 8-97130-445-0 01 1 0605- ●
82 SCREW; HOLDER 8-97130-446-0 02 1 0507-0604 ● ● ●
82 SCREW; HOLDER 8-97130-446-0 02 1 0605- ● ● ● ●
87 SPACER; CUP 8-97130-459-0 01 1 0507- ●
87 SPACER; CUP
GVWR CLASS-4 14001-16000LBS(RQG) 		8-97130-459-0 01 1 0507- ● ●
87 SPACER; CUP
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97170-696-0 01 1 0507-0604 ● ●
87 SPACER; CUP
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97170-696-0 01 1 0605- ● ●
87 SPACER; CUP 8-97170-696-0 01 1 0605- ●
çizim 100733
2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 REPAIR KIT; BRK,M/CYL 8-97130-471-0 01 1 0507- ●
2 REPAIR KIT; BRK,M/CYL
GVWR CLASS-4 14001-16000LBS(RQG) 		8-97130-471-0 01 1 0507- ● ●
2 REPAIR KIT; BRK,M/CYL
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97254-775-0 01 1 0507-0604 ● ●
2 REPAIR KIT; BRK,M/CYL
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97254-775-0 01 1 0605- ● ●
2 REPAIR KIT; BRK,M/CYL 8-97254-775-0 01 1 0605- ●
