3-10 — BRAKE PEDAL AND CONTROL (#51554) — 190 parça

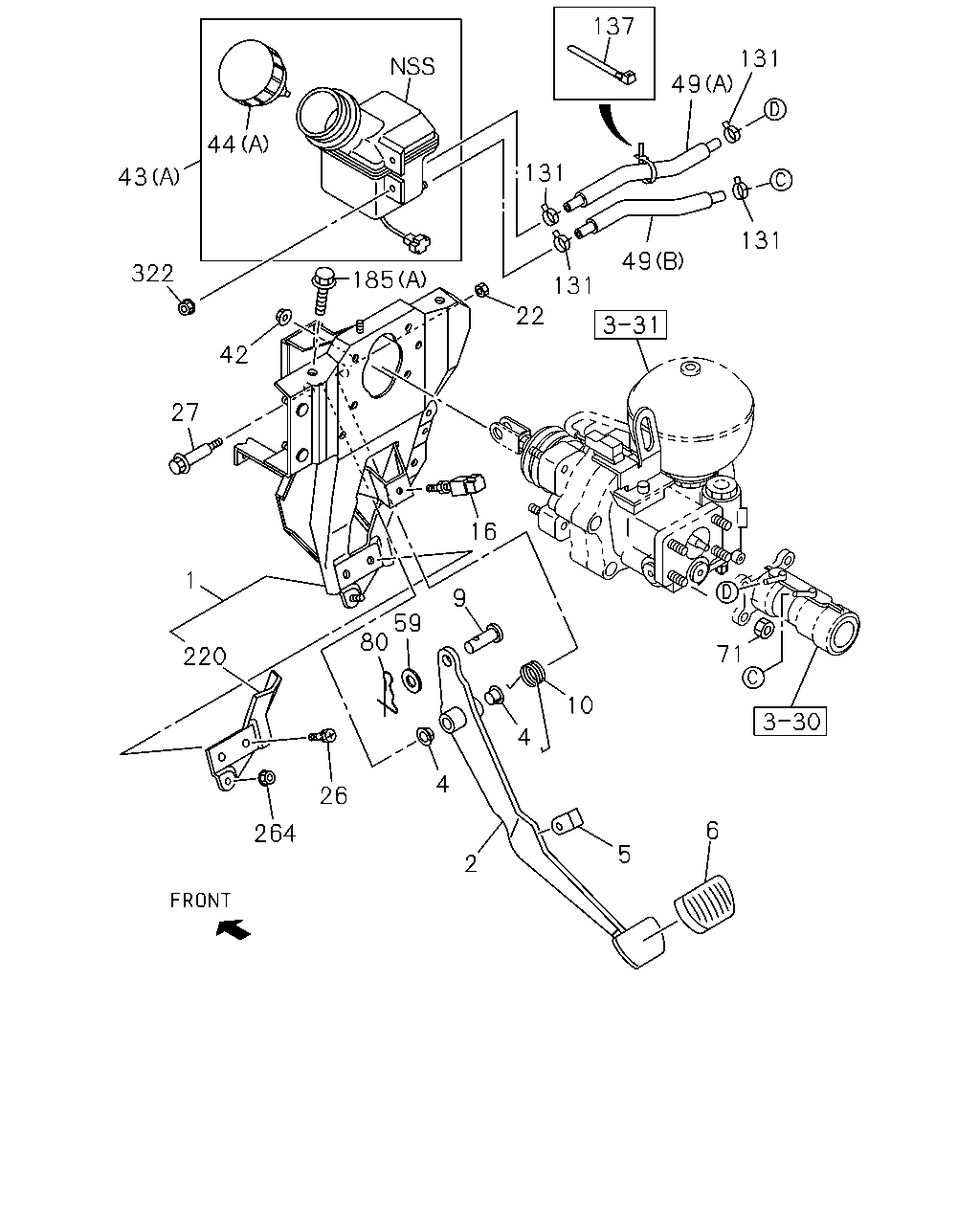

137 131 49 44 131 43 131 49 322 185 131 22 42 27 16 1 9 59 80 71 220 10 4 4 26 6 264 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BRACKET ASM; PEDAL	8-97410-026-1	01	1	0507-0604	●	●	●
1	BRACKET ASM; PEDAL	8-97410-026-3	01	1	0605-	●	●	●	●
2	PEDAL; BRK	8-97856-336-2	01	1	0507-	●
2	PEDAL; BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97856-336-2	01	1	0507-		●	●
2	PEDAL; BRK HYDRO BRAKE BOOSTER(7QQ)	8-97867-872-3	01	1	0507-0604		●	●
2	PEDAL; BRK HYDRO BRAKE BOOSTER(7QQ)	8-97867-872-3	01	1	0605-		●	●
2	PEDAL; BRK	8-97867-872-3	01	1	0605-				●
4	BUSHING; BRK PEDAL	8-94238-596-0	02	1	0507-0604	●	●	●
4	BUSHING; BRK PEDAL	8-94238-596-0	02	1	0605-	●	●	●	●
5	STOPPER; BRK PEDAL	8-97853-602-1	01	1	0507-0604	●	●	●
5	STOPPER; BRK PEDAL	8-97853-602-1	01	1	0605-	●	●	●	●
6	COVER; BRK PEDAL	8-97853-413-2	01	1	0507-0604	●	●	●
6	COVER; BRK PEDAL	8-97853-413-2	01	1	0605-	●	●	●	●
9	PIN; JAW JOINT	8-94410-276-0	01	1	0507-0604	●	●	●
9	PIN; JAW JOINT	8-94410-276-0	01	1	0605-1406	●	●	●	●
9	PIN; JAW JOINT	8-97359-812-0	01	1	1407-	●	●	●	●
10	SPRING; RETURN,BRK PEDAL	8-97853-212-1	01	1	0507-0604	●	●	●
10	SPRING; RETURN,BRK PEDAL	8-97853-212-1	01	1	0605-	●	●	●	●
16	SWITCH; STOP LAMP	8-94337-761-0	01	1	0507-0604	●	●	●
16	SWITCH; STOP LAMP	8-94337-761-0	01	1	0605-	●	●	●	●
22	NUT; SHAFT M10 FLANGE	1-09440-022-0	01	1	0507-0604	●	●	●
22	NUT; SHAFT M10 FLANGE	1-09440-022-0	01	1	0605-	●	●	●	●
26	BOLT; PEDAL M10X22 W/PL WASHER	8-97313-188-0	02	1	0507-0604	●	●	●
26	BOLT; PEDAL M10X22 W/PL WASHER	8-97313-188-0	02	1	0605-	●	●	●	●
27	SHAFT; BRK PEDAL	8-97866-667-0	01	1	0507-0604	●	●	●
27	SHAFT; BRK PEDAL	8-97866-667-0	01	1	0605-	●	●	●	●
42	NUT; BRK PEDAL M8 W/LK WASHER	8-94279-050-0	04	1	0507-0604	●	●	●
42	NUT; BRK PEDAL M8 W/LK WASHER	8-94279-050-0	04	1	0605-	●	●	●	●
43	TANK ASM; OIL (A)	8-97178-245-1	01	1	0507-0604	●	●	●
43	TANK ASM; OIL (A)	8-97178-245-1	01	1	0605-	●	●	●	●
43	TANK ASM; OIL HYDRO BRAKE BOOSTER(7QQ) (B)	8-97306-218-0	01	1	0507-0604		●	●
43	TANK ASM; OIL HYDRO BRAKE BOOSTER(7QQ) (B)	8-97306-218-0	01	1	0605-		●	●
43	TANK ASM; OIL (B)	8-97306-218-0	01	1	0605-				●
44	CAP; OIL TANK (A)	8-97178-291-1	01	1	0507-0604	●	●	●
44	CAP; OIL TANK (A)	8-97178-291-1	01	1	0605-	●	●	●	●
44	CAP; OIL TANK HYDRO BRAKE BOOSTER(7QQ) (B)	8-94146-153-2	01	1	0507-0604		●	●
44	CAP; OIL TANK HYDRO BRAKE BOOSTER(7QQ) (B)	8-94146-153-2	01	1	0605-		●	●
44	CAP; OIL TANK (B)	8-94146-153-2	01	1	0605-				●
49	HOSE; OIL TANK TO BRK M/CYL (A) L=335	8-97129-586-0	01	1	0507-0604	●	●	●
49	HOSE; OIL TANK TO BRK M/CYL (A) L=335	8-97129-586-0	01	1	0605-	●	●	●	●
49	HOSE; OIL TANK TO BRK M/CYL (B) L=340	8-97130-440-0	01	1	0507-0604	●	●	●
49	HOSE; OIL TANK TO BRK M/CYL (B) L=340	8-97130-440-0	01	1	0605-	●	●	●	●
59	WASHER; PL,JAW JOINT ID=15	9-09160-514-0	01	1	0507-0604	●	●	●
59	WASHER; PL,JAW JOINT ID=15	9-09160-514-0	01	1	0605-0605	●	●	●	●
59	WASHER; PL,JAW JOINT ID=15	0-91610-514-0	01	1	0606-	●	●	●	●
71	NUT; BRK M/CYL M8 W/LK WASHER	8-94279-050-0	04	1	0507-0604	●	●	●
71	NUT; BRK M/CYL M8 W/LK WASHER	8-94279-050-0	04	1	0605-	●	●	●	●
80	PIN; SNAP,BRK PEDAL	8-94279-912-0	01	1	0507-0604	●	●	●
80	PIN; SNAP,BRK PEDAL	8-94279-912-0	01	1	0605-	●	●	●	●
131	CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY	8-97130-480-0	04	1	0507-0604	●	●	●
131	CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY	8-97130-480-0	04	1	0605-	●	●	●	●
137	CLIP; BAND,RUBBER HOSE L=250	5-09707-030-1	01	1	0507-0604	●	●	●
137	CLIP; BAND,RUBBER HOSE L=250	5-09707-030-1	01	1	0605-	●	●	●	●
185	BOLT; BRKT (A) M10X25 FLANGE	0-28691-025-0	02	1	0507-0512	●	●	●
185	BOLT; BRKT (A) M10X25 FLANGE	0-28661-025-0	02	1	0601-0604	●	●	●
185	BOLT; BRKT (A) M10X25 FLANGE	0-28661-025-0	02	1	0605-	●	●	●	●
185	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) (B) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512		●	●
185	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-0604		●	●
185	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) (B) M8X25 FLANGE	0-28650-825-0	02	1	0605-		●	●
185	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0605-				●
220	BRACKET; STRG SHAFT	8-97857-044-1	01	1	0507-0604	●	●	●
220	BRACKET; STRG SHAFT	8-97857-044-1	01	1	0605-	●	●	●	●
264	NUT; BRKT,COLUMN SUPT TO B.PDL M8 FLANGE	8-97046-127-0	01	1	0507-0604	●	●	●
264	NUT; BRKT,COLUMN SUPT TO B.PDL M8 FLANGE	8-97046-127-0	01	1	0605-0610	●	●	●	●
264	NUT; BRKT,COLUMN SUPT TO B.PDL M8 W/DISHED WASHER	8-97329-625-0	01	1	0611-	●	●	●	●
322	NUT; OIL TANK M6 FLANGE	0-91150-106-0	02	1	0507-0602	●	●	●
322	NUT; OIL TANK M6 FLANGE	0-91180-106-0	02	1	0603-0604	●	●	●
322	NUT; OIL TANK M6 FLANGE	0-91180-106-0	02	1	0605-	●	●	●	●

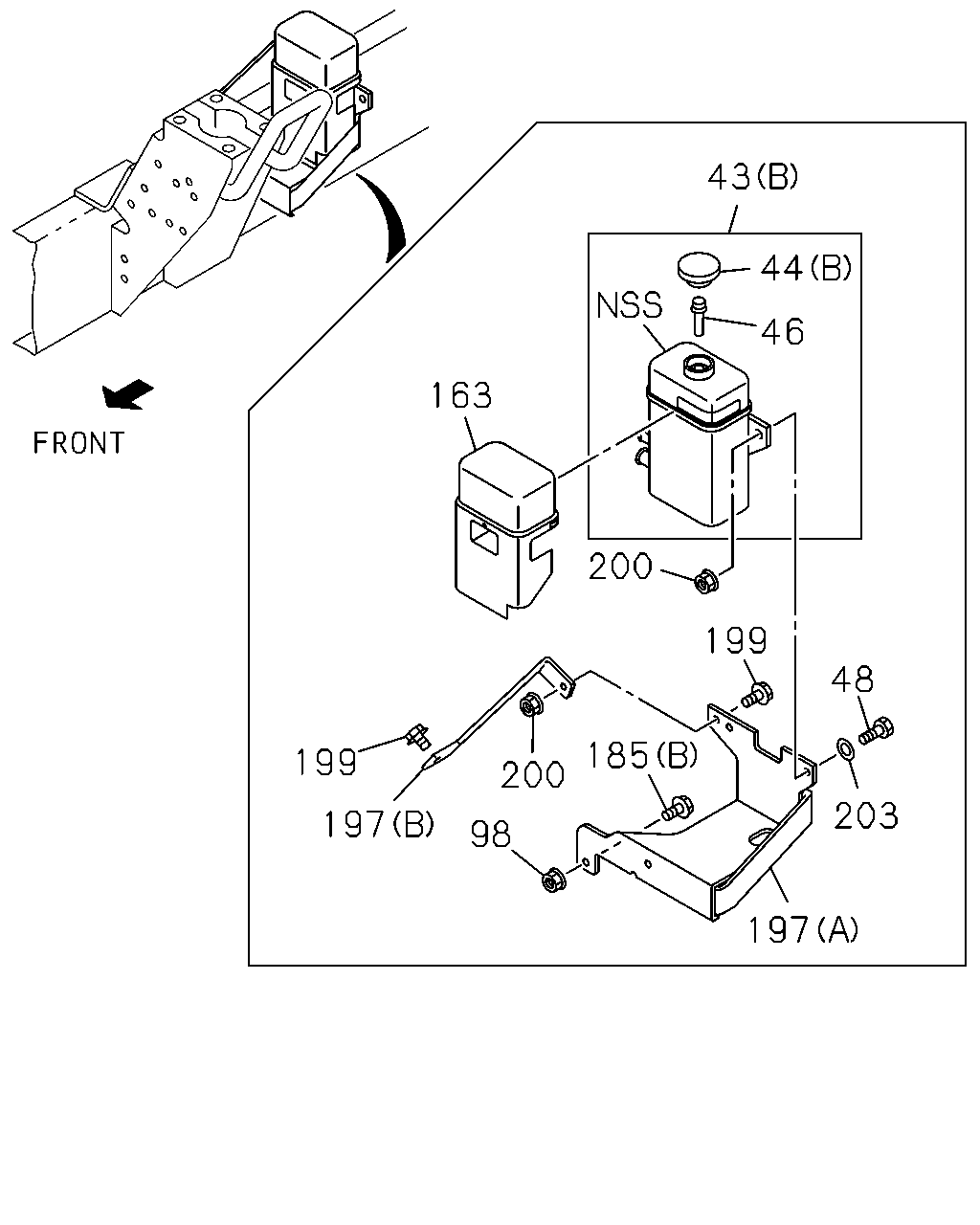

43 44 46 163 200 199 48 185 199 200 203 197 98 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
43	TANK ASM; OIL (A)	8-97178-245-1	01	1	0507-0604	●	●	●
43	TANK ASM; OIL (A)	8-97178-245-1	01	1	0605-	●	●	●	●
43	TANK ASM; OIL HYDRO BRAKE BOOSTER(7QQ) (B)	8-97306-218-0	01	1	0507-0604		●	●
43	TANK ASM; OIL HYDRO BRAKE BOOSTER(7QQ) (B)	8-97306-218-0	01	1	0605-		●	●
43	TANK ASM; OIL (B)	8-97306-218-0	01	1	0605-				●
44	CAP; OIL TANK (A)	8-97178-291-1	01	1	0507-0604	●	●	●
44	CAP; OIL TANK (A)	8-97178-291-1	01	1	0605-	●	●	●	●
44	CAP; OIL TANK HYDRO BRAKE BOOSTER(7QQ) (B)	8-94146-153-2	01	1	0507-0604		●	●
44	CAP; OIL TANK HYDRO BRAKE BOOSTER(7QQ) (B)	8-94146-153-2	01	1	0605-		●	●
44	CAP; OIL TANK (B)	8-94146-153-2	01	1	0605-				●
46	FILTER; RESERVOIR,BRK HYDRO BRAKE BOOSTER(7QQ)	8-97094-732-0	01	1	0507-0604		●	●
46	FILTER; RESERVOIR,BRK HYDRO BRAKE BOOSTER(7QQ)	8-97094-732-0	01	1	0605-		●	●
46	FILTER; RESERVOIR,BRK	8-97094-732-0	01	1	0605-				●
48	BOLT; OIL TANK TO BRKT HYDRO BRAKE BOOSTER(7QQ) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512		●	●
48	BOLT; OIL TANK TO BRKT HYDRO BRAKE BOOSTER(7QQ) M8X25 FLANGE	0-28650-825-0	02	1	0601-0604		●	●
48	BOLT; OIL TANK TO BRKT HYDRO BRAKE BOOSTER(7QQ) M8X25 FLANGE	0-28650-825-0	02	1	0605-		●	●
48	BOLT; OIL TANK TO BRKT M8X25 FLANGE	0-28650-825-0	02	1	0605-				●
98	NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●
98	NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE	0-91180-108-0	02	1	0603-0604		●	●
98	NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE	0-91180-108-0	02	1	0605-		●	●
98	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0605-				●
163	COVER; OIL TANK HYDRO BRAKE BOOSTER(7QQ)	8-97164-749-1	01	1	0507-0604		●	●
163	COVER; OIL TANK HYDRO BRAKE BOOSTER(7QQ)	8-97164-749-1	01	1	0605-		●	●
163	COVER; OIL TANK	8-97164-749-1	01	1	0605-				●
185	BOLT; BRKT (A) M10X25 FLANGE	0-28691-025-0	02	1	0507-0512	●	●	●
185	BOLT; BRKT (A) M10X25 FLANGE	0-28661-025-0	02	1	0601-0604	●	●	●
185	BOLT; BRKT (A) M10X25 FLANGE	0-28661-025-0	02	1	0605-	●	●	●	●
185	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) (B) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512		●	●
185	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-0604		●	●
185	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) (B) M8X25 FLANGE	0-28650-825-0	02	1	0605-		●	●
185	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0605-				●
197	BRACKET; OIL TANK HYDRO BRAKE BOOSTER(7QQ) (A)	8-97173-342-2	01	1	0507-0604		●	●
197	BRACKET; OIL TANK HYDRO BRAKE BOOSTER(7QQ) (A)	8-97173-342-2	01	1	0605-		●	●
197	BRACKET; OIL TANK (A)	8-97173-342-2	01	1	0605-				●
197	BRACKET; OIL TANK HYDRO BRAKE BOOSTER(7QQ) (B)	8-97333-555-1	01	1	0507-0604		●	●
197	BRACKET; OIL TANK HYDRO BRAKE BOOSTER(7QQ) (B)	8-97333-555-2	01	1	0605-		●	●
197	BRACKET; OIL TANK (B)	8-97333-555-2	01	1	0605-				●
199	BOLT; OIL TANK BRKT HYDRO BRAKE BOOSTER(7QQ) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512		●	●
199	BOLT; OIL TANK BRKT HYDRO BRAKE BOOSTER(7QQ) M8X25 FLANGE	0-28650-825-0	02	1	0601-0604		●	●
199	BOLT; OIL TANK BRKT HYDRO BRAKE BOOSTER(7QQ) M8X25 FLANGE	0-28650-825-0	02	1	0605-		●	●
199	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	0605-				●
200	NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE	0-91150-108-0	01	1	0507-0602		●	●
200	NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE	0-91180-108-0	01	1	0603-0604		●	●
200	NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE	0-91180-108-0	01	1	0605-		●	●
200	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0605-				●
200	NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●
200	NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE	0-91180-108-0	02	1	0603-0604		●	●
200	NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE	0-91180-108-0	02	1	0605-		●	●
200	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0605-				●
203	WASHER; PL,OIL TANK HYDRO BRAKE BOOSTER(7QQ) ID=8.4 OD=22	9-09160-708-0	02	1	0507-0604		●	●
203	WASHER; PL,OIL TANK HYDRO BRAKE BOOSTER(7QQ) ID=8.4 OD=22	9-09160-708-0	02	1	0605-0605		●	●
203	WASHER; PL,OIL TANK ID=8.4 OD=22	9-09160-708-0	02	1	0605-0605				●
203	WASHER; PL,OIL TANK HYDRO BRAKE BOOSTER(7QQ) ID=8.4 OD=22	0-91610-708-0	02	1	0606-		●	●
203	WASHER; PL,OIL TANK ID=8.4 OD=22	0-91610-708-0	02	1	0606-				●

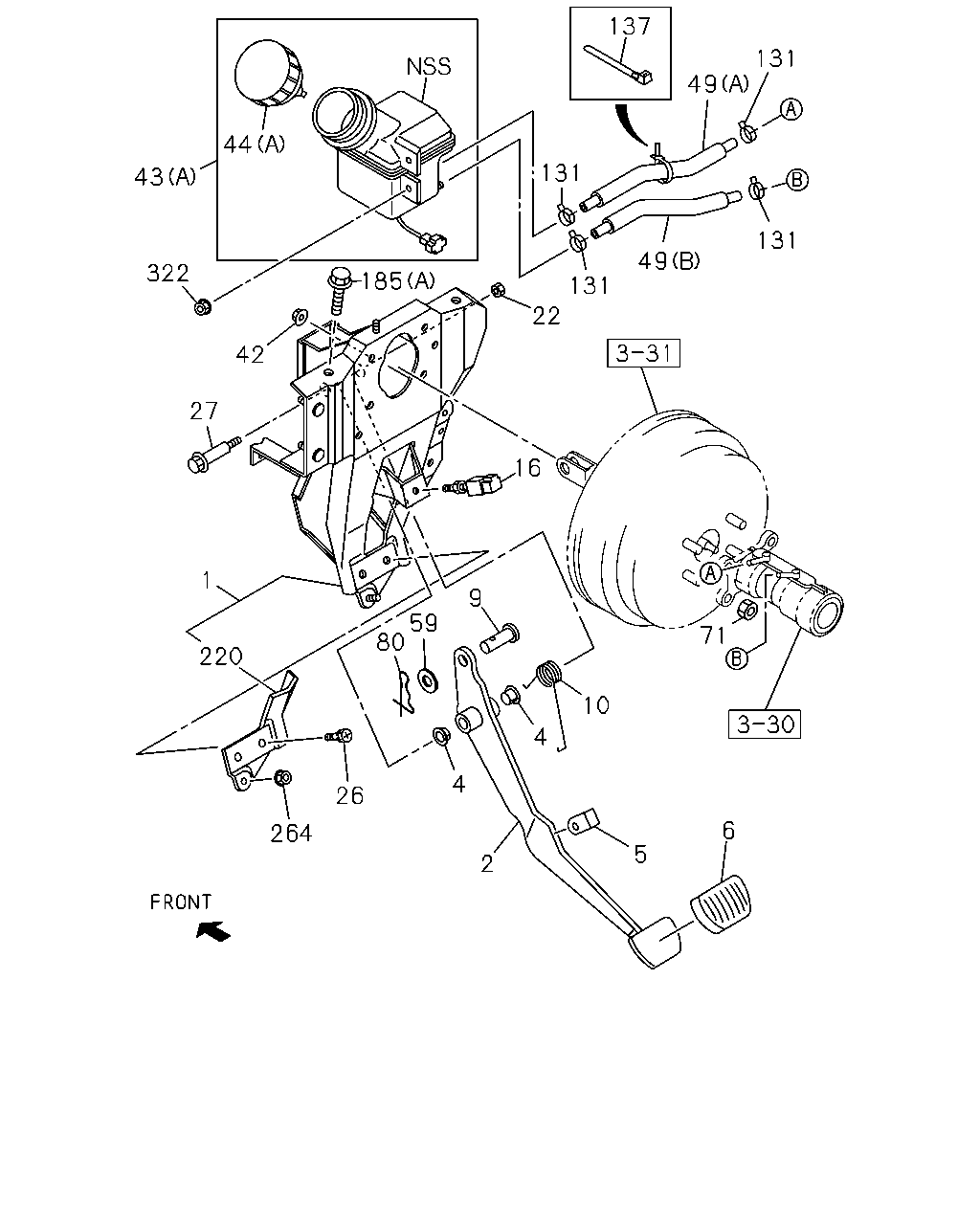

137 131 49 44 131 43 131 49 322 185 131 22 42 27 16 1 9 59 80 71 220 10 4 4 26 6 264 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BRACKET ASM; PEDAL	8-97410-026-1	01	1	0507-0604	●	●	●
1	BRACKET ASM; PEDAL	8-97410-026-3	01	1	0605-	●	●	●	●
2	PEDAL; BRK	8-97856-336-2	01	1	0507-	●
2	PEDAL; BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97856-336-2	01	1	0507-		●	●
2	PEDAL; BRK HYDRO BRAKE BOOSTER(7QQ)	8-97867-872-3	01	1	0507-0604		●	●
2	PEDAL; BRK HYDRO BRAKE BOOSTER(7QQ)	8-97867-872-3	01	1	0605-		●	●
2	PEDAL; BRK	8-97867-872-3	01	1	0605-				●
4	BUSHING; BRK PEDAL	8-94238-596-0	02	1	0507-0604	●	●	●
4	BUSHING; BRK PEDAL	8-94238-596-0	02	1	0605-	●	●	●	●
5	STOPPER; BRK PEDAL	8-97853-602-1	01	1	0507-0604	●	●	●
5	STOPPER; BRK PEDAL	8-97853-602-1	01	1	0605-	●	●	●	●
6	COVER; BRK PEDAL	8-97853-413-2	01	1	0507-0604	●	●	●
6	COVER; BRK PEDAL	8-97853-413-2	01	1	0605-	●	●	●	●
9	PIN; JAW JOINT	8-94410-276-0	01	1	0507-0604	●	●	●
9	PIN; JAW JOINT	8-94410-276-0	01	1	0605-1406	●	●	●	●
9	PIN; JAW JOINT	8-97359-812-0	01	1	1407-	●	●	●	●
10	SPRING; RETURN,BRK PEDAL	8-97853-212-1	01	1	0507-0604	●	●	●
10	SPRING; RETURN,BRK PEDAL	8-97853-212-1	01	1	0605-	●	●	●	●
16	SWITCH; STOP LAMP	8-94337-761-0	01	1	0507-0604	●	●	●
16	SWITCH; STOP LAMP	8-94337-761-0	01	1	0605-	●	●	●	●
22	NUT; SHAFT M10 FLANGE	1-09440-022-0	01	1	0507-0604	●	●	●
22	NUT; SHAFT M10 FLANGE	1-09440-022-0	01	1	0605-	●	●	●	●
26	BOLT; PEDAL M10X22 W/PL WASHER	8-97313-188-0	02	1	0507-0604	●	●	●
26	BOLT; PEDAL M10X22 W/PL WASHER	8-97313-188-0	02	1	0605-	●	●	●	●
27	SHAFT; BRK PEDAL	8-97866-667-0	01	1	0507-0604	●	●	●
27	SHAFT; BRK PEDAL	8-97866-667-0	01	1	0605-	●	●	●	●
42	NUT; BRK PEDAL M8 W/LK WASHER	8-94279-050-0	04	1	0507-0604	●	●	●
42	NUT; BRK PEDAL M8 W/LK WASHER	8-94279-050-0	04	1	0605-	●	●	●	●
43	TANK ASM; OIL (A)	8-97178-245-1	01	1	0507-0604	●	●	●
43	TANK ASM; OIL (A)	8-97178-245-1	01	1	0605-	●	●	●	●
43	TANK ASM; OIL HYDRO BRAKE BOOSTER(7QQ) (B)	8-97306-218-0	01	1	0507-0604		●	●
43	TANK ASM; OIL HYDRO BRAKE BOOSTER(7QQ) (B)	8-97306-218-0	01	1	0605-		●	●
43	TANK ASM; OIL (B)	8-97306-218-0	01	1	0605-				●
44	CAP; OIL TANK (A)	8-97178-291-1	01	1	0507-0604	●	●	●
44	CAP; OIL TANK (A)	8-97178-291-1	01	1	0605-	●	●	●	●
44	CAP; OIL TANK HYDRO BRAKE BOOSTER(7QQ) (B)	8-94146-153-2	01	1	0507-0604		●	●
44	CAP; OIL TANK HYDRO BRAKE BOOSTER(7QQ) (B)	8-94146-153-2	01	1	0605-		●	●
44	CAP; OIL TANK (B)	8-94146-153-2	01	1	0605-				●
49	HOSE; OIL TANK TO BRK M/CYL (A) L=335	8-97129-586-0	01	1	0507-0604	●	●	●
49	HOSE; OIL TANK TO BRK M/CYL (A) L=335	8-97129-586-0	01	1	0605-	●	●	●	●
49	HOSE; OIL TANK TO BRK M/CYL (B) L=340	8-97130-440-0	01	1	0507-0604	●	●	●
49	HOSE; OIL TANK TO BRK M/CYL (B) L=340	8-97130-440-0	01	1	0605-	●	●	●	●
59	WASHER; PL,JAW JOINT ID=15	9-09160-514-0	01	1	0507-0604	●	●	●
59	WASHER; PL,JAW JOINT ID=15	9-09160-514-0	01	1	0605-0605	●	●	●	●
59	WASHER; PL,JAW JOINT ID=15	0-91610-514-0	01	1	0606-	●	●	●	●
71	NUT; BRK M/CYL M8 W/LK WASHER	8-94279-050-0	04	1	0507-0604	●	●	●
71	NUT; BRK M/CYL M8 W/LK WASHER	8-94279-050-0	04	1	0605-	●	●	●	●
80	PIN; SNAP,BRK PEDAL	8-94279-912-0	01	1	0507-0604	●	●	●
80	PIN; SNAP,BRK PEDAL	8-94279-912-0	01	1	0605-	●	●	●	●
131	CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY	8-97130-480-0	04	1	0507-0604	●	●	●
131	CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY	8-97130-480-0	04	1	0605-	●	●	●	●
137	CLIP; BAND,RUBBER HOSE L=250	5-09707-030-1	01	1	0507-0604	●	●	●
137	CLIP; BAND,RUBBER HOSE L=250	5-09707-030-1	01	1	0605-	●	●	●	●
185	BOLT; BRKT (A) M10X25 FLANGE	0-28691-025-0	02	1	0507-0512	●	●	●
185	BOLT; BRKT (A) M10X25 FLANGE	0-28661-025-0	02	1	0601-0604	●	●	●
185	BOLT; BRKT (A) M10X25 FLANGE	0-28661-025-0	02	1	0605-	●	●	●	●
185	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) (B) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512		●	●
185	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-0604		●	●
185	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) (B) M8X25 FLANGE	0-28650-825-0	02	1	0605-		●	●
185	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0605-				●
220	BRACKET; STRG SHAFT	8-97857-044-1	01	1	0507-0604	●	●	●
220	BRACKET; STRG SHAFT	8-97857-044-1	01	1	0605-	●	●	●	●
264	NUT; BRKT,COLUMN SUPT TO B.PDL M8 FLANGE	8-97046-127-0	01	1	0507-0604	●	●	●
264	NUT; BRKT,COLUMN SUPT TO B.PDL M8 FLANGE	8-97046-127-0	01	1	0605-0610	●	●	●	●
264	NUT; BRKT,COLUMN SUPT TO B.PDL M8 W/DISHED WASHER	8-97329-625-0	01	1	0611-	●	●	●	●
322	NUT; OIL TANK M6 FLANGE	0-91150-106-0	02	1	0507-0602	●	●	●
322	NUT; OIL TANK M6 FLANGE	0-91180-106-0	02	1	0603-0604	●	●	●
322	NUT; OIL TANK M6 FLANGE	0-91180-106-0	02	1	0605-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
