◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51047 - ELF400/450(MEXICO) ▶ 3 - Brakes, Brake System ▶ 3-02 - FRONT DISC BRAKE CALIPER ▶
3-02 — FRONT DISC BRAKE CALIPER (#51551) — 204 parça

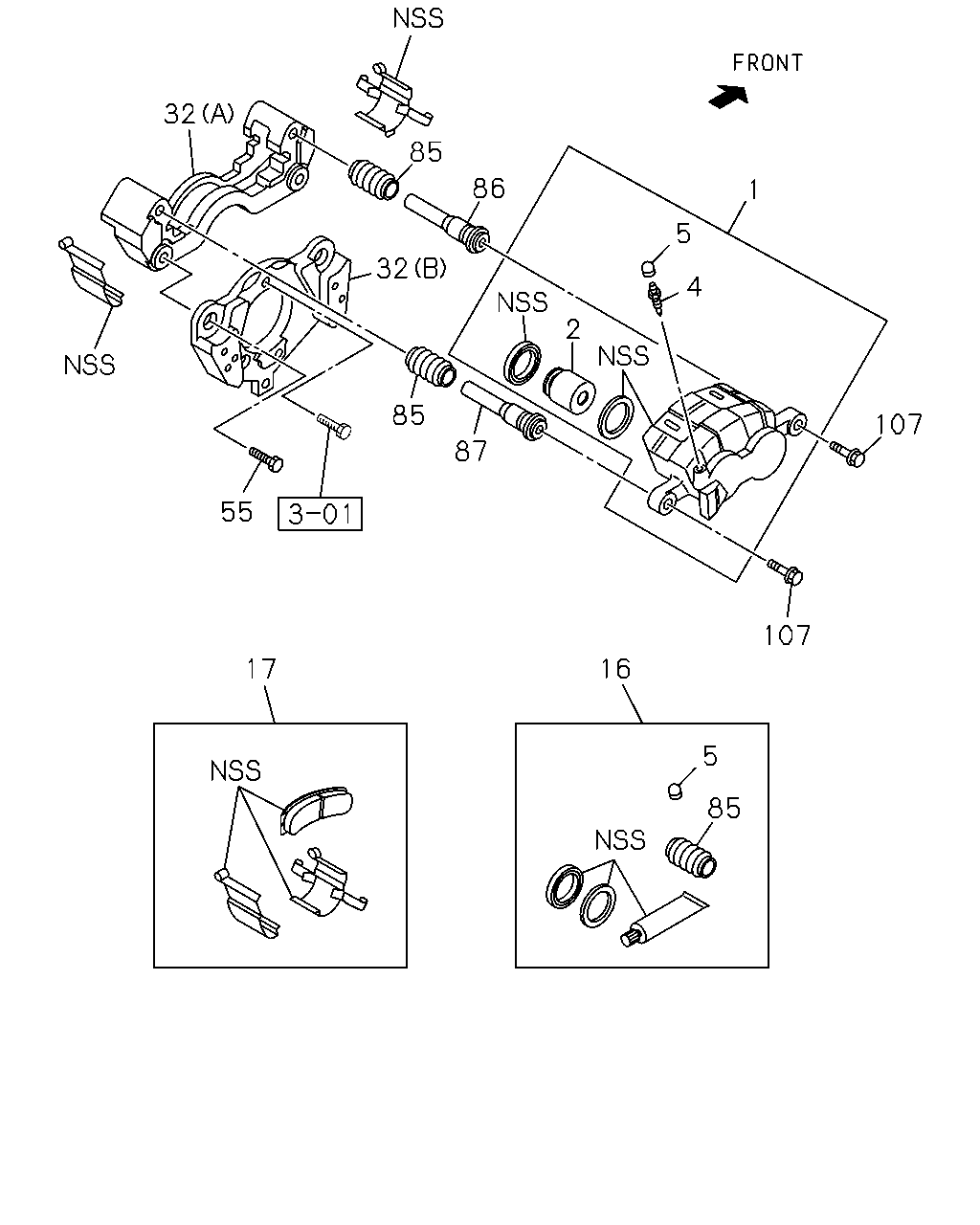

çizim 57237
32 85 86 1 5 32 4 2 85 107 87 55 107 17 16 5 85
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CALIPER; FRT DISC BRK 8-97365-908-0 01 1 0507-1310 ●
1 CALIPER; FRT DISC BRK
GVWR CLASS-4 14001-16000LBS(RQG) 		8-97365-908-0 01 1 0507-1310 ● ●
1 CALIPER; FRT DISC BRK 8-98247-731-0 01 1 1311-1412 ●
1 CALIPER; FRT DISC BRK
GVWR CLASS-4 14001-16000LBS(RQG) 		8-98247-731-0 01 1 1311-1412 ● ●
1 CALIPER; FRT DISC BRK 8-98303-462-0 01 1 1501- ●
1 CALIPER; FRT DISC BRK
GVWR CLASS-4 14001-16000LBS(RQG) 		8-98303-462-0 01 1 1501- ● ●
1 CALIPER; FRT DISC BRK 8-97365-907-0 01 1 0507-1310 ●
1 CALIPER; FRT DISC BRK
GVWR CLASS-4 14001-16000LBS(RQG) 		8-97365-907-0 01 1 0507-1310 ● ●
1 CALIPER; FRT DISC BRK 8-98247-730-0 01 1 1311-1412 ●
1 CALIPER; FRT DISC BRK
GVWR CLASS-4 14001-16000LBS(RQG) 		8-98247-730-0 01 1 1311-1412 ● ●
1 CALIPER; FRT DISC BRK 8-98303-461-0 01 1 1501- ●
1 CALIPER; FRT DISC BRK
GVWR CLASS-4 14001-16000LBS(RQG) 		8-98303-461-0 01 1 1501- ● ●
1 CALIPER; FRT DISC BRK
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97365-910-0 01 1 0507-0604 ● ●
1 CALIPER; FRT DISC BRK
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97365-910-0 01 1 0605-1412 ● ●
1 CALIPER; FRT DISC BRK 8-97365-910-0 01 1 0605-1412 ●
1 CALIPER; FRT DISC BRK
GVWR CLASS-5 16001-19500LBS(RQH) 		8-98303-470-0 01 1 1501- ● ●
1 CALIPER; FRT DISC BRK 8-98303-470-0 01 1 1501- ●
1 CALIPER; FRT DISC BRK
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97365-909-0 01 1 0507-0604 ● ●
1 CALIPER; FRT DISC BRK
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97365-909-0 01 1 0605-1412 ● ●
1 CALIPER; FRT DISC BRK 8-97365-909-0 01 1 0605-1412 ●
1 CALIPER; FRT DISC BRK
GVWR CLASS-5 16001-19500LBS(RQH) 		8-98303-469-0 01 1 1501- ● ●
1 CALIPER; FRT DISC BRK 8-98303-469-0 01 1 1501- ●
2 PISTON; CALIPER,DISC BRK,FRT 8-97365-269-0 04 1 0507- ●
2 PISTON; CALIPER,DISC BRK,FRT
GVWR CLASS-4 14001-16000LBS(RQG) 		8-97365-269-0 04 1 0507- ● ●
2 PISTON; CALIPER,DISC BRK,FRT
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97365-279-0 04 1 0507-0604 ● ●
2 PISTON; CALIPER,DISC BRK,FRT
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97365-279-0 04 1 0605- ● ●
2 PISTON; CALIPER,DISC BRK,FRT 8-97365-279-0 04 1 0605- ●
4 SCREW; BLEEDER,DISC BRK,FRT 8-98050-476-0 02 1 1311-1412 ●
4 SCREW; BLEEDER,DISC BRK,FRT
GVWR CLASS-4 14001-16000LBS(RQG) 		8-98050-476-0 02 1 1311-1412 ● ●
4 SCREW; BLEEDER,DISC BRK,FRT 8-98050-476-0 02 1 1501- ● ● ● ●
4 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 0507-0604 ● ● ●
4 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 0605-1310 ● ● ● ●
4 SCREW; BLEEDER,DISC BRK,FRT
GVWR CLASS-5 16001-19500LBS(RQH) 		1-47615-027-0 02 1 1311-1412 ● ●
4 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 1311-1412 ●
5 CAP; BLEEDER,DISC BRK,FRT 8-98050-479-0 02 1 1311-1412 ●
5 CAP; BLEEDER,DISC BRK,FRT
GVWR CLASS-4 14001-16000LBS(RQG) 		8-98050-479-0 02 1 1311-1412 ● ●
5 CAP; BLEEDER,DISC BRK,FRT 8-98050-479-0 02 1 1501- ● ● ● ●
5 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 0507-0604 ● ● ●
5 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 0605-1310 ● ● ● ●
5 CAP; BLEEDER,DISC BRK,FRT
GVWR CLASS-5 16001-19500LBS(RQH) 		1-47619-009-0 02 1 1311-1412 ● ●
5 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 1311-1412 ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT 8-98120-357-0 01 1 0607-1310 ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
GVWR CLASS-4 14001-16000LBS(RQG) 		8-98120-357-0 01 1 0607-1310 ● ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT 8-98248-904-0 01 1 1311-1412 ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
GVWR CLASS-4 14001-16000LBS(RQG) 		8-98248-904-0 01 1 1311-1412 ● ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT 8-98302-531-0 01 1 1501- ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
GVWR CLASS-4 14001-16000LBS(RQG) 		8-98302-531-0 01 1 1501- ● ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
GVWR CLASS-5 16001-19500LBS(RQH) 		8-98120-358-0 01 1 0607-1412 ● ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT 8-98120-358-0 01 1 0607-1412 ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
GVWR CLASS-5 16001-19500LBS(RQH) 		8-98302-532-0 01 1 1501- ● ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT 8-98302-532-0 01 1 1501- ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT 8-97365-913-0 01 1 0507-0606 ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
GVWR CLASS-4 14001-16000LBS(RQG) 		8-97365-913-0 01 1 0507-0606 ● ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97365-914-0 01 1 0507-0604 ● ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97365-914-0 01 1 0605-0606 ● ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT 8-97365-914-0 01 1 0605-0606 ●
17 PAD KIT; CALIPER,DISC BRK,FRT 8-97329-266-0 01 1 0507-1212 ●
17 PAD KIT; CALIPER,DISC BRK,FRT
GVWR CLASS-4 14001-16000LBS(RQG) 		8-97329-266-0 01 1 0507-1212 ● ●
17 PAD KIT; CALIPER,DISC BRK,FRT 8-98216-922-0 01 1 1301- ●
17 PAD KIT; CALIPER,DISC BRK,FRT
GVWR CLASS-4 14001-16000LBS(RQG) 		8-98216-922-0 01 1 1301- ● ●
17 PAD KIT; CALIPER,DISC BRK,FRT
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97211-691-0 01 1 0507-0604 ● ●
17 PAD KIT; CALIPER,DISC BRK,FRT
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97211-691-0 01 1 0605- ● ●
17 PAD KIT; CALIPER,DISC BRK,FRT 8-97211-691-0 01 1 0605- ●
32 SUPPORT; FRT DISC BRK
(A) 		8-97365-271-0 02 1 0507- ●
32 SUPPORT; FRT DISC BRK
GVWR CLASS-4 14001-16000LBS(RQG) (A) 		8-97365-271-0 02 1 0507- ● ●
32 SUPPORT; FRT DISC BRK
(B) 		8-97168-584-2 01 1 0507- ●
32 SUPPORT; FRT DISC BRK
GVWR CLASS-4 14001-16000LBS(RQG) (B) 		8-97168-584-2 01 1 0507- ● ●
32 SUPPORT; FRT DISC BRK
(B) 		8-97168-583-2 01 1 0507- ●
32 SUPPORT; FRT DISC BRK
GVWR CLASS-4 14001-16000LBS(RQG) (B) 		8-97168-583-2 01 1 0507- ● ●
32 SUPPORT; FRT DISC BRK
GVWR CLASS-5 16001-19500LBS(RQH) (A) 		8-97365-284-0 02 1 0507-0604 ● ●
32 SUPPORT; FRT DISC BRK
GVWR CLASS-5 16001-19500LBS(RQH) (A) 		8-97365-284-0 02 1 0605- ● ●
32 SUPPORT; FRT DISC BRK
(A) 		8-97365-284-0 02 1 0605- ●
32 SUPPORT; FRT DISC BRK
GVWR CLASS-5 16001-19500LBS(RQH) (B) 		8-97183-000-0 01 1 0507-0604 ● ●
32 SUPPORT; FRT DISC BRK
GVWR CLASS-5 16001-19500LBS(RQH) (B) 		8-97183-000-0 01 1 0605- ● ●
32 SUPPORT; FRT DISC BRK
(B) 		8-97183-000-0 01 1 0605- ●
32 SUPPORT; FRT DISC BRK
GVWR CLASS-5 16001-19500LBS(RQH) (B) 		8-97182-999-0 01 1 0507-0604 ● ●
32 SUPPORT; FRT DISC BRK
GVWR CLASS-5 16001-19500LBS(RQH) (B) 		8-97182-999-0 01 1 0605- ● ●
32 SUPPORT; FRT DISC BRK
(B) 		8-97182-999-0 01 1 0605- ●
55 BOLT; SUPPORT BRKT TO DISC BRK 8-97168-639-0 04 1 0507-0611 ●
55 BOLT; SUPPORT BRKT TO DISC BRK
GVWR CLASS-4 14001-16000LBS(RQG) 		8-97168-639-0 04 1 0507-0611 ● ●
55 BOLT; SUPPORT BRKT TO DISC BRK
M16X31 FLANGE 		8-97359-816-0 04 1 0612- ●
55 BOLT; SUPPORT BRKT TO DISC BRK
GVWR CLASS-4 14001-16000LBS(RQG) M16X31 FLANGE 		8-97359-816-0 04 1 0612- ● ●
55 BOLT; SUPPORT BRKT TO DISC BRK
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97207-106-0 04 1 0507-0604 ● ●
55 BOLT; SUPPORT BRKT TO DISC BRK
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97207-106-0 04 1 0605-0611 ● ●
55 BOLT; SUPPORT BRKT TO DISC BRK 8-97207-106-0 04 1 0605-0611 ●
55 BOLT; SUPPORT BRKT TO DISC BRK
GVWR CLASS-5 16001-19500LBS(RQH) M16X40 FLANGE 		8-97359-817-0 04 1 0612- ● ●
55 BOLT; SUPPORT BRKT TO DISC BRK
M16X40 FLANGE 		8-97359-817-0 04 1 0612- ●
85 BOOT; PIN 8-97365-265-0 04 1 0507-0604 ● ● ●
85 BOOT; PIN 8-97365-265-0 04 1 0605-0901 ● ● ● ●
85 BOOT; PIN 8-98120-354-0 04 1 0902- ● ● ● ●
86 PIN; GUIDE 8-97365-275-0 02 1 0507-0604 ● ● ●
86 PIN; GUIDE 8-97365-275-0 02 1 0605-0610 ● ● ● ●
86 PIN; GUIDE 8-98047-529-0 02 1 0611- ● ● ● ●
87 PIN; LOCK 8-98248-005-0 02 1 1311- ●
87 PIN; LOCK
GVWR CLASS-4 14001-16000LBS(RQG) 		8-98248-005-0 02 1 1311- ● ●
87 PIN; LOCK 8-97365-276-0 02 1 0507-0604 ● ● ●
87 PIN; LOCK 8-97365-276-0 02 1 0605-0610 ● ● ● ●
87 PIN; LOCK 8-98047-531-0 02 1 0611-1310 ● ● ● ●
87 PIN; LOCK
GVWR CLASS-5 16001-19500LBS(RQH) 		8-98047-531-0 02 1 1311- ● ●
87 PIN; LOCK 8-98047-531-0 02 1 1311- ●
107 BOLT; PIN 8-97365-264-0 04 1 0507-0604 ● ● ●
107 BOLT; PIN 8-97365-264-0 04 1 0605- ● ● ● ●

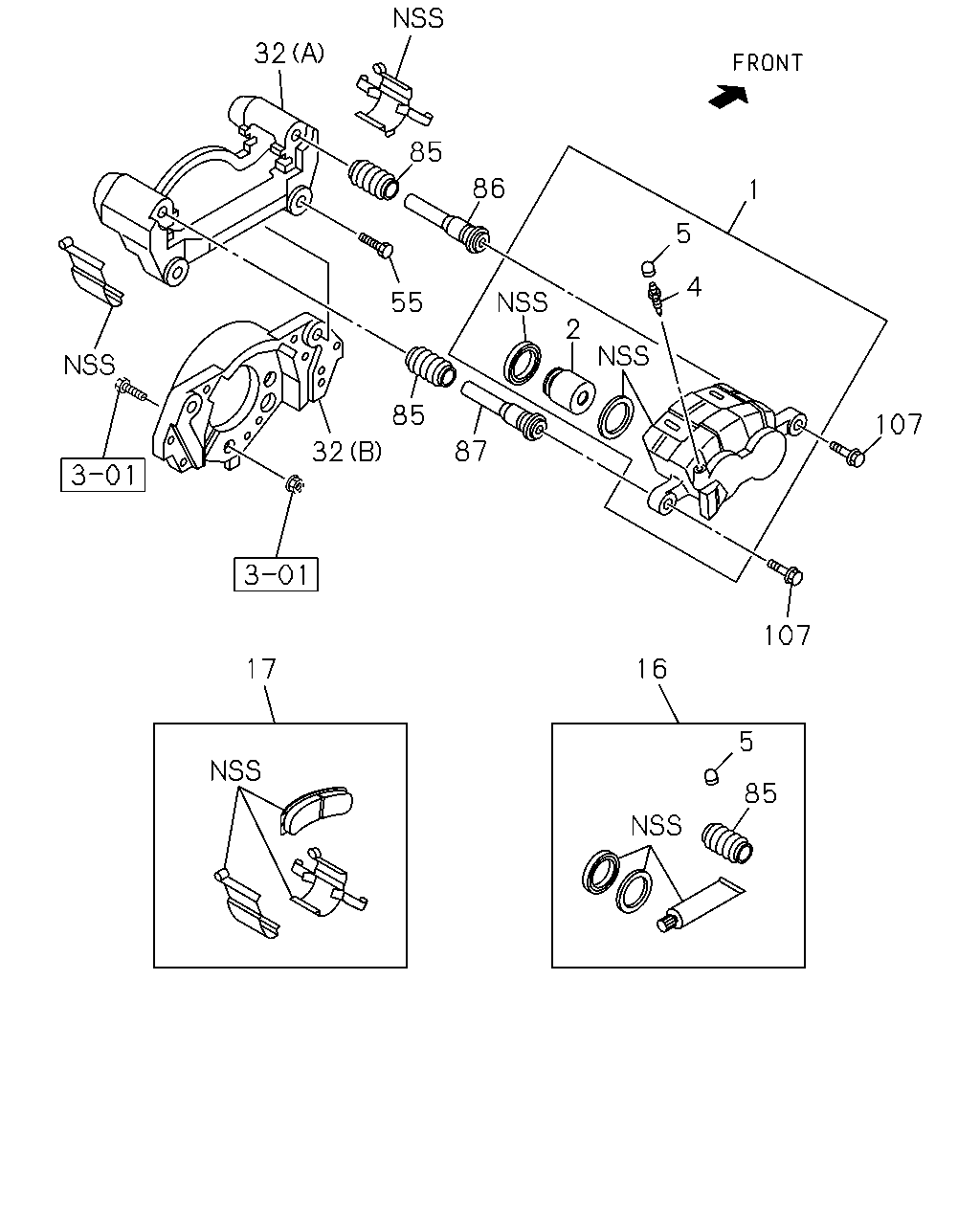

çizim 57262
32 85 86 1 5 4 55 2 85 107 87 32 107 17 16 5 85
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CALIPER; FRT DISC BRK 8-97365-908-0 01 1 0507-1310 ●
1 CALIPER; FRT DISC BRK
GVWR CLASS-4 14001-16000LBS(RQG) 		8-97365-908-0 01 1 0507-1310 ● ●
1 CALIPER; FRT DISC BRK 8-98247-731-0 01 1 1311-1412 ●
1 CALIPER; FRT DISC BRK
GVWR CLASS-4 14001-16000LBS(RQG) 		8-98247-731-0 01 1 1311-1412 ● ●
1 CALIPER; FRT DISC BRK 8-98303-462-0 01 1 1501- ●
1 CALIPER; FRT DISC BRK
GVWR CLASS-4 14001-16000LBS(RQG) 		8-98303-462-0 01 1 1501- ● ●
1 CALIPER; FRT DISC BRK 8-97365-907-0 01 1 0507-1310 ●
1 CALIPER; FRT DISC BRK
GVWR CLASS-4 14001-16000LBS(RQG) 		8-97365-907-0 01 1 0507-1310 ● ●
1 CALIPER; FRT DISC BRK 8-98247-730-0 01 1 1311-1412 ●
1 CALIPER; FRT DISC BRK
GVWR CLASS-4 14001-16000LBS(RQG) 		8-98247-730-0 01 1 1311-1412 ● ●
1 CALIPER; FRT DISC BRK 8-98303-461-0 01 1 1501- ●
1 CALIPER; FRT DISC BRK
GVWR CLASS-4 14001-16000LBS(RQG) 		8-98303-461-0 01 1 1501- ● ●
1 CALIPER; FRT DISC BRK
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97365-910-0 01 1 0507-0604 ● ●
1 CALIPER; FRT DISC BRK
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97365-910-0 01 1 0605-1412 ● ●
1 CALIPER; FRT DISC BRK 8-97365-910-0 01 1 0605-1412 ●
1 CALIPER; FRT DISC BRK
GVWR CLASS-5 16001-19500LBS(RQH) 		8-98303-470-0 01 1 1501- ● ●
1 CALIPER; FRT DISC BRK 8-98303-470-0 01 1 1501- ●
1 CALIPER; FRT DISC BRK
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97365-909-0 01 1 0507-0604 ● ●
1 CALIPER; FRT DISC BRK
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97365-909-0 01 1 0605-1412 ● ●
1 CALIPER; FRT DISC BRK 8-97365-909-0 01 1 0605-1412 ●
1 CALIPER; FRT DISC BRK
GVWR CLASS-5 16001-19500LBS(RQH) 		8-98303-469-0 01 1 1501- ● ●
1 CALIPER; FRT DISC BRK 8-98303-469-0 01 1 1501- ●
2 PISTON; CALIPER,DISC BRK,FRT 8-97365-269-0 04 1 0507- ●
2 PISTON; CALIPER,DISC BRK,FRT
GVWR CLASS-4 14001-16000LBS(RQG) 		8-97365-269-0 04 1 0507- ● ●
2 PISTON; CALIPER,DISC BRK,FRT
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97365-279-0 04 1 0507-0604 ● ●
2 PISTON; CALIPER,DISC BRK,FRT
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97365-279-0 04 1 0605- ● ●
2 PISTON; CALIPER,DISC BRK,FRT 8-97365-279-0 04 1 0605- ●
4 SCREW; BLEEDER,DISC BRK,FRT 8-98050-476-0 02 1 1311-1412 ●
4 SCREW; BLEEDER,DISC BRK,FRT
GVWR CLASS-4 14001-16000LBS(RQG) 		8-98050-476-0 02 1 1311-1412 ● ●
4 SCREW; BLEEDER,DISC BRK,FRT 8-98050-476-0 02 1 1501- ● ● ● ●
4 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 0507-0604 ● ● ●
4 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 0605-1310 ● ● ● ●
4 SCREW; BLEEDER,DISC BRK,FRT
GVWR CLASS-5 16001-19500LBS(RQH) 		1-47615-027-0 02 1 1311-1412 ● ●
4 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 1311-1412 ●
5 CAP; BLEEDER,DISC BRK,FRT 8-98050-479-0 02 1 1311-1412 ●
5 CAP; BLEEDER,DISC BRK,FRT
GVWR CLASS-4 14001-16000LBS(RQG) 		8-98050-479-0 02 1 1311-1412 ● ●
5 CAP; BLEEDER,DISC BRK,FRT 8-98050-479-0 02 1 1501- ● ● ● ●
5 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 0507-0604 ● ● ●
5 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 0605-1310 ● ● ● ●
5 CAP; BLEEDER,DISC BRK,FRT
GVWR CLASS-5 16001-19500LBS(RQH) 		1-47619-009-0 02 1 1311-1412 ● ●
5 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 1311-1412 ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT 8-98120-357-0 01 1 0607-1310 ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
GVWR CLASS-4 14001-16000LBS(RQG) 		8-98120-357-0 01 1 0607-1310 ● ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT 8-98248-904-0 01 1 1311-1412 ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
GVWR CLASS-4 14001-16000LBS(RQG) 		8-98248-904-0 01 1 1311-1412 ● ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT 8-98302-531-0 01 1 1501- ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
GVWR CLASS-4 14001-16000LBS(RQG) 		8-98302-531-0 01 1 1501- ● ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
GVWR CLASS-5 16001-19500LBS(RQH) 		8-98120-358-0 01 1 0607-1412 ● ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT 8-98120-358-0 01 1 0607-1412 ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
GVWR CLASS-5 16001-19500LBS(RQH) 		8-98302-532-0 01 1 1501- ● ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT 8-98302-532-0 01 1 1501- ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT 8-97365-913-0 01 1 0507-0606 ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
GVWR CLASS-4 14001-16000LBS(RQG) 		8-97365-913-0 01 1 0507-0606 ● ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97365-914-0 01 1 0507-0604 ● ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97365-914-0 01 1 0605-0606 ● ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT 8-97365-914-0 01 1 0605-0606 ●
17 PAD KIT; CALIPER,DISC BRK,FRT 8-97329-266-0 01 1 0507-1212 ●
17 PAD KIT; CALIPER,DISC BRK,FRT
GVWR CLASS-4 14001-16000LBS(RQG) 		8-97329-266-0 01 1 0507-1212 ● ●
17 PAD KIT; CALIPER,DISC BRK,FRT 8-98216-922-0 01 1 1301- ●
17 PAD KIT; CALIPER,DISC BRK,FRT
GVWR CLASS-4 14001-16000LBS(RQG) 		8-98216-922-0 01 1 1301- ● ●
17 PAD KIT; CALIPER,DISC BRK,FRT
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97211-691-0 01 1 0507-0604 ● ●
17 PAD KIT; CALIPER,DISC BRK,FRT
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97211-691-0 01 1 0605- ● ●
17 PAD KIT; CALIPER,DISC BRK,FRT 8-97211-691-0 01 1 0605- ●
32 SUPPORT; FRT DISC BRK
(A) 		8-97365-271-0 02 1 0507- ●
32 SUPPORT; FRT DISC BRK
GVWR CLASS-4 14001-16000LBS(RQG) (A) 		8-97365-271-0 02 1 0507- ● ●
32 SUPPORT; FRT DISC BRK
(B) 		8-97168-584-2 01 1 0507- ●
32 SUPPORT; FRT DISC BRK
GVWR CLASS-4 14001-16000LBS(RQG) (B) 		8-97168-584-2 01 1 0507- ● ●
32 SUPPORT; FRT DISC BRK
(B) 		8-97168-583-2 01 1 0507- ●
32 SUPPORT; FRT DISC BRK
GVWR CLASS-4 14001-16000LBS(RQG) (B) 		8-97168-583-2 01 1 0507- ● ●
32 SUPPORT; FRT DISC BRK
GVWR CLASS-5 16001-19500LBS(RQH) (A) 		8-97365-284-0 02 1 0507-0604 ● ●
32 SUPPORT; FRT DISC BRK
GVWR CLASS-5 16001-19500LBS(RQH) (A) 		8-97365-284-0 02 1 0605- ● ●
32 SUPPORT; FRT DISC BRK
(A) 		8-97365-284-0 02 1 0605- ●
32 SUPPORT; FRT DISC BRK
GVWR CLASS-5 16001-19500LBS(RQH) (B) 		8-97183-000-0 01 1 0507-0604 ● ●
32 SUPPORT; FRT DISC BRK
GVWR CLASS-5 16001-19500LBS(RQH) (B) 		8-97183-000-0 01 1 0605- ● ●
32 SUPPORT; FRT DISC BRK
(B) 		8-97183-000-0 01 1 0605- ●
32 SUPPORT; FRT DISC BRK
GVWR CLASS-5 16001-19500LBS(RQH) (B) 		8-97182-999-0 01 1 0507-0604 ● ●
32 SUPPORT; FRT DISC BRK
GVWR CLASS-5 16001-19500LBS(RQH) (B) 		8-97182-999-0 01 1 0605- ● ●
32 SUPPORT; FRT DISC BRK
(B) 		8-97182-999-0 01 1 0605- ●
55 BOLT; SUPPORT BRKT TO DISC BRK 8-97168-639-0 04 1 0507-0611 ●
55 BOLT; SUPPORT BRKT TO DISC BRK
GVWR CLASS-4 14001-16000LBS(RQG) 		8-97168-639-0 04 1 0507-0611 ● ●
55 BOLT; SUPPORT BRKT TO DISC BRK
M16X31 FLANGE 		8-97359-816-0 04 1 0612- ●
55 BOLT; SUPPORT BRKT TO DISC BRK
GVWR CLASS-4 14001-16000LBS(RQG) M16X31 FLANGE 		8-97359-816-0 04 1 0612- ● ●
55 BOLT; SUPPORT BRKT TO DISC BRK
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97207-106-0 04 1 0507-0604 ● ●
55 BOLT; SUPPORT BRKT TO DISC BRK
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97207-106-0 04 1 0605-0611 ● ●
55 BOLT; SUPPORT BRKT TO DISC BRK 8-97207-106-0 04 1 0605-0611 ●
55 BOLT; SUPPORT BRKT TO DISC BRK
GVWR CLASS-5 16001-19500LBS(RQH) M16X40 FLANGE 		8-97359-817-0 04 1 0612- ● ●
55 BOLT; SUPPORT BRKT TO DISC BRK
M16X40 FLANGE 		8-97359-817-0 04 1 0612- ●
85 BOOT; PIN 8-97365-265-0 04 1 0507-0604 ● ● ●
85 BOOT; PIN 8-97365-265-0 04 1 0605-0901 ● ● ● ●
85 BOOT; PIN 8-98120-354-0 04 1 0902- ● ● ● ●
86 PIN; GUIDE 8-97365-275-0 02 1 0507-0604 ● ● ●
86 PIN; GUIDE 8-97365-275-0 02 1 0605-0610 ● ● ● ●
86 PIN; GUIDE 8-98047-529-0 02 1 0611- ● ● ● ●
87 PIN; LOCK 8-98248-005-0 02 1 1311- ●
87 PIN; LOCK
GVWR CLASS-4 14001-16000LBS(RQG) 		8-98248-005-0 02 1 1311- ● ●
87 PIN; LOCK 8-97365-276-0 02 1 0507-0604 ● ● ●
87 PIN; LOCK 8-97365-276-0 02 1 0605-0610 ● ● ● ●
87 PIN; LOCK 8-98047-531-0 02 1 0611-1310 ● ● ● ●
87 PIN; LOCK
GVWR CLASS-5 16001-19500LBS(RQH) 		8-98047-531-0 02 1 1311- ● ●
87 PIN; LOCK 8-98047-531-0 02 1 1311- ●
107 BOLT; PIN 8-97365-264-0 04 1 0507-0604 ● ● ●
107 BOLT; PIN 8-97365-264-0 04 1 0605- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
