◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10722 - CXH RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#5155) — 30 parça
çizim 5855
144 146 146 342 50 144 211 211 141 326
BalonParca AdiParca NoAdetTipApplied Date
50 COVER ASM; SUPPORT,SIDE 1-72537-124-0 01 1 9606-
141 HOLDER 1-79996-101-1 01 1 9606-9905
141 HOLDER 1-79907-076-2 01 1 9906-
144 COVER; HAND BRK VLV
(B) 		1-72537-106-0 01 1 9606-9812
144 COVER; HAND BRK VLV
(B) 		1-72538-166-0 01 1 9901-
144 COVER; HAND BRK VLV
ELEC OUTLET 12V<TAW> PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-354-0 01 1 9906-9906
144 COVER; HAND BRK VLV
ELEC OUTLET 12V<TAW> (A) 		1-72417-354-0 01 1 9907-
144 COVER; HAND BRK VLV
FULL TRACTOR TRUCK<RD6> (A) 		1-72417-332-0 01 1 9606-9905
144 COVER; HAND BRK VLV
FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-332-0 01 1 9906-9906
144 COVER; HAND BRK VLV
FULL TRACTOR TRUCK<RD6> (A) 		1-72417-332-0 01 1 9907-
144 COVER; HAND BRK VLV
EXC. FULL TRACTOR TRUCK<RD6> (A) 		1-72417-333-0 01 1 9606-9905
144 COVER; HAND BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6>,ELEC OUTLET 12V<TAW> (A) 		1-72417-333-0 01 1 9906-9906
144 COVER; HAND BRK VLV
EXC. FULL TRACTOR TRUCK<RD6>,ELEC OUTLET 12V<TAW> (A) 		1-72417-333-0 01 1 9907-
144 COVER; HAND BRK VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-336-0 01 1 9906-9906
146 BOLT; COVER BRKT
M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 9606-
211 BOLT; COVER
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9606-
211 BOLT; COVER
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9606-9905
211 BOLT; COVER
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9906-
211 BOLT; COVER
BRAKE REGULATION ECE<TDV> (B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9906-
326 SEAL; COVER 1-79997-978-1 01 1 9606-
342 FASTENER
D8X13.5 		1-09987-248-1 01 1 9606-9905
342 FASTENER
D8X13.5 		1-09987-248-1 01 1 9906-
342 FASTENER
BRAKE REGULATION ECE<TDV> D8X13.5 		1-09987-248-1 01 1 9906-

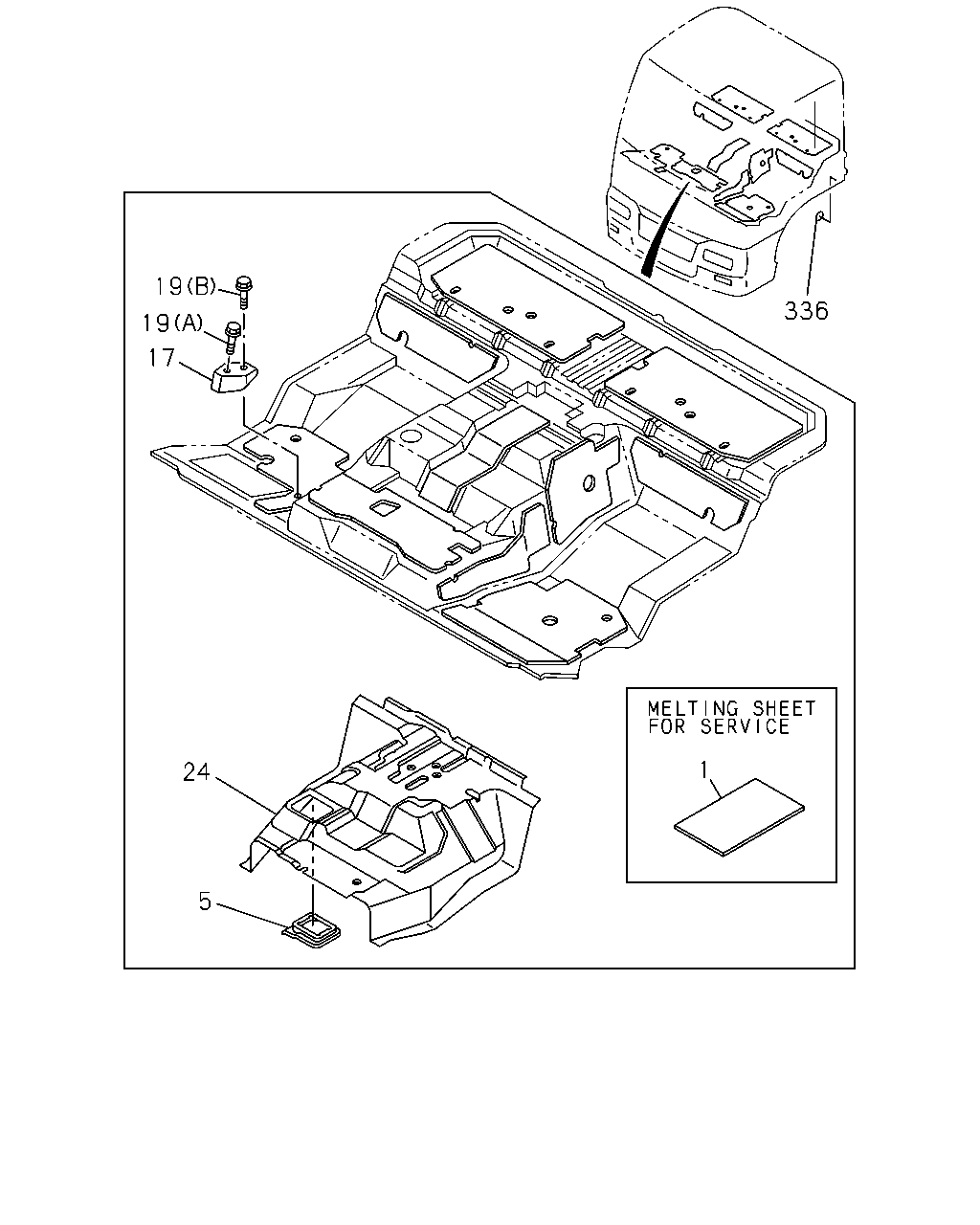

çizim 41199
19 336 19 17 1 24 5
BalonParca AdiParca NoAdetTipApplied Date
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 9606-
5 COVER; CHANGE LEVER 1-33619-163-0 01 1 9606-
17 REST; FOOT,DRIVER 1-73907-176-0 01 1 9606-
19 BOLT; FOOT REST
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9606-
19 BOLT; FOOT REST
(A) M6X47 		8-94407-876-1 01 1 9606-
24 INSULATOR; HEAT,FRT 1-71907-299-6 01 1 9606-
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 02 1 9606-
