2-30 — GEAR SHIFTER AND QUADRANT BOX (#51546) — 68 parça

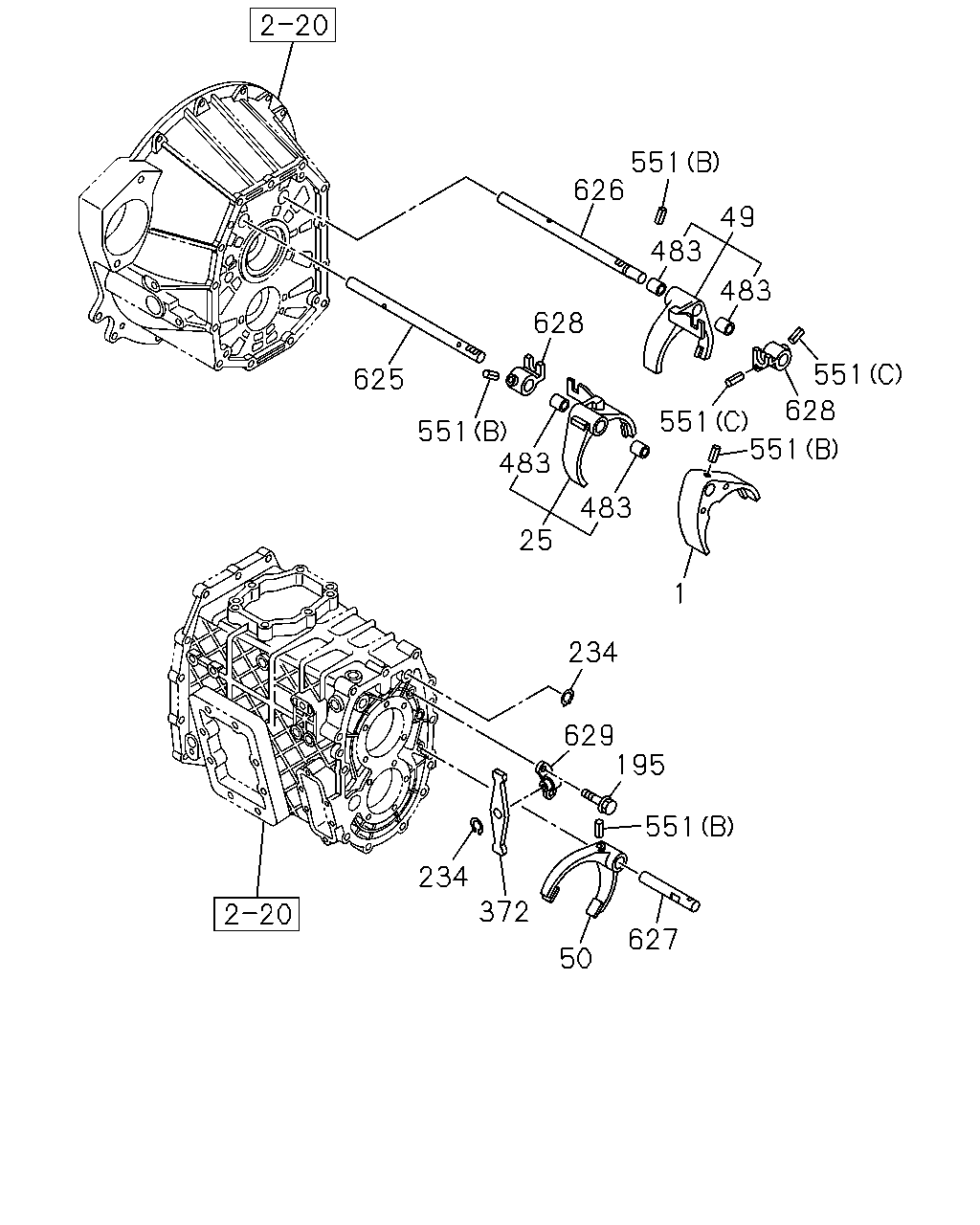

çizim 57287
551 626 49 483 483 628 551 625 628 551 551 551 483 483 25 1 234 629 195 551 234 372 627 50
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV 8-97241-319-2 01 1 0507-
25 ARM; SHIFT,2ND & 3RD 8-97258-708-1 01 1 0507-0507
25 ARM; SHIFT,2ND & 3RD 8-97362-737-1 01 1 0508-
49 ARM; SHIFT,4TH & 5TH 8-97258-709-2 01 1 0507-0507
49 ARM; SHIFT,4TH & 5TH 8-97362-738-1 01 1 0508-
50 ARM; SHIFT,6TH 8-97241-324-1 01 1 0507-
195 BOLT
M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0507-0604
195 BOLT
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0605-
234 RING; SNAP
ID=16.5 		9-09180-418-0 02 1 0507-0507
234 RING; SNAP
ID=16.5 		9-09180-418-0 01 1 0508-0604
234 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 0605-
372 LEVER; RELAY,6TH 8-97241-342-0 01 1 0507-
483 BUSHING; SHIFT ARM 8-97241-326-2 04 1 0507-
551 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0507-
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 0507-0507
551 PIN; SPRING
(B) L=32 		8-97011-596-2 05 1 0508-
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0507-
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 8-97241-332-2 01 1 0507-0507
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 8-97362-735-0 01 1 0508-
626 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-97241-334-1 01 1 0507-0507
626 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-97383-754-0 01 1 0508-0801
626 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-98107-548-0 01 1 0802-
627 ROD; GEAR SHIFT,6TH SUB 8-97241-339-0 01 1 0507-0805
627 ROD; GEAR SHIFT,6TH SUB 8-98119-293-0 01 1 0806-
628 BLOCK; SHIFT,LOW,REV & 6TH 8-97241-327-1 02 1 0507-
629 BRIDGE; LEVER 8-97241-345-1 01 1 0507-

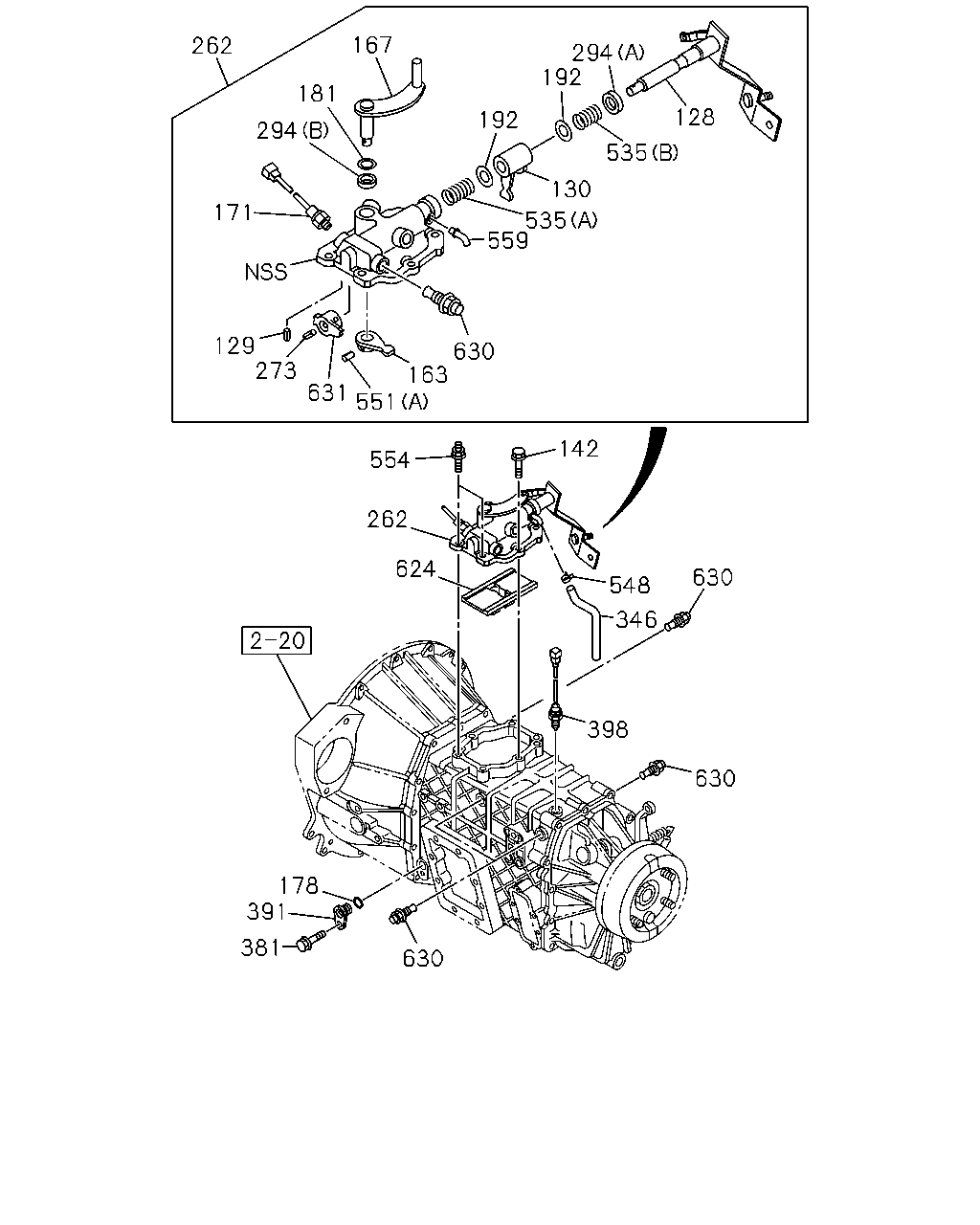

çizim 58124
167 262 294 192 181 128 192 294 535 130 171 535 559 129 273 630 163 551 631 142 554 262 624 630 548 346 398 630 178 391 381 630
BalonParca AdiParca NoAdetTipApplied Date
128 LEVER; SHIFT,EXTERNAL 8-97363-226-0 01 1 0507-
129 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 0507-
130 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 0507-
142 BOLT; QUAD BOX
M8X22 FLANGE 		8-94448-815-3 04 1 0507-0604
142 BOLT; QUAD BOX
M8X22 FLANGE 		8-97365-376-0 04 1 0605-
163 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 0507-
167 LEVER; SELECT,EXTERNAL 8-97306-648-0 01 1 0507-0611
167 LEVER; SELECT,EXTERNAL 8-98039-434-0 01 1 0612-
171 SWITCH; NEUTRAL 8-97316-688-1 01 1 0507-0611
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 0612-1312
171 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401-
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 0507-
181 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 0507-
192 WASHER; PL 8-97305-661-0 02 1 0507-
262 BOX ASM; SHIFT CONT 8-97256-823-9 01 1 0507-0611
262 BOX ASM; SHIFT CONT 8-98039-441-0 01 1 0612-1312
262 BOX ASM; SHIFT CONT 8-98240-996-1 01 1 1401-
273 PIN; SPR,STOPPER
D=4.2 L=25 		8-97103-142-0 01 1 0507-
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 0507-
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 0507-
346 HOSE; AIR 8-97309-855-0 01 1 0507-
381 BOLT
M6X16 FLANGE 		0-28680-616-0 01 1 0507-0512
381 BOLT
M6X16 FLANGE 		0-28650-616-0 01 1 0601-
391 PLUG; SW HOLE 8-97300-273-1 01 1 0507-
398 SWITCH; REV LAMP 8-97316-688-1 01 1 0507-0604
398 SWITCH; REV LAMP 8-98023-050-0 01 1 0605-1312
398 SWITCH; REV LAMP 8-98242-173-1 01 1 1401-
535 SPRING; LEVER
(A) 		8-97305-659-0 01 1 0507-
535 SPRING; LEVER
(B) 		8-97305-660-0 01 1 0507-
548 CLIP; HOSE 8-97031-674-0 01 1 0507-
551 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0507-
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 0507-0507
551 PIN; SPRING
(B) L=32 		8-97011-596-2 05 1 0508-
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0507-
554 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97352-677-0 02 1 0507-0604
554 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97365-378-0 02 1 0605-
559 PIPE; BREATHER 8-97305-517-0 01 1 0507-0604
559 PIPE; BREATHER 8-97358-318-0 01 1 0605-
624 PLATE; INTER LOCK 8-97241-317-3 01 1 0507-
630 DETENT ASM 8-97241-341-0 04 1 0507-0604
630 DETENT ASM 8-98019-536-0 04 1 0605-
631 STOPPER; SPRING 8-97305-666-0 01 1 0507-
