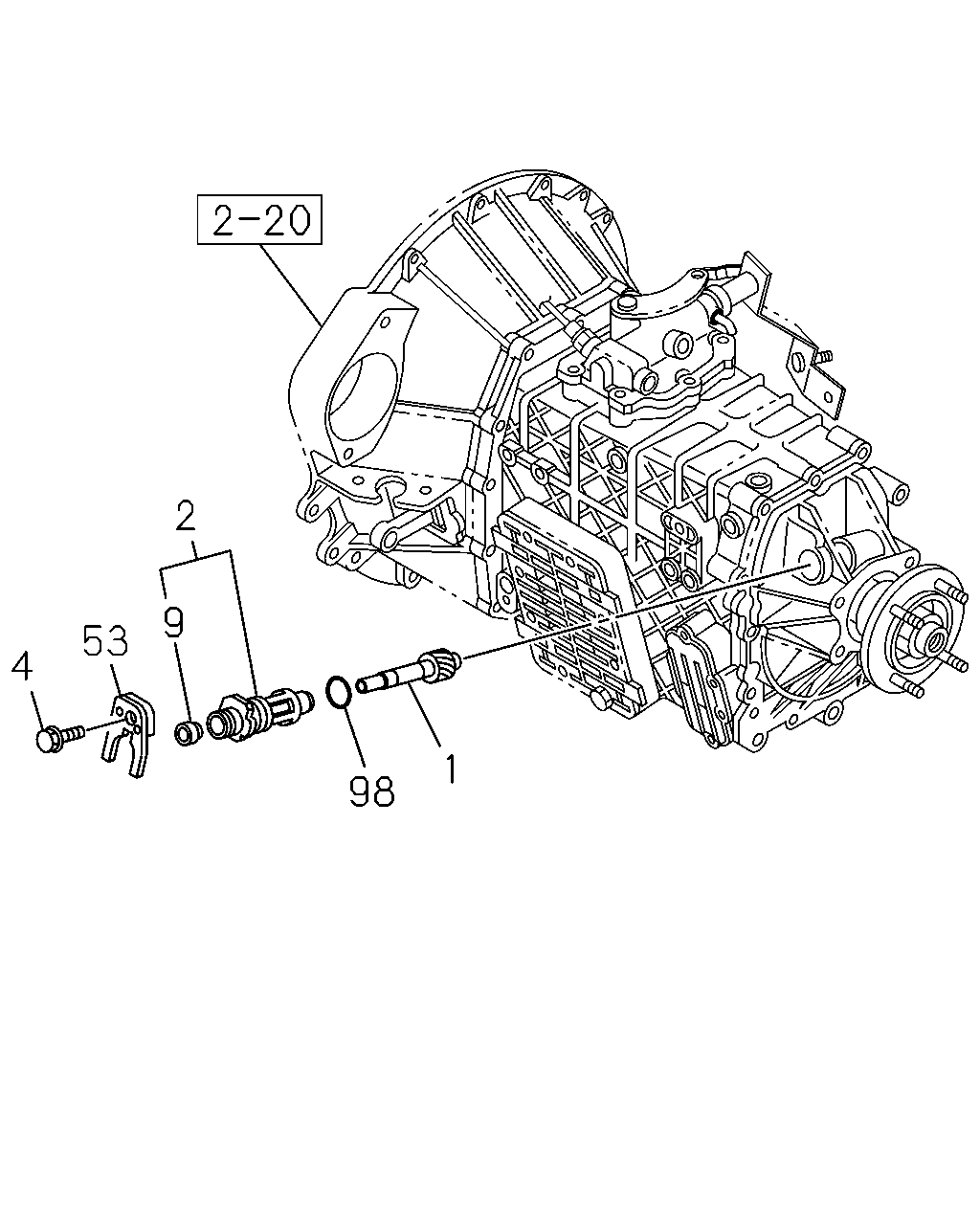

2-25 — SPEEDOMETER DRIVEN GEAR (#51544) — 29 parça

2 9 53 4 1 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	GEAR; DRIVEN,SPD Z=17	8-97327-119-1	01	1	0507-0604	●
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/9(HC6) FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) Z=17	8-97327-119-1	01	1	0507-0604		●	●
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) Z=17	8-97327-119-1	01	1	0507-0604		●	●
1	GEAR; DRIVEN,SPD Z=17	8-97327-119-1	01	1	0605-	●			●
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/9(HC6) FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) Z=17	8-97327-119-1	01	1	0605-		●	●
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) Z=17	8-97327-119-1	01	1	0605-		●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER MARK "10,11,16,17"	8-97253-124-0	01	1	0507-0604	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 41/9(HC6) FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) MARK "10,11,16,17"	8-97253-124-0	01	1	0507-0604		●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 43/10(S7C) FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) MARK "10,11,16,17"	8-97253-124-0	01	1	0507-0604		●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER MARK "10,11,16,17"	8-97253-124-0	01	1	0605-	●			●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 41/9(HC6) FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) MARK "10,11,16,17"	8-97253-124-0	01	1	0605-		●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 43/10(S7C) FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) MARK "10,11,16,17"	8-97253-124-0	01	1	0605-		●	●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28680-820-0	01	1	0507-0512	●	●	●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28650-820-0	01	1	0601-0604	●	●	●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28650-820-0	01	1	0605-	●	●	●	●
9	SEAL; OIL,DRIVEN GEAR NOK	8-97131-328-1	01	1	0507-0604	●
9	SEAL; OIL,DRIVEN GEAR FINAL GEAR RATIO 41/9(HC6) FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) NOK	8-97131-328-1	01	1	0507-0604		●	●
9	SEAL; OIL,DRIVEN GEAR FINAL GEAR RATIO 43/10(S7C) FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) NOK	8-97131-328-1	01	1	0507-0604		●	●
9	SEAL; OIL,DRIVEN GEAR NOK	8-97131-328-1	01	1	0605-	●			●
9	SEAL; OIL,DRIVEN GEAR FINAL GEAR RATIO 41/9(HC6) FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) NOK	8-97131-328-1	01	1	0605-		●	●
9	SEAL; OIL,DRIVEN GEAR FINAL GEAR RATIO 43/10(S7C) FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) NOK	8-97131-328-1	01	1	0605-		●	●
53	PLATE; LOCK,DRIVEN GEAR	8-97252-679-2	01	1	0507-0604	●	●	●
53	PLATE; LOCK,DRIVEN GEAR	8-98046-217-0	01	1	0605-	●	●	●	●
98	SEAL; OIL,BUSH	9-09561-324-0	01	1	0507-0604	●
98	SEAL; OIL,BUSH FINAL GEAR RATIO 41/9(HC6) FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU)	9-09561-324-0	01	1	0507-0604		●	●
98	SEAL; OIL,BUSH FINAL GEAR RATIO 43/10(S7C) FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY)	9-09561-324-0	01	1	0507-0604		●	●
98	SEAL; OIL,BUSH	9-09561-324-0	01	1	0605-	●			●
98	SEAL; OIL,BUSH FINAL GEAR RATIO 41/9(HC6) FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU)	9-09561-324-0	01	1	0605-		●	●
98	SEAL; OIL,BUSH FINAL GEAR RATIO 43/10(S7C) FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY)	9-09561-324-0	01	1	0605-		●	●
