Isuzu WW
▶
TRUCKS
▶
ELF
▶
51047 - ELF400/450(MEXICO)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-08 - CLUTCH MASTER CYLINDER
▶

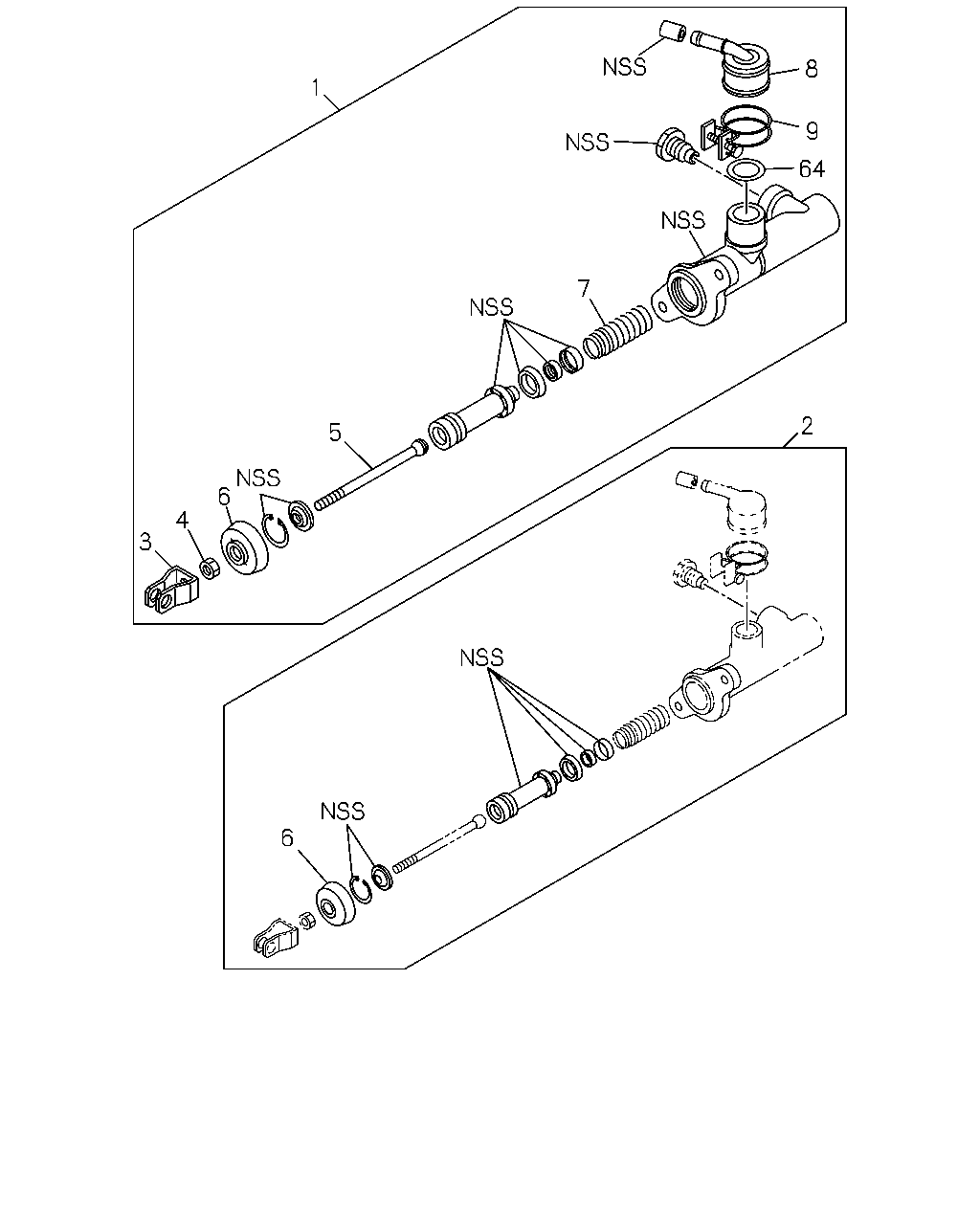

2-08 — CLUTCH MASTER CYLINDER
(#51541) — 13 parça
8
1
9
64
7
2
5
6
4
3
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER ASM; CLUTCH MASTER
8-97167-406-0
01
1
0507-0803
1
CYLINDER ASM; CLUTCH MASTER
8-98117-644-0
01
1
0804-
2
REPAIR KIT; CLU M/CYL
5-87831-597-0
01
1
0507-0803
2
REPAIR KIT; CLU M/CYL
5-87832-226-0
01
1
0804-
3
JOINT; JAW,CLU M/CYL
8-97167-770-0
01
1
0507-
4
NUT; JAW JOINT
M8
9-09111-408-0
01
1
0507-0511
4
NUT; JAW JOINT
M8
0-91111-508-0
01
1
0512-
5
ROD; PUSH,CLU M/CYL
8-97167-768-0
01
1
0507-
6
BOOT; CLU M/CYL
8-94412-200-0
01
1
0507-
7
SPRING ASM; CLU M/CYL
8-97167-780-0
01
1
0507-
8
CONNECTOR; PIPE,CLU M/CYL
8-97167-766-0
01
1
0507-
9
CLAMP; PIPE CONNECTOR,CLU M/CYL
8-97167-773-0
01
1
0507-
64
GASKET; CONNECTOR
8-97167-767-0
01
1
0507-
