2-05 — CLUTCH PIPING (#51539) — 19 parça

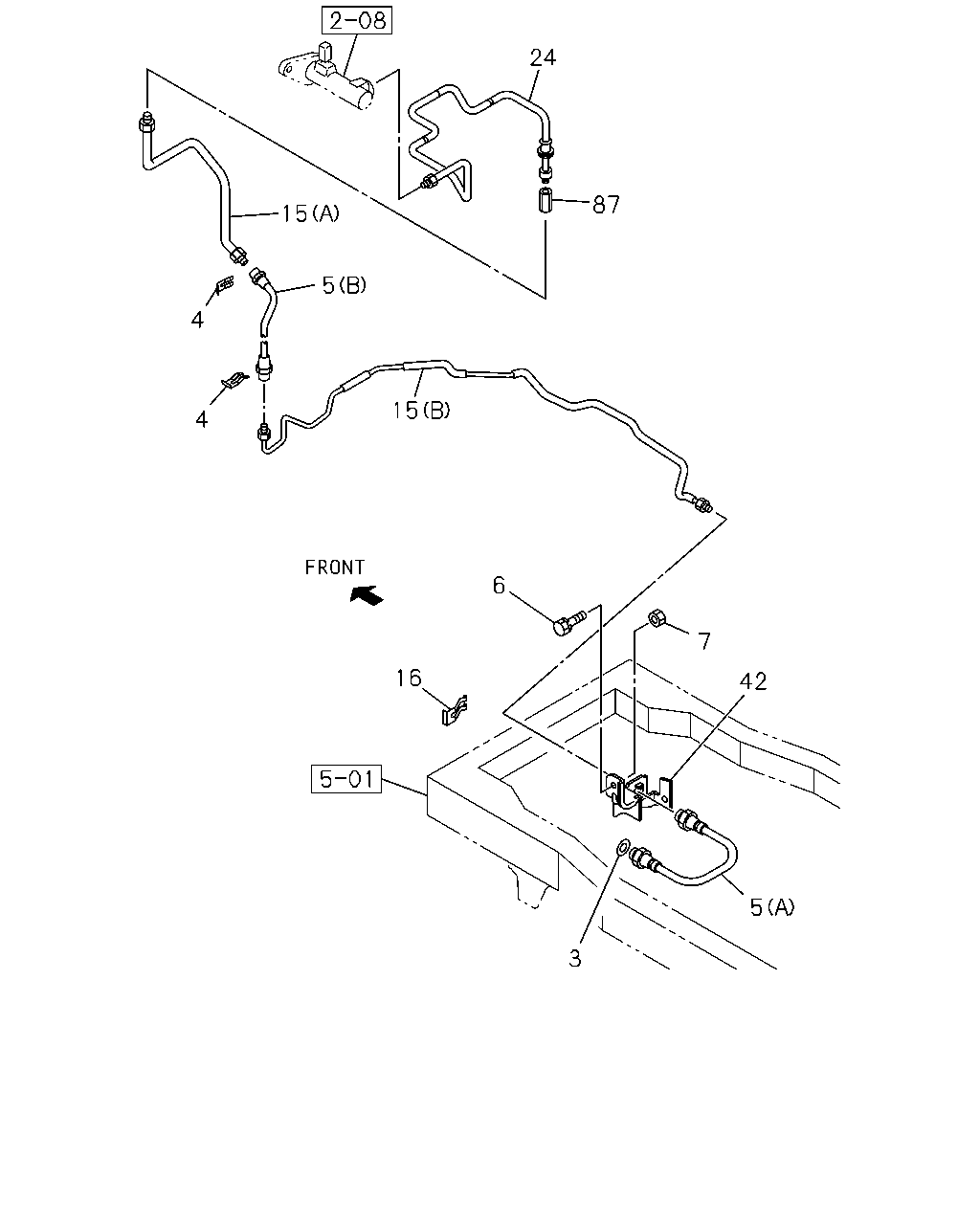

çizim 57208
24 87 5 5 4 15 4 6 7 16 42 5 3
BalonParca AdiParca NoAdetTipApplied Date
3 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 0507-
4 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0507-0610
4 CLIP; FLEX HOSE,CLU CONT 8-97365-304-0 02 1 0611-
5 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0507-0609
5 HOSE; FLEX,CLU PIPE
(B) 		8-98004-775-0 01 1 0610-0706
5 HOSE; FLEX,CLU PIPE
(B) 		8-98090-655-0 01 1 0707-
5 HOSE; FLEX,CLU PIPE
(A) 		8-98013-965-0 01 1 0507-
6 BOLT; BRKT,FLEX HOSE
M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512
6 BOLT; BRKT,FLEX HOSE
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
7 NUT; FLEX HOSE,CLU CONT
M8 FLANGE 		0-91150-108-0 01 1 0507-0602
7 NUT; FLEX HOSE,CLU CONT
M8 FLANGE 		0-91180-108-0 01 1 0603-
15 PIPE; CLU,FLEX HOSE
(B) 		8-97187-578-1 01 1 0507-
15 PIPE; CLU,FLEX HOSE
(A) 		8-97328-482-0 01 1 0507-
16 CLIP; FLEX HOSE 8-94167-006-0 01 1 0507-0610
16 CLIP; FLEX HOSE 8-97365-304-0 01 1 0611-
24 PIPE ASM; CLU,M/CYL TO UNION 8-97070-293-3 01 1 0507-
42 BRACKET; FLEX HOSE,CLU CONT 8-97365-305-0 01 1 0507-
87 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0507-0607
87 UNION; OIL PIPE
M12 STRAIGHT 		0-92107-006-0 01 1 0608-
