51047 - ELF400/450(MEXICO)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-56 - EXHAUST BRAKE SYSTEM
▶

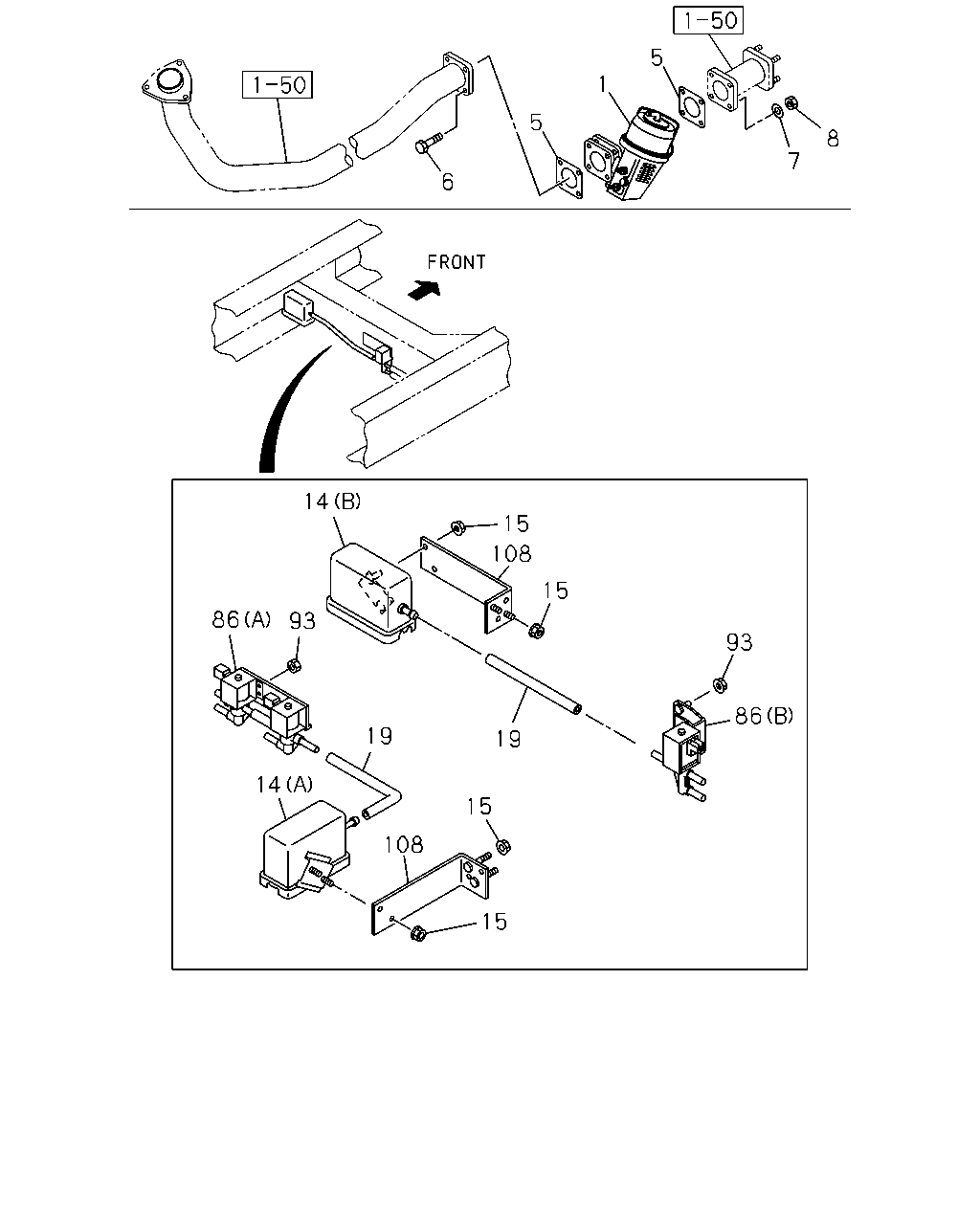

1-56 — EXHAUST BRAKE SYSTEM
(#51536) — 25 parça
5
1
5
8
7
6
14
15
108
15
86
93
93
86
19
19
14
15
108
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRAKE UNIT; EXH
8-97308-232-1
01
1
0507-0611
1
BRAKE UNIT; EXH
8-98056-673-0
01
1
0612-1407
1
BRAKE UNIT; EXH
8-98288-176-0
01
1
1408-
5
GASKET; EXH BRAKE UNIT
ID=64
8-97037-694-0
02
1
0507-
6
BOLT; EXH BRAKE UNIT FIX
M8X70 FLANGE
0-28080-870-0
04
1
0507-0512
6
BOLT; EXH BRAKE UNIT FIX
M8X70 FLANGE
0-28050-870-0
04
1
0601-
7
WASHER; EXH BRAKE UNIT FIX
T=1.9
5-09500-012-0
04
1
0507-
8
NUT; EXH BRAKE UNIT FIX
M8
9-09110-508-0
04
1
0507-0512
8
NUT; EXH BRAKE UNIT FIX
M8
0-91110-508-0
04
1
0601-
14
FILTER; AIR,EXH BRAKE
ELF400/450 SHORT CHAS(NP***C) (A)
8-94419-755-2
01
1
0507-
14
FILTER; AIR,EXH BRAKE
ELF400/450 SGL CAB MIDDLE CHAS(NPC7SF) ELF400/450 SGL CAB LONG CHAS(NPC7SK) (B)
8-97033-888-0
01
1
0507-0604
14
FILTER; AIR,EXH BRAKE
ELF400/450 SGL CAB MIDDLE CHAS(NPC7SF) ELF400/450 SGL CAB LONG CHAS(NPC7SK) ELF400/450 SGL CAB S/LONG CHAS(NPC7SS) (B)
8-97033-888-0
01
1
0605-
15
NUT; AIR FILTER
M8 FLANGE
0-91150-108-0
02
1
0507-0602
15
NUT; AIR FILTER
ELF400/450 SHORT CHAS(NP***C) M8 FLANGE
0-91150-108-0
02
1
0507-0602
15
NUT; AIR FILTER
M8 FLANGE
0-91180-108-0
02
1
0603-
15
NUT; AIR FILTER
ELF400/450 SHORT CHAS(NP***C) M8 FLANGE
0-91180-108-0
02
1
0603-
19
HOSE; AIR FILTER
ELF400/450 SHORT CHAS(NP***C) L=360 SERVICED BY L=3000
0-08258-300-0
01
1
0507-
19
HOSE; AIR FILTER
ELF400/450 SGL CAB MIDDLE CHAS(NPC7SF) ELF400/450 SGL CAB LONG CHAS(NPC7SK) L=230 SERVICED BY L=3000
0-08258-300-0
01
1
0507-0604
19
HOSE; AIR FILTER
ELF400/450 SGL CAB MIDDLE CHAS(NPC7SF) ELF400/450 SGL CAB LONG CHAS(NPC7SK) ELF400/450 SGL CAB S/LONG CHAS(NPC7SS) L=230 SERVICED BY L=3000
0-08258-300-0
01
1
0605-
86
VALVE; MAG,EXH BRK
ELF400/450 SHORT CHAS(NP***C) (A)
8-97374-161-0
01
1
0507-
86
VALVE; MAG,EXH BRK
ELF400/450 SGL CAB MIDDLE CHAS(NPC7SF) ELF400/450 SGL CAB LONG CHAS(NPC7SK) (B)
8-97374-160-0
01
1
0507-0604
86
VALVE; MAG,EXH BRK
ELF400/450 SGL CAB MIDDLE CHAS(NPC7SF) ELF400/450 SGL CAB LONG CHAS(NPC7SK) ELF400/450 SGL CAB S/LONG CHAS(NPC7SS) (B)
8-97374-160-2
01
1
0605-
93
NUT; MAG VLV
M8 FLANGE
0-91150-108-0
02
1
0507-0602
93
NUT; MAG VLV
M8 FLANGE
0-91180-108-0
02
1
0603-
108
BRACKET; AIR FILTER
ELF400/450 SHORT CHAS(NP***C)
8-97168-156-1
01
1
0507-
