Isuzu WW
▶
TRUCKS
▶
ELF
▶
51047 - ELF400/450(MEXICO)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

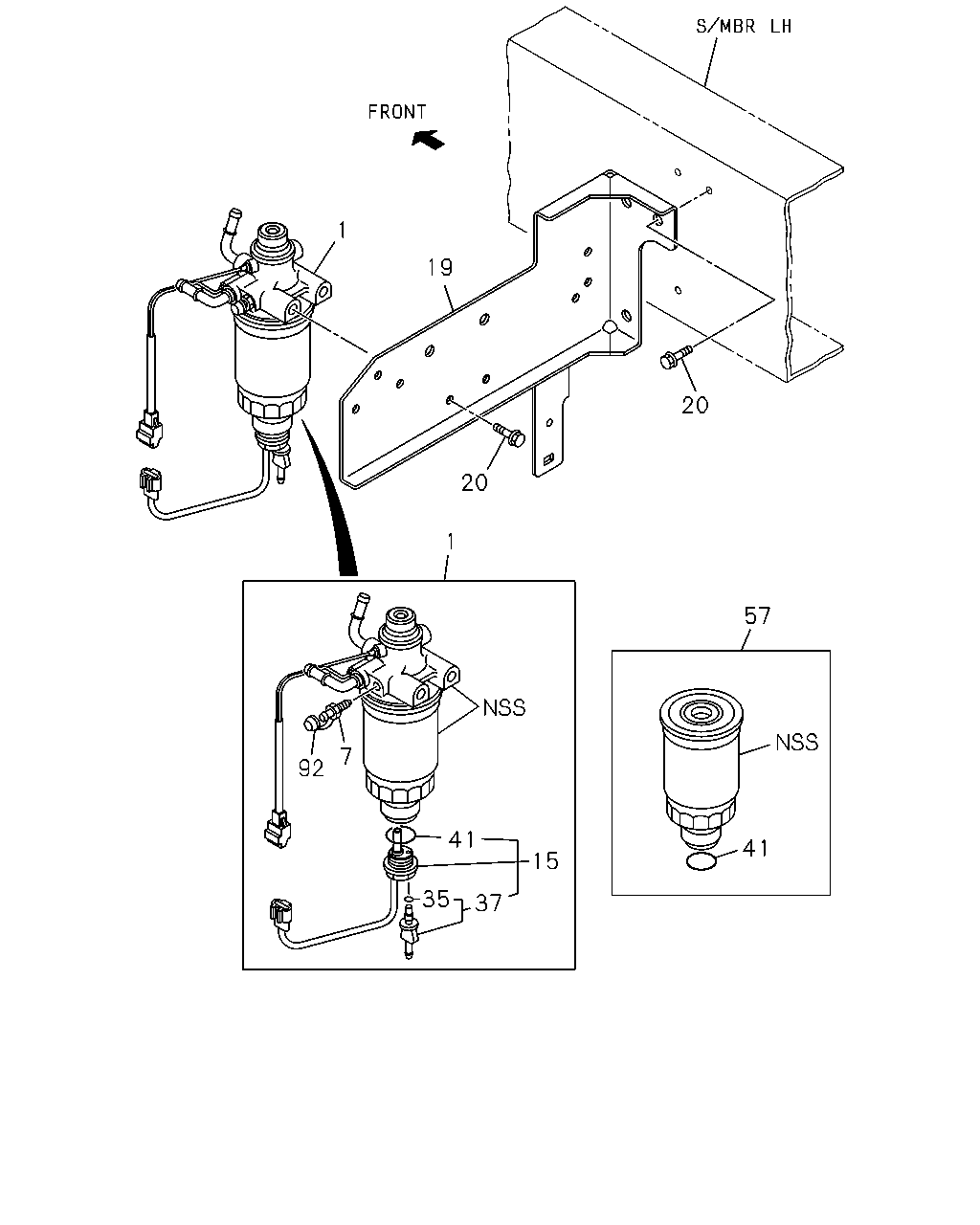

1-45 - WATER SEDIMENTER; FUEL
▶
1-45 — WATER SEDIMENTER; FUEL
(#51533) — 20 parça
1
19
20
20
1
57
7
92
41
41
15
35
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SEDIMENTER; FUEL
8-97372-009-2
01
1
0507-0508
1
SEDIMENTER; FUEL
8-98028-411-1
01
1
0509-
7
PLUG; DRAIN,SEDIMENTER
8-97172-546-1
01
1
0507-
15
SENSOR ASM; SEDIMENTER
8-97064-712-2
01
1
0507-
19
BRACKET; FUEL SEDIMENTER
8-97368-101-5
01
1
0507-
20
BOLT; BRKT TO SEDIMENTER
M8X20 FLANGE
0-28680-820-0
02
1
0507-0512
20
BOLT; BRKT TO SEDIMENTER
M8X20 FLANGE
0-28650-820-0
02
1
0601-
20
BOLT; BRKT TO SEDIMENTER
M10X30 FLANGE
0-28681-030-0
03
1
0507-0512
20
BOLT; BRKT TO SEDIMENTER
M10X30 FLANGE
0-28651-030-0
03
1
0601-
35
GASKET; DRAIN PLUG
8-94447-156-0
01
1
0507-0606
35
GASKET; DRAIN PLUG
8-94447-156-0
01
1
0607-
37
PLUG; SENSOR
8-97123-549-0
01
1
0507-
41
GASKET; SENSOR TO CASE
1-09623-649-0
01
1
0507-
57
CARTRIDGE KIT; FUEL FILTER
8-98037-481-0
01
1
0607-
57
CARTRIDGE KIT; FUEL FILTER
8-94369-299-3
01
1
0507-0508
57
CARTRIDGE KIT; FUEL FILTER
8-98021-811-0
01
1
0509-0511
57
CARTRIDGE KIT; FUEL FILTER
8-98031-847-0
01
1
0512-0606
57
CARTRIDGE KIT; FUEL FILTER
BEST VALUE PARTS
5-87610-157-0
01
1
0512-0606
57
CARTRIDGE KIT; FUEL FILTER
BEST VALUE PARTS
5-87610-157-0
01
1
0607-
92
CAP; DRAIN
8-97172-548-0
01
1
0507-
