1-40 — FUEL TANK (#51531) — 116 parça

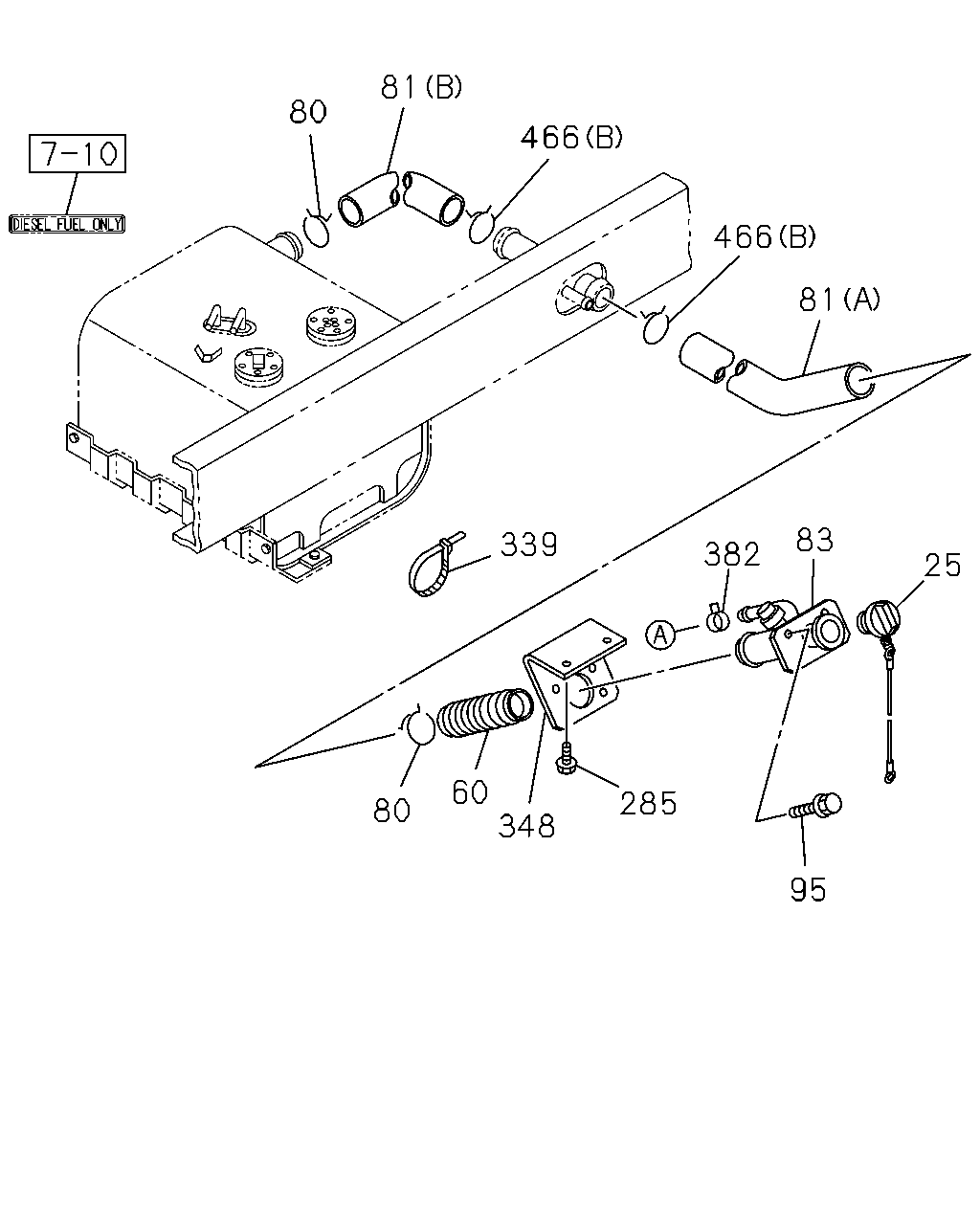

81 80 466 466 81 83 339 382 25 60 348 285 80 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	CAP; FILLER,FUEL TANK FUEL TANK 125L,33GAL<NL7>	8-97233-810-0	01	1	0507-0508
25	CAP; FILLER,FUEL TANK	8-97233-810-0	01	1	0509-
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>	8-97218-702-0	01	1	0507-0508
60	PROTECTOR; FUEL FILLER EXC. FUEL TANK 125L,33GAL<NL7>	8-97114-063-0	01	1	0507-0508
80	CLIP; FILLER HOSE EXC. FUEL TANK 125L,33GAL<NL7> ID=59	8-94435-876-0	02	1	0507-0508
81	HOSE; FUEL FILLER EXC. FUEL TANK 125L,33GAL<NL7> (B)	8-97187-875-1	01	1	0507-0508
81	HOSE; FUEL FILLER EXC. FUEL TANK 125L,33GAL<NL7> (A)	8-97253-140-0	01	1	0507-0508
83	NECK; FUEL FILLER EXC. FUEL TANK 125L,33GAL<NL7>	8-97187-870-0	01	1	0507-0508
95	SCREW; FILLER NECK EXC. FUEL TANK 125L,33GAL<NL7> M6X16	8-94381-646-0	03	1	0507-0508
285	BOLT; BRKT EXC. FUEL TANK 125L,33GAL<NL7> M10X35 FLANGE	0-28681-035-0	02	1	0507-0508
339	CLIP; BAND,FUEL HOSE EXC. FUEL TANK 125L,33GAL<NL7> L=600	1-09707-107-1	02	1	0507-0508
348	BRACKET; FUEL FILLER EXC. FUEL TANK 125L,33GAL<NL7>	8-97116-621-0	01	1	0507-0508
382	CLIP; RUBBER HOSE EXC. FUEL TANK 125L,33GAL<NL7> ID=21	8-94242-034-0	04	1	0507-0508
466	CLIP EXC. FUEL TANK 125L,33GAL<NL7> (A) L=250	5-09707-030-1	01	1	0507-0508
466	CLIP EXC. FUEL TANK 125L,33GAL<NL7> (B) ID=59	8-94435-876-0	02	1	0507-0508

1 6 130 3 158 129 19 131 25 422 8 11 40 42 49 227 512 43 36 47 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL FUEL TANK 125L,33GAL<NL7> (A) OD=400 L=1130 124.5L	8-97371-035-0	01	1	0507-0508
1	TANK; FUEL (A) OD=400 L=1130 124.5L	8-97371-035-0	01	1	0509-0810
1	TANK; FUEL (A) OD=400 L=1130 124.5L	8-98133-451-1	01	1	0811-1008
1	TANK; FUEL (A) OD=400 L=1130 124.5L	8-98167-226-1	01	1	1009-1405
1	TANK; FUEL (A) OD=400 L=1130 124.5L	8-98276-165-0	01	1	1406-
1	TANK; FUEL EXC. FUEL TANK 125L,33GAL<NL7> (B) 620X530X440 113L	8-98003-385-0	01	1	0507-0508
3	UNIT; FUEL TANK,SUB FUEL TANK 125L,33GAL<NL7>	8-97314-827-0	01	1	0507-0508
3	UNIT; FUEL TANK,SUB	8-97314-827-0	01	1	0509-1405
3	UNIT; FUEL TANK,SUB	8-98250-496-0	01	1	1406-
3	UNIT; FUEL TANK,SUB EXC. FUEL TANK 125L,33GAL<NL7>	8-97379-825-0	01	1	0507-0508
6	SCREW; TANK UNIT TO SUB FUEL TANK M5X10 W/LK WASHER	9-03910-510-0	05	1	0507-0604
6	SCREW; TANK UNIT TO SUB FUEL TANK M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 125L,33GAL<NL7> ID=20	9-09720-558-0	01	1	0507-0508
8	GASKET; DRAIN PLUG,FUEL TANK ID=20	9-09720-558-0	01	1	0509-
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> ID=14.2 OD=23.0	9-09572-014-0	01	1	0507-0508
11	PLUG; DRAIN,FUEL TANK M14X14	9-09862-156-0	01	1	0507-1405
11	PLUG; DRAIN,FUEL TANK M14X14	8-98202-438-0	01	1	1406-
19	GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	0507-1405
19	GASKET; FUEL TANK UNIT	8-98051-797-0	01	1	1406-
25	CAP; FILLER,FUEL TANK FUEL TANK 125L,33GAL<NL7>	8-97233-810-0	01	1	0507-0508
25	CAP; FILLER,FUEL TANK	8-97233-810-0	01	1	0509-
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>	8-97218-702-0	01	1	0507-0508
36	NUT; SPACER,FUEL TANK FUEL TANK 125L,33GAL<NL7> M10 FLANGE	0-91150-110-0	08	1	0507-0508
36	NUT; SPACER,FUEL TANK M10 FLANGE	0-91150-110-0	08	1	0509-0602
36	NUT; SPACER,FUEL TANK M10 FLANGE	0-91180-110-0	08	1	0603-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 125L,33GAL<NL7>	8-94418-159-0	02	1	0507-0508
40	BELT; SUPPORT,FUEL TANK	8-94418-159-0	02	1	0509-
42	NUT; SUPPORT BELT FUEL TANK 125L,33GAL<NL7> M10	9-09110-410-0	04	1	0507-0508
42	NUT; SUPPORT BELT M10	9-09110-410-0	04	1	0509-0512
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-
43	BRACKET; FUEL TANK FUEL TANK 125L,33GAL<NL7>	5-53461-044-2	02	1	0507-0508
43	BRACKET; FUEL TANK	5-53461-044-2	02	1	0509-
47	SPACER; FUEL TANK FUEL TANK 125L,33GAL<NL7>	8-97104-375-0	02	1	0507-0508
47	SPACER; FUEL TANK	8-97104-375-0	02	1	0509-
49	NUT; BRKT FUEL TANK 125L,33GAL<NL7> M10 FLANGE	0-91150-210-0	08	1	0507-0508
49	NUT; BRKT M10 FLANGE	0-91150-210-0	08	1	0509-0602
49	NUT; BRKT M10 FLANGE	0-91180-210-0	08	1	0603-
51	BOLT; BRKT TO FRAME FUEL TANK 125L,33GAL<NL7> M10X30 FLANGE	0-28691-030-0	08	1	0507-0508
51	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	0509-0512
51	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28661-030-0	08	1	0601-
129	VENTILATOR; SAFETY,FUEL TANK FUEL TANK 125L,33GAL<NL7>	1-22451-012-0	01	1	0507-0508
129	VENTILATOR; SAFETY,FUEL TANK	1-22451-012-0	01	1	0509-0810
129	VENTILATOR; SAFETY,FUEL TANK	8-98106-041-1	01	1	0811-
129	VENTILATOR; SAFETY,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>	8-94366-868-0	01	1	0507-0508
130	SCREW; SAFETY VENT M5X14 W/LK WASHER	9-03910-514-0	05	1	0507-0604
130	SCREW; SAFETY VENT M5X14 W/LK WASHER	0-36220-514-0	05	1	0605-
131	GASKET; SAFETY VENT FUEL TANK 125L,33GAL<NL7>	1-22459-001-1	01	1	0507-0508
131	GASKET; SAFETY VENT	1-22459-001-1	01	1	0509-
158	VALVE; ROLL OVER & FLOAT FUEL TANK 125L,33GAL<NL7>	1-22453-003-0	01	1	0507-0508
158	VALVE; ROLL OVER & FLOAT	1-22453-003-0	01	1	0509-0810
158	VALVE; ROLL OVER & FLOAT	8-98103-512-0	01	1	0811-
227	BOLT; SPACER,FUEL TANK FUEL TANK 125L,33GAL<NL7> M10X35 FLANGE	0-28681-035-0	08	1	0507-0508
227	BOLT; SPACER,FUEL TANK M10X35 FLANGE	0-28681-035-0	08	1	0509-0512
227	BOLT; SPACER,FUEL TANK M10X35 FLANGE	0-28651-035-0	08	1	0601-
422	PLUG; FUEL TANK FUEL TANK 125L,33GAL<NL7>	8-94421-626-0	01	1	0507-0508
422	PLUG; FUEL TANK	8-94421-626-0	01	1	0509-1008
512	CAP; CONNECTOR	8-97145-503-0	01	1	0507-

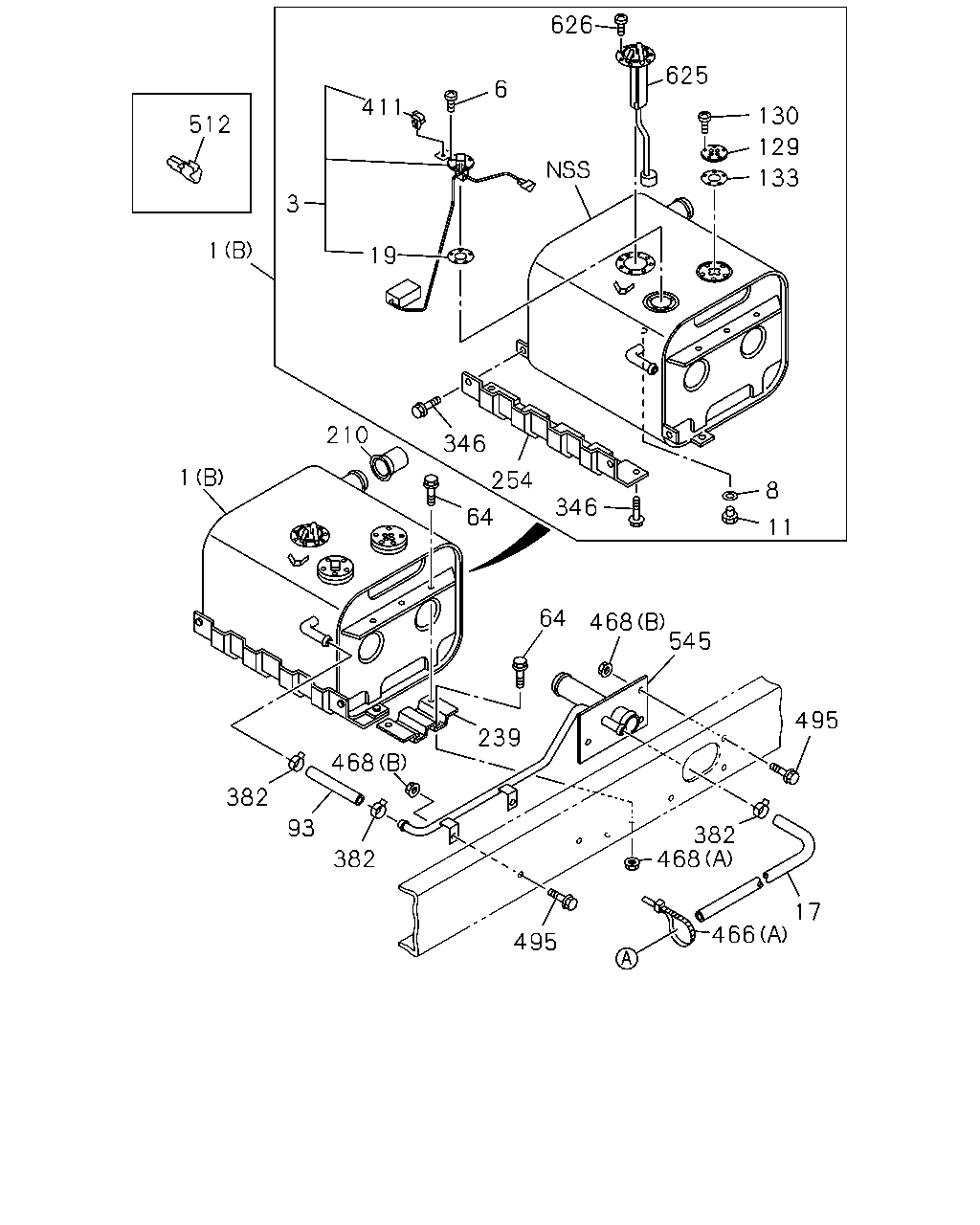

626 625 6 411 130 512 129 133 3 1 19 210 346 1 254 8 346 64 11 64 468 545 495 239 468 382 93 382 468 382 17 466 495

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL FUEL TANK 125L,33GAL<NL7> (A) OD=400 L=1130 124.5L	8-97371-035-0	01	1	0507-0508
1	TANK; FUEL (A) OD=400 L=1130 124.5L	8-97371-035-0	01	1	0509-0810
1	TANK; FUEL (A) OD=400 L=1130 124.5L	8-98133-451-1	01	1	0811-1008
1	TANK; FUEL (A) OD=400 L=1130 124.5L	8-98167-226-1	01	1	1009-1405
1	TANK; FUEL (A) OD=400 L=1130 124.5L	8-98276-165-0	01	1	1406-
1	TANK; FUEL EXC. FUEL TANK 125L,33GAL<NL7> (B) 620X530X440 113L	8-98003-385-0	01	1	0507-0508
3	UNIT; FUEL TANK,SUB FUEL TANK 125L,33GAL<NL7>	8-97314-827-0	01	1	0507-0508
3	UNIT; FUEL TANK,SUB	8-97314-827-0	01	1	0509-1405
3	UNIT; FUEL TANK,SUB	8-98250-496-0	01	1	1406-
3	UNIT; FUEL TANK,SUB EXC. FUEL TANK 125L,33GAL<NL7>	8-97379-825-0	01	1	0507-0508
6	SCREW; TANK UNIT TO SUB FUEL TANK M5X10 W/LK WASHER	9-03910-510-0	05	1	0507-0604
6	SCREW; TANK UNIT TO SUB FUEL TANK M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 125L,33GAL<NL7> ID=20	9-09720-558-0	01	1	0507-0508
8	GASKET; DRAIN PLUG,FUEL TANK ID=20	9-09720-558-0	01	1	0509-
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> ID=14.2 OD=23.0	9-09572-014-0	01	1	0507-0508
11	PLUG; DRAIN,FUEL TANK M14X14	9-09862-156-0	01	1	0507-1405
11	PLUG; DRAIN,FUEL TANK M14X14	8-98202-438-0	01	1	1406-
17	HOSE; BREATHER EXC. FUEL TANK 125L,33GAL<NL7> SERVICED BY L=1400	8-94152-003-0	01	1	0507-0508
19	GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	0507-1405
19	GASKET; FUEL TANK UNIT	8-98051-797-0	01	1	1406-
64	BOLT; FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> M12X30 FLANGE	0-28681-230-0	08	1	0507-0508
93	HOSE; BREATHER,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>	8-97244-801-0	01	1	0507-0508
129	VENTILATOR; SAFETY,FUEL TANK FUEL TANK 125L,33GAL<NL7>	1-22451-012-0	01	1	0507-0508
129	VENTILATOR; SAFETY,FUEL TANK	1-22451-012-0	01	1	0509-0810
129	VENTILATOR; SAFETY,FUEL TANK	8-98106-041-1	01	1	0811-
129	VENTILATOR; SAFETY,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>	8-94366-868-0	01	1	0507-0508
130	SCREW; SAFETY VENT M5X14 W/LK WASHER	9-03910-514-0	05	1	0507-0604
130	SCREW; SAFETY VENT M5X14 W/LK WASHER	0-36220-514-0	05	1	0605-
133	GASKET; VALVE,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>	8-94366-904-0	01	1	0507-0508
210	CAP; FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>	8-97133-939-0	01	1	0507-0508
239	SUPPORT; FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>	8-97326-572-0	02	1	0507-0508
254	GUARD EXC. FUEL TANK 125L,33GAL<NL7>	8-97136-012-0	01	1	0507-0508
346	BOLT; GUARD EXC. FUEL TANK 125L,33GAL<NL7> M8X20 FLANGE	0-28080-820-0	04	1	0507-0508
382	CLIP; RUBBER HOSE EXC. FUEL TANK 125L,33GAL<NL7> ID=21	8-94242-034-0	04	1	0507-0508
411	CLIP; FUEL TANK UNIT HARNESS EXC. FUEL TANK 125L,33GAL<NL7> ID=6.5	5-09709-117-0	01	1	0507-0508
466	CLIP EXC. FUEL TANK 125L,33GAL<NL7> (A) L=250	5-09707-030-1	01	1	0507-0508
466	CLIP EXC. FUEL TANK 125L,33GAL<NL7> (B) ID=59	8-94435-876-0	02	1	0507-0508
468	NUT EXC. FUEL TANK 125L,33GAL<NL7> (B) M10 FLANGE	0-91150-210-0	05	1	0507-0508
468	NUT EXC. FUEL TANK 125L,33GAL<NL7> (A) M12 FLANGE	0-91150-212-0	04	1	0507-0508
495	BOLT; PIPE EXC. FUEL TANK 125L,33GAL<NL7> M10X25 FLANGE	0-28681-025-0	05	1	0507-0508
512	CAP; CONNECTOR	8-97145-503-0	01	1	0507-
545	PIPE; BREATHER EXC. FUEL TANK 125L,33GAL<NL7>	8-97187-840-1	01	1	0507-0508
625	PIPE ASM; FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>	8-97368-820-0	01	1	0507-0508
626	SCREW; PIPE ASM EXC. FUEL TANK 125L,33GAL<NL7> M5X10 W/LK WASHER	9-03910-510-0	08	1	0507-0508
