51047 - ELF400/450(MEXICO)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#51527) — 18 parça
◀

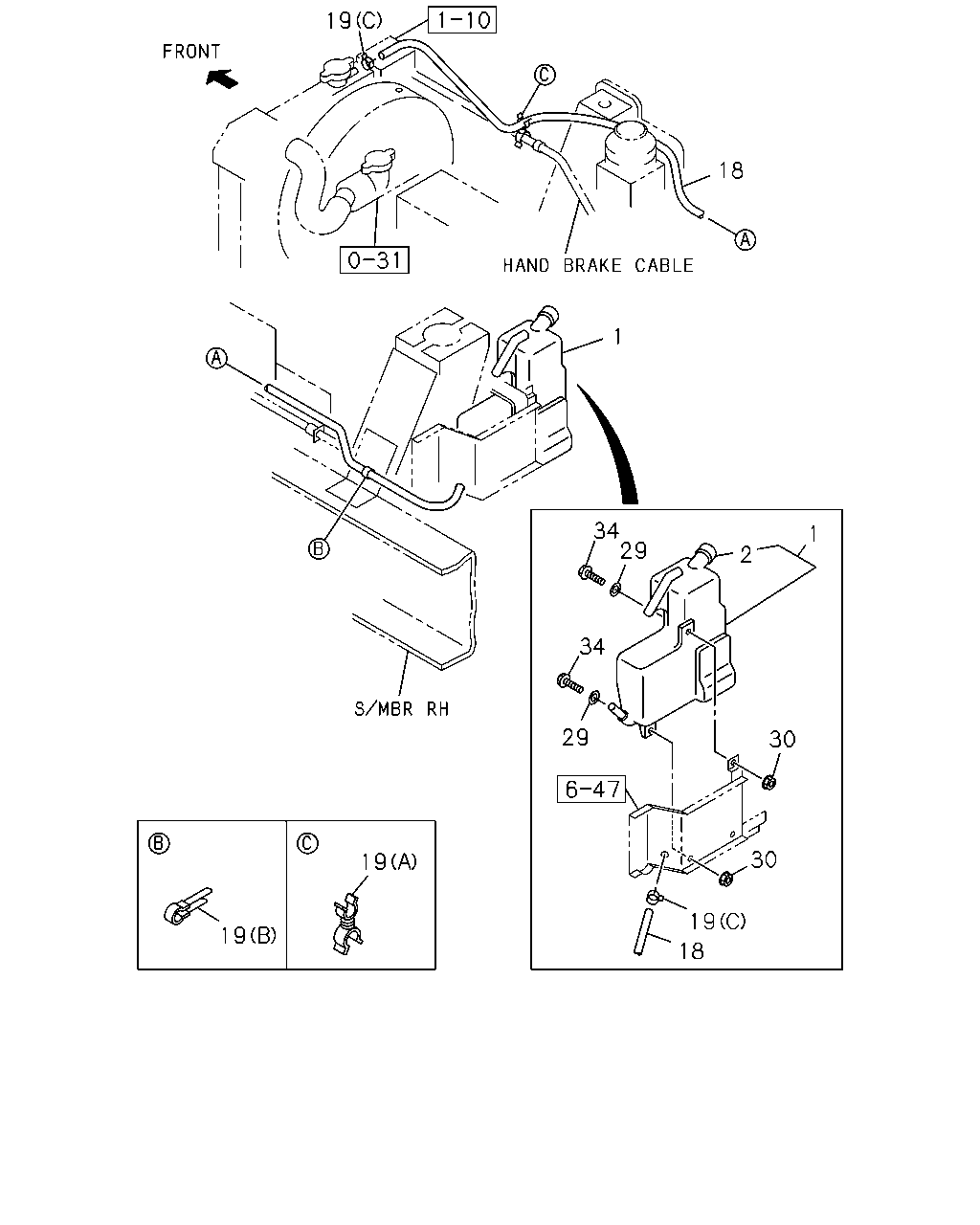

[111A] SURGE TANK (15 parça)
[111A] RADIATOR HOSE (3 parça)
▶
19
18
1
34
29
1
2
34
29
30
30
19
19
19
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
8-97223-012-2
01
1
0507-1010
1
TANK; SURGE,RAD
8-98178-178-0
01
1
1011-
2
CAP; SURGE TANK
8-97223-011-2
01
1
0507-1010
2
CAP; SURGE TANK
8-98179-197-0
01
1
1011-
18
HOSE; RAD TO SURGE TANK
L=1330
8-97358-573-0
01
1
0507-
19
CLIP; HOSE,SURGE TANK
(B) ID=14 L=47
5-09700-319-0
01
1
0507-
19
CLIP; HOSE,SURGE TANK
(C) ID=12
8-94238-610-0
02
1
0507-0911
19
CLIP; HOSE,SURGE TANK
(C) ID=12
8-98150-358-0
02
1
0912-
19
CLIP; HOSE,SURGE TANK
(A) ID=10 & 11
8-94438-996-0
01
1
0507-
29
WASHER; PL,RESERVE TANK
ID=6.4 OD=18
9-09160-706-0
03
1
0507-0605
29
WASHER; PL,RESERVE TANK
ID=6.4 OD=18
0-91610-706-0
03
1
0606-
30
NUT
M6 FLANGE
0-91150-106-0
03
1
0507-0602
30
NUT
M6 FLANGE
0-91180-106-0
03
1
0603-
34
BOLT; RESERVE TANK
M6X20 FLANGE
0-28680-620-0
03
1
0507-0512
34
BOLT; RESERVE TANK
M6X20 FLANGE
0-28650-620-0
03
1
0601-

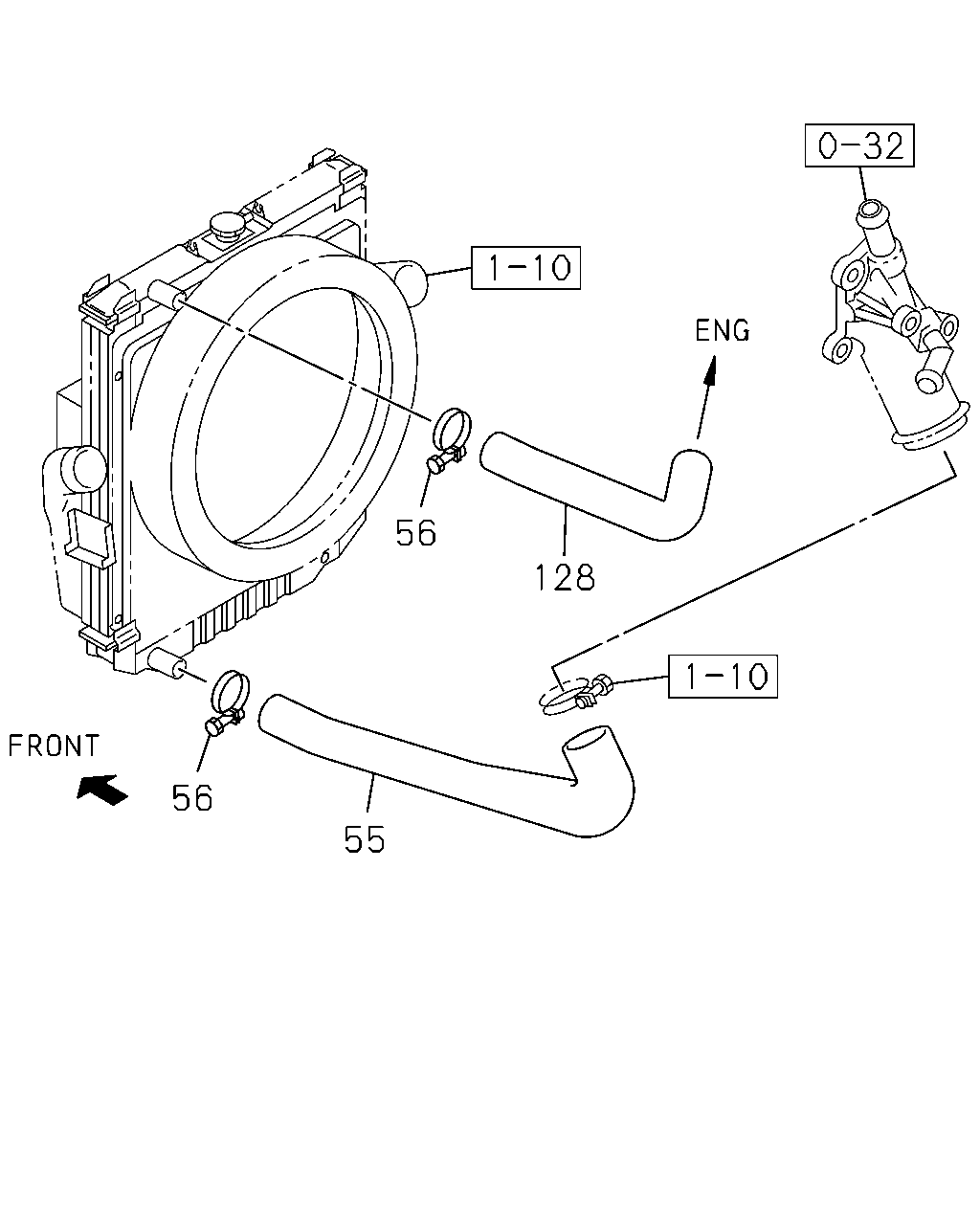

56
128
56
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
55
HOSE; WATER,RAD OUTLET
8-97330-530-0
01
1
0507-
56
CLIP; WATER HOSE,RAD
ID=40
8-97245-216-0
02
1
0507-
128
HOSE; WATER,RAD INL
8-97330-529-0
01
1
0507-
