Isuzu WW
▶
TRUCKS
▶
ELF
▶
51047 - ELF400/450(MEXICO)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶

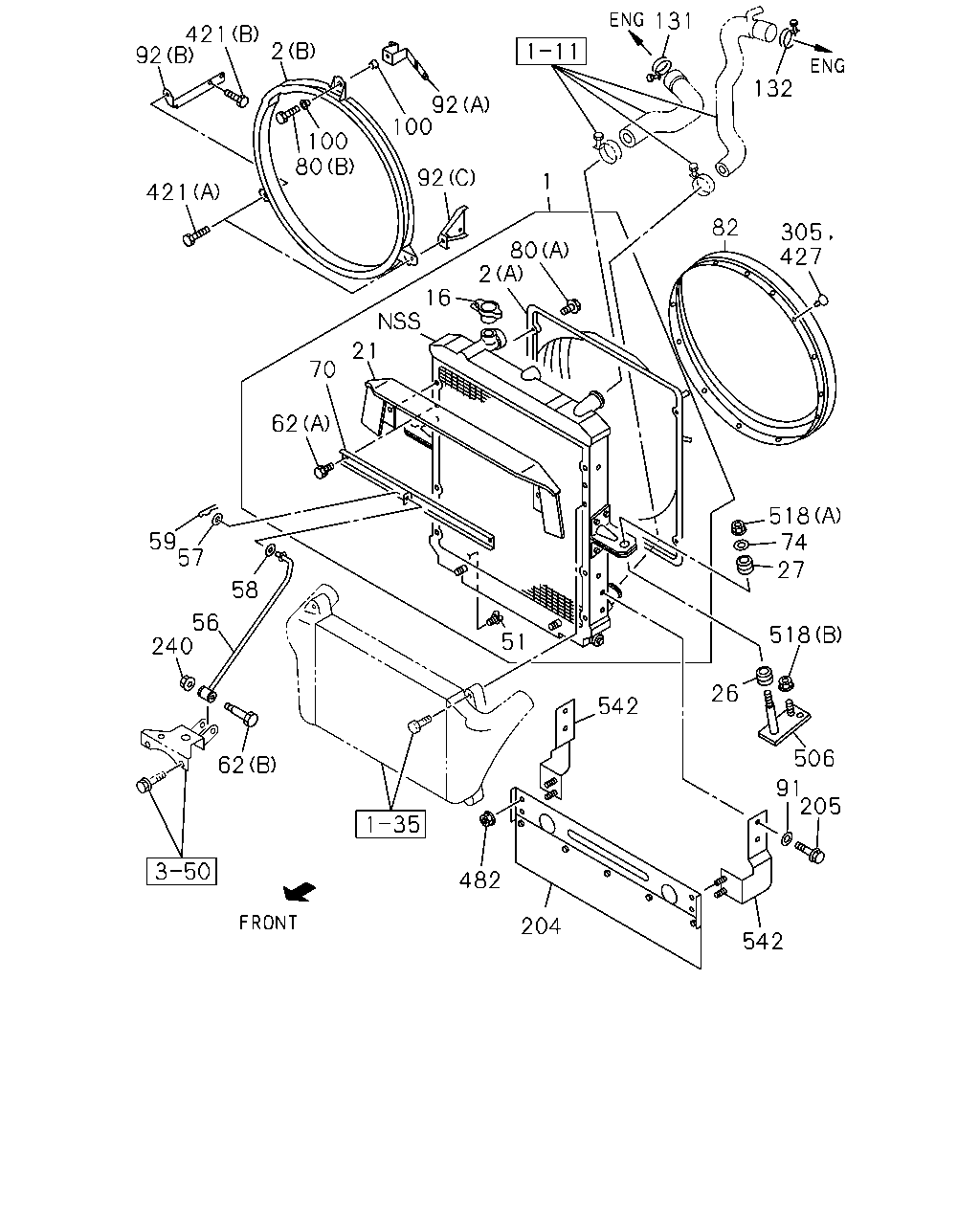

1-10 — RADIATOR
(#51526) — 52 parça
131
421
92
2
132
92
100
100
80
92
1
421
82
305
427
80
2
16
21
70
62
518
74
27
59
57
58
56
240
518
51
26
542
506
62
91
205
482
204
542
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
8-97333-141-3
01
1
0507-
2
GUIDE; FAN
(A)
8-97333-268-0
01
1
0507-
2
GUIDE; FAN
(B)
8-97350-995-0
01
1
0507-
16
CAP; RAD
8-97239-187-0
01
1
0507-
21
SEAL; RAD
8-97332-382-0
01
1
0507-
26
BUFFER; RAD,LWR
8-94249-347-0
02
1
0507-
27
BUFFER; RAD,UPR
8-94249-346-0
02
1
0507-
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
0507-
56
STAY; RAD
8-97032-802-2
01
1
0507-
57
WASHER; PL,STAY
ID=10.5 OD=18
9-09160-510-0
01
1
0507-0605
57
WASHER; PL,STAY
ID=10.5
0-91610-510-0
01
1
0606-
58
WASHER; CURVED,STAY
ID=12
8-97011-676-0
01
1
0507-
59
PIN; SNAP,STAY
L=32.6
8-94202-777-0
01
1
0507-0610
59
PIN; SNAP,STAY
L=32.6
8-97359-052-0
01
1
0611-
62
BOLT; STAY
(A) M8X12 FLANGE
0-28050-812-0
02
1
0607-
62
BOLT; STAY
(A) M8X12 FLANGE
0-28080-812-0
02
1
0507-0606
62
BOLT; STAY
(B) M8X45
8-94401-350-0
01
1
0507-
70
STAY; RAD
8-97333-269-0
01
1
0507-
74
WASHER; PL,CUSHION RUBBER
ID=8.5 OD=36
8-94221-082-0
02
1
0507-0610
74
WASHER; PL,CUSHION RUBBER
ID=8.5 OD=36
8-97359-049-1
02
1
0611-
80
BOLT; FAN GUIDE
(A) M6X12 FLANGE
0-28050-612-0
04
1
0607-
80
BOLT; FAN GUIDE
(A) M6X12 FLANGE
0-28080-612-0
04
1
0507-0606
80
BOLT; FAN GUIDE
(B) M8X30 W/LK&PL WASHER
0-50140-830-0
03
1
0507-0512
80
BOLT; FAN GUIDE
(B) M8X30 W/LK&PL WASHER
0-50640-830-0
03
1
0601-0806
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
0807-
82
COVER; FAN,RAD
8-97332-330-0
01
1
0507-
91
WASHER; PL
ID=6.4 OD=18
9-09160-706-0
04
1
0507-0605
91
WASHER; PL
ID=6.4 OD=18
0-91610-706-0
04
1
0606-
92
BRACKET; FAN GUIDE
(A)
8-97350-996-0
01
1
0507-
92
BRACKET; FAN GUIDE
(B)
8-97350-997-0
01
1
0507-
92
BRACKET; FAN GUIDE
(C)
8-97350-998-0
01
1
0507-
100
RUBBER; MTG
1-09337-027-0
06
1
0507-
131
CLIP; ENG SIDE TOP
ID=40
8-97245-216-0
01
1
0507-
132
CLIP; HOSE,ENG SIDE BOTTOM
ID=50
8-97245-217-0
01
1
0507-
204
GUIDE ASM; AIR
8-97332-962-1
01
1
0507-
205
BOLT; AIR GUIDE
M6X10 FLANGE
0-28080-610-0
04
1
0507-0512
205
BOLT; AIR GUIDE
M6X10 FLANGE
0-28050-610-0
04
1
0601-
240
NUT; STAY
M8 FLANGE
8-94178-701-0
01
1
0507-
305
CLIP; FAN COVER TO FAN GUIDE
1-09470-009-0
12
1
0507-
421
BOLT; BRKT FAN GUIDE
(A) M10X18 FLANGE
0-28181-018-0
02
1
0507-
421
BOLT; BRKT FAN GUIDE
(B) M10X20 FLANGE
0-28181-020-0
02
1
0507-0512
421
BOLT; BRKT FAN GUIDE
(B) M10X20 FLANGE
0-28151-020-0
02
1
0601-
427
CLIP; FAN GUIDE
1-09470-009-0
01
1
0507-
482
NUT; AIR GUIDE
M6 FLANGE
0-91150-106-0
04
1
0507-0602
482
NUT; AIR GUIDE
M6 FLANGE
0-91180-106-0
04
1
0603-
506
PLATE; RAD
8-97330-527-1
02
1
0507-
518
NUT
(B) M8 FLANGE
0-91150-108-0
02
1
0507-0602
518
NUT
(B) M8 FLANGE
0-91180-108-0
02
1
0603-0610
518
NUT
(B) M8 FLANGE
0-91180-108-0
04
1
0611-
518
NUT
(A) M8 FLANGE
5-09440-005-0
02
1
0507-0610
542
BRACKET; AIR GUIDE
8-97332-963-0
01
1
0507-
542
BRACKET; AIR GUIDE
8-97332-964-0
01
1
0507-
