Isuzu WW
▶
TRUCKS
▶
ELF
▶
51047 - ELF400/450(MEXICO)
▶
0 - Engine, Emission, Engine Electrical
▶
0-66 - GENERATOR
▶

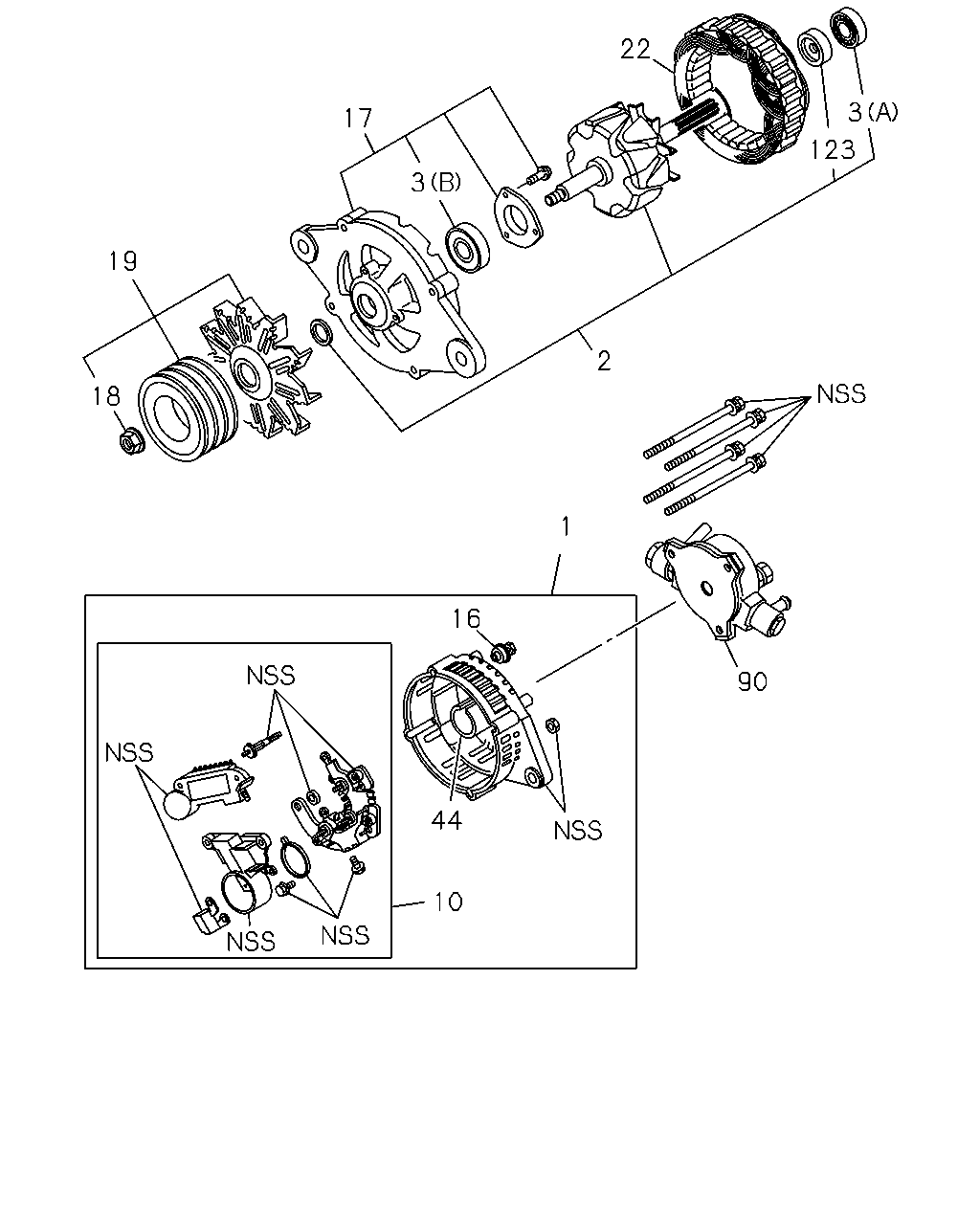

0-66 — GENERATOR
(#51523) — 29 parça
◀
[066A] (NO.1) (15 parça)
[066A] (NO.1) (14 parça)
▶
22
3
17
123
3
19
2
18
1
16
90
44
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COVER ASM; RR,GEN
ASM PART: A = 8-97248-297-1
8-97374-851-0
01
1
-1208
1
COVER ASM; RR,GEN
ASM PART: A = 8-97248-297-1
8-98230-319-0
01
1
1209-
2
ROTOR; GEN
ASM PART: A = 8-97248-297-1
8-97310-977-0
01
1
-
3
BEARING; ROTOR,GEN
(A) ASM PART: A = 8-97248-297-1
8-97062-744-0
01
1
-
3
BEARING; ROTOR,GEN
(B) ASM PART: A = 8-97248-297-1
8-97161-473-0
01
1
-
10
RECTIFIER; GEN
ASM PART: A = 8-97248-297-1
8-97374-854-0
01
1
-1208
10
RECTIFIER; GEN
ASM PART: A = 8-97248-297-1
8-98230-329-0
01
1
1209-
16
TERMINAL ASM; RECTIFIER,GEN
ASM PART: A = 8-97248-297-1
8-97310-981-0
01
1
-
17
COVER ASM; FRT,GEN
ASM PART: A = 8-97248-297-1
8-97302-703-0
01
1
-
18
NUT; PULLEY,GEN
ASM PART: A = 8-97248-297-1
8-97083-293-0
01
1
-
19
PULLEY; GEN
ASM PART: A = 8-97248-297-1
8-97083-292-0
01
1
-
22
STATOR; GEN
ASM PART: A = 8-97248-297-1
8-97310-978-0
01
1
-
44
SEAL; RR COVER,GEN
ASM PART: A = 8-97248-297-1
8-94156-589-0
01
1
-
90
PUMP ASM; VAC,GEN
ASM PART: A = 8-97248-297-1
8-97167-894-0
01
1
-
123
GUIDE; BRUSH
ASM PART: A = 8-97248-297-1
8-97062-644-0
01
1
-
90
96
91
99
99
99
100
99
104
102
94
104
109
108

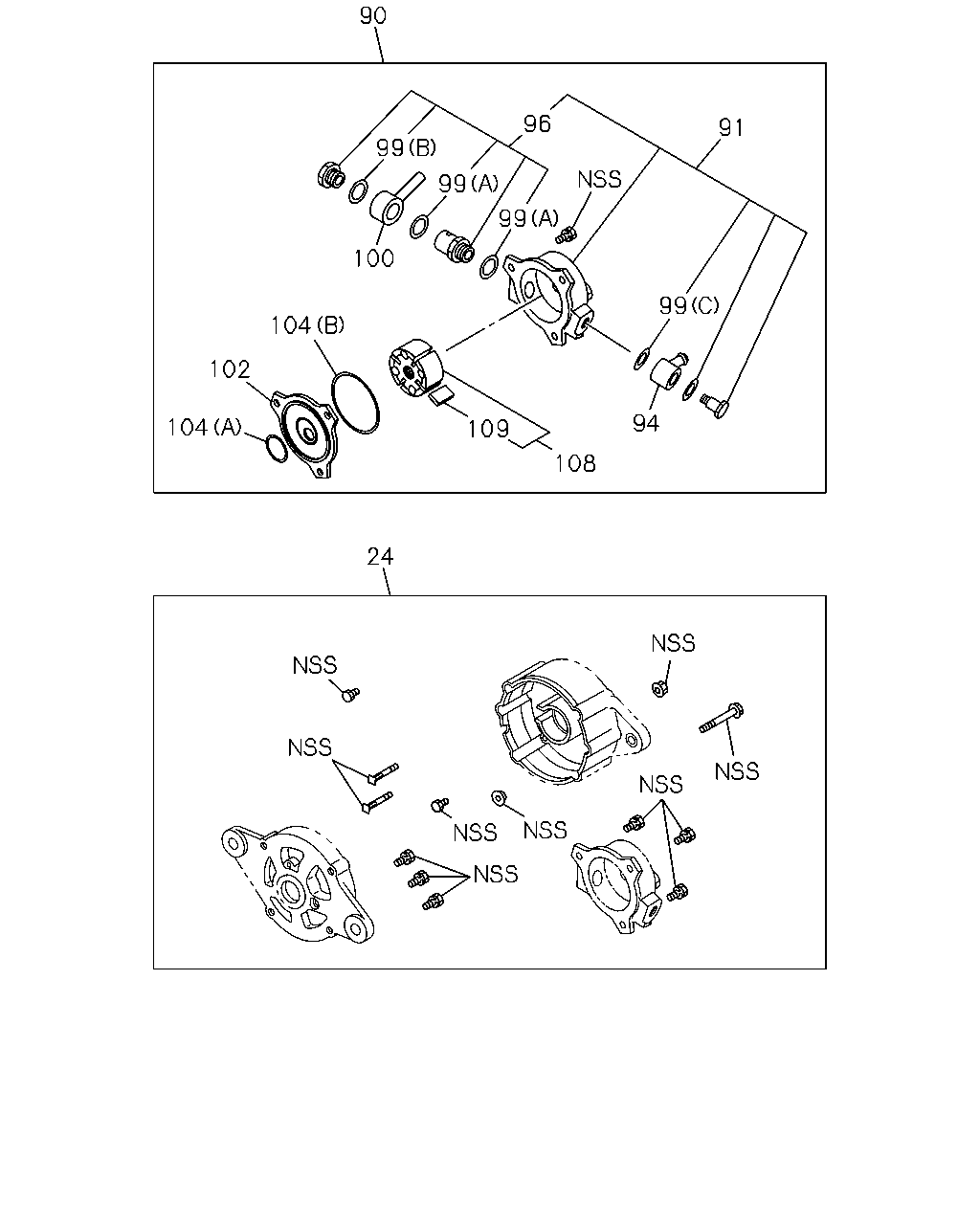

24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
SCREW; RECTIFIER,GEN
ASM PART: A = 8-97248-297-1
8-97130-577-0
01
1
-
90
PUMP ASM; VAC,GEN
ASM PART: A = 8-97248-297-1
8-97167-894-0
01
1
-
91
BODY; VAC PUMP
ASM PART: A = 8-97248-297-1
8-97167-900-0
01
1
-
94
CONNECTOR; VAC PUMP
ASM PART: A = 8-97248-297-1
5-19619-034-0
01
1
-
96
VALVE ASM; VAC PUMP
ASM PART: A = 8-97248-297-1
8-97018-875-0
01
1
-
99
GASKET; VAC PUMP
(A), ID=18 OD=24 ASM PART: A = 8-97248-297-1
5-19679-002-0
02
1
-
99
GASKET; VAC PUMP
(B), ID=12 OD=24 ASM PART: A = 8-97248-297-1
5-19679-003-0
01
1
-
99
GASKET; VAC PUMP
(C), ID=16 OD=22 ASM PART: A = 8-97248-297-1
5-19679-004-2
01
1
-
100
CONNECTOR; VAC PUMP
ASM PART: A = 8-97248-297-1
8-94407-283-0
01
1
-
102
COVER; FRT,VAC PUMP
ASM PART: A = 8-97248-297-1
8-97134-764-0
01
1
-
104
GASKET; FRT COVER,VAC PUMP
(A) ASM PART: A = 8-97248-297-1
8-94156-608-0
01
1
-
104
GASKET; FRT COVER,VAC PUMP
(B) ASM PART: A = 8-97248-297-1
8-94462-877-0
01
1
-
108
ROTOR; VAC PUMP
ASM PART: A = 8-97248-297-1
8-97062-658-0
01
1
-
109
VANE; VAC PUMP
ASM PART: A = 8-97248-297-1
8-94462-883-0
04
1
-
