0-65 — STARTER (#51522) — 28 parça

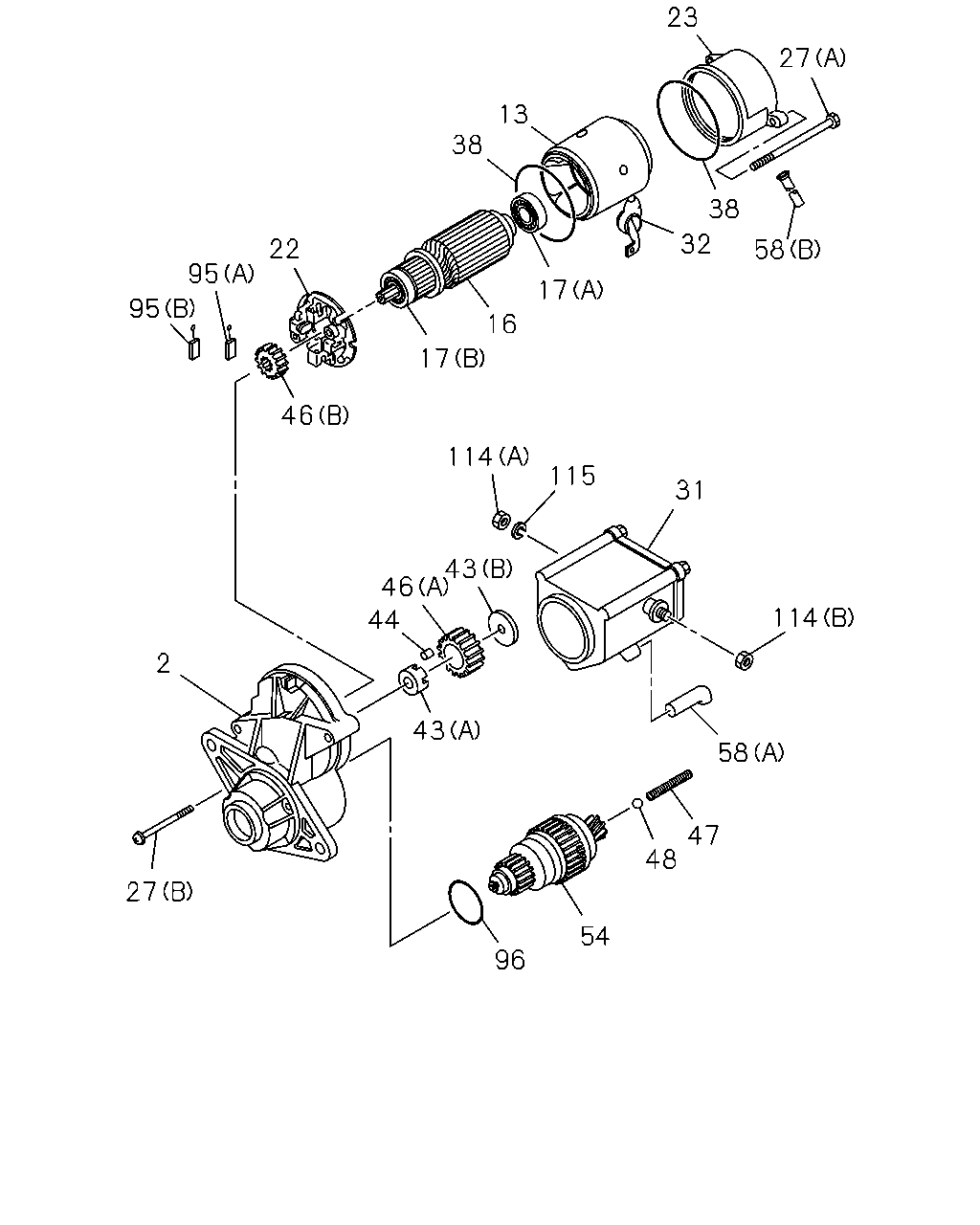

çizim 57166
23 27 13 38 38 32 22 58 95 17 95 16 17 46 114 115 31 43 46 114 44 2 43 58 47 48 27 54 96
BalonParca AdiParca NoAdetTipApplied Date
2 CASE; PINION,STARTER
ASM PART: A = 8-97207-786-2 		8-97184-634-0 01 1 -
13 YOKE; STARTER
ASM PART: A = 8-97207-786-2 		1-81111-012-0 01 1 -
16 ARMATURE; STARTER
ASM PART: A = 8-97207-786-2 		1-81121-042-0 01 1 -
17 BEARING; ARMATURE,STARTER
(B) ASM PART: A = 8-97207-786-2 		1-81129-495-0 01 1 -
17 BEARING; ARMATURE,STARTER
(A) ASM PART: A = 8-97207-786-2 		5-09800-081-0 01 1 -
22 HOLDER; BRUSH STARTER
ASM PART: A = 8-97207-786-2 		8-97184-637-0 01 1 -
23 COVER; RR COVER STARTER
ASM PART: A = 8-97207-786-2 		8-97184-638-0 01 1 -
27 BOLT; THROUGH,STARTER
(A) ASM PART: A = 8-97207-786-2 		1-81129-675-0 02 1 -
27 BOLT; THROUGH,STARTER
(B) ASM PART: A = 8-97207-786-2 		8-94167-434-0 03 1 -
31 SWITCH; ENGAGE STARTER
ASM PART: A = 8-97207-786-2 		8-97211-012-0 01 1 -
32 COVER; RUBBER,STARTER
ASM PART: A = 8-97207-786-2 		1-81129-504-0 01 1 -
38 GASKET; RR COVER,STARTER
ASM PART: A = 8-97207-786-2 		1-81129-502-0 02 1 -
43 RETAINER; PINION STARTER
(A) ASM PART: A = 8-97207-786-2 		5-81129-121-0 01 1 -
43 RETAINER; PINION STARTER
(B) ASM PART: A = 8-97207-786-2 		8-97184-642-0 01 1 -
44 ROLLER; PINION STARTER
ASM PART: A = 8-97207-786-2 		5-81129-120-0 05 1 -
46 GEAR; CLU STARTER
(A) ASM PART: A = 8-97207-786-2 		1-81123-034-0 01 1 -
46 GEAR; CLU STARTER
(B) ASM PART: A = 8-97207-786-2 		1-81123-035-0 01 1 -
47 SPRING; PINION STARTER
ASM PART: A = 8-97207-786-2 		5-81129-119-0 01 1 -
48 BALL; PINION,STARTER
ASM PART: A = 8-97207-786-2 		5-81129-092-0 01 1 -
54 CLUTCH; PINION,STARTER
ASM PART: A = 8-97207-786-2 		8-97184-632-0 01 1 -
58 PIPE; DRAIN RR COVER STARTER
(B) ASM PART: A = 8-97207-786-2 		8-97184-640-0 01 1 -
58 PIPE; DRAIN RR COVER STARTER
(A) ASM PART: A = 8-97207-786-2 		8-97184-641-0 01 1 -
95 BRUSH ASM; STARTER
(A) ASM PART: A = 8-97207-786-2 		1-81116-049-0 02 1 -
95 BRUSH ASM; STARTER
(B) ASM PART: A = 8-97207-786-2 		8-97184-643-0 02 1 -
96 GASKET; FRT CASE
ASM PART: A = 8-97207-786-2 		8-97216-053-0 01 1 -
114 NUT; TERMINAL
(A) ASM PART: A = 8-97207-786-2 		5-81129-126-0 01 1 -
114 NUT; TERMINAL
(B) ASM PART: A = 8-97207-786-2 		8-97211-014-0 01 1 -
115 WASHER; TERMINAL
ASM PART: A = 8-97207-786-2 		5-81129-129-0 01 1 -
