8-15 — FIXING PARTS; WIRING HARNESS (#51510) — 24 parça

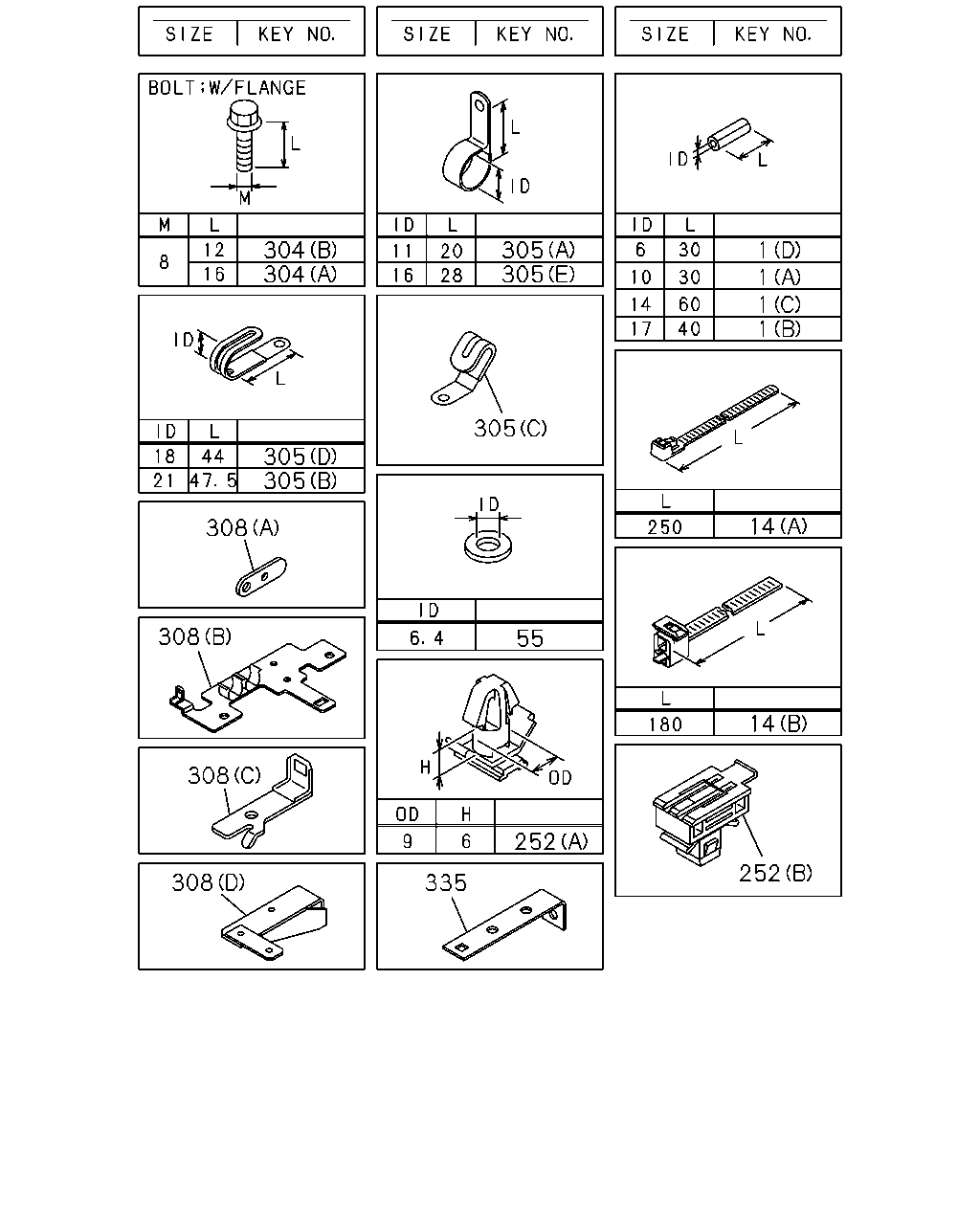

çizim 27493
304 304 305 305 1 1 1 1 305 305 305 14 308 308 55 14 308 252 252 308 335
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=17 OD=21 L=40 		1-09337-012-0 03 1 1202-
1 SLEEVE; RUBBER
(C) ID=14 OD=18 L=60 		1-09337-030-0 01 1 1202-
1 SLEEVE; RUBBER
(D) ID=6 L=30 		5-09360-352-0 01 1 1202-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 02 1 1202-
14 CLIP; BAND,HARNESS
(B) L=180 		1-09707-162-1 01 1 1202-1207
14 CLIP; BAND,HARNESS
(B) L=180 		8-98216-427-0 01 1 1208-
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 17 1 1202-1205
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 17 1 1206-
55 WASHER; PL,CLIP
ID=6.4 		0-91610-606-0 04 1 1202-
252 CLIP; CONNECTOR FIX
(A) OD=9 H=6 		1-09709-178-0 03 1 1202-
252 CLIP; CONNECTOR FIX
(B) 		8-94377-313-1 02 1 1202-
304 BOLT; ENG HARNESS CLIP
(B) M8X12 		0-20850-812-0 02 1 1202-
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 02 1 1202-
304 BOLT; ENG HARNESS CLIP
(A) M8X16 FLANGE 		0-28050-816-0 05 1 1202-
305 CLIP; ENG HARNESS
(A) ID=11 L=20 		0-95235-036-0 01 1 1202-
305 CLIP; ENG HARNESS
(E) ID=16 L=28 		0-95235-556-0 02 1 1202-
305 CLIP; ENG HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 01 1 1202-
305 CLIP; ENG HARNESS
(C) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1202-
305 CLIP; ENG HARNESS
(D) ID=18 L=44 		8-97367-985-1 05 1 1202-
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 01 1 1202-
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-97610-321-2 01 1 1202-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97612-280-1 01 1 1202-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 1202-
335 BRACKET; CONNECTOR
L=120 		1-82699-963-0 02 1 1202-
