◀ 🏠 ▶ Isuzu WW ▶ COMPO ▶ DIGER ▶ 11461 - 6HK1 COMPO(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-52 - OIL AND VACUUM PIPING; ENGINE ▶
0-52 — OIL AND VACUUM PIPING; ENGINE (#51496) — 24 parça

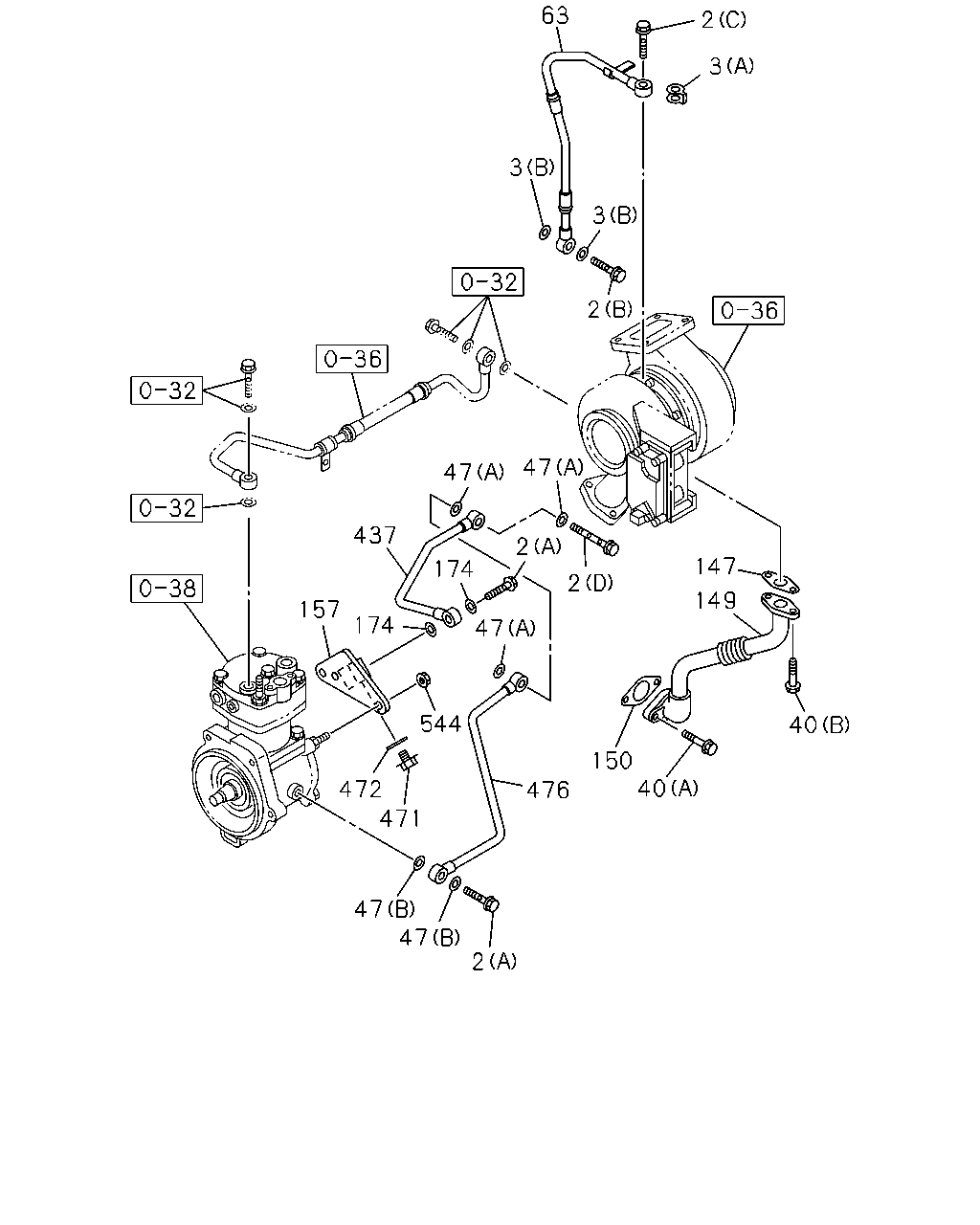

çizim 27099
63 2 3 3 3 2 47 47 437 2 147 174 2 149 157 47 174 544 40 150 40 472 476 471 47 47 2
BalonParca AdiParca NoAdetTipApplied Date
2 BOLT; EYE,OIL PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 1202-
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 02 1 1202-
2 BOLT; EYE,OIL PIPE
(C) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 1202-
2 BOLT; EYE,OIL PIPE
(D) M14X43 EYE-BOLT 		8-98037-829-0 01 1 1202-
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1202-1312
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.6 		8-97331-137-1 01 1 1202-
40 BOLT; OIL PIPE
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1202-
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1202-
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=15.2 		1-09630-083-0 02 1 1202-
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		1-09630-085-0 03 1 1202-1312
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		8-98251-345-0 03 1 1401-
63 PIPE; OIL,TURBOCHARGER FEED 8-97606-204-0 01 1 1202-
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94390-641-1 01 1 1202-
149 PIPE; OIL RETURN,TURBOCHARGER 8-97606-205-3 01 1 1202-
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 1202-
157 BRACKET; OIL PIPE 8-98053-248-0 01 1 1202-
174 GASKET; OIL PIPE,VLV OVERFLOW
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 02 1 1202-
437 PIPE; OIL 8-98053-118-0 01 1 1202-
471 PLUG; OIL
M14X14 		9-09862-156-0 01 1 1202-
472 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		1-09630-085-0 01 1 1202-1312
472 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		8-98251-345-0 01 1 1401-
476 PIPE; OIL,C/BL TO AIR CMPR 8-97610-075-0 01 1 1202-
544 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1202-
