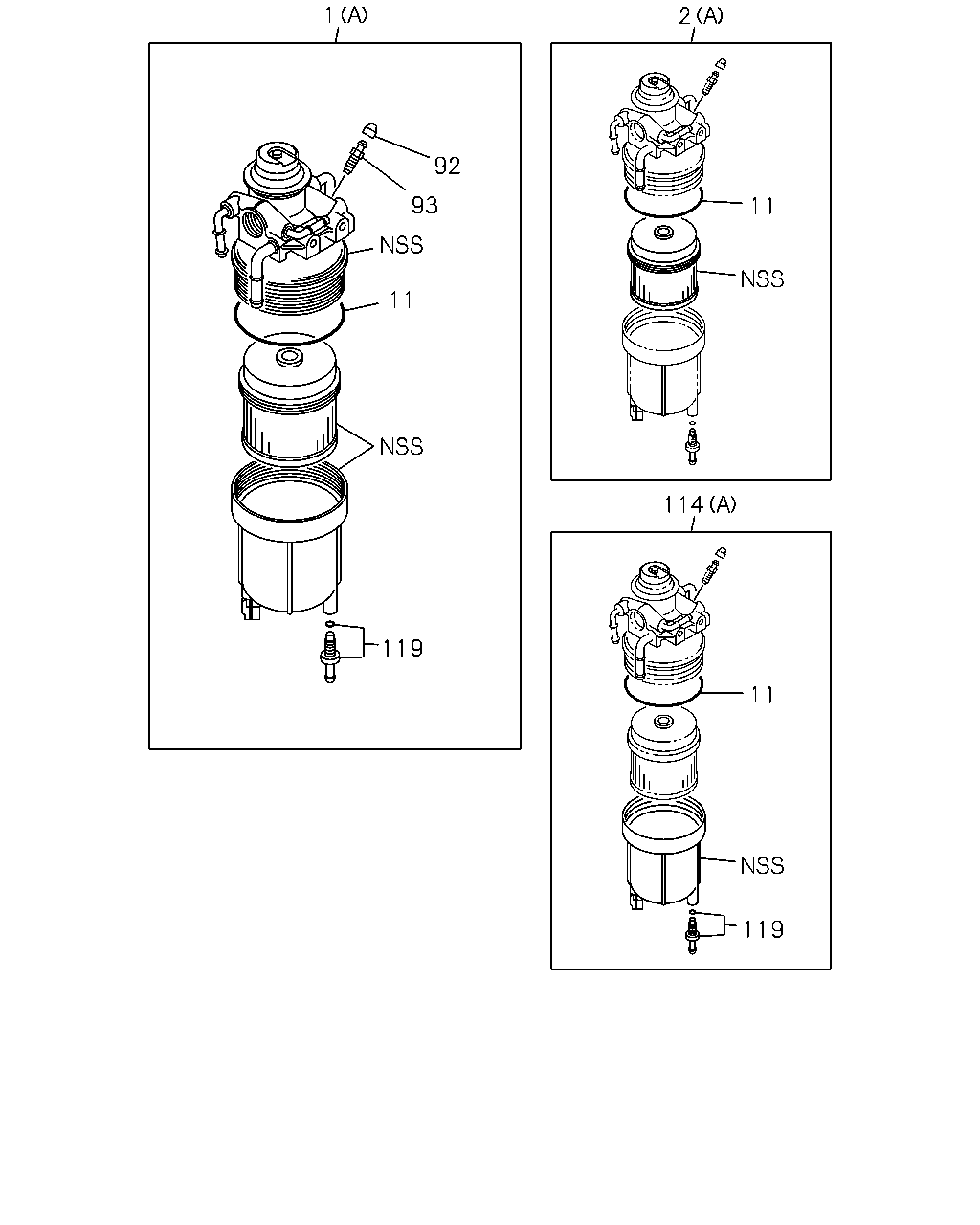

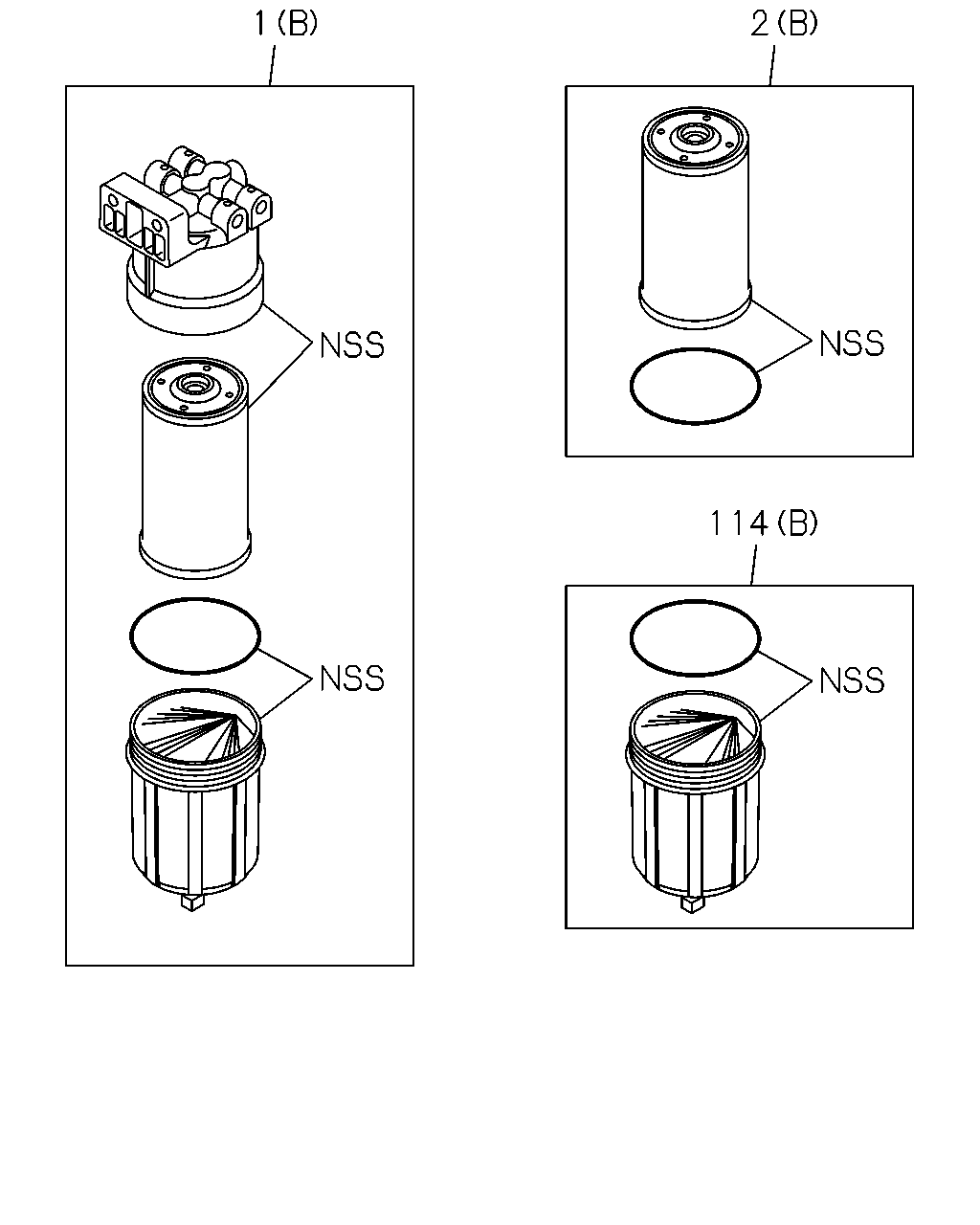

0-41 — FUEL FILTER AND BRACKET (#51492) — 16 parça

1 2 92 93 11 11 114 119 11 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	FILTER ASM; FUEL (B)	8-98086-193-1	01	1	1202-
1	FILTER ASM; FUEL (A)	8-98162-904-4	01	1	1202-
2	ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1202-
2	ELEMENT KIT; FUEL FILTER (B)	8-98092-481-1	01	1	1202-
11	GASKET; CASE TO BODY,FUEL FILTER	8-98203-600-0	01	1	1202-
92	CAP; FUEL FILTER	8-98034-314-0	01	1	1202-
93	CONNECTOR; FUEL FILTER M8X10	8-98034-312-0	01	1	1202-
114	CASE ASM; FUEL FILTER (A)	8-98039-987-1	01	1	1202-
114	CASE ASM; FUEL FILTER (B)	8-98092-482-1	01	1	1202-
119	PLUG; DRAIN,FUEL FILTER	8-98037-095-0	01	1	1202-

1 2 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	FILTER ASM; FUEL (B)	8-98086-193-1	01	1	1202-
1	FILTER ASM; FUEL (A)	8-98162-904-4	01	1	1202-
2	ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1202-
2	ELEMENT KIT; FUEL FILTER (B)	8-98092-481-1	01	1	1202-
114	CASE ASM; FUEL FILTER (A)	8-98039-987-1	01	1	1202-
114	CASE ASM; FUEL FILTER (B)	8-98092-482-1	01	1	1202-
