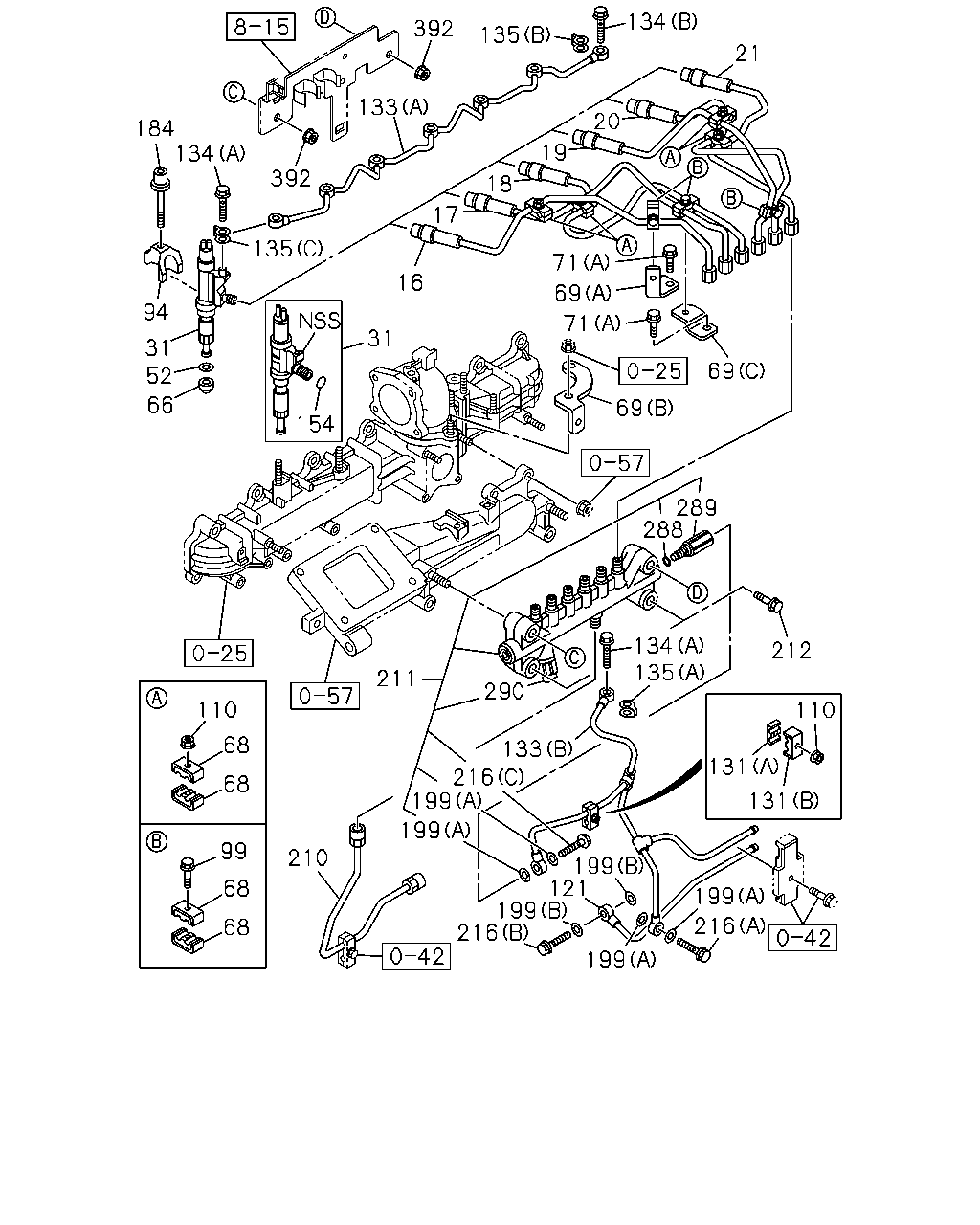

16 |
PIPE; INJ NO.1
|
8-98185-362-0 |
01 |
1 |
1202-1403 |
| |
16 |
PIPE; INJ NO.1
|
8-98271-207-0 |
01 |
1 |
1404-1501 |
| |
16 |
PIPE; INJ NO.1
|
8-98298-611-0 |
01 |
1 |
1502- |
| |
17 |
PIPE; INJ NO.2
|
8-98185-363-0 |
01 |
1 |
1202-1403 |
| |
17 |
PIPE; INJ NO.2
|
8-98271-208-0 |
01 |
1 |
1404-1501 |
| |
17 |
PIPE; INJ NO.2
|
8-98298-612-0 |
01 |
1 |
1502- |
| |
18 |
PIPE; INJ NO.3
|
8-98185-364-0 |
01 |
1 |
1202-1403 |
| |
18 |
PIPE; INJ NO.3
|
8-98271-209-0 |
01 |
1 |
1404-1501 |
| |
18 |
PIPE; INJ NO.3
|
8-98298-613-0 |
01 |
1 |
1502- |
| |
19 |
PIPE; INJ NO.4
|
8-98185-365-0 |
01 |
1 |
1202-1403 |
| |
19 |
PIPE; INJ NO.4
|
8-98271-210-0 |
01 |
1 |
1404-1501 |
| |
19 |
PIPE; INJ NO.4
|
8-98298-614-0 |
01 |
1 |
1502- |
| |
20 |
PIPE; INJ NO.5
|
8-98185-366-0 |
01 |
1 |
1202-1403 |
| |
20 |
PIPE; INJ NO.5
|
8-98271-211-0 |
01 |
1 |
1404-1501 |
| |
20 |
PIPE; INJ NO.5
|
8-98298-615-0 |
01 |
1 |
1502- |
| |
21 |
PIPE; INJ NO.6
|
8-98185-367-0 |
01 |
1 |
1202-1403 |
| |
21 |
PIPE; INJ NO.6
|
8-98271-212-0 |
01 |
1 |
1404-1501 |
| |
21 |
PIPE; INJ NO.6
|
8-98298-617-0 |
01 |
1 |
1502- |
| |
31 |
NOZZLE ASM; INJ
|
8-97609-789-6 |
06 |
1 |
1202- |
| |
52 |
GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
ID=23.3
|
8-94173-412-0 |
06 |
1 |
1202- |
| |
66 |
GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
ID=9.2 T=8.1
|
8-98079-248-0 |
06 |
1 |
1202- |
| |
68 |
CLIP; INJ PIPE
ID=11 & 11 L=19
|
8-98039-293-0 |
14 |
1 |
1202-1405 |
| |
68 |
CLIP; INJ PIPE
ID=11 & 11 L=19
|
8-98148-996-2 |
14 |
1 |
1406- |
| |
69 |
BRACKET; INJ PIPE CLIP
(A)
|
8-98038-940-0 |
01 |
1 |
1202- |
| |
69 |
BRACKET; INJ PIPE CLIP
(B)
|
8-98038-941-0 |
01 |
1 |
1202- |
| |
69 |
BRACKET; INJ PIPE CLIP
(C)
|
8-98049-015-0 |
01 |
1 |
1202- |
| |
71 |
BOLT; BRKT
(A)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
1202- |
| |
71 |
BOLT; BRKT
(B)
M12X100 FLANGE
|
0-28151-200-0 |
01 |
1 |
1202- |
| |
94 |
BRACKET; INJ NOZZLE
|
8-98028-999-1 |
06 |
1 |
1202- |
| |
99 |
BOLT; CLIP,INJ,PIPE
M6X35 FLANGE
|
0-28050-635-0 |
03 |
1 |
1202- |
| |
110 |
NUT; CLIP
M6 FLANGE
|
0-91180-106-0 |
05 |
1 |
1202- |
| |
121 |
PIPE; FUEL,FEED PUMP,SUCTION
|
8-98126-330-0 |
01 |
1 |
1202- |
| |
131 |
CLIP; OVERFLOW LEAK OFF
(A)
ID=7 & 9 L=25
|
8-98000-010-2 |
01 |
1 |
1202- |
| |
131 |
CLIP; OVERFLOW LEAK OFF
(B)
ID=7 & 9 L=25
|
8-98000-011-2 |
01 |
1 |
1202- |
| |
133 |
PIPE; INJ NOZZLE LEAK OFF
(A)
|
8-94391-311-0 |
01 |
1 |
1202-1206 |
| |
133 |
PIPE; INJ NOZZLE LEAK OFF
(A)
|
8-98203-705-1 |
01 |
1 |
1207- |
| |
133 |
PIPE; INJ NOZZLE LEAK OFF
(B)
|
8-97610-554-0 |
01 |
1 |
1202- |
| |
134 |
BOLT; JOINT,LEAK OFF PIPE
(B)
M8X18 EYE-BOLT
|
1-09675-037-1 |
06 |
1 |
1202- |
| |
134 |
BOLT; JOINT,LEAK OFF PIPE
(A)
M10X21 FLANGE
|
8-94396-711-0 |
02 |
1 |
1202- |
| |
135 |
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(C)
ID=10.6
|
8-97240-975-0 |
01 |
1 |
1202-1301 |
| |
135 |
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(C)
ID=10.6
|
8-98231-393-0 |
01 |
1 |
1302- |
| |
135 |
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(B)
ID=8.3 OD=15.0
|
8-98065-992-0 |
06 |
1 |
1202- |
| |
135 |
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(A)
ID=10.2 OD=17
|
8-98079-755-0 |
01 |
1 |
1202- |
| |
154 |
GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
ID=11.0
|
0-95690-111-0 |
06 |
1 |
1202- |
| |
184 |
BOLT; NOZZLE HOLDER
M8X54
|
8-98008-895-0 |
06 |
1 |
1202- |
| |
199 |
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE).
(B)
|
1-15619-507-0 |
02 |
1 |
1202- |
| |
199 |
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE).
(A)
|
8-97602-218-0 |
04 |
1 |
1202- |
| |
210 |
PIPE; INJ,C/R
|
8-97608-480-1 |
01 |
1 |
1202- |
| |
211 |
RAIL ASM; COMMON
|
8-97609-980-2 |
01 |
1 |
1202- |
| |
212 |
BOLT; RAIL ASM
M10X50 FLANGE
|
8-97372-243-0 |
02 |
1 |
1202- |
| |
216 |
BOLT; EYE
(B)
|
5-15759-003-0 |
01 |
1 |
1202- |
| |
216 |
BOLT; EYE
(A)
|
8-97351-388-0 |
01 |
1 |
1202- |
| |
216 |
BOLT; EYE
(C)
|
8-98043-033-0 |
01 |
1 |
1202- |
| |
288 |
GASKET
ID=11 OD=16.3
|
1-15641-046-0 |
01 |
1 |
1202- |
| |
289 |
LIMITER; FUEL PRESS
|
8-98032-549-0 |
01 |
1 |
1202- |
| |
290 |
SENSOR; PRESS
|
8-98119-790-0 |
01 |
1 |
1202- |
| |
392 |
NUT; RAIL ASM
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
1202- |
