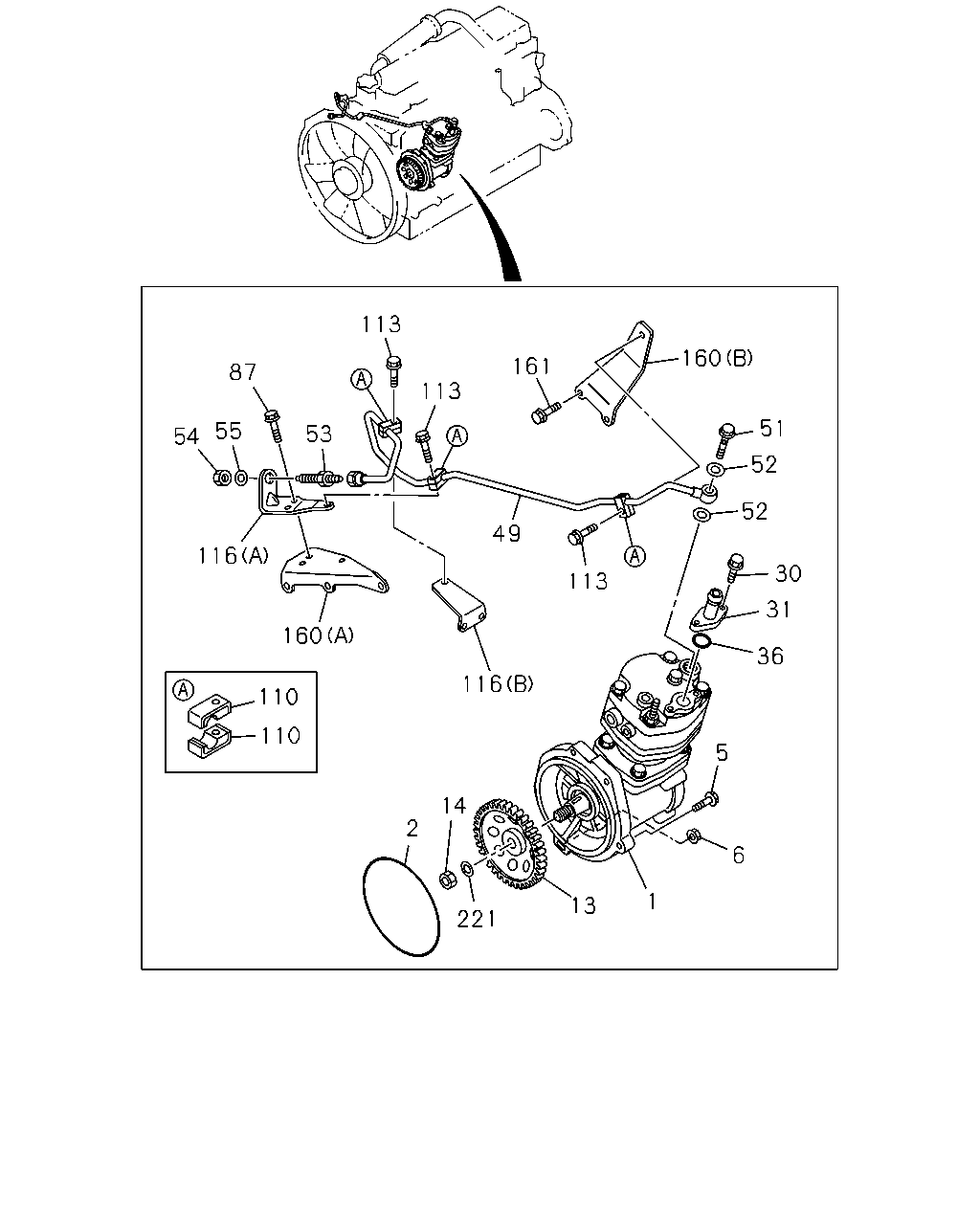

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#51489) — 24 parça

113 160 161 87 113 51 55 53 54 52 52 49 116 30 113 31 160 36 116 110 110 5 14 2 6 1 13 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-304-1	01	1	1202-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1202-
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28151-270-0	03	1	1202-
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1202-
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	1202-
14	NUT; GEAR M20	0-91110-520-0	01	1	1202-
30	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1202-
31	PIPE; AIR,AIR CMPR SUCTION	8-98049-089-0	01	1	1202-
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	01	1	1202-
49	PIPE; AIR,CHARGE	8-98043-254-0	01	1	1202-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1202-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1202-
53	UNION; CHARGE PIPE M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	1202-
54	NUT; PIPE UNION M22	0-91111-522-0	01	1	1202-
55	WASHER; LK,PIPE UNION ID=22.5	0-91510-522-0	01	1	1202-
87	BOLT; BRKT FIX M8X20 FLANGE	0-28050-820-0	02	1	1202-
110	CLIP; AIR PIPE ID=17 L=17	1-09701-284-0	06	1	1202-
113	BOLT; CLIP,AIR PIPE M8X45 FLANGE	0-28050-845-0	03	1	1202-
116	BRACKET; AIR PIPE (A)	8-98049-431-0	01	1	1202-
116	BRACKET; AIR PIPE (B)	8-98049-433-1	01	1	1202-
160	BRACKET; AIR PIPE (A)	8-97614-182-2	01	1	1202-
160	BRACKET; AIR PIPE (B)	8-98049-432-0	01	1	1202-
161	BOLT; BRKT,AIR PIPE M8X25 FLANGE	0-28650-825-0	02	1	1202-
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	1202-
