Isuzu WW
▶
COMPO
▶
DIGER
▶
11461 - 6HK1 COMPO(MALAYSIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶
0-36 — TURBOCHARGER SYSTEM
(#51488) — 40 parça
◀

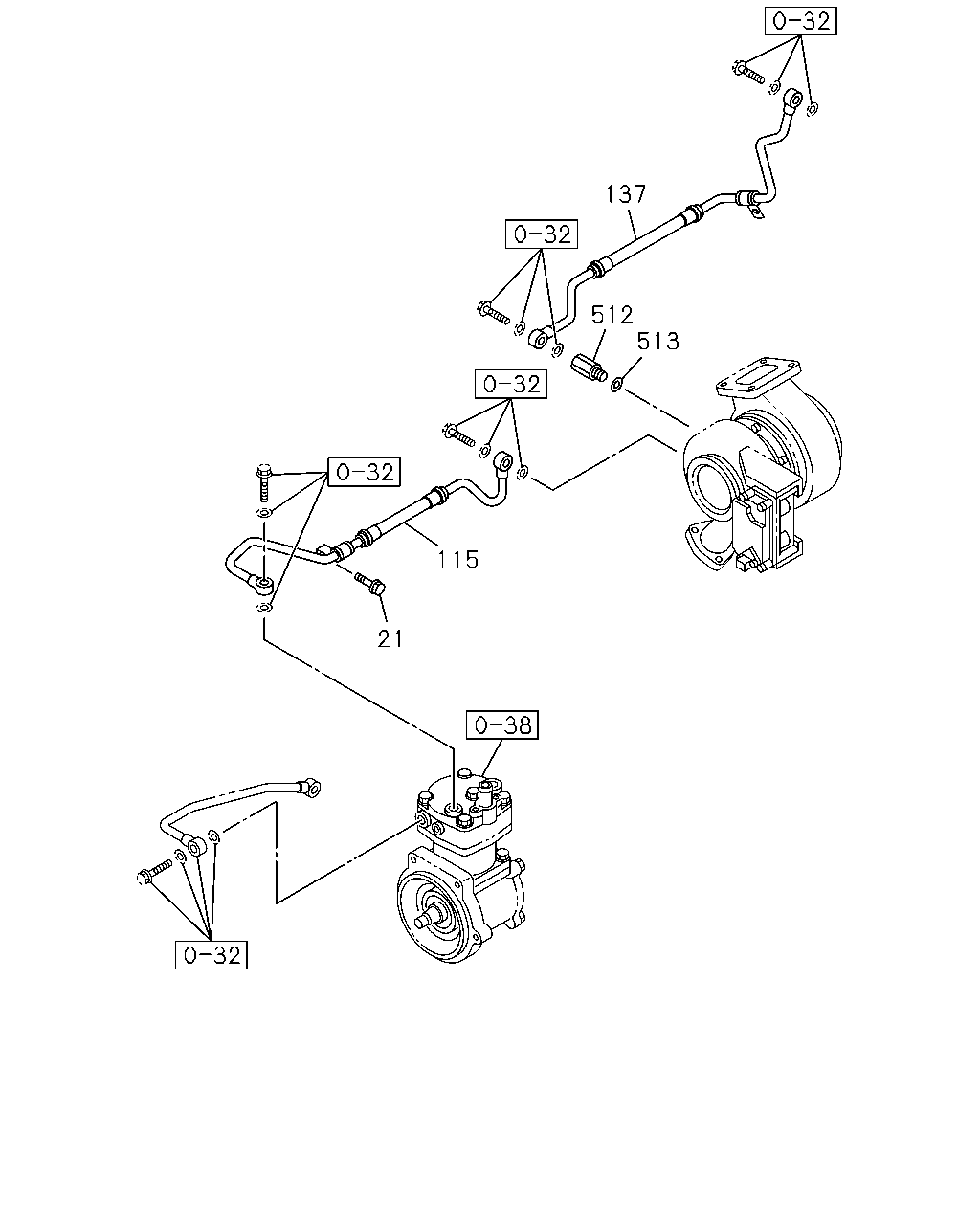

[036A] WATER PIPE (6 parça)
[036A] TURBOCHARGER ASM AND PIPE (34 parça)
▶
137
512
513
115
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
BOLT; PIPE
M8X16 FLANGE
0-28050-816-0
02
1
1202-
115
PIPE; WATER,TURBOCHARGER OUT
8-97610-087-2
01
1
1202-
137
PIPE; WATER,TURBOCHARGER IN
8-98046-783-0
01
1
1202-
512
CONNECTOR; TURBO
8-98031-856-0
01
1
1202-
513
GASKET; CONNECTOR
ID=14.2 OD=19.2
1-09630-085-0
01
1
1202-1312
513
GASKET; CONNECTOR
ID=14.2 OD=19.2
8-98251-345-0
01
1
1401-
209
209
10
122
17
212
163
12
2
1
22
162
17
447
16
94
162
265
20
92
217
398
398
217
398
20
398
488
398
398
92
20
79
79
92
398
398
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
8-97604-975-9
01
1
1202-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97024-124-0
01
1
1202-
10
WASHER; LK,TURBOCHARGER
T=2.2
1-09556-015-0
04
1
1202-
12
STUD; TURBOCHARGER
M8X25 L=36
8-94476-282-0
02
1
1202-
16
ADAPTER; EXH PIPE
8-98018-241-1
01
1
1202-
17
WASHER; PL,ADAPTER
T=1.9
5-09500-012-0
04
1
1202-
20
PIPE; INL,TURBOCHARGER OUT
(A)
8-98048-811-4
01
1
1202-1408
20
PIPE; INL,TURBOCHARGER OUT
(A)
8-98251-583-0
01
1
1409-
20
PIPE; INL,TURBOCHARGER OUT
(B)
8-98048-812-1
01
1
1202-
20
PIPE; INL,TURBOCHARGER OUT
(C)
8-98048-813-2
01
1
1202-
22
DUCT; INL,ACL TO TURBOCHARGER
8-98036-881-1
01
1
1202-
79
CLIP; RUBBER HOSE
ID=58-79
1-09707-136-0
02
1
1202-
92
BOLT; INL PIPE
(A) M8X30 FLANGE
0-28650-830-0
03
1
1202-
92
BOLT; INL PIPE
(B) M8X35 FLANGE
0-28650-835-0
01
1
1202-
92
BOLT; INL PIPE
(C) M8X40 FLANGE
0-28650-840-0
01
1
1202-
94
GASKET; INL PIPE
ID=55
8-98053-830-0
01
1
1202-
122
NUT; ADAPTER
M8
1-09400-118-1
02
1
1202-
162
BOLT; ADAPTER
(A) M10X60 FLANGE
0-28051-060-0
01
1
1202-
162
BOLT; ADAPTER
(B) M8X60
8-98158-604-0
02
1
1202-
163
GASKET; ADAPTER TO EXH PIPE
ID=83
8-94392-553-2
01
1
1202-
209
BOLT; BRACE,TURBOCHARGER
(A) M10X80
8-98049-825-0
02
1
1202-
209
BOLT; BRACE,TURBOCHARGER
(B) M10X40
9-09604-007-1
02
1
1202-
212
WASHER; PL,TURBOCHARGER
ID=10
1-09503-033-1
04
1
1202-
217
BOLT; BRKT
(A) M8X20 FLANGE
0-28650-820-0
01
1
1202-
217
BOLT; BRKT
(B) M10X25 FLANGE
0-28751-025-0
01
1
1202-
265
BRACKET; EXH PIPE
8-98260-415-0
01
1
1202-
398
MOUNTING
(A) ID=19 OD=26
8-94160-177-0
02
1
1202-
398
MOUNTING
(B) OD=28
8-94390-551-1
01
1
1202-
398
MOUNTING
(C) ID=13 OD=28
8-94394-504-0
02
1
1202-
398
MOUNTING
(D) OD=26
8-94394-529-0
02
1
1202-
398
MOUNTING
(E)
8-98048-939-0
01
1
1202-
447
STUD; ADAPTER
M12X30 L=48
0-44011-230-0
03
1
1202-
488
HOSE; RUBBER
8-98046-356-0
01
1
1202-1408
488
HOSE; RUBBER
ID=52.5 L=70
8-98245-242-0
01
1
1409-
