11461 - 6HK1 COMPO(MALAYSIA)
▶
0 - Engine, Emission, Engine Electrical
▶

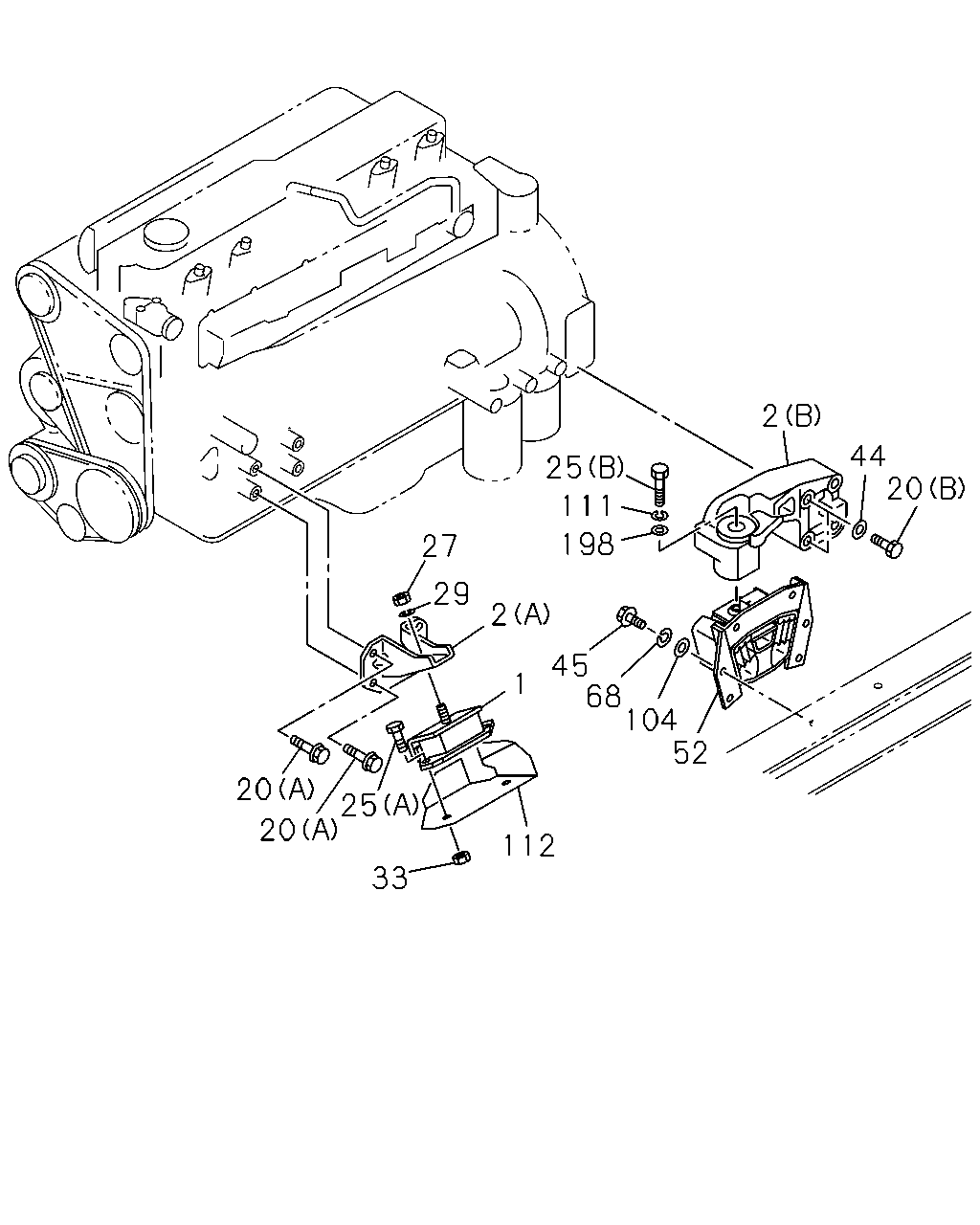

0-22 - ENGINE MOUNTING
▶
0-22 — ENGINE MOUNTING
(#51480) — 19 parça
2
44
20
25
111
198
27
29
2
45
68
104
52
1
20
25
20
112
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
1-53215-172-0
02
1
1202-
2
FOOT; ENG
(B) REAR
1-11777-179-0
01
1
1202-
2
FOOT; ENG
(A) FRONT
8-94393-491-1
02
1
1202-
2
FOOT; ENG
(B) REAR
8-97605-933-0
01
1
1202-
20
BOLT; ENG FOOT
(B) M16X78
1-09020-113-0
08
1
1202-
20
BOLT; ENG FOOT
(A) M10X20 FLANGE
8-94395-721-0
08
1
1202-
25
BOLT; CUSHION RUBBER TO BRKT
(A) M12X35 FLANGE
0-28651-235-0
04
1
1202-
25
BOLT; CUSHION RUBBER TO BRKT
(B) M22X85
1-09020-077-1
02
1
1202-
27
NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE
0-91180-212-0
02
1
1202-
29
PLATE; LK,CUSHION RUBBER,FRT
1-53229-052-1
02
1
1202-
33
NUT; CUSHION RUBBER TO BRKT
M14
0-91110-514-0
04
1
1202-
44
WASHER; LK,ENG FOOT
ID=16.2
9-09851-672-2
08
1
1202-
45
BOLT; CUSHION RUBBER TO FRAME
M14X40
0-20951-440-0
12
1
1202-
52
RUBBER; CUSHION,ENG MTG,RR
1-53225-374-0
02
1
1202-
68
WASHER; LK,CUSHION RUBBER
ID=14.2
0-91510-814-0
12
1
1202-
104
WASHER; PL,CUSHION RUBBER
ID=15
8-98010-627-1
12
1
1202-
111
WASHER; LK,CUSHION RUBBER TO BRKT
ID=22.5
0-91510-622-0
02
1
1202-
112
PROTECTOR; HEAT
8-98027-326-0
01
1
1202-
198
WASHER; PL,CUSHION TO BRKT,RR
9-09164-622-0
02
1
1202-
