8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#51460) — 19 parça

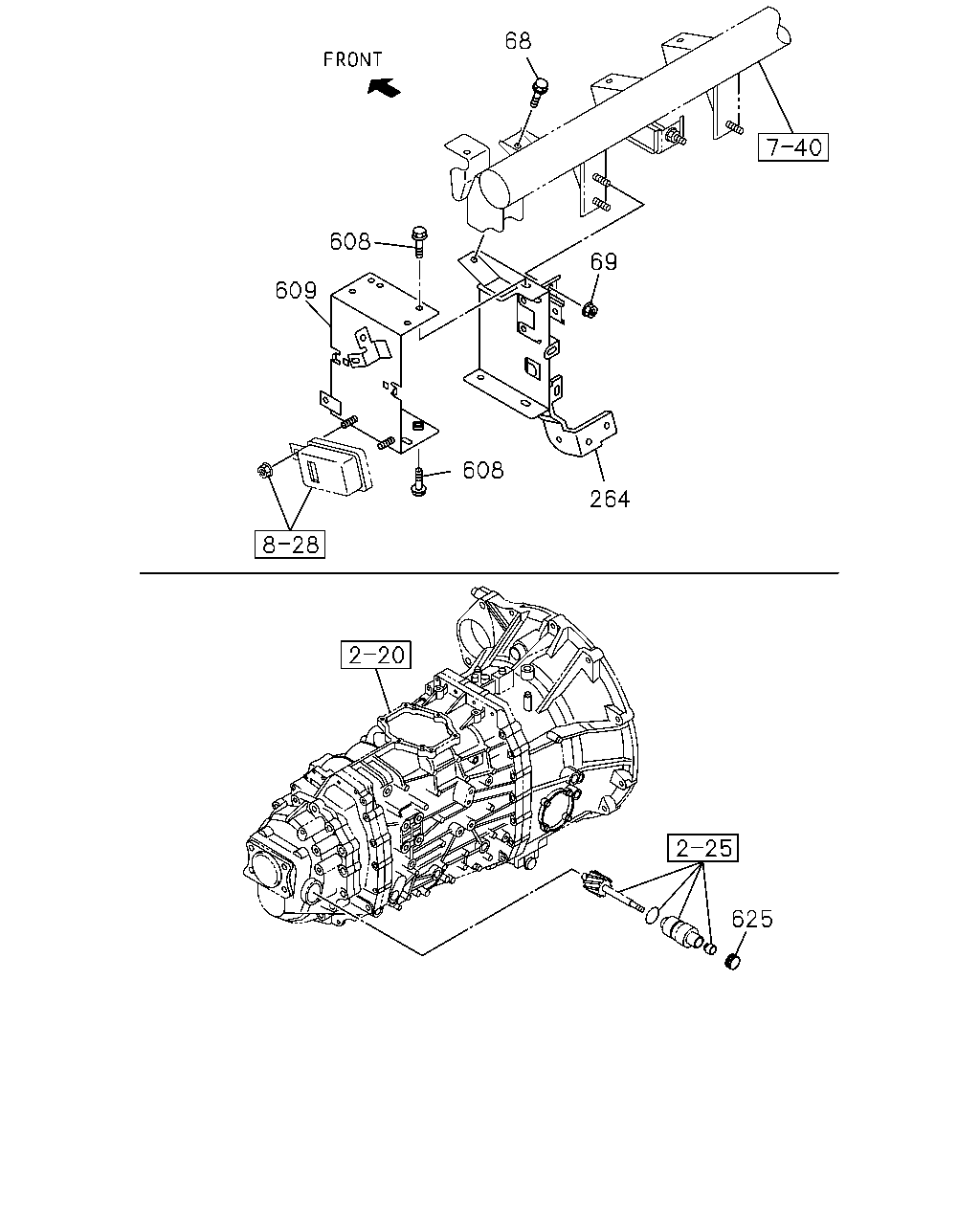

çizim 149440
68 608 69 609 608 264 625
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 01 1 1101-
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1101-
264 BRACKET; CONT UNIT 8-97609-985-9 01 1 1101-
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE 		0-28650-616-0 05 1 1101-
609 BRACKET ASM; ELEC UNIT,AIR SUS
EXC. COUNTRY PAKISTAN<CK5> 		8-98095-337-0 01 1 1202-1308
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98095-337-0 01 1 1101-1112
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98169-737-0 01 1 1201-1201
609 BRACKET ASM; ELEC UNIT,AIR SUS
COUNTRY PAKISTAN<CK5> 		8-98169-737-0 01 1 1202-1308
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98169-737-1 01 1 1309-
625 CAP; SPEED SENSOR 1-83129-133-0 01 1 1101-

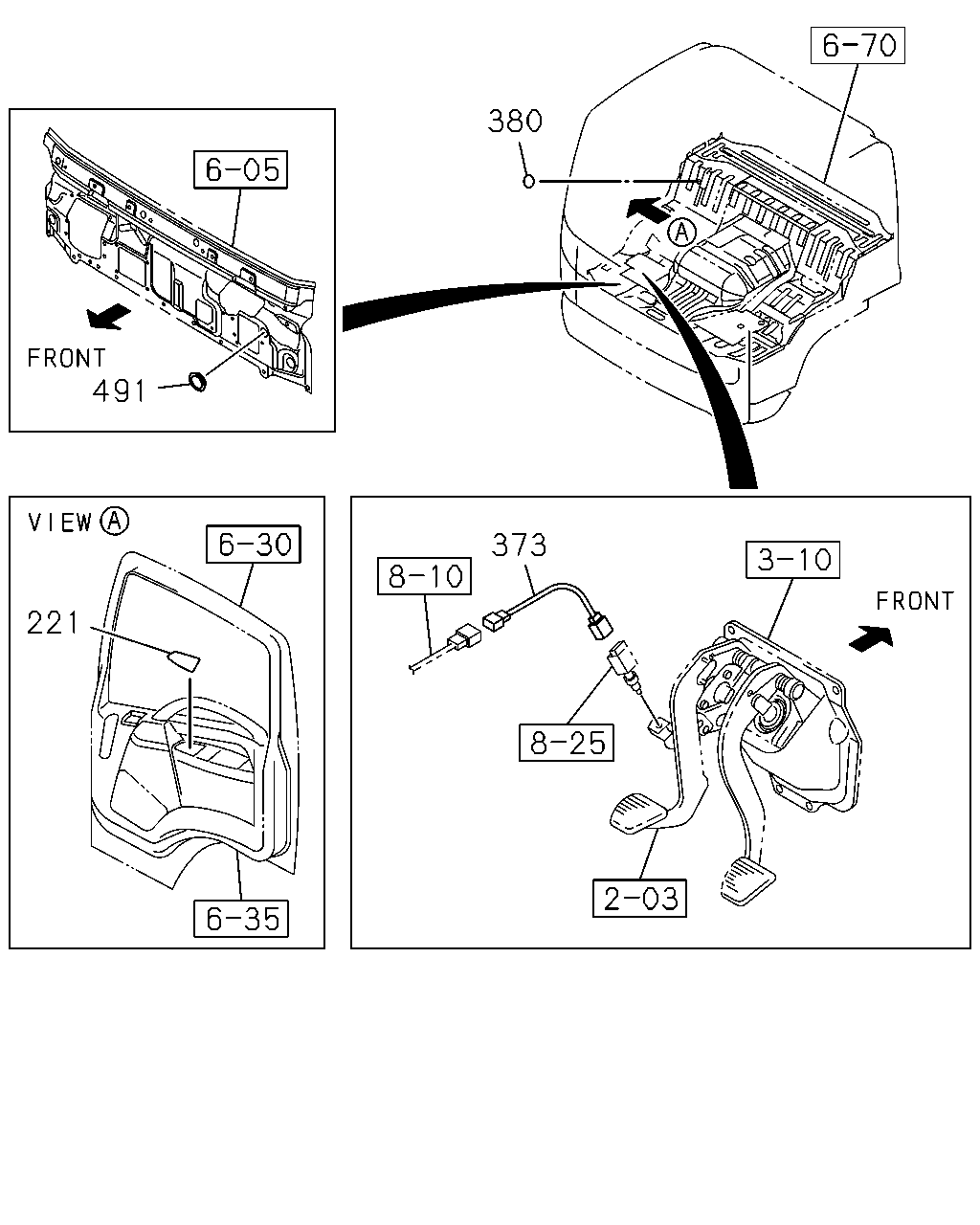

çizim 149452
380 491 373 221
BalonParca AdiParca NoAdetTipApplied Date
221 COVER; HOLE,DOOR LOCK SW 8-98029-915-2 01 1 1101-
221 COVER; HOLE,DOOR LOCK SW 8-98029-916-2 01 1 1101-
373 HARNESS; CLU SWITCH 8-98053-829-3 01 1 1101-
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1101-
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1101-

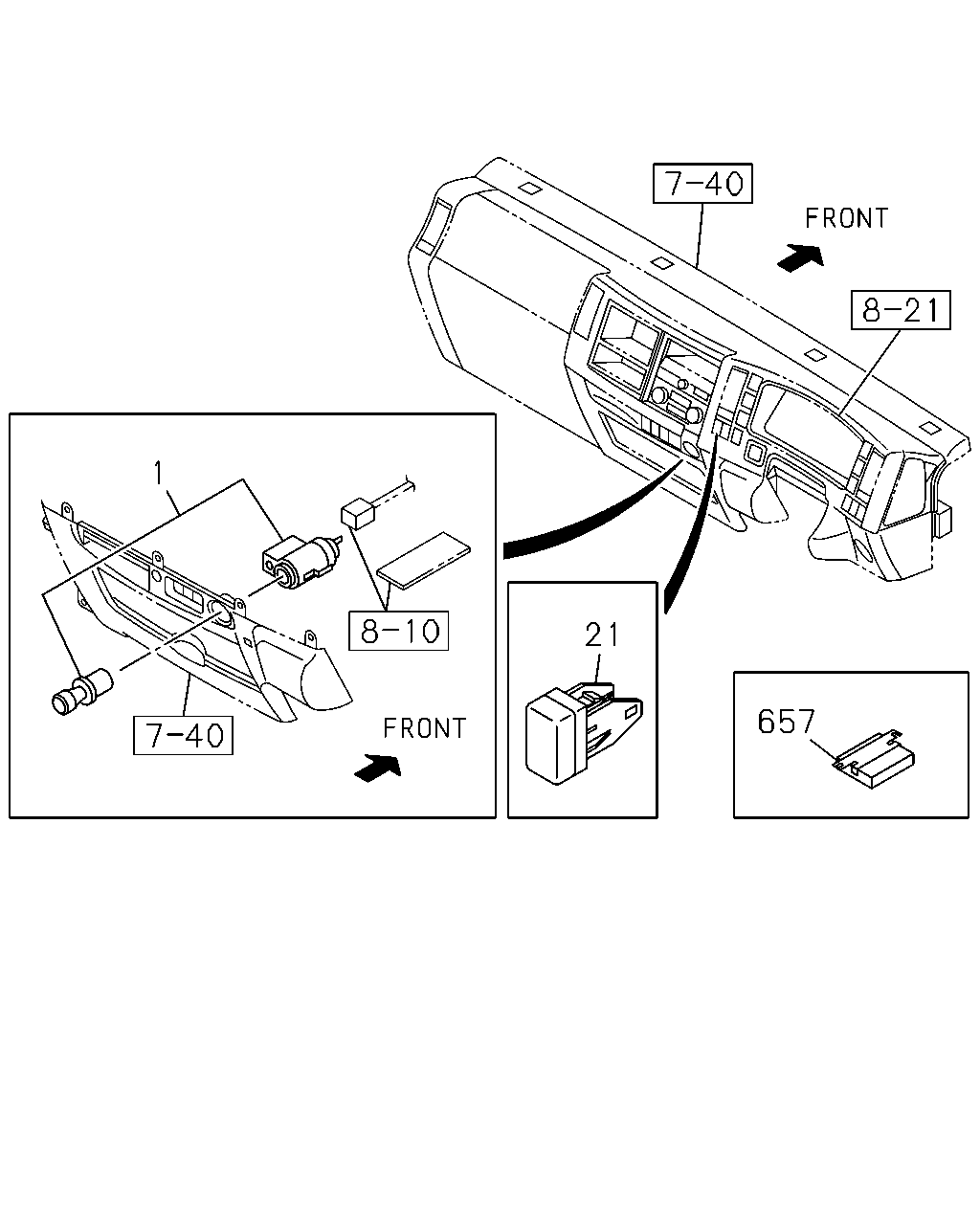

çizim 149455
1 21 657
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1101-
21 COVER; HOLE 8-98025-954-1 01 1 1101-
657 CONTROL UNIT; MIMAMORI 8-98013-144-8 01 1 1101-1401
657 CONTROL UNIT; MIMAMORI 8-98260-912-1 01 1 1402-
