8-15 — FIXING PARTS; WIRING HARNESS (#51457) — 165 parça
çizim 149422
428 335 428 428 312 312
BalonParca AdiParca NoAdetTipApplied Date
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 1101-
312 BRACKET; CLIP HARNESS
(A) 		8-97609-110-1 01 1 1101-
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 1101-
428 BRACKET
(A) 		1-47475-519-0 01 1 1101-
428 BRACKET
(B) 		8-98049-870-2 01 1 1101-
428 BRACKET
(C) 		8-98090-953-1 01 1 1101-
çizim 149423
14 16 48 14 48 206 217 225 178 178 538 530 1 1 503
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 1101-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1101-
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 1101-
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 08 1 1101-1205
14 CLIP; BAND,HARNESS
(B) L=250 		8-98216-430-0 08 1 1206-
16 CLIP; HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 1101-
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1101-
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1101-
16 CLIP; HARNESS
(F) ID=35 L=33 		1-09700-945-0 01 1 1101-
16 CLIP; HARNESS
(H) L=350 		1-09707-183-0 02 1 1101-
16 CLIP; HARNESS
(I) ID=10 & 10 		1-09709-277-1 05 1 1101-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1101-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1101-
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1101-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1101-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 1101-
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1101-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 01 1 1101-
48 CLIP; FRAME HARNESS
(D) L=250 		5-09707-030-1 02 1 1101-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 09 1 1101-
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1101-
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1101-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1101-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1101-
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 1101-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1101-
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 03 1 1101-
503 CONNECTOR 1-82690-668-0 01 1 1101-
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 1101-1305
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1306-
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 1101-1305
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1306-
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1101-

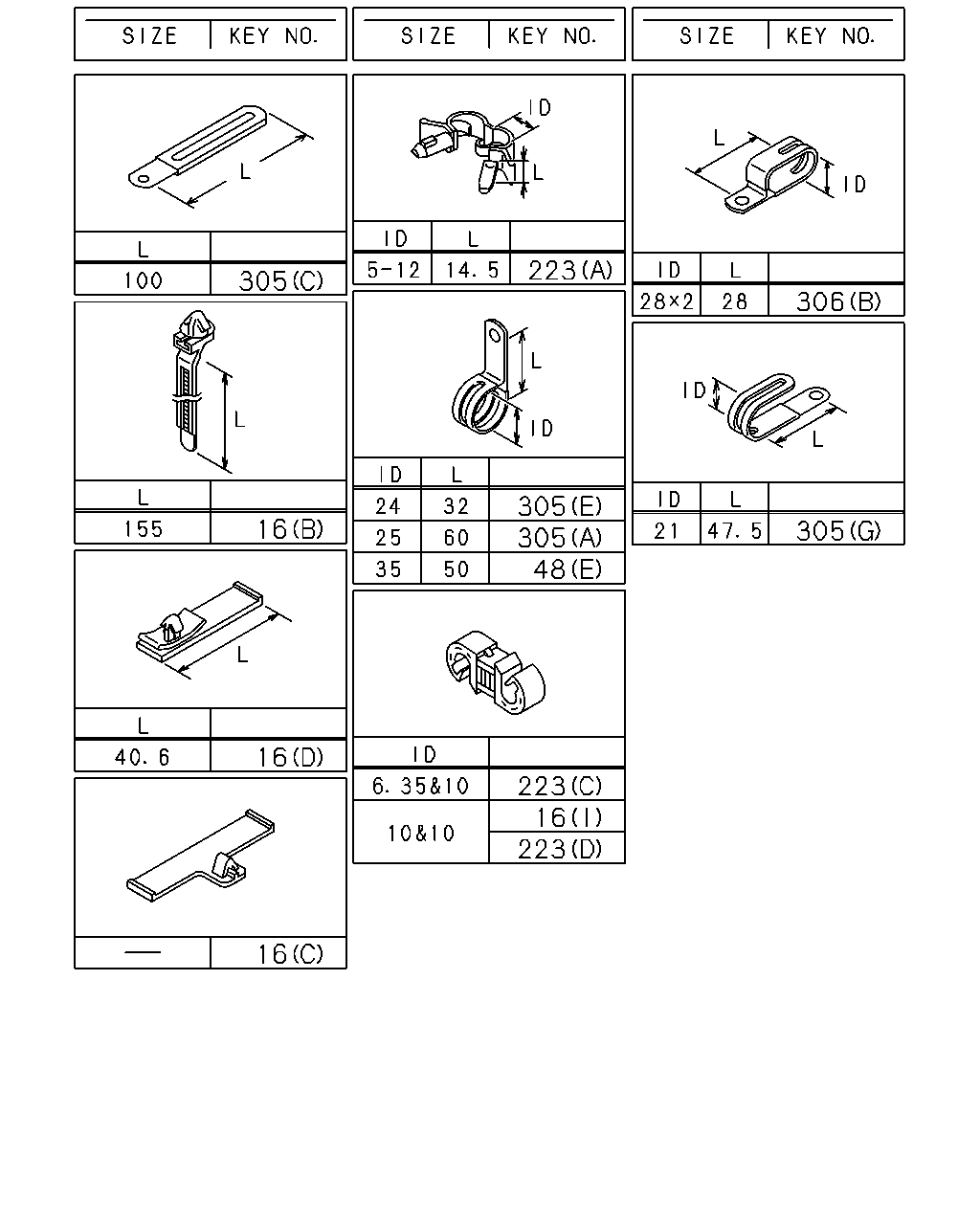

çizim 149424
223 305 306 305 305 48 16 305 16 223 16 223 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 1101-
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1101-
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1101-
16 CLIP; HARNESS
(F) ID=35 L=33 		1-09700-945-0 01 1 1101-
16 CLIP; HARNESS
(H) L=350 		1-09707-183-0 02 1 1101-
16 CLIP; HARNESS
(I) ID=10 & 10 		1-09709-277-1 05 1 1101-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1101-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1101-
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1101-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1101-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 1101-
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1101-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 01 1 1101-
48 CLIP; FRAME HARNESS
(D) L=250 		5-09707-030-1 02 1 1101-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 09 1 1101-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 1101-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (B) OD=9 H=6 		1-09709-178-0 01 1 1101-
223 CLIP; AIR TANK HARNESS
(C) ID=6.35 & 10.0 		1-09709-274-1 01 1 1101-
223 CLIP; AIR TANK HARNESS
(D) ID=10 & 10 		1-09709-277-1 02 1 1101-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1101-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1101-
305 CLIP; ENG HARNESS
(H) ID=16 L=40 		0-95235-576-0 01 1 1101-
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 01 1 1101-
305 CLIP; ENG HARNESS
(B) ID=24 L=27 		1-09700-809-0 03 1 1101-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1101-
305 CLIP; ENG HARNESS
(F) ID=19 L=39 H=21 		1-09700-972-1 01 1 1101-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1101-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1101-
305 CLIP; ENG HARNESS
(G) ID=21 L=47.5 		8-94178-108-0 01 1 1101-
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 1101-1310
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 02 1 1311-
306 CLIP; HARNESS,ELEC GOV
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1101-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1101-

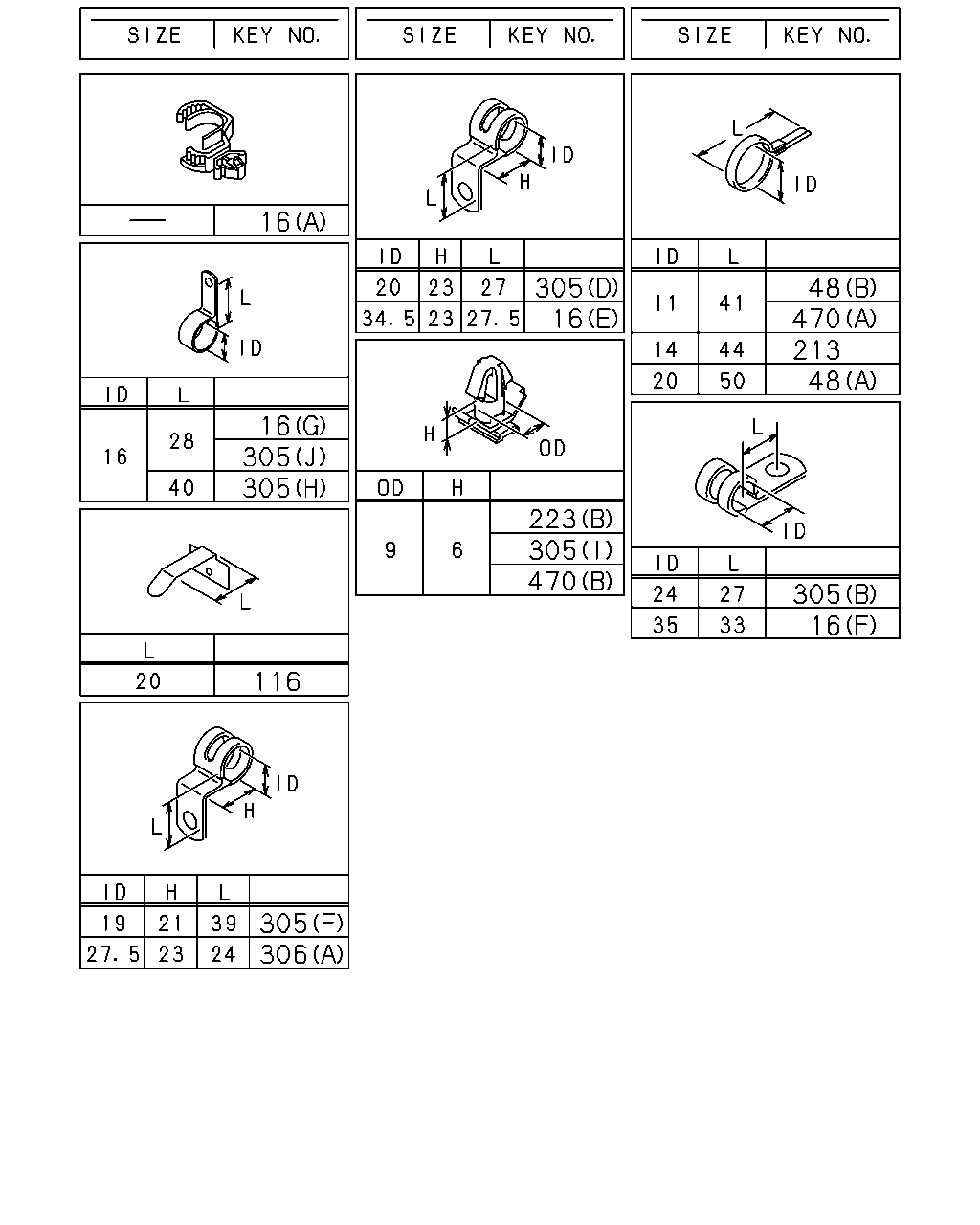

çizim 149430
16 305 16 48 470 213 48 16 305 305 223 305 470 305 16 116 305 306
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 1101-
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1101-
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1101-
16 CLIP; HARNESS
(F) ID=35 L=33 		1-09700-945-0 01 1 1101-
16 CLIP; HARNESS
(H) L=350 		1-09707-183-0 02 1 1101-
16 CLIP; HARNESS
(I) ID=10 & 10 		1-09709-277-1 05 1 1101-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1101-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1101-
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1101-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1101-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 1101-
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1101-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 01 1 1101-
48 CLIP; FRAME HARNESS
(D) L=250 		5-09707-030-1 02 1 1101-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 09 1 1101-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 1101-1201
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1202-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1101-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 1101-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (B) OD=9 H=6 		1-09709-178-0 01 1 1101-
223 CLIP; AIR TANK HARNESS
(C) ID=6.35 & 10.0 		1-09709-274-1 01 1 1101-
223 CLIP; AIR TANK HARNESS
(D) ID=10 & 10 		1-09709-277-1 02 1 1101-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1101-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1101-
305 CLIP; ENG HARNESS
(H) ID=16 L=40 		0-95235-576-0 01 1 1101-
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 01 1 1101-
305 CLIP; ENG HARNESS
(B) ID=24 L=27 		1-09700-809-0 03 1 1101-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1101-
305 CLIP; ENG HARNESS
(F) ID=19 L=39 H=21 		1-09700-972-1 01 1 1101-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1101-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1101-
305 CLIP; ENG HARNESS
(G) ID=21 L=47.5 		8-94178-108-0 01 1 1101-
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 1101-1310
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 02 1 1311-
306 CLIP; HARNESS,ELEC GOV
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1101-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1101-
470 CLIP; HARNESS,LICENSE LAMP
(A) ID=11 L=41 		1-09700-403-0 01 1 1101-
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 1101-

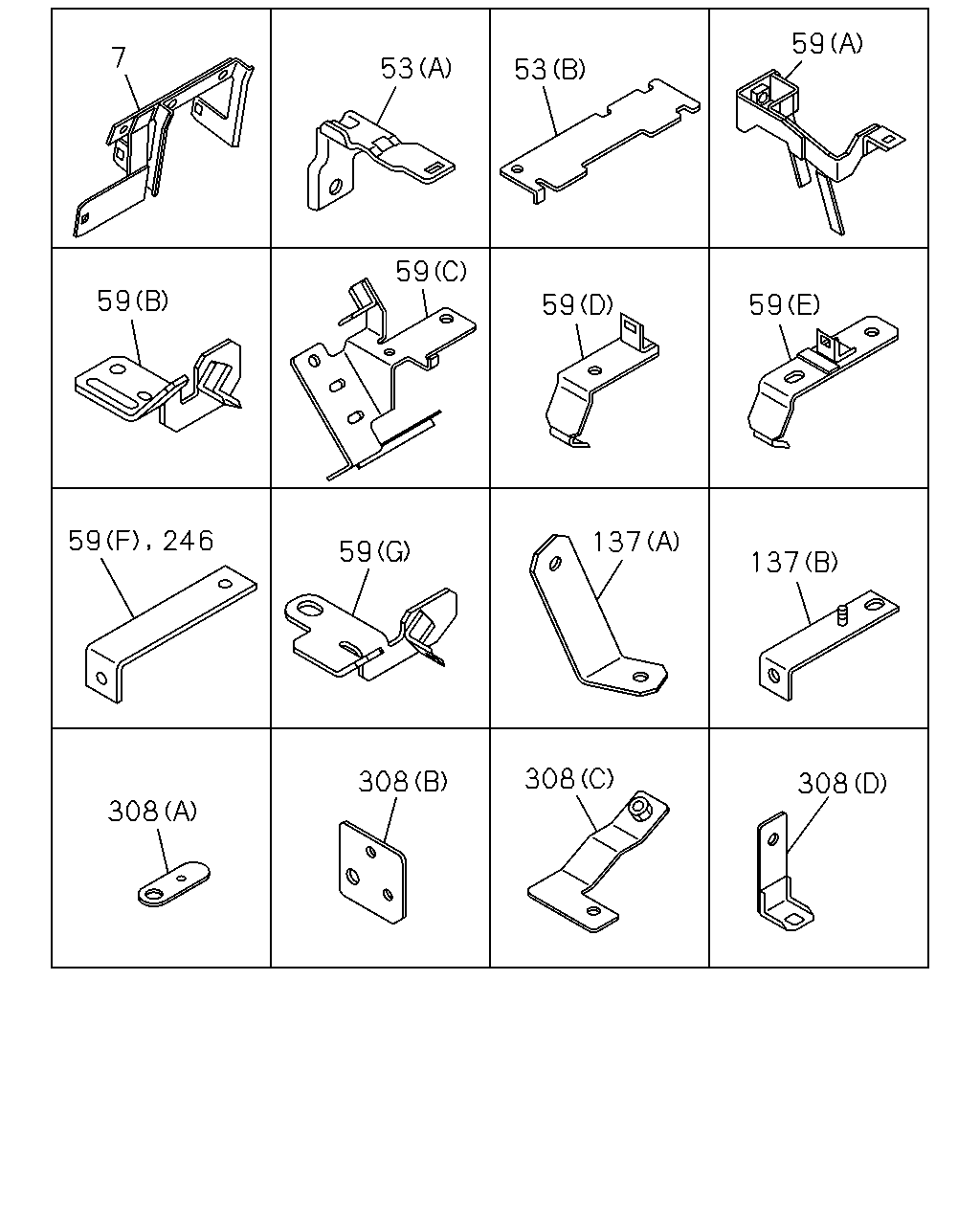

çizim 149431
59 53 53 7 59 59 59 59 59 246 59 137 137 308 308 308 308
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1101-
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1101-
53 BRACKET; HARNESS
(B) 		8-98127-093-0 01 1 1101-
59 BRACKET; FRAME HARNESS
(F) L=95 		1-82699-085-0 01 1 1101-
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 1101-
59 BRACKET; FRAME HARNESS
(C) 		8-97622-828-0 01 1 1101-
59 BRACKET; FRAME HARNESS
(D) 		8-98118-500-0 01 1 1101-
59 BRACKET; FRAME HARNESS
(E) 		8-98152-282-0 01 1 1101-
59 BRACKET; FRAME HARNESS
(B) 		8-97616-305-0 01 1 1101-1502
59 BRACKET; FRAME HARNESS
(G) 		8-98254-592-0 01 1 1503-
137 BRACKET; HARNESS CLAMP
(A) 		8-97614-728-1 01 1 1101-
137 BRACKET; HARNESS CLAMP
(B) 		8-97624-013-0 01 1 1101-
246 BRACKET; CLIP,SPD SENSOR
L=95 		1-82699-085-0 01 1 1101-
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1101-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-98021-692-1 01 1 1101-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98032-178-0 01 1 1101-
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98075-824-0 01 1 1101-

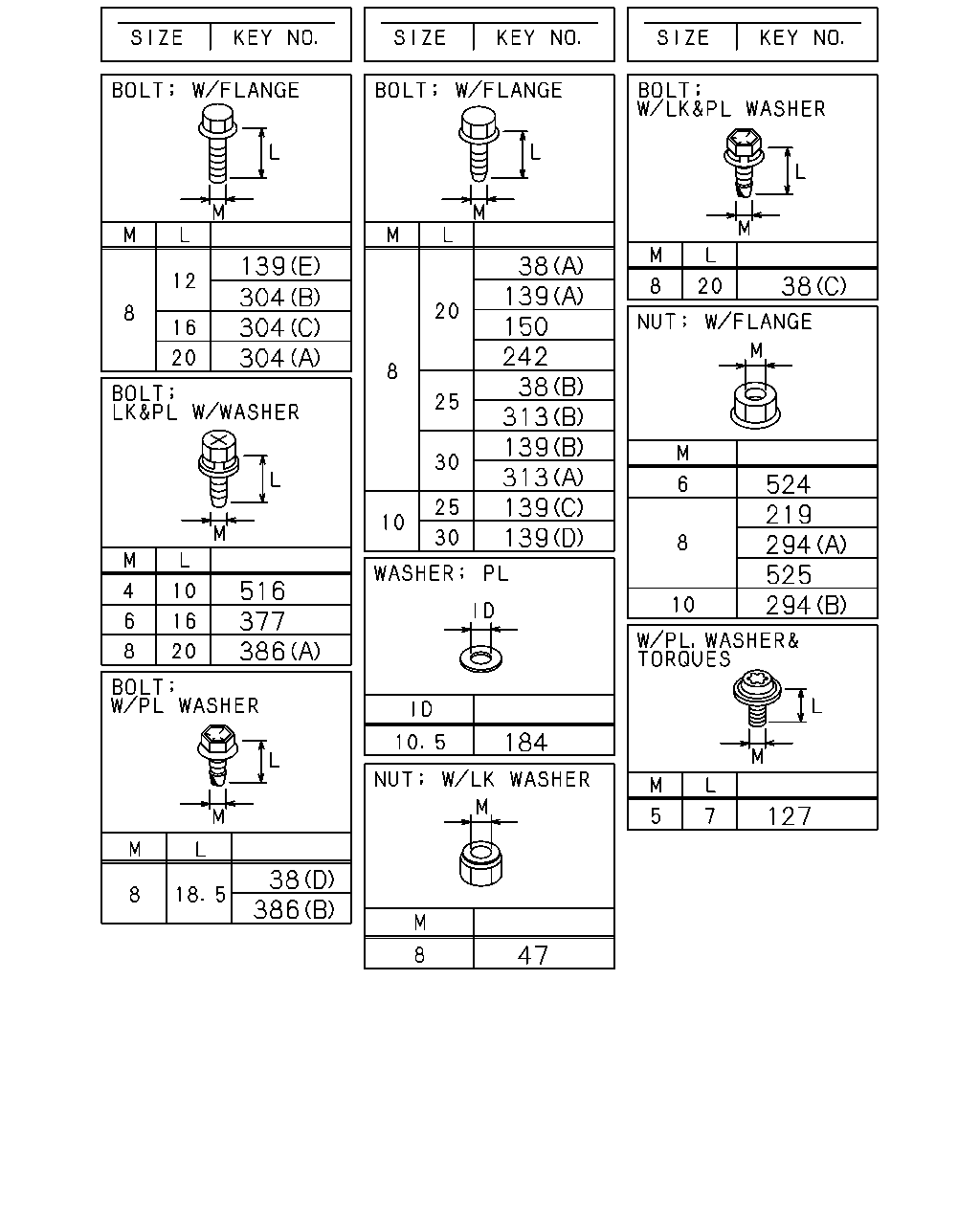

çizim 149433
524 294 219 525 294 127 47 386 38 386 377 516 304 304 304 139 38 242 150 139 38 139 313 139 313 139 184 38
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1101-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1101-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1101-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1101-
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 1101-1201
38 BOLT; CLIP,HARNESS
(D) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202-
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1101-
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1101-
139 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1101-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1101-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1101-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1101-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1101-
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1101-
139 BOLT; BRKT
(D) M10X30 FLANGE 		0-28651-030-0 01 1 1101-
150 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1101-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1101-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1101-
242 BOLT; BRKT,HARNESS
M8X20 FLANGE 		0-28650-820-0 01 1 1101-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 1101-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 1101-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1101-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1101-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 1101-
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 06 1 1101-
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 05 1 1101-
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 04 1 1101-
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1101-
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1101-
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 04 1 1101-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1101-
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1101-1202
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203-
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1101-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1101-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1101-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1101-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
