8-10 — WIRING HARNESS AND FUSE (#51456) — 104 parça

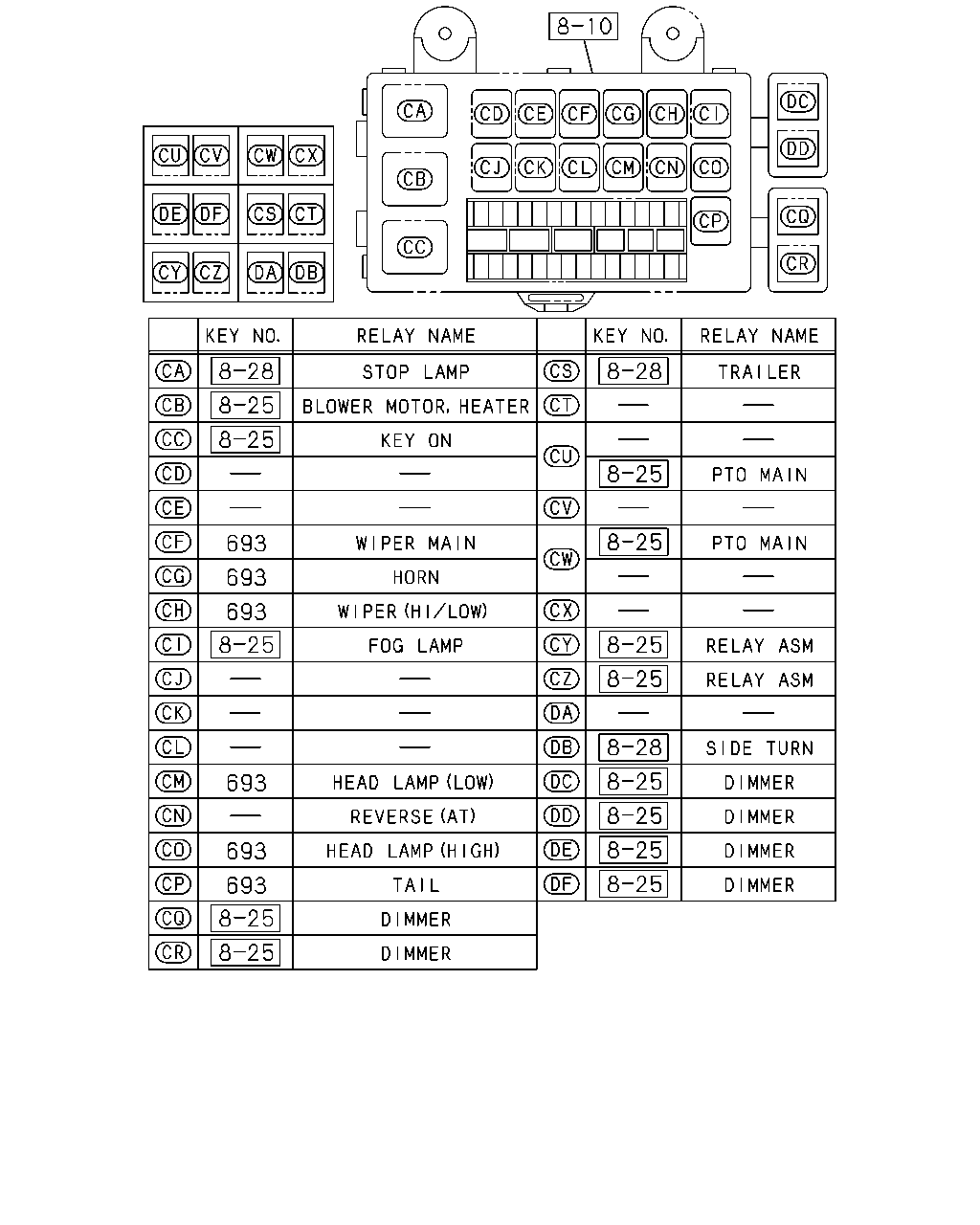

çizim 149417
693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1101-

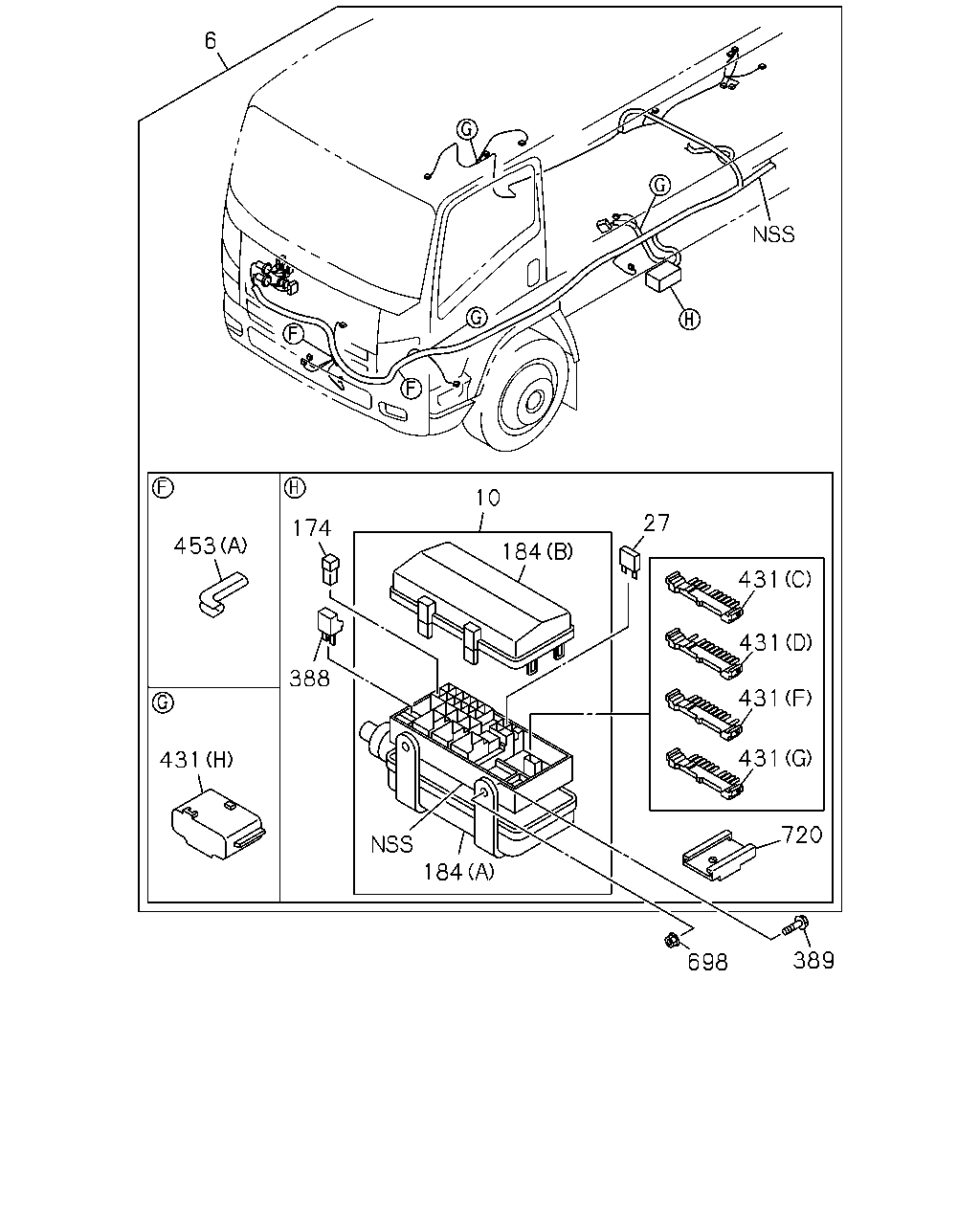

çizim 149421
6 10 27 174 453 184 431 431 388 431 431 431 720 184 389 698
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98175-464-0 01 1 1101-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1101-
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 1101-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 1101-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1107-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 01 1 1101-
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 1101-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1101-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 03 1 1101-1106
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 1107-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1101-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-0 01 1 1101-
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 1101-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1101-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1101-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 02 1 1101-1112
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 05 1 1101-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1101-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1101-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1101-1112
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1101-1112
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 1101-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1101-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1101-
453 PROTECTOR; HARNESS
COUNTRY PAKISTAN<CK5> (B) 		8-98210-971-0 01 1 1201-
453 PROTECTOR; HARNESS
(A) 		1-82699-709-0 01 1 1101-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1101-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1101-

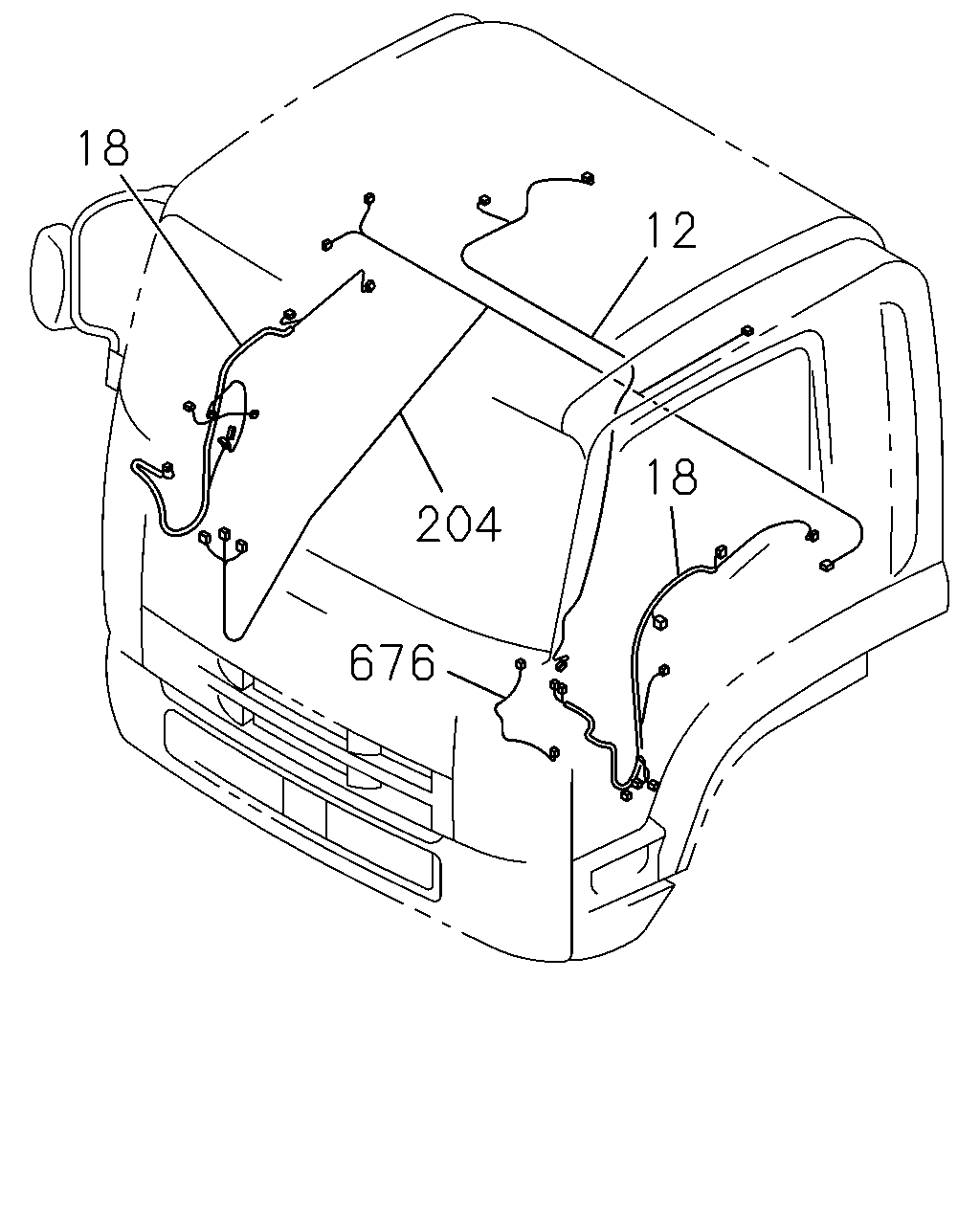

çizim 149429
18 12 18 204 676
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF 8-98041-949-2 01 1 1101-
18 HARNESS; DOOR 8-98084-287-3 01 1 1101-1202
18 HARNESS; DOOR 8-98076-305-3 01 1 1203-
18 HARNESS; DOOR 8-98084-282-3 01 1 1101-1202
18 HARNESS; DOOR 8-98076-304-3 01 1 1203-
204 HARNESS; CABLE,FLOOR 8-98085-274-0 01 1 1101-
676 HARNESS; EXT,MAP LAMP 8-98140-101-0 01 1 1101-

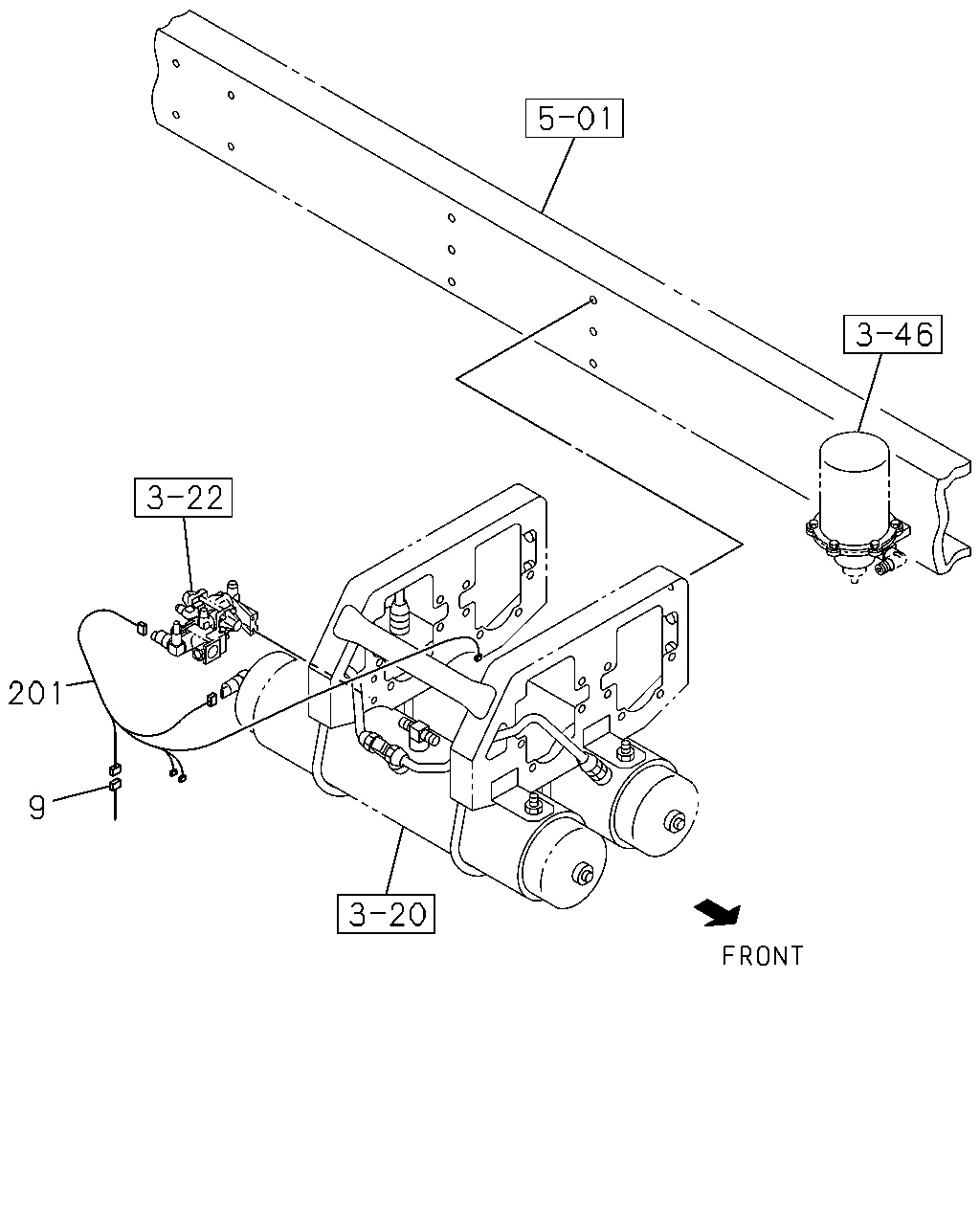

çizim 149432
201 9
BalonParca AdiParca NoAdetTipApplied Date
9 HARNESS; FRAME,RR 8-98137-360-2 01 1 1101-
201 HARNESS; AIR TANK 8-98132-111-3 01 1 1101-

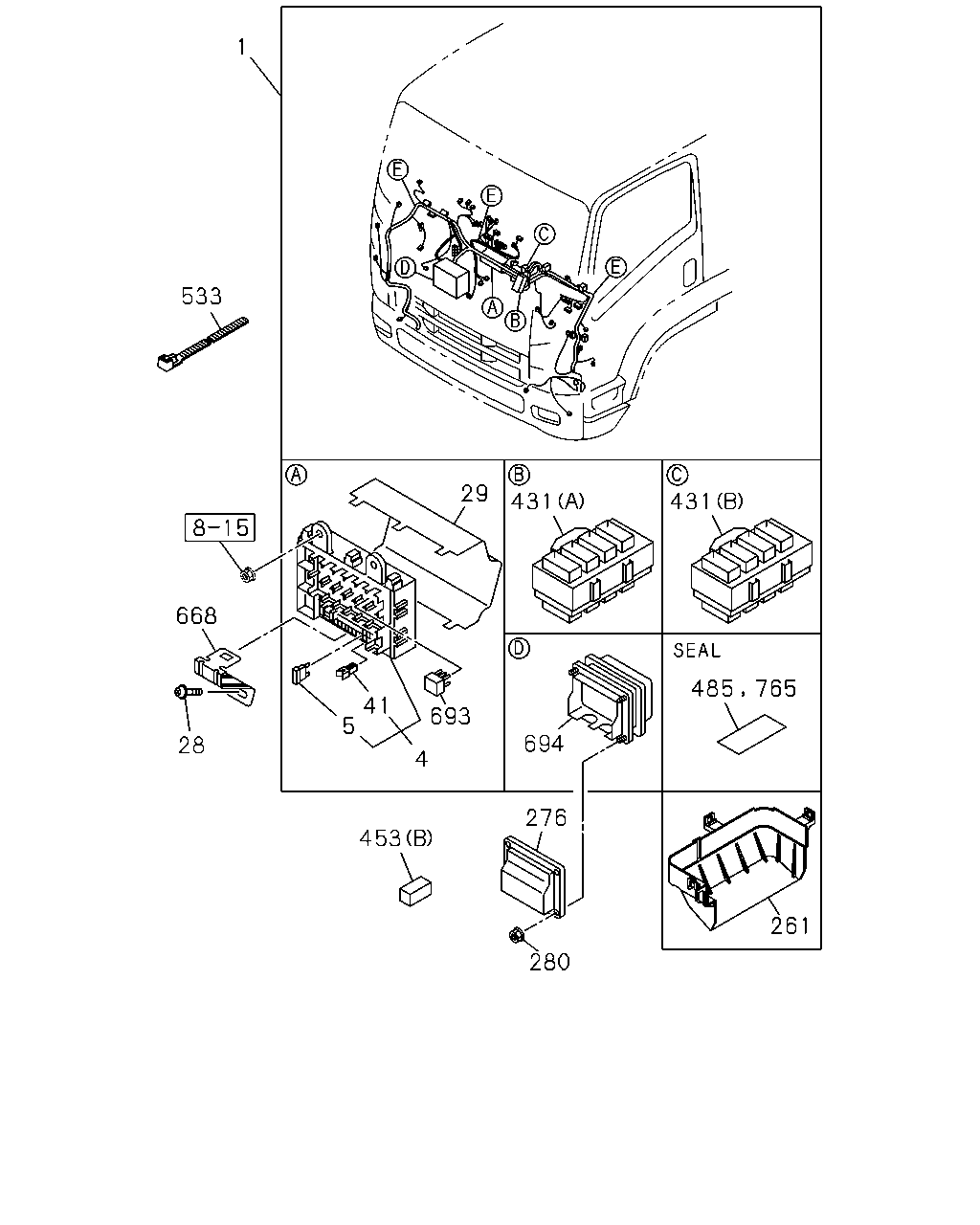

çizim 149434
1 533 668 28 5 41 4 453 693 29 431 694 276 431 485 765 261 280
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 8-98137-714-2 01 1 1101-1112
1 HARNESS; CAB 8-98209-638-0 01 1 1201-
4 BOX ASM; FUSE,HARNESS 8-98081-164-0 01 1 1101-
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1101-
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1101-
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1101-
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 02 1 1101-1112
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 1201-
28 SCREW; FUSE BOX
BOLT M6X16 FLANGE 		0-28650-616-0 01 1 1101-
29 COVER; FUSE BOX 8-98056-968-0 01 1 1101-
41 PULLER; FUSE 8-98054-260-0 01 1 1101-
261 COVER; CONNECTOR BOX 8-98065-986-1 01 1 1201-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1101-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1101-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1101-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 02 1 1101-1112
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 05 1 1101-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1101-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1101-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1101-1112
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1101-1112
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 1101-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1101-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1101-
453 PROTECTOR; HARNESS
COUNTRY PAKISTAN<CK5> (B) 		8-98210-971-0 01 1 1201-
453 PROTECTOR; HARNESS
(A) 		1-82699-709-0 01 1 1101-
485 SEAL; CONNECTOR
180X40 		1-72498-019-1 01 1 1101-
533 CLIP
L=180 		1-09707-162-1 01 1 1101-1206
533 CLIP
ID=10 & 10 		1-09709-277-1 01 1 1101-
533 CLIP
ID=5-12 L=18 		1-09709-287-0 01 1 1101-
668 BRACKET; HARNESS 8-98095-653-2 01 1 1101-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1101-
694 BOX ASM; CONNECTOR 8-98063-269-1 01 1 1101-1112
694 BOX ASM; CONNECTOR 8-98057-771-0 01 1 1201-
765 TAPE
100X40 		1-72498-022-1 01 1 1409-

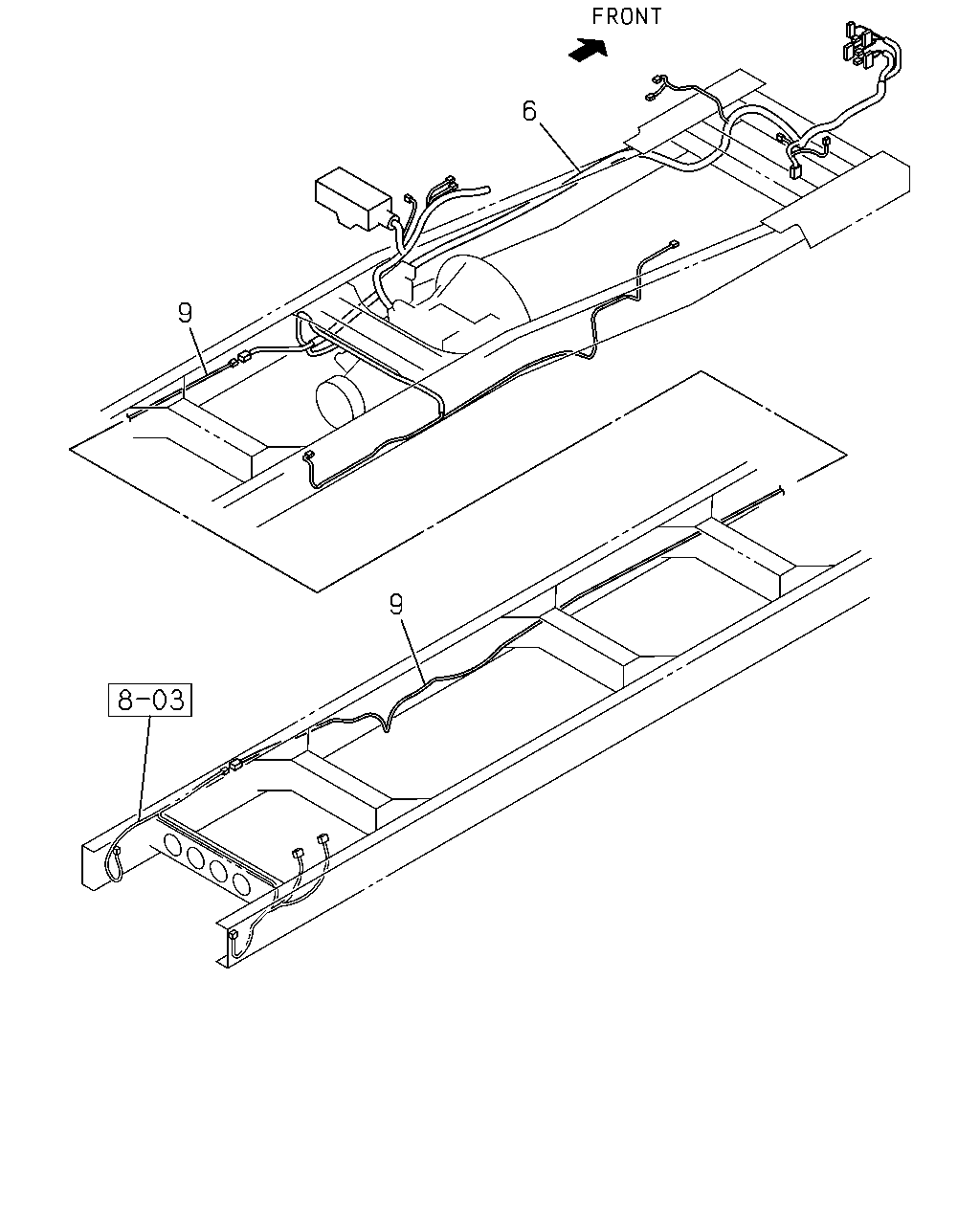

çizim 149435
6 9 9
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98175-464-0 01 1 1101-
9 HARNESS; FRAME,RR 8-98137-360-2 01 1 1101-

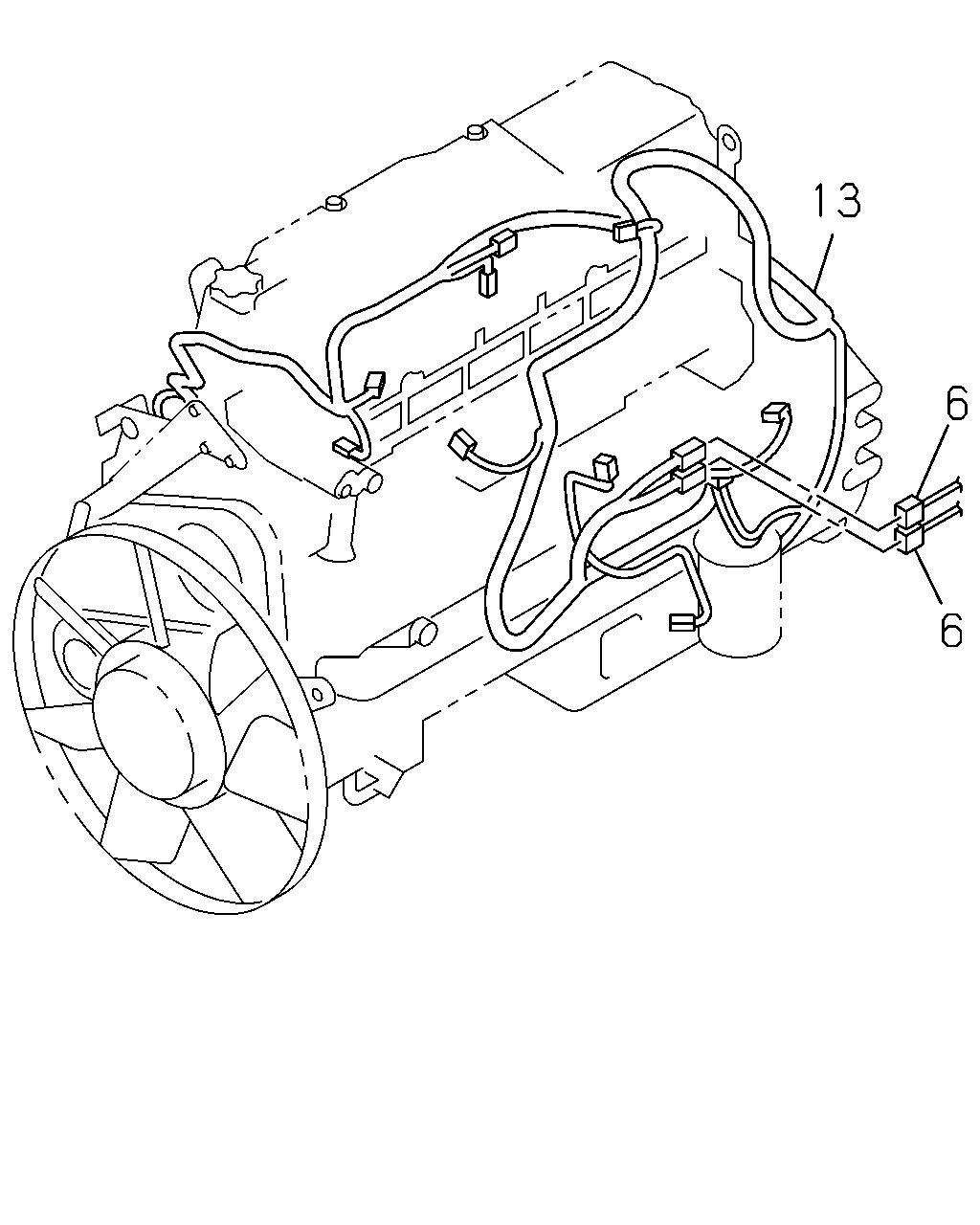

çizim 149445
13 6 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98175-464-0 01 1 1101-
13 HARNESS; ENG
GENERATOR 24V50A(K89) 		8-98075-770-5 01 1 1101-
13 HARNESS; ENG
GENERATOR 24V60A(KG2) 		8-98075-771-5 01 1 1101-
çizim 149534
1 2 2 2 2 314 431 431
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 8-98137-714-2 01 1 1101-1112
1 HARNESS; CAB 8-98209-638-0 01 1 1201-
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 1101-
2 DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 01 1 1101-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 08 1 1101-
2 DIODE; CABLE HARNESS
(D) BLACK 3P-1.5A 		8-94422-640-1 02 1 1101-
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 1101-1112
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1101-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 02 1 1101-1112
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 05 1 1101-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1101-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1101-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1101-1112
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1101-1112
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 1101-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1101-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1101-
çizim 149542
6 595 486 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 8-98137-714-2 01 1 1101-1112
1 HARNESS; CAB 8-98209-638-0 01 1 1201-
6 HARNESS; FRAME 8-98175-464-0 01 1 1101-
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82675-898-0 01 1 1101-
595 HARNESS; WARNING,BRK 8-97621-002-3 01 1 1101-

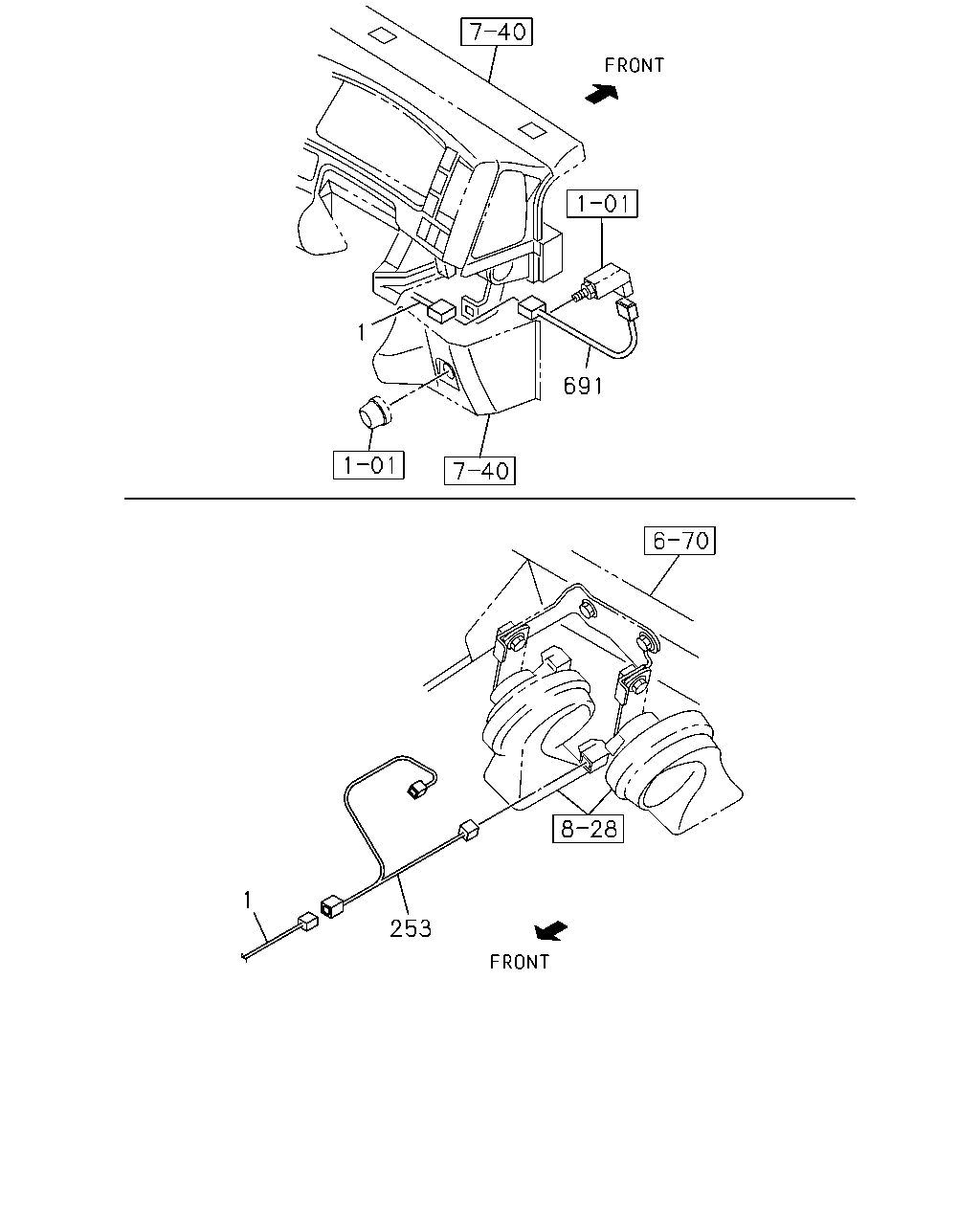

çizim 149543
1 691 1 253
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 8-98137-714-2 01 1 1101-1112
1 HARNESS; CAB 8-98209-638-0 01 1 1201-
253 HARNESS; EXT,HORN 8-98074-080-3 01 1 1101-
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 1101-
