6-31 — FRONT DOOR GLASS AND REGULATOR (#5145) — 339 parça

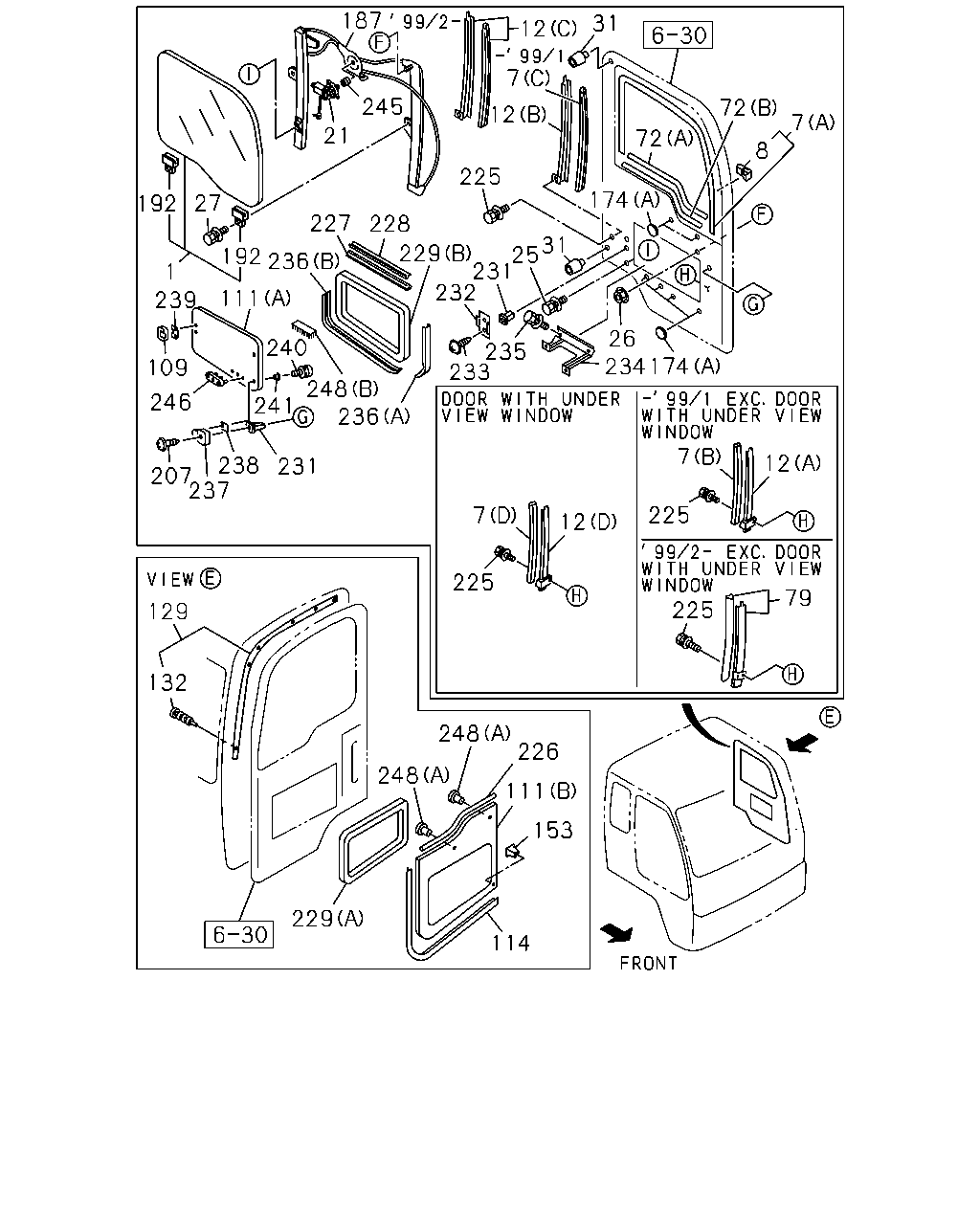

çizim 4461
31 12 7 245 72 1 7 21 72 8 225 174 27 192 227 228 31 229 25 231 232 192 236 1 111 239 235 233 26 240 109 241 248 236 7 246 12 238 207 237 231 225 7 12 225 225 79 129 132 248 226 248 111 153 229 114 187 234 174
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-060-1 01 1 9606-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-153-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-172-0 01 1 9802-9905
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-177-2 01 1 9906-
1 GLASS; FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-061-1 01 1 9606-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76167-154-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76167-173-2 01 1 9802-
1 GLASS; FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-071-0 01 1 9606-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-083-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-095-2 01 1 9802-
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-069-1 01 1 9606-9611
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-079-0 01 1 9612-9801
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-094-2 01 1 9802-
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-068-1 01 1 9606-9611
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76167-159-0 01 1 9612-9801
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76167-174-2 01 1 9802-
7 GLASS RUN; FRT DOOR
(A) 		1-74318-022-7 01 1 9606-
7 GLASS RUN; FRT DOOR
(C) 		1-74318-041-0 01 1 9606-9901
7 GLASS RUN; FRT DOOR
(A) 		1-74318-021-7 01 1 9606-
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 01 1 9606-9705
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 01 1 9706-9901
7 GLASS RUN; FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-038-0 01 1 9706-9901
7 GLASS RUN; FRT DOOR
(C) 		1-74318-040-0 01 1 9606-9901
7 GLASS RUN; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (D) 		1-74318-039-0 01 1 9606-
7 GLASS RUN; FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-043-0 01 1 9606-9705
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 9606-
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-049-1 01 1 9606-9901
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-071-2 01 1 9902-
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-046-1 01 1 9606-9901
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-070-2 01 1 9902-
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-048-1 01 1 9606-9901
12 CHANNEL; GLASS RUN,FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (D) 		1-74338-047-0 01 1 9606-
12 CHANNEL; GLASS RUN,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74338-037-1 01 1 9606-9901
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-153-1 01 1 9606-9608
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-161-0 01 1 9609-0003
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-176-0 01 1 0004-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-128-8 01 1 9606-9608
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-162-0 01 1 9609-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-139-2 01 1 9606-9608
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-164-0 01 1 9609-0003
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-177-0 01 1 0004-
25 BOLT; WINDOW REG
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 9606-
25 BOLT; WINDOW REG
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9606-
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE 		1-09984-141-0 08 1 9606-
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE 		1-09984-141-0 06 1 9606-
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9606-
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 9606-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-7 01 1 9606-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-5 01 1 9606-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-7 01 1 9606-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-5 01 1 9606-
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-2 01 1 9902-
79 CHANNEL; DOOR GLASS,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74338-069-2 01 1 9902-
109 LOCK ASM; DOOR WINDOW GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-052-0 01 1 9606-
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-76167-054-2 01 1 9606-9910
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-76167-176-0 01 1 9911-
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-76168-033-0 01 1 9606-9611
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-76167-155-0 01 1 9612-
114 MOLDING; OK WINDOW,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-71538-025-4 01 1 9606-0009
114 MOLDING; OK WINDOW,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-71538-038-1 01 1 0010-
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 9606-
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 9606-
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 9911-
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 9911-
153 GROMMET; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 01 1 9606-
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK 		1-76798-019-0 11 1 9606-
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK 		1-76798-019-0 14 1 9606-
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> (A) OD=25 BLACK 		1-76798-019-0 20 1 9606-
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> (B) OD=52 BLACK 		1-76798-041-0 02 1 9606-
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-152-0 01 1 9606-9608
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-165-1 01 1 9609-0003
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-178-2 01 1 0004-
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-127-7 01 1 9606-9608
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-166-3 01 1 9609-
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-138-2 01 1 9606-9608
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-167-1 01 1 9609-0003
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-179-2 01 1 0004-
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74428-013-0 02 1 9606-9801
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74428-013-0 02 1 9606-9801
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 9802-
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 9802-
192 HOLDER; DOOR GLASS
EXC. POWER WINDOW<A30> 		1-74428-013-0 04 1 9606-9801
192 HOLDER; DOOR GLASS
EXC. POWER WINDOW<A30> 		1-74427-170-0 04 1 9802-
207 SCREW; DOOR GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9606-
225 BOLT; FRT CHANNEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9606-0003
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0004-
226 FINISHER; OK WINDOW,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76738-093-5 01 1 9606-
227 RUBBER; SHUTTER
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76738-094-1 01 1 9606-9709
228 RAIL; DRIP,FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76738-095-4 01 1 9606-9709
229 SEAL; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-76738-096-4 01 1 9606-
229 SEAL; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-76738-097-4 01 1 9606-
231 GROMMET; SCREW
DOOR WITH UNDER VIEW WINDOW<YD8> D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 04 1 9606-
232 STRIKER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-055-1 01 1 9606-
233 SCREW; STRIKER
DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9606-
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 9606-
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 9606-
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9606-
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9606-
236 COVER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-73338-363-5 01 1 9606-
236 COVER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-73338-364-5 01 1 9606-
237 HINGE; DOOR WINDOW GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-050-1 02 1 9606-
238 SHEET; HINGE
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-051-0 02 1 9606-
239 SHEET; LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-053-0 01 1 9606-
240 SCREW; HINGE & LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 		8-94279-346-0 04 1 9606-
241 GASKET; HINGE & LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-054-0 04 1 9606-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> 		1-74418-146-0 01 1 9906-0003
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-146-0 01 1 9906-0003
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> 		1-74418-180-0 01 1 0004-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-147-1 01 1 9906-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-181-0 01 1 0004-
246 GRILLE; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74298-002-1 01 1 9606-
248 FASTENER
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74998-072-0 01 1 9606-
248 FASTENER
DOOR WITH UNDER VIEW WINDOW<YD8> (A) ID=5.4 OD=6.8 		1-09989-019-0 02 1 9606-

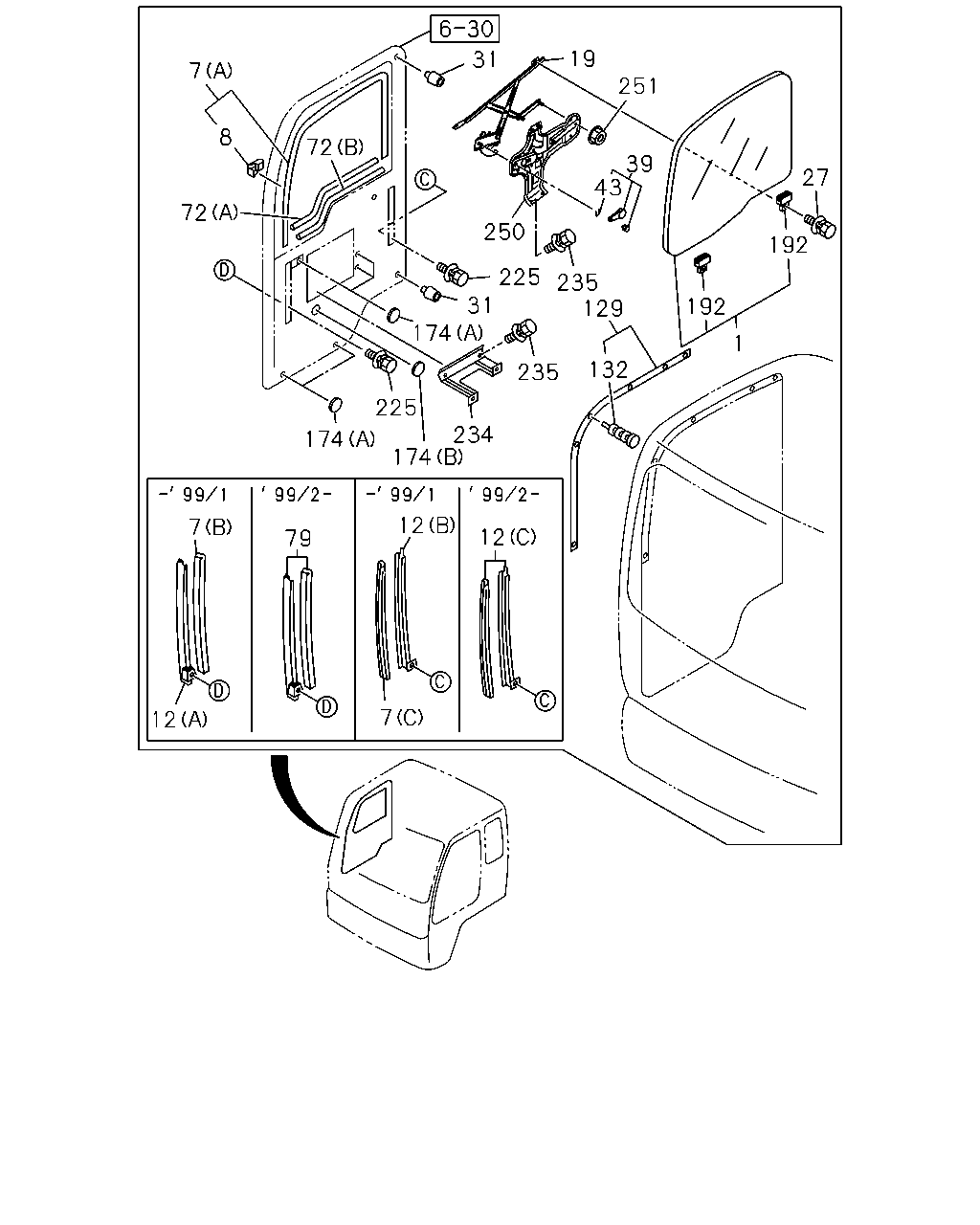

çizim 41051
19 31 7 251 8 72 39 43 27 72 250 192 225 235 129 31 174 192 1 132 235 25 234 174 174 12 7 12 79 7 12
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-060-1 01 1 9606-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-153-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-172-0 01 1 9802-9905
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-177-2 01 1 9906-
1 GLASS; FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-061-1 01 1 9606-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76167-154-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76167-173-2 01 1 9802-
1 GLASS; FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-071-0 01 1 9606-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-083-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-095-2 01 1 9802-
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-069-1 01 1 9606-9611
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-079-0 01 1 9612-9801
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-094-2 01 1 9802-
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-068-1 01 1 9606-9611
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76167-159-0 01 1 9612-9801
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76167-174-2 01 1 9802-
7 GLASS RUN; FRT DOOR
(A) 		1-74318-022-7 01 1 9606-
7 GLASS RUN; FRT DOOR
(C) 		1-74318-041-0 01 1 9606-9901
7 GLASS RUN; FRT DOOR
(A) 		1-74318-021-7 01 1 9606-
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 01 1 9606-9705
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 01 1 9706-9901
7 GLASS RUN; FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-038-0 01 1 9706-9901
7 GLASS RUN; FRT DOOR
(C) 		1-74318-040-0 01 1 9606-9901
7 GLASS RUN; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (D) 		1-74318-039-0 01 1 9606-
7 GLASS RUN; FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-043-0 01 1 9606-9705
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 9606-
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-049-1 01 1 9606-9901
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-071-2 01 1 9902-
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-046-1 01 1 9606-9901
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-070-2 01 1 9902-
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-048-1 01 1 9606-9901
12 CHANNEL; GLASS RUN,FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (D) 		1-74338-047-0 01 1 9606-
12 CHANNEL; GLASS RUN,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74338-037-1 01 1 9606-9901
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-134-4 01 1 9607-
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-144-4 01 1 9607-
25 BOLT; WINDOW REG
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 9606-
25 BOLT; WINDOW REG
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9606-
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9606-
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 9606-
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> BLACK 		8-94371-427-0 02 1 9606-
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW<A30> 		8-94220-591-0 02 1 9606-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-7 01 1 9606-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-5 01 1 9606-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-7 01 1 9606-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-5 01 1 9606-
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-2 01 1 9902-
79 CHANNEL; DOOR GLASS,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74338-069-2 01 1 9902-
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 9606-
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 9606-
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 9911-
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 9911-
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK 		1-76798-019-0 11 1 9606-
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK 		1-76798-019-0 14 1 9606-
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> (A) OD=25 BLACK 		1-76798-019-0 20 1 9606-
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> (B) OD=52 BLACK 		1-76798-041-0 02 1 9606-
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74428-013-0 02 1 9606-9801
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74428-013-0 02 1 9606-9801
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 9802-
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 9802-
192 HOLDER; DOOR GLASS
EXC. POWER WINDOW<A30> 		1-74428-013-0 04 1 9606-9801
192 HOLDER; DOOR GLASS
EXC. POWER WINDOW<A30> 		1-74427-170-0 04 1 9802-
225 BOLT; FRT CHANNEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9606-0003
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0004-
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 9606-
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 9606-
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9606-
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9606-
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-148-0 02 1 9906-
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-149-0 02 1 9906-
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-149-0 01 1 9607-9905
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-148-0 01 1 9607-9905
251 NUT; BRKT
EXC. POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 04 1 9606-

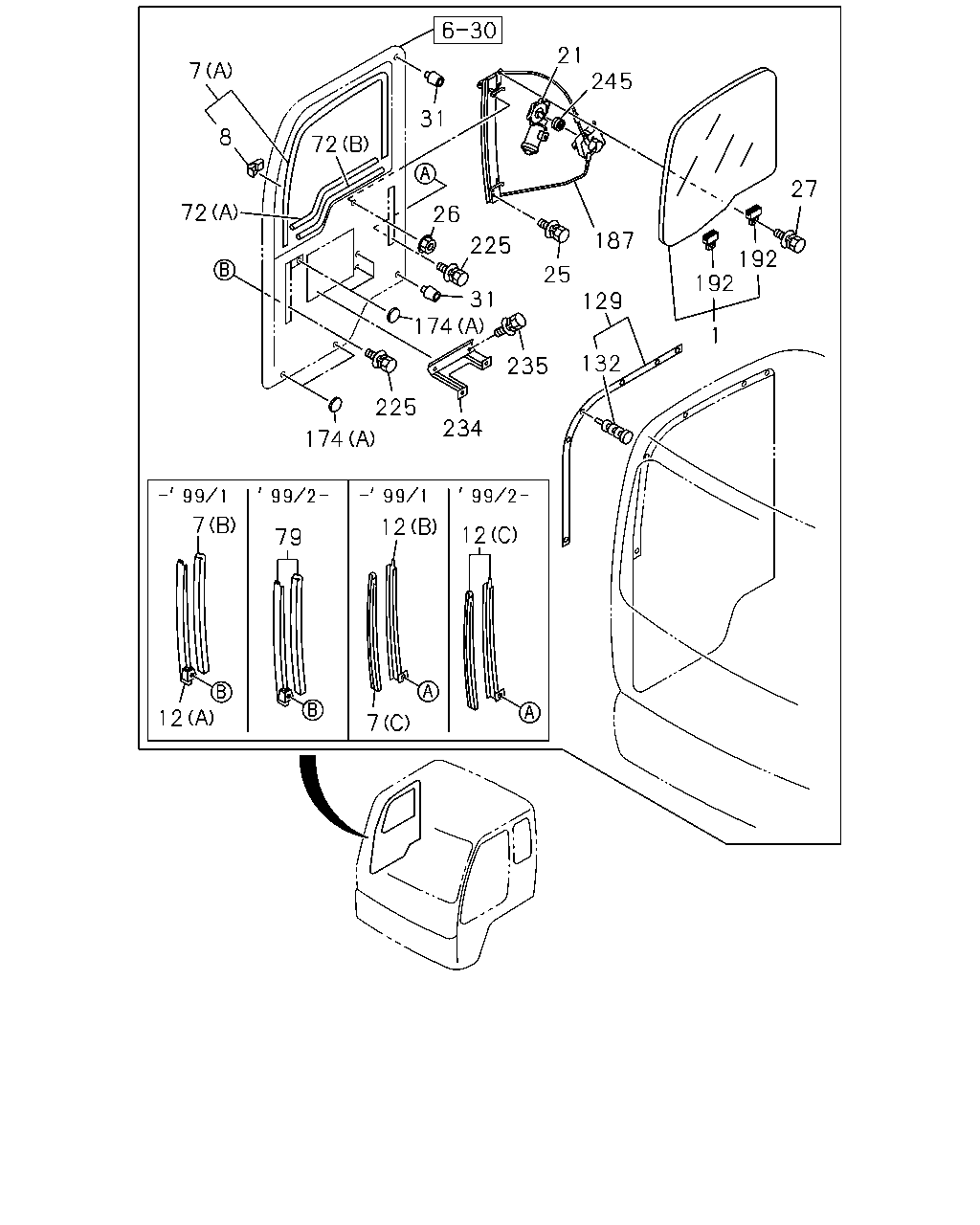

çizim 41530
21 7 245 31 8 72 27 72 26 187 225 192 192 25 31 174 129 1 132 235 225 234 174 7 12 12 79 12 7
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-060-1 01 1 9606-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-153-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-172-0 01 1 9802-9905
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-177-2 01 1 9906-
1 GLASS; FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-061-1 01 1 9606-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76167-154-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76167-173-2 01 1 9802-
1 GLASS; FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-071-0 01 1 9606-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-083-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-095-2 01 1 9802-
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-069-1 01 1 9606-9611
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-079-0 01 1 9612-9801
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-094-2 01 1 9802-
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-068-1 01 1 9606-9611
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76167-159-0 01 1 9612-9801
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76167-174-2 01 1 9802-
7 GLASS RUN; FRT DOOR
(A) 		1-74318-022-7 01 1 9606-
7 GLASS RUN; FRT DOOR
(C) 		1-74318-041-0 01 1 9606-9901
7 GLASS RUN; FRT DOOR
(A) 		1-74318-021-7 01 1 9606-
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 01 1 9606-9705
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 01 1 9706-9901
7 GLASS RUN; FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-038-0 01 1 9706-9901
7 GLASS RUN; FRT DOOR
(C) 		1-74318-040-0 01 1 9606-9901
7 GLASS RUN; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (D) 		1-74318-039-0 01 1 9606-
7 GLASS RUN; FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-043-0 01 1 9606-9705
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 9606-
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-049-1 01 1 9606-9901
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-071-2 01 1 9902-
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-046-1 01 1 9606-9901
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-070-2 01 1 9902-
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-048-1 01 1 9606-9901
12 CHANNEL; GLASS RUN,FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (D) 		1-74338-047-0 01 1 9606-
12 CHANNEL; GLASS RUN,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74338-037-1 01 1 9606-9901
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-153-1 01 1 9606-9608
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-161-0 01 1 9609-0003
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-176-0 01 1 0004-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-128-8 01 1 9606-9608
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-162-0 01 1 9609-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-139-2 01 1 9606-9608
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-164-0 01 1 9609-0003
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-177-0 01 1 0004-
25 BOLT; WINDOW REG
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 9606-
25 BOLT; WINDOW REG
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9606-
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE 		1-09984-141-0 08 1 9606-
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE 		1-09984-141-0 06 1 9606-
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9606-
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 9606-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-7 01 1 9606-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-5 01 1 9606-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-7 01 1 9606-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-5 01 1 9606-
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-2 01 1 9902-
79 CHANNEL; DOOR GLASS,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74338-069-2 01 1 9902-
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 9606-
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 9606-
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 9911-
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 9911-
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK 		1-76798-019-0 11 1 9606-
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK 		1-76798-019-0 14 1 9606-
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> (A) OD=25 BLACK 		1-76798-019-0 20 1 9606-
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> (B) OD=52 BLACK 		1-76798-041-0 02 1 9606-
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-152-0 01 1 9606-9608
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-165-1 01 1 9609-0003
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-178-2 01 1 0004-
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-127-7 01 1 9606-9608
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-166-3 01 1 9609-
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-138-2 01 1 9606-9608
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-167-1 01 1 9609-0003
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-179-2 01 1 0004-
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74428-013-0 02 1 9606-9801
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74428-013-0 02 1 9606-9801
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 9802-
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 9802-
192 HOLDER; DOOR GLASS
EXC. POWER WINDOW<A30> 		1-74428-013-0 04 1 9606-9801
192 HOLDER; DOOR GLASS
EXC. POWER WINDOW<A30> 		1-74427-170-0 04 1 9802-
225 BOLT; FRT CHANNEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9606-0003
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0004-
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 9606-
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 9606-
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9606-
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9606-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> 		1-74418-146-0 01 1 9906-0003
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-146-0 01 1 9906-0003
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> 		1-74418-180-0 01 1 0004-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-147-1 01 1 9906-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-181-0 01 1 0004-

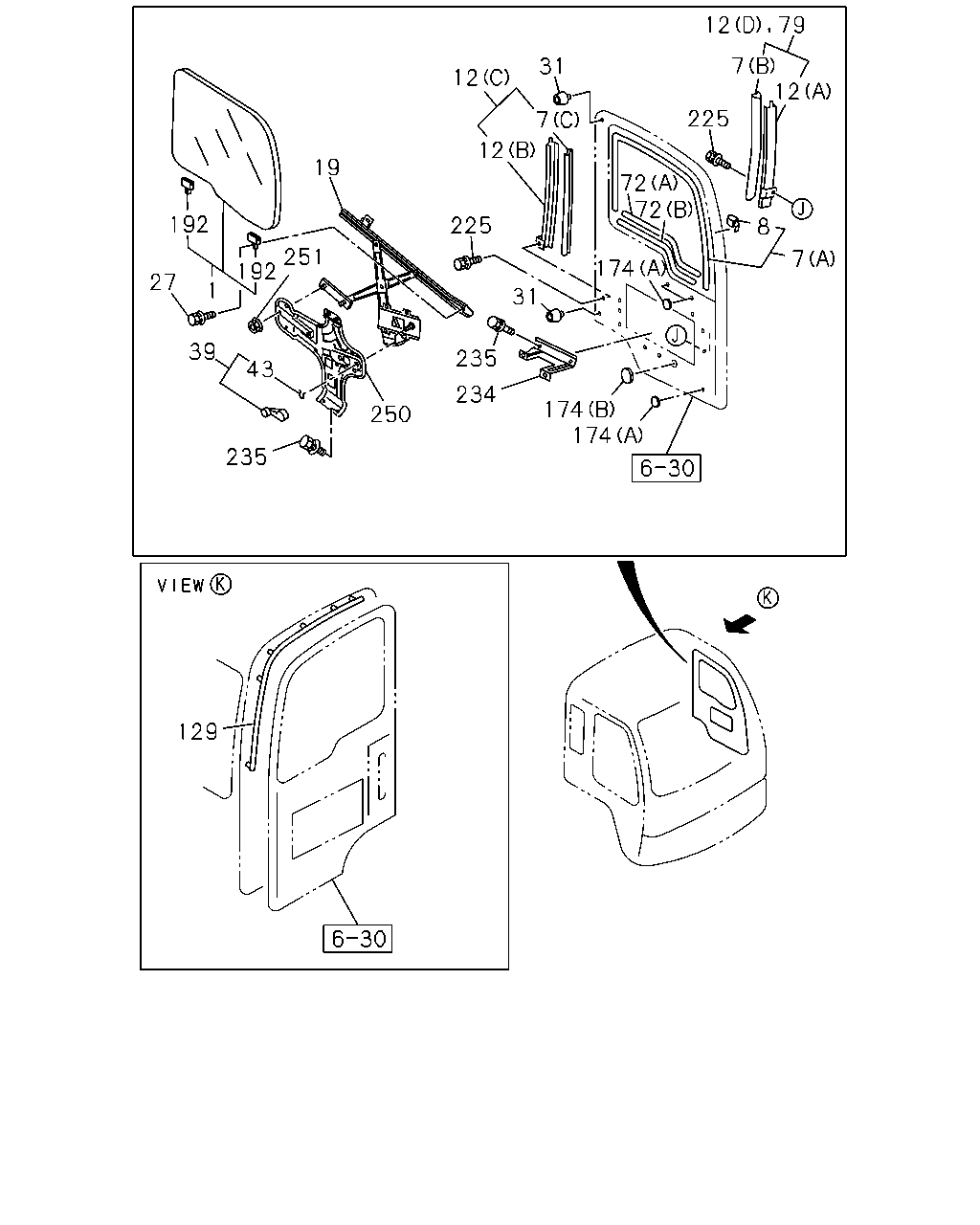

çizim 42233
7 12 31 12 225 7 12 19 72 72 192 225 8 251 192 7 174 27 31 1 39 235 43 234 174 174 250 235 129 12 79
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-060-1 01 1 9606-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-153-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-172-0 01 1 9802-9905
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-177-2 01 1 9906-
1 GLASS; FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-061-1 01 1 9606-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76167-154-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76167-173-2 01 1 9802-
1 GLASS; FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-071-0 01 1 9606-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-083-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-095-2 01 1 9802-
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-069-1 01 1 9606-9611
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-079-0 01 1 9612-9801
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-094-2 01 1 9802-
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-068-1 01 1 9606-9611
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76167-159-0 01 1 9612-9801
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76167-174-2 01 1 9802-
7 GLASS RUN; FRT DOOR
(A) 		1-74318-022-7 01 1 9606-
7 GLASS RUN; FRT DOOR
(C) 		1-74318-041-0 01 1 9606-9901
7 GLASS RUN; FRT DOOR
(A) 		1-74318-021-7 01 1 9606-
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 01 1 9606-9705
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 01 1 9706-9901
7 GLASS RUN; FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-038-0 01 1 9706-9901
7 GLASS RUN; FRT DOOR
(C) 		1-74318-040-0 01 1 9606-9901
7 GLASS RUN; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (D) 		1-74318-039-0 01 1 9606-
7 GLASS RUN; FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-043-0 01 1 9606-9705
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 9606-
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-049-1 01 1 9606-9901
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-071-2 01 1 9902-
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-046-1 01 1 9606-9901
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-070-2 01 1 9902-
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-048-1 01 1 9606-9901
12 CHANNEL; GLASS RUN,FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (D) 		1-74338-047-0 01 1 9606-
12 CHANNEL; GLASS RUN,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74338-037-1 01 1 9606-9901
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-134-4 01 1 9607-
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-144-4 01 1 9607-
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9606-
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 9606-
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> BLACK 		8-94371-427-0 02 1 9606-
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW<A30> 		8-94220-591-0 02 1 9606-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-7 01 1 9606-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-5 01 1 9606-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-7 01 1 9606-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-5 01 1 9606-
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-2 01 1 9902-
79 CHANNEL; DOOR GLASS,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74338-069-2 01 1 9902-
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 9606-
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 9606-
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK 		1-76798-019-0 11 1 9606-
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK 		1-76798-019-0 14 1 9606-
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> (A) OD=25 BLACK 		1-76798-019-0 20 1 9606-
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> (B) OD=52 BLACK 		1-76798-041-0 02 1 9606-
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74428-013-0 02 1 9606-9801
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74428-013-0 02 1 9606-9801
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 9802-
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 9802-
192 HOLDER; DOOR GLASS
EXC. POWER WINDOW<A30> 		1-74428-013-0 04 1 9606-9801
192 HOLDER; DOOR GLASS
EXC. POWER WINDOW<A30> 		1-74427-170-0 04 1 9802-
225 BOLT; FRT CHANNEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9606-0003
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0004-
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 9606-
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 9606-
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9606-
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9606-
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-148-0 02 1 9906-
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-149-0 02 1 9906-
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-149-0 01 1 9607-9905
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-148-0 01 1 9607-9905
251 NUT; BRKT
EXC. POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 04 1 9606-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
