Isuzu WW
▶
TRUCKS
▶
NMR
▶
51385 - NMR 71(MIDDLE EAST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-70 - FLOOR PANEL
▶
6-70 — FLOOR PANEL
(#51443) — 38 parça
◀

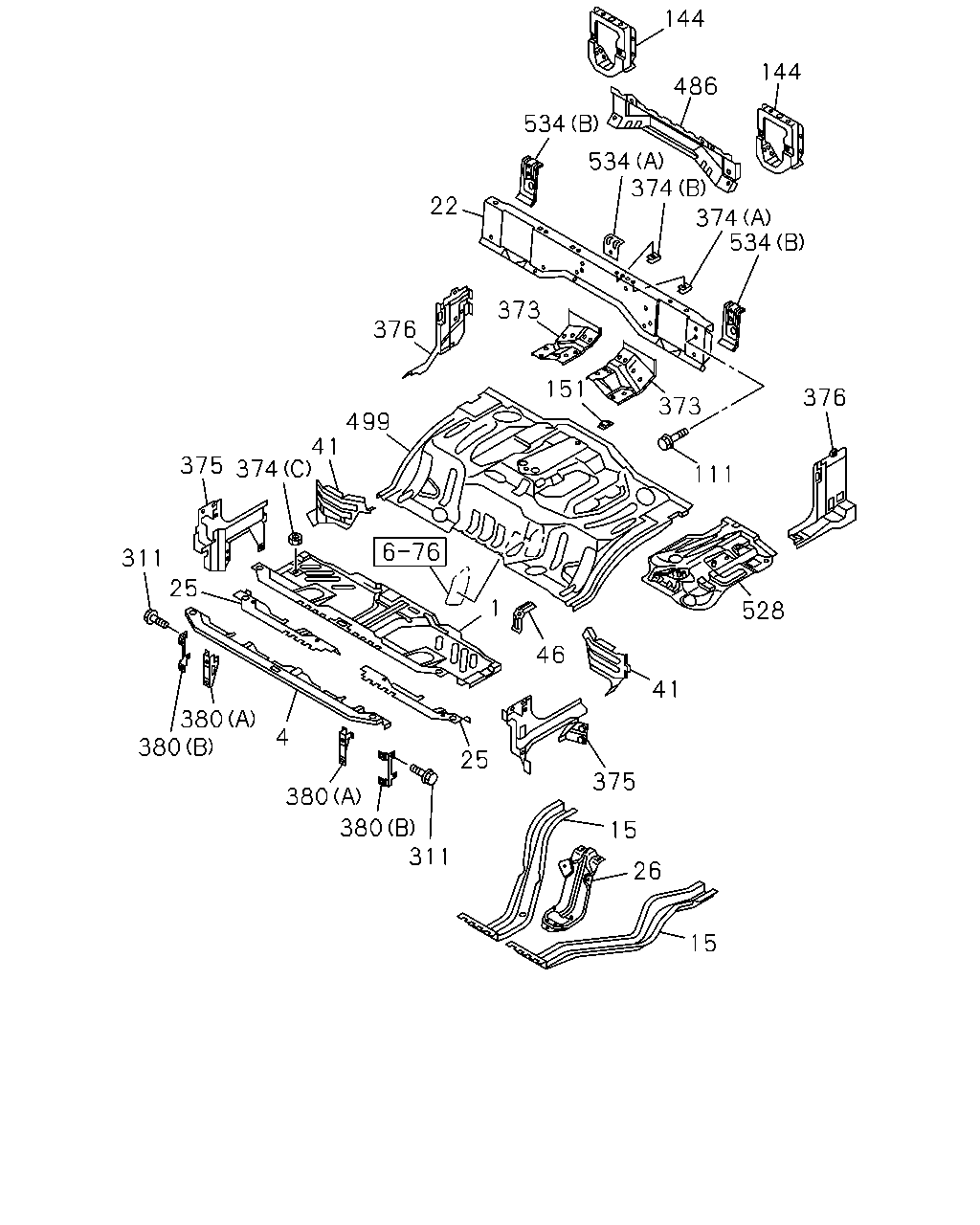

[670A] PANEL (33 parça)

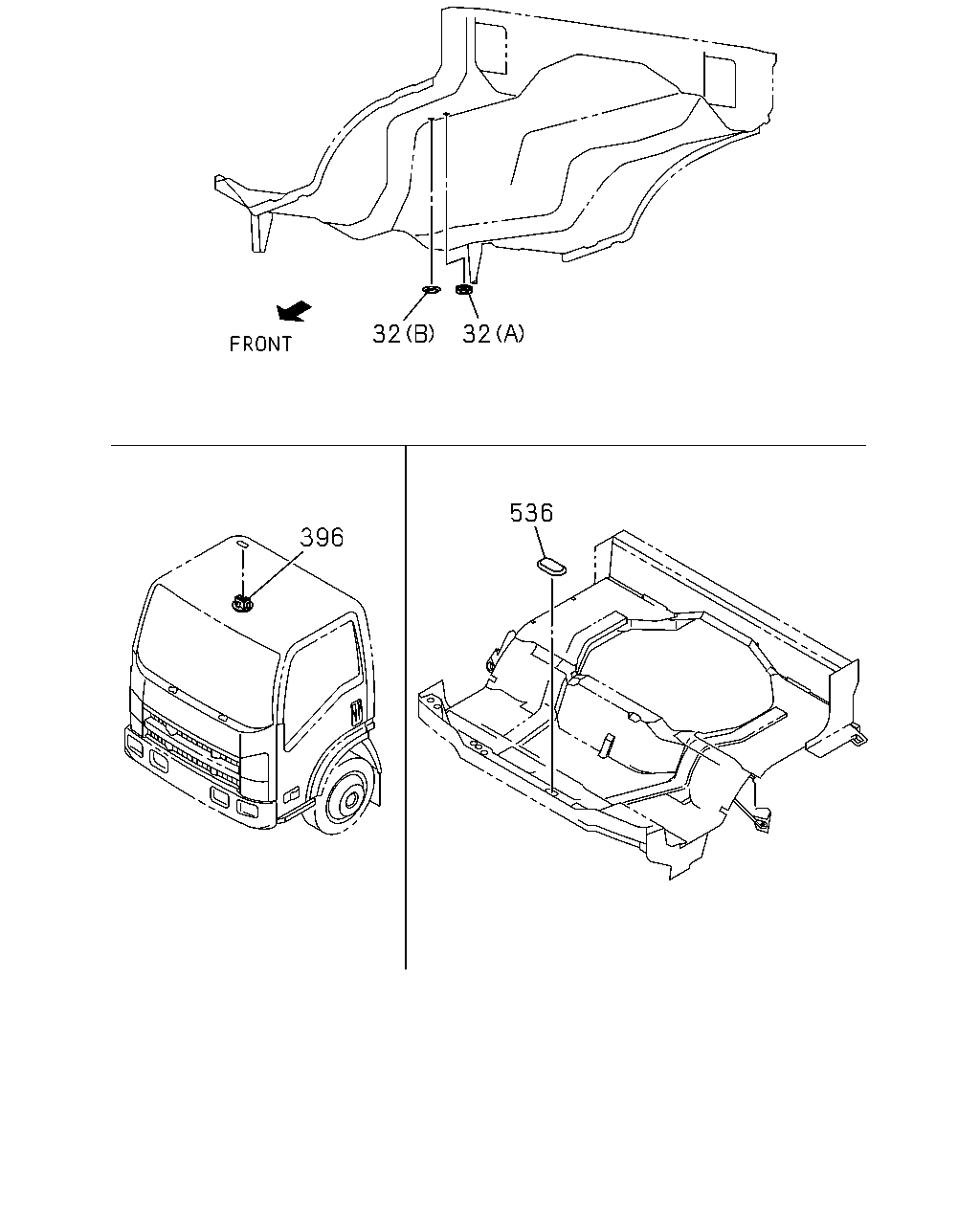

[670A] GROMMET AND PLUG (5 parça)
▶
144
144
486
534
534
374
22
374
534
373
376
151
376
373
499
41
374
375
111
311
25
1
528
46
41
380
380
4
25
375
380
380
311
15
26
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.545 PANEL; FLOOR
8-97589-434-1
01
1
0810-
4
16.545 FRAME; FLOOR,FRT
8-98080-108-0
01
1
0810-
15
16.545 FRAME; UNDER
8-98061-277-1
01
1
0810-
15
16.545 FRAME; UNDER
8-98061-278-1
01
1
0810-
22
16.545 FRAME; FLOOR REAR
8-97589-446-2
01
1
0810-
25
16.545 REINFORCEMENT; FRAME FLOOR,FRT
8-97588-030-1
01
1
0810-
25
16.545 REINFORCEMENT; FRAME FLOOR,FRT
8-97588-031-1
01
1
0810-
26
16.545 PANEL; GEAR CONT REINF
8-97589-517-1
01
1
0810-
41
16.545 SUPPORT; STEP,RR
8-97583-935-2
01
1
0810-
41
16.545 SUPPORT; STEP,RR
8-97583-936-2
01
1
0810-
46
16.545 BRACKET; FRT SEAT,RR OUTER
8-97583-834-0
01
1
0810-
111
16.549 BOLT; PANEL
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0810-
144
16.545 BRACKET; MTG,RR
8-97589-544-3
02
1
0810-
151
16.670 BRACKET; SEAT CUSHION STOPPER
8-97583-833-0
01
1
0810-
311
16.545 BOLT; BRKT
02.343 M6X16 FLANGE
0-28650-616-0
04
1
0810-
373
16.545 REINFORCEMENT; SEAT BELT
8-97589-447-0
01
1
0810-
373
16.545 REINFORCEMENT; SEAT BELT
8-97589-448-0
01
1
0810-
374
16.545 NUT; FLOOR
(B) M6
1-09984-110-0
02
1
0810-
374
16.545 NUT; FLOOR
(A) M8
1-09984-111-0
01
1
0810-
374
16.545 NUT; FLOOR
(C) M8
9-09114-068-0
03
1
0810-
375
16.545 CLOSING; PILLAR
8-97583-882-3
01
1
0810-
375
16.545 CLOSING; PILLAR
8-97583-883-2
01
1
0810-
376
16.545 CLOSING; PILLAR,LWR
8-97583-888-2
01
1
0810-
376
16.545 CLOSING; PILLAR,LWR
8-97584-618-2
01
1
0810-
380
16.545 BRACKET; HEAD LAMP
(A)
8-97589-384-4
01
1
0810-
380
16.545 BRACKET; HEAD LAMP
(A)
8-97589-385-3
01
1
0810-
380
16.545 BRACKET; HEAD LAMP
(B)
8-98029-288-0
01
1
0810-
380
16.545 BRACKET; HEAD LAMP
(B)
8-98029-289-0
01
1
0810-
486
16.545 REINFORCEMENT; FRAME FLOOR,REAR
8-98030-610-2
01
1
0810-
499
16.545 PANEL; FLOOR,RR
8-97589-436-0
01
1
0810-
528
16.545 REINFORCEMENT; PARKING BRAKE
8-97589-437-2
01
1
0810-
534
16.545 REINFORCEMENT; SEAT BACK
(B)
8-98007-678-2
02
1
0810-
534
16.545 REINFORCEMENT; SEAT BACK
(A)
8-98019-181-2
01
1
0810-
32
32
536
396
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
16.547 GROMMET; FLOOR PANEL,LOCATION HO
(B) OD=12.1
8-97898-423-0
02
1
0810-
32
16.547 GROMMET; FLOOR PANEL,LOCATION HO
00.785 (A) OD=16.2
8-94492-493-0
02
1
0810-0908
32
16.547 GROMMET; FLOOR PANEL,LOCATION HO
(A) OD=15.0
8-94279-040-0
02
1
0909-
396
16.547 GROMMET; LOCATION HOLE
8-98054-990-0
02
1
0810-
536
16.549 PLUG; CABLE,PTO
04.008
8-98029-219-1
01
1
0810-
